Κεραία WiFi Poynting KFZ A-PUCK-0007-V2-01 Black SMA (M) & RPSMA Adapter

The Poynting A-PUCK-0007-V2-01 is a highly efficient 4-in-1 omnidirectional antenna, specifically designed for applications in transportation, marine environments, and IoT/M2M services. It integrates both cellular and WiFi capabilities in a sleek, low-profile housing. Key Features: Cellular...

Κεραία WiFi Poynting KFZ A-PUCK-0007-V2-01 Black SMA (M) & RPSMA Adapter

Name: Κεραία WiFi Poynting KFZ A-PUCK-0007-V2-01 Black SMA (M) & RPSMA Adapter
Brand: Poynting
SKU: 1173619545
Price: 125.23 EUR
Availability: OutOfStock

Product Code: 1173619545

Available in 4 - 10 days

125,23 €

3,91€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

The Poynting A-PUCK-0007-V2-01 is a highly efficient 4-in-1 omnidirectional antenna, specifically designed for applications in transportation, marine environments, and IoT/M2M services. It integrates both cellular and WiFi capabilities in a sleek, low-profile housing.

Key Features:

Cellular Connectivity: Dual 2x2 MIMO antennas supporting 5G/LTE across multiple frequency bands from 617 to 6000 MHz.
WiFi Specifications: Dual-band (2.4-2.5 GHz and 5-7.2 GHz) with WiFi-6E/7 compatibility.
Robust Build: Made from halogen-free PC+ABS material, the antenna is UV-stable and fire-resistant, ensuring durability.
Environmental Ratings: IP69K waterproof and dustproof, with IK10 impact resistance, making it ideal for various weather conditions.

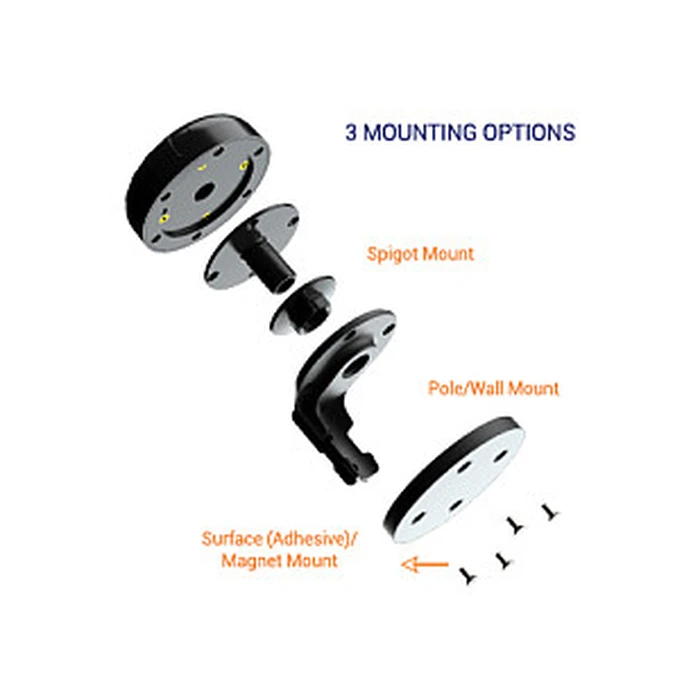

Furthermore, the Poynting A-PUCK-0007-V2-01 features versatile mounting options with Ø20 threaded spigots that accommodate various installation needs, whether on poles, walls, or surfaces. This flexibility makes it a perfect choice for vehicle installations, enhancing connectivity wherever you go.

With its remarkable technical specifications and robust construction, this antenna stands as a reliable part of any tech-savvy fleet or marine application, ensuring seamless communication without interruptions.

Cellular Antenna Frequency Bands

617–6000 MHz
WiFi Antenna Frequency Bands

2.4–2.5 GHz, 5–7.2 GHz
Peak Gain Cellular

6–7 dBi
Peak Gain WiFi

5 dBi @ 2.4–2.5 GHz, 7.5 dBi @ 5–7.2 GHz
VSWR Cellular

≤2:1
VSWR WiFi

≤2:1
Input Impedance

50 Ohm
Feed Power Handling

10 W
Cable Loss Cellular

0.56 dB/m @ 900 MHz
Cable Loss WiFi

0.91 dB/m @ 2400 MHz
Material

PC+ABS
Operating Temperature

-40°C to +80°C
Humidity

up to 98%
Impact Resistance

IK10
Waterproof Rating

IP69K

Ratings

How do you rate this product?

0/5

Description

Key Features:

Cellular Connectivity: Dual 2x2 MIMO antennas supporting 5G/LTE across multiple frequency bands from 617 to 6000 MHz.
WiFi Specifications: Dual-band (2.4-2.5 GHz and 5-7.2 GHz) with WiFi-6E/7 compatibility.
Robust Build: Made from halogen-free PC+ABS material, the antenna is UV-stable and fire-resistant, ensuring durability.
Environmental Ratings: IP69K waterproof and dustproof, with IK10 impact resistance, making it ideal for various weather conditions.

Technical Specifications

Cellular Antenna Frequency Bands

617–6000 MHz
WiFi Antenna Frequency Bands

2.4–2.5 GHz, 5–7.2 GHz
Peak Gain Cellular

6–7 dBi
Peak Gain WiFi

5 dBi @ 2.4–2.5 GHz, 7.5 dBi @ 5–7.2 GHz
VSWR Cellular

≤2:1
VSWR WiFi

≤2:1
Input Impedance

50 Ohm
Feed Power Handling

10 W
Cable Loss Cellular

0.56 dB/m @ 900 MHz
Cable Loss WiFi

0.91 dB/m @ 2400 MHz
Material

PC+ABS
Operating Temperature

-40°C to +80°C
Humidity

up to 98%
Impact Resistance

IK10
Waterproof Rating

IP69K
