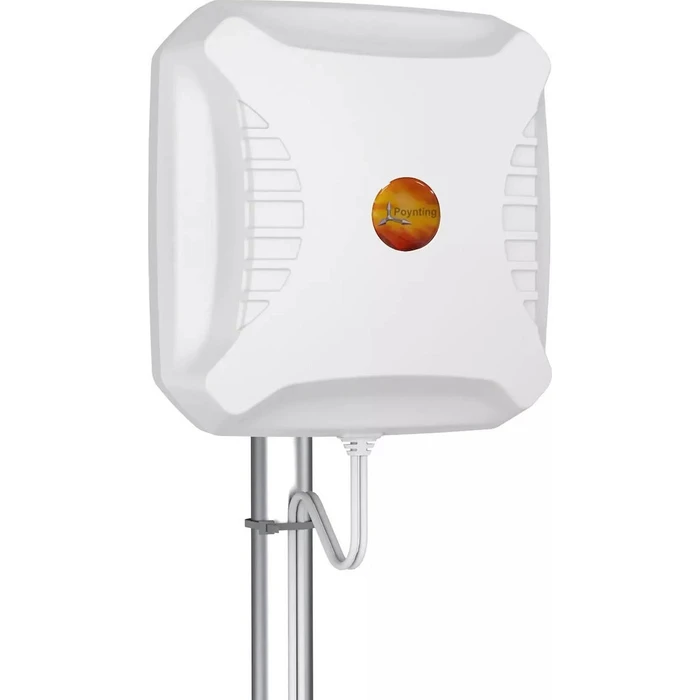

Κεραία Δικτύου Poynting 5G/LTE Mast/Wand A-XPOL-0002-V3-01 White SMA (M) LoRa Helium 11dbi Flat-MIMO SMA 5 Meter
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Κεραία WiFi Mikrotik 915 / Omnidirectional 6.5dBi 900-928MHz + SMA + Bracket
Κεραία WiFi Extralink EXSEC19-60 5GHz MIMO 4x4, 60°, 19dBi, for Mimosa A5C
The Poynting Antennas 5G/LTE Mast/Wand A-XPOL-0002-V3-01 is a third-generation, cross-polarized (XPOL) 2x2 MIMO antenna designed for high-performance cellular communication. This antenna is part of Poyntings XPOL-2 series, specifically engineered to support 5G and LTE networks.
Key Features:
- Frequency Bands: Covers a wide range including 617-960 MHz, 1710-2170 MHz, 2300-2700 MHz, and 3400-4200 MHz.
- Gain and Performance: Peak gain of 11 dBi, enhanced by advanced metamaterial technology.
- Polarization: X-polarized with ±45° for optimal LTE performance.
- Mounting and Enclosure: Weatherproof design with an IP65 rating using UV-stable materials.
- Environmental Specifications: Operational range of -40°C to +80°C and humidity up to 98%.
Connectivity Options:
- Available with 5 or 10-meter HDF 195 cable options.
- Alternative configurations available without cabling.
The Poynting Antennas 5G/LTE Mast/Wand A-XPOL-0002-V3-01 is ideal for various industrial, commercial, and residential applications, making it a versatile solution for different deployment scenarios.
-
Dimensions265 mm x 265 mm x 90 mm
-
Packaged Dimensions290 mm x 276 mm x 98 mm
-
Weight1.55 kg
-
ConnectorsSMA male connectors
-
Cable Length5 meters or 10 meters, or without cabling using N-Type female connectors
-
Maximum Gain11 dBi (3400-4200 MHz); 9 dBi (617-894 MHz); 10 dBi (1710-2700 MHz)
-
VSWR?1.5:1 over 90% of band
-
Impedance50 ohms
-
PolarizationCross-polarized (±45°)
Ratings
Description
The Poynting Antennas 5G/LTE Mast/Wand A-XPOL-0002-V3-01 is a third-generation, cross-polarized (XPOL) 2x2 MIMO antenna designed for high-performance cellular communication. This antenna is part of Poyntings XPOL-2 series, specifically engineered to support 5G and LTE networks.
Key Features:
- Frequency Bands: Covers a wide range including 617-960 MHz, 1710-2170 MHz, 2300-2700 MHz, and 3400-4200 MHz.
- Gain and Performance: Peak gain of 11 dBi, enhanced by advanced metamaterial technology.
- Polarization: X-polarized with ±45° for optimal LTE performance.
- Mounting and Enclosure: Weatherproof design with an IP65 rating using UV-stable materials.
- Environmental Specifications: Operational range of -40°C to +80°C and humidity up to 98%.
Connectivity Options:
- Available with 5 or 10-meter HDF 195 cable options.
- Alternative configurations available without cabling.
The Poynting Antennas 5G/LTE Mast/Wand A-XPOL-0002-V3-01 is ideal for various industrial, commercial, and residential applications, making it a versatile solution for different deployment scenarios.
Technical Specifications
-
Dimensions265 mm x 265 mm x 90 mm
-
Packaged Dimensions290 mm x 276 mm x 98 mm
-
Weight1.55 kg
-
ConnectorsSMA male connectors
-
Cable Length5 meters or 10 meters, or without cabling using N-Type female connectors
-
Maximum Gain11 dBi (3400-4200 MHz); 9 dBi (617-894 MHz); 10 dBi (1710-2700 MHz)
-
VSWR?1.5:1 over 90% of band
-
Impedance50 ohms
-
PolarizationCross-polarized (±45°)
