Detailed Description

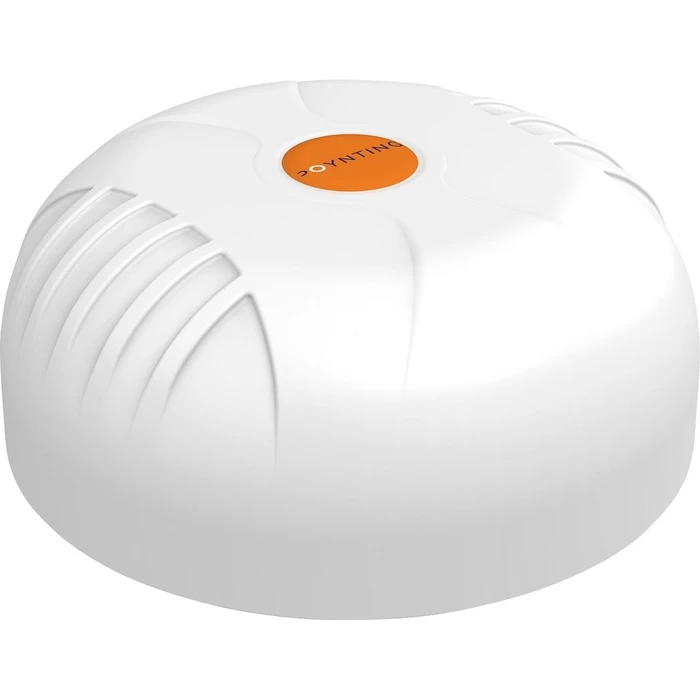

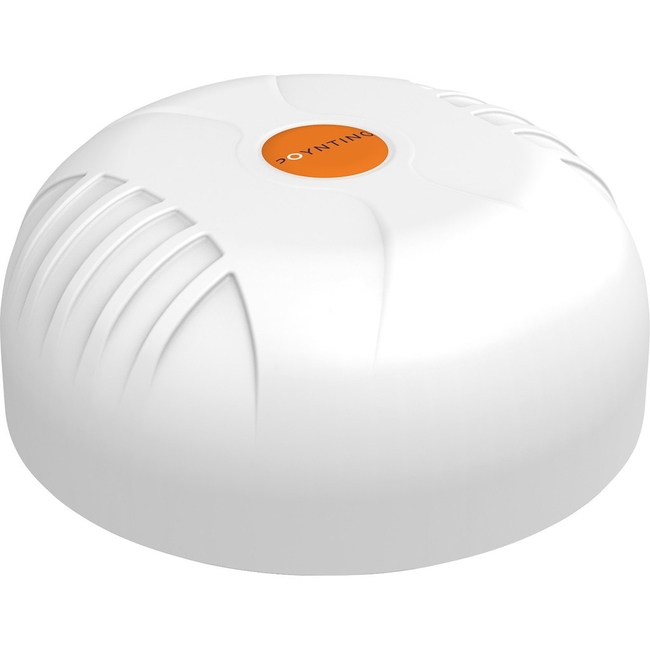

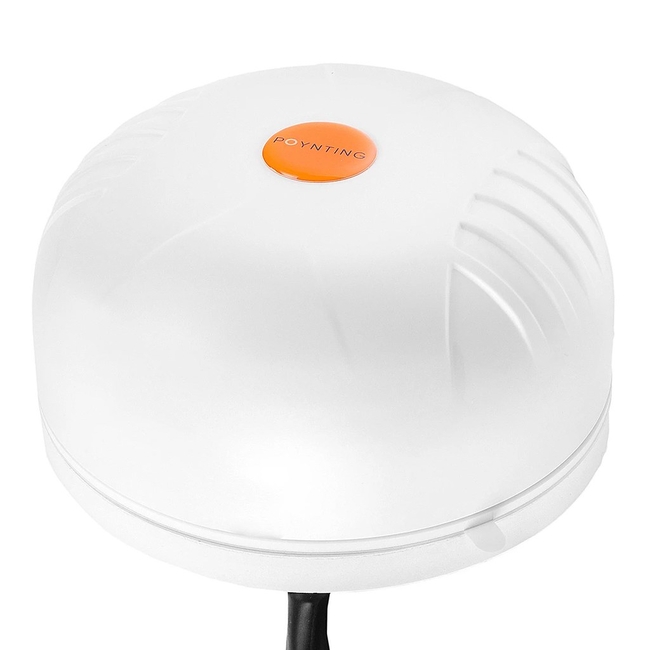

The Poynting Antennas 5G/LTE KFZ/Marine A-MIMO-0004-V1-19-W Wi-Fi wei? SMA (M) 3.5~6dBi GPS/Glonass 2M SMA-M Kabel IP69K is engineered for high-performance across multiple frequencies. Its versatility makes it suitable for applications in commercial vehicles, marine environments, M2M systems, and various IoT devices. This advanced 9-in-1 antenna integrates cellular, Wi-Fi, and GPS/GLONASS functions all in one unit.
Here are some key features:
- Multi-Frequency Coverage: Ultra-wideband operation from 617 to 6000 MHz, compatible with LTE/4G and 5G.
- MIMO Capabilities: 4x4 MIMO for both LTE and Wi-Fi to enhance data speeds.
- GPS/GLONASS Integration: Accurate location tracking for seamless navigation.
- Robust Design: Built to withstand harsh conditions, IP69K rated for water and impact resistance.
- Flexible Mounting Options: Includes pole, wall, surface, and optional magnetic mounts.
This antenna features dimensions of 160 mm in diameter and 65 mm in height, equipped with a 2 m coaxial cable. Its specifications ensure reliability in demanding environments, making it a perfect choice for those seeking dependable connectivity solutions.
Specifications
-
Frequency Bands - Cellular
- 617 960 MHz, 1427 1517 MHz, 1710 2700 MHz, 3400 4200 MHz, 5000 6000 MHz
-
Frequency Bands - Wi-Fi
- 2.4 2.5 GHz και 5.0 7.2 GHz
-
Frequency Bands - GPS/GLONASS
- Τυπικές συχνότητες για συστήματα πλοήγησης GPS και GLONASS
-
Gain - Cellular
- 0.5 dBi @ 617 960 MHz, 3.5 dBi @ 1427 1517 MHz, 5.5 dBi @ 1710 2700 MHz, 5.5 dBi @ 3400 4200 MHz, 6 dBi @ 5000 6000 MHz
-
Gain - Wi-Fi
- 6.5 dBi
-
Gain - GPS/GLONASS
- 21 dBi
-
VSWR
- <2:1 σε όλες τις ζώνες
-
Feed Power Handling
- 10 W
-
Input Impedance
- 50 Ohm
-
Operating Temperature
- -40°C έως +80°C
-
Operating Relative Humidity
- Έως 98%
-
Storage Humidity
- 5% έως 95% χωρίς συμπύκνωση
-
Wind Survival
- ?220 km/h
-
Impact Resistance
- IK 10
-
Water Ingress Protection
- IP69K
