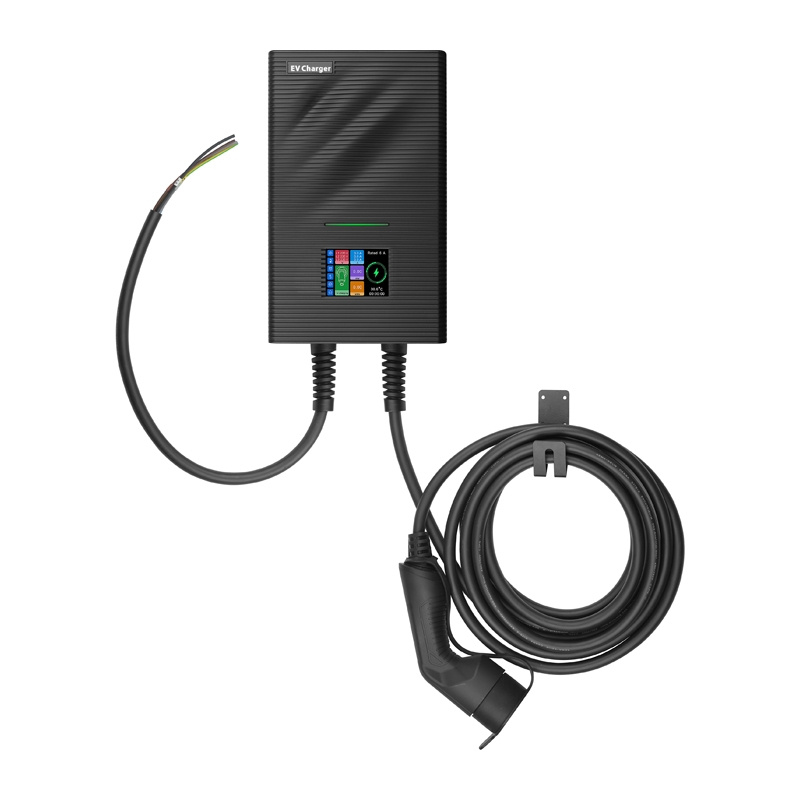

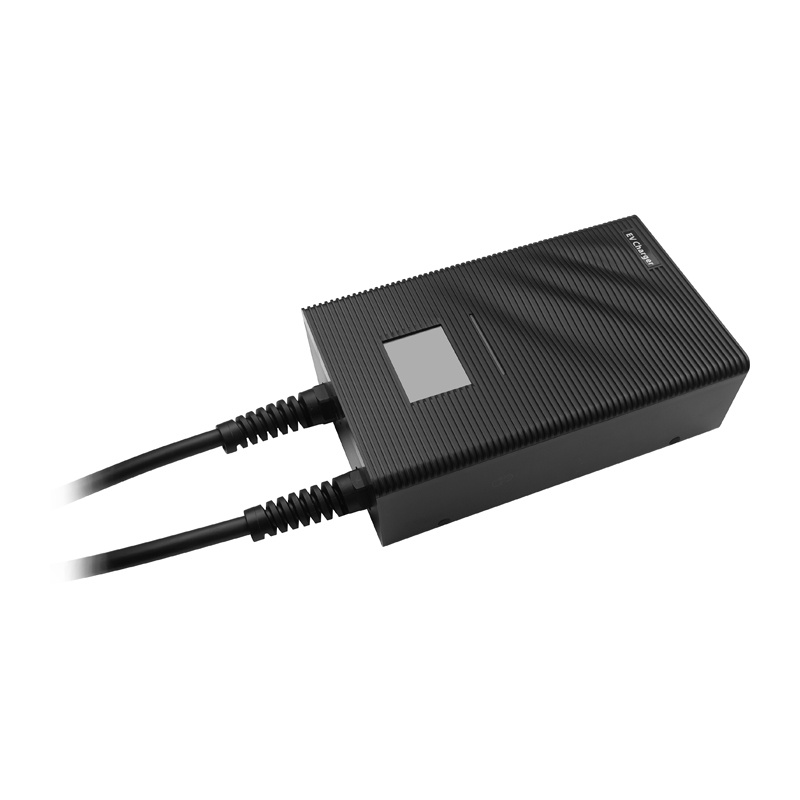

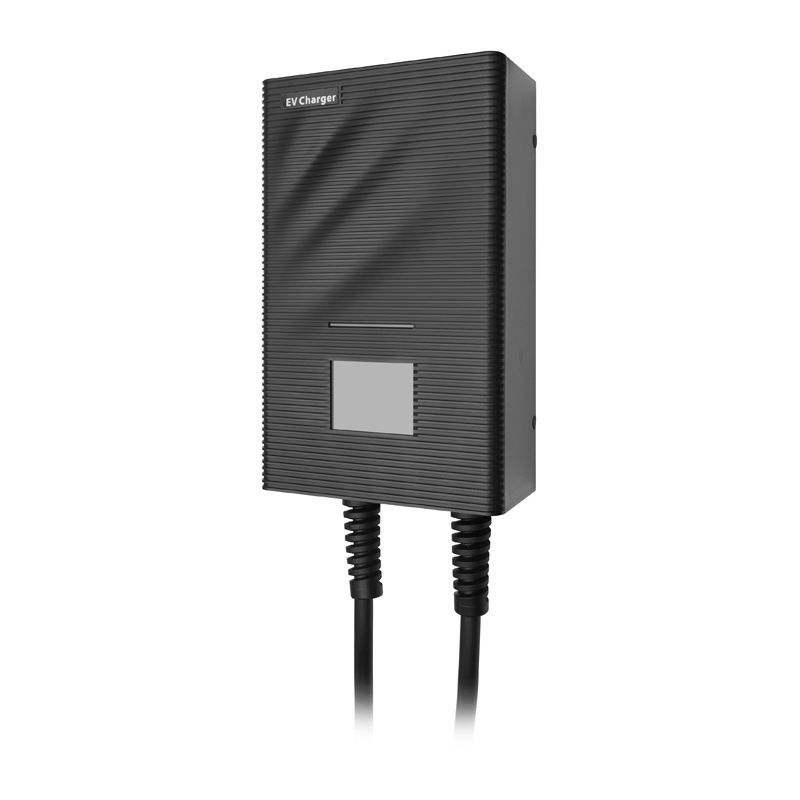

BESEN EV Charger SQW45-BC-22KW-APP (22 kW, Type 2, App/Wi‑Fi)

Description

Technical Specifications

• Brand
  BESEN
• Model / MPN
  SQW45-22KW-APP (BS20-BC-22KW / BS20-BC-22KW-APP family)
• SKU / EAN
  5905156104617
• Product Type
  Wall-mounted EV charging station (wallbox)
• Maximum Output Power
  22 kW (3-phase)
• Maximum Current
  32 A
• Phase Support
  3-phase (22 kW); single-phase operation possible on other configs
• Connector Type
  Type 2 (IEC 62196-2) / J1772 compatible
• Cable
  Tethered versions exist; cable length not specified
• Display
  Color LCD (approx. 3.5") showing time, voltage, power, status
• Connectivity
  Wi‑Fi and Bluetooth (app control). Some listings reference OCPP support for certain SKUs
• App Features
  Remote start/stop, scheduling/timers, charging history, firmware updates
• Protection Features
  Overload, short circuit, over/under-voltage, overheating protection, earth leakage detection, DC 6 mA leakage protection in some configs
• RCD / RCCB
  Type A with DC 6 mA protection option (depending on model/config)
• Ingress Protection
  IP66
• Operating Temperature
  Ranges listed between -25°C to +55°C (family) and -40°C to +75°C in some listings
• Relative Humidity
  0–95% non-condensing
• Altitude
  Up to <2000 m recommended
• Cooling
  Natural air cooling
• Standby Power Consumption
  < 8 W (typical)
• Dimensions (HxWxD)
  ~295 × 195 × 65 mm
• Product Weight
  ~7000 g (7 kg)
• Materials
  Polycarbonate housing (some listings: black/brushed metal finish available)
• Installation
  Wall-mounted; professional electrical installation required
• Certifications
  CE, FCC, RoHS (some listings also list ETL, CSA, REACH depending on region/config)
• Color
  Black / Brushed metal (varies by listing)
• Mounting Accessories
  Included mounting plate/hardware varies by seller
• Load Balancing
  Supported in family/datasheet; availability/manual/auto depends on SKU and firmware
• Standards Compliance
  IEC 62196-2 (Type 2), general EVSE safety standards
• Use Cases
  Residential, commercial, fleet (subject to installer configuration)
• Notes
  Some seller pages list model as BS20-BC-22KW-APP; several specification values vary slightly by region/firmware
