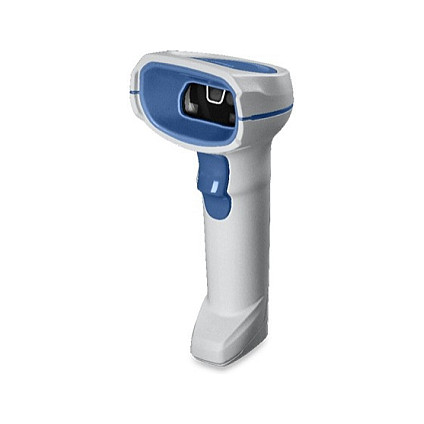

Zebra DS8178-HC Bluetooth Cordless 2D Healthcare Barcode Scanner (DS8178‑HCBU210MP5W)

Description

Technical Specifications

• Model
  DS8178-HC (DS8178‑HCBU210MP5W)
• Brand
  Zebra Technologies
• MPN
  DS8178-HCBU210MP5W
• EAN / Barcode
  5706998265173
• Product type
  Cordless handheld 2D barcode scanner (healthcare)
• Scanner technology
  2D area imager (1280 x 960 image sensor)
• Field of view
  48° horizontal x 37° vertical
• Decode capability - 1D
  Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, GS1 DataBar, Korean 3 of 5, Base32
• Decode capability - 2D
  PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, MicroQR, Han Xin (Chinese Sensible), Postal codes, securPharm, DotCode, Dotted DataMatrix
• Connectivity
  Bluetooth 4.0 + BLE (primary cordless); also supports USB, RS232, Keyboard Wedge, TGCS 46xx over RS485 depending on configuration
• Bluetooth range
  Class 1 (up to ~100 m / 330 ft) and Class 2 (~10 m / 33 ft) depending on transceiver
• Scan modes
  Handheld trigger or presentation (depends on kit/config)
• Aiming & illumination
  Circular aiming LED (true green 528 nm in some docs) and warm white illumination LEDs (exact pattern may vary by config)
• Indicators
  Good decode LEDs, rear view LEDs, beeper (configurable), power/charge gauge
• Battery / Power
  PowerPrecision+ 2500 mAh Li‑Ion battery (or PowerCap capacitor option in some SKUs)
• Charging / Cradle
  Desk/wall cradle kit available (USB or other cradle options depending on kit)
• Dimensions (scanner)
  167.6 x 66 x 106.7 mm (6.6 x 2.6 x 4.2 in)
• Weight (scanner)
  ~235 g
• Colour
  Healthcare / hospital white
• Durability
  Withstands multiple 1.8 m (6 ft) drops to concrete
• Ingress protection
  IP52
• Operating temperature
  0°C to 50°C (32°F to 122°F)
• Minimum print contrast
  16% minimum reflective difference
• Warranty
  Refer to Zebra / reseller (varies by region)
• Typical kit contents (varies)
  Scanner, cradle, shielded USB cable (depending on bundle)
• Intended use
  Clinical and healthcare workflows (pharmacies, wards, labs), scanning small/difficult barcodes on vials, IV bags, foil packs
• Regulatory / Security
  Some listings indicate FIPS 140-2 compliance on certain configurations
• Notes
  Exact light/aiming colors, kit contents and accessories may vary by regional bundle or DS8178-HC sub-configuration
