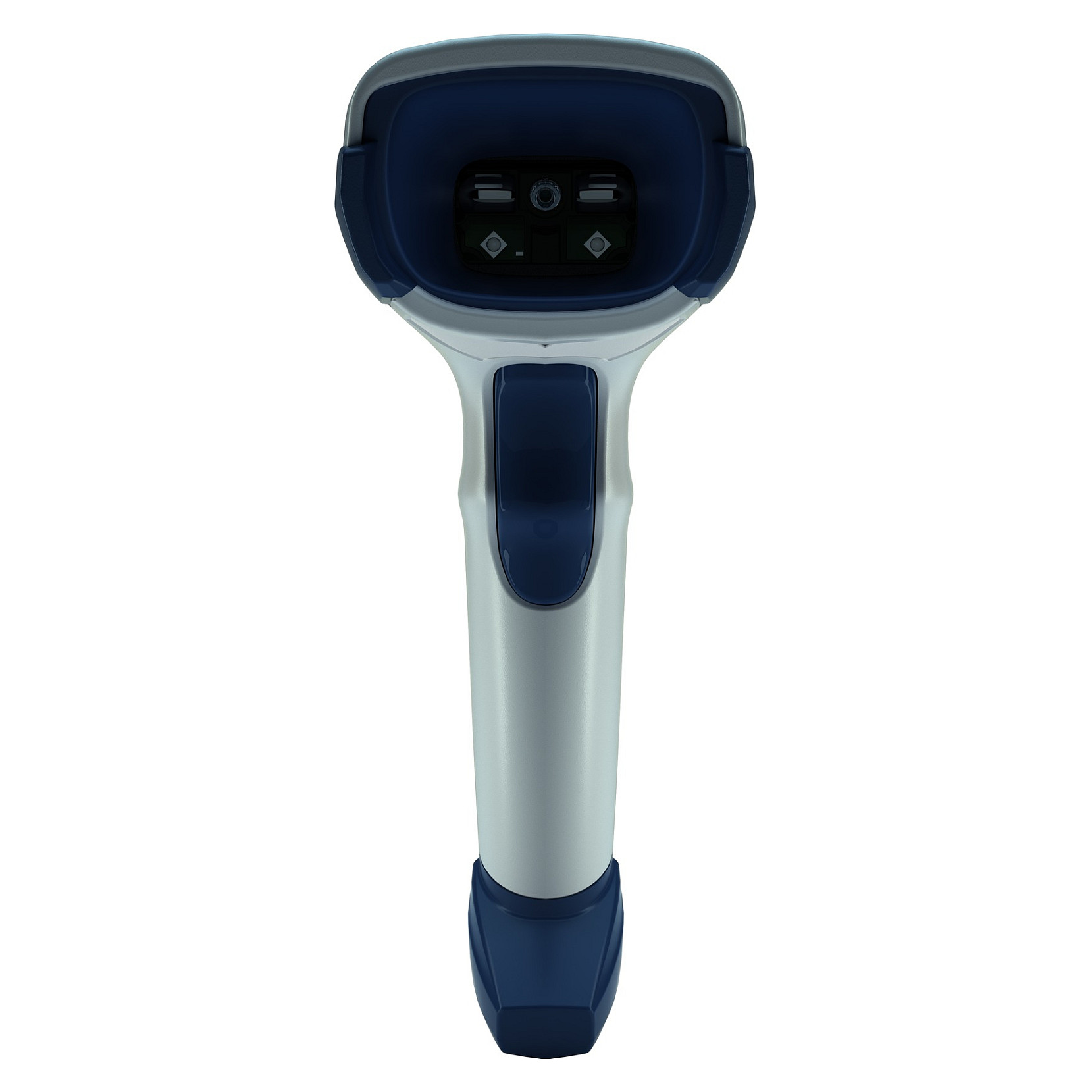

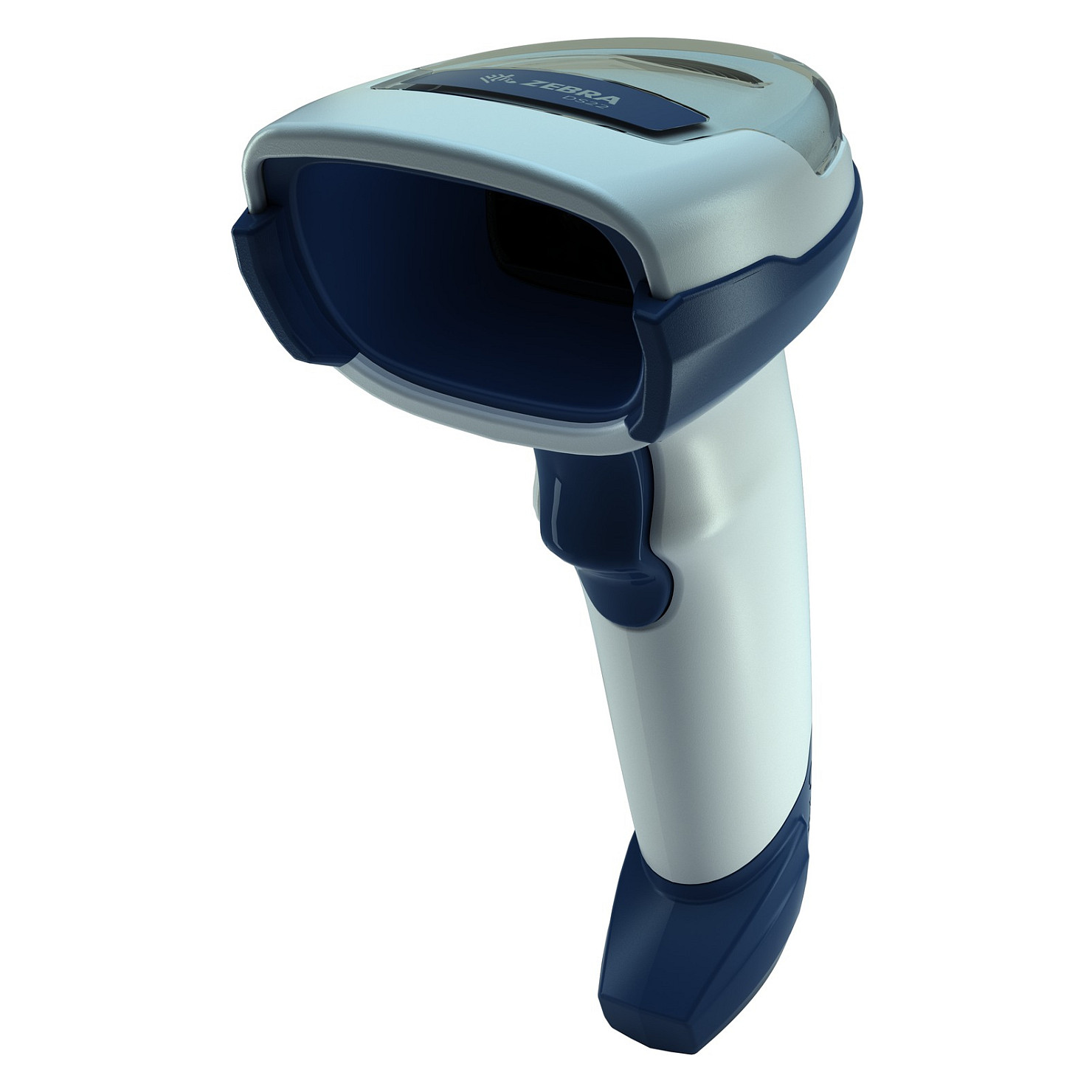

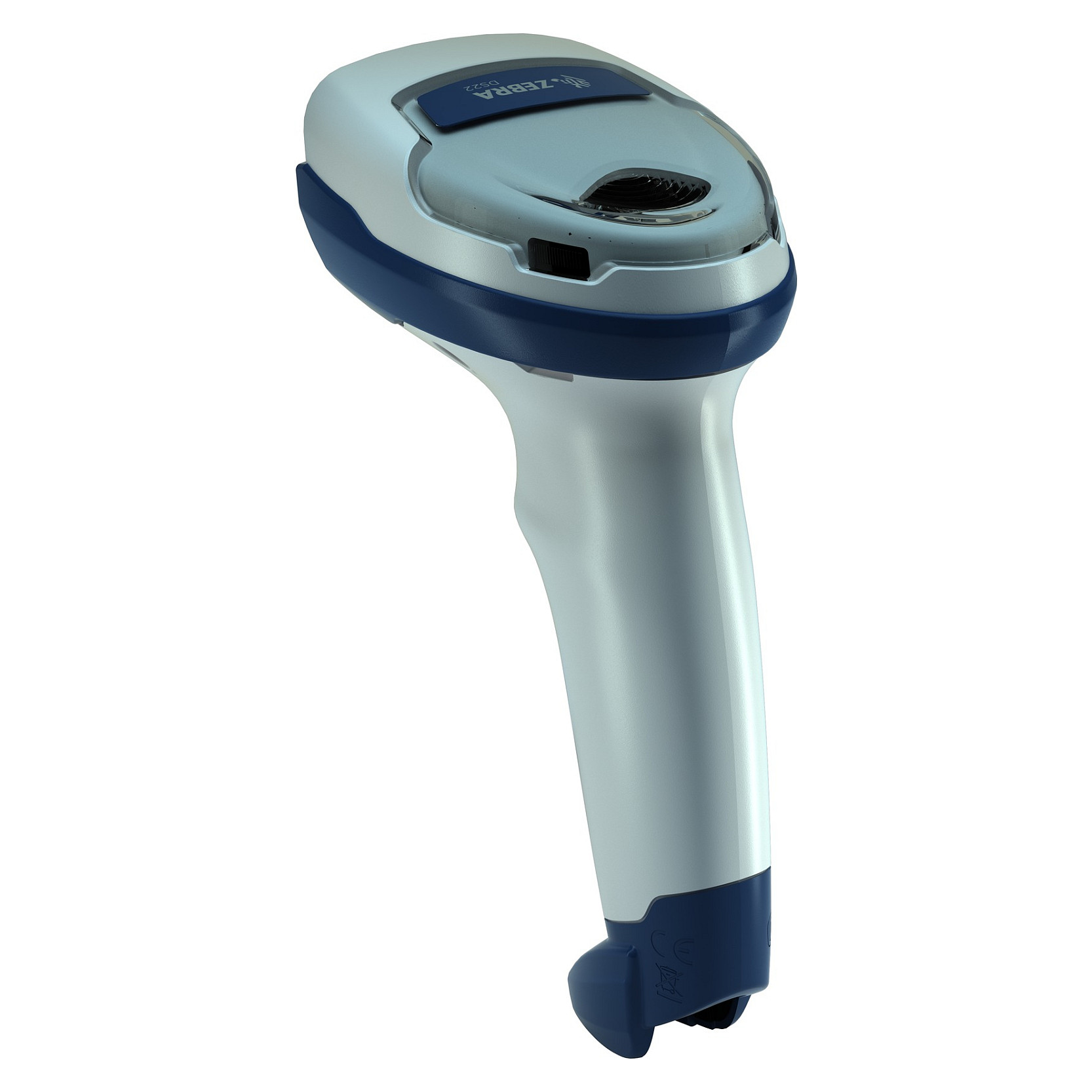

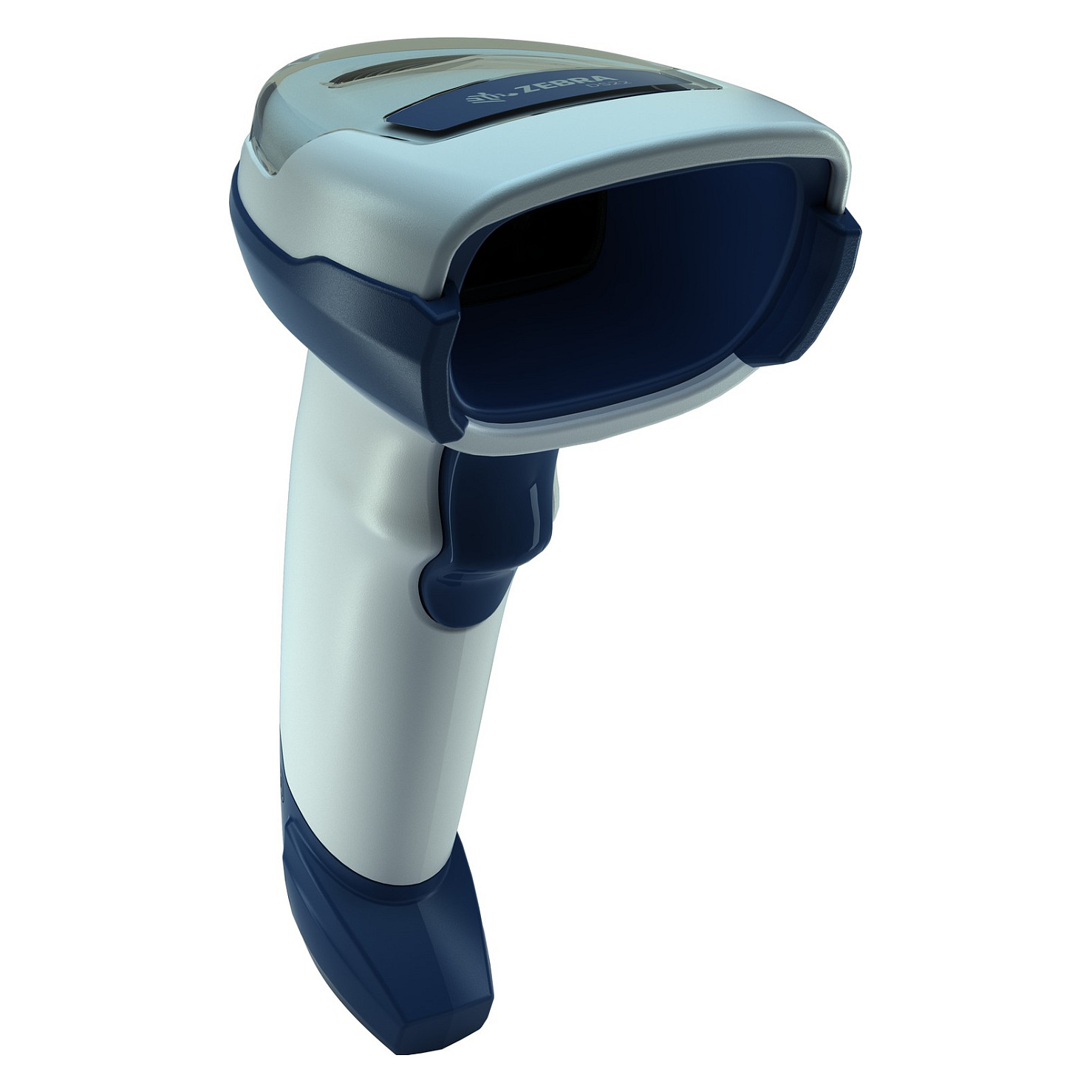

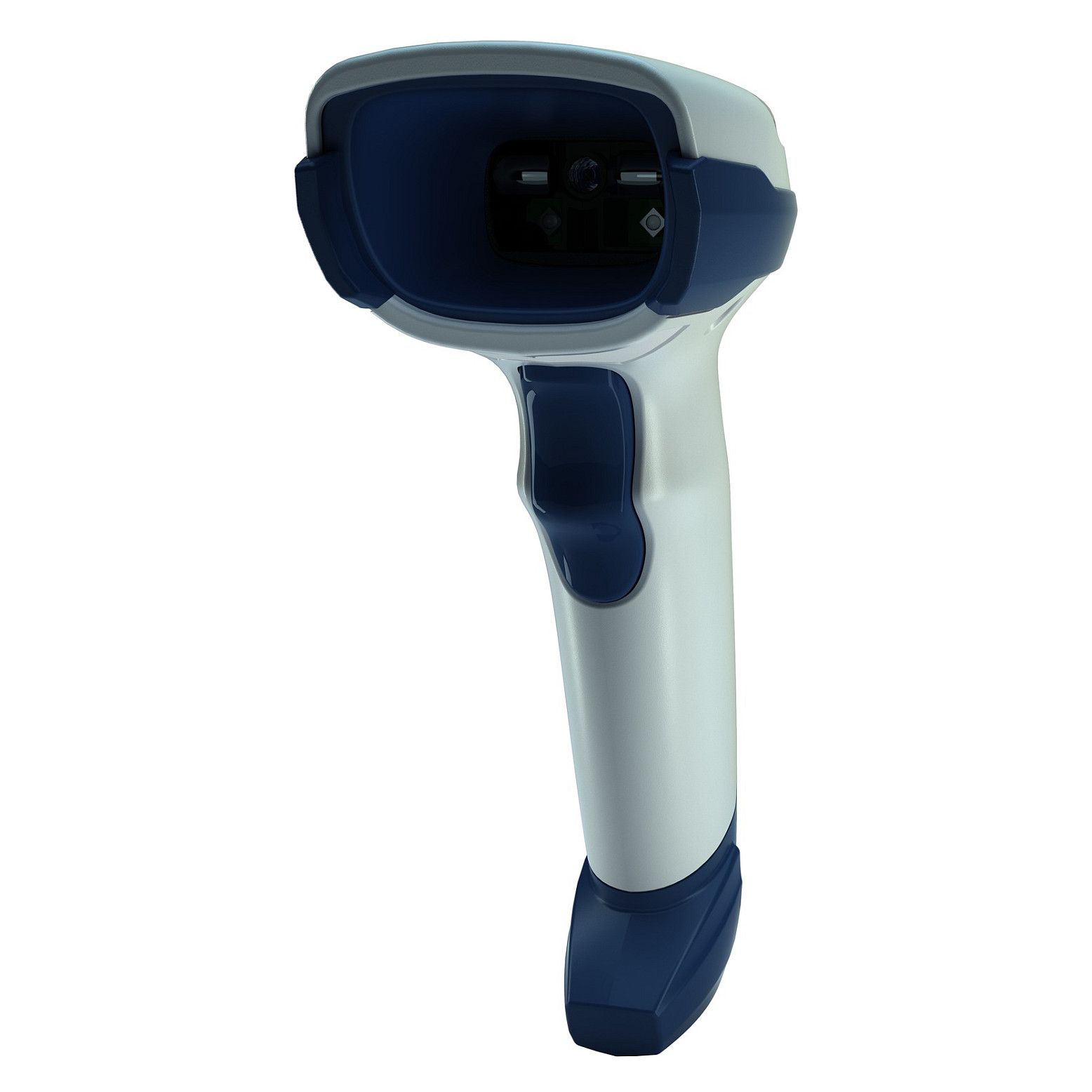

Zebra DS2208-HC (DS2208-HCBU2100AZR) 1D/2D Corded Handheld Barcode Scanner — RS232 / KBW / USB, IP52, incl. Cable

Description

Technical Specifications

• Brand
  Zebra Technologies
• Model / MPN
  DS2208-HCBU2100AZR (DS2208 HEALTH)
• SKU
  21195943
• EAN
  5704174461500
• Series
  DS2200 Series
• Product Type
  Corded 1D/2D handheld imager (area imager)
• Interfaces
  USB, RS232, Keyboard Wedge (KBW)
• IP Rating
  IP52
• Image Sensor Resolution
  640 × 480 pixels
• Field of View
  32.8° H × 24.8° V (nominal)
• Aiming Light
  Linear 624 nm amber LED
• Illumination
  Two 645 nm super-red LEDs
• Decoding Technology
  PRZM software decode (Zebra)
• Supported Symbologies
  1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI, UPC/EAN, Interleaved 2 of 5, GS1 DataBar; 2D: PDF417, DataMatrix, QR Code, Aztec, MaxiCode, Micro QR, Composite Codes, TLC-39, Han Xin
• Typical Scan Range
  ~0.5 in to 14.5 in (1.23 cm to 36.8 cm) depending on barcode type and quality
• Minimum Print Contrast
  25% reflective difference
• Minimum Element Resolution
  Code 39/Code 128: 4.0 mil; DataMatrix: 6.0 mil; QR Code: 6.7 mil
• Motion Tolerance
  Configurable; options available in product guide to optimize motion performance
• Drop Specification
  Withstands multiple drops from 1.5 m (5 ft) to concrete
• Weight (product)
  ~162 g
• Dimensions (H×W×D)
  165 mm × 66 mm × 99 mm
• Power
  Host powered (corded models)
• Included in Kit
  Scanner and cable (USB); some kits may include a stand depending on configuration
• Typical Applications
  Retail POS, loyalty/coupon/mobile-wallet scanning, healthcare workflows, light manufacturing, general-purpose scanning
• Warranty
  Varies by region and reseller
