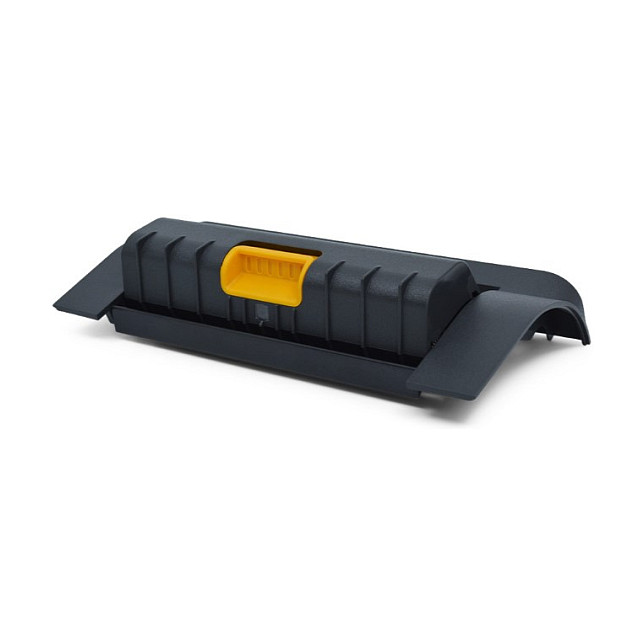

Zebra Dispenser Upgrade Kit for ZD421t (P1112640-231)

Description

Technical Specifications

• Brand
  Zebra Technologies
• MPN
  P1112640-231
• SKU
  21196790
• EAN
  5704174563440
• Product Type
  Dispenser Upgrade Kit (Peeler) for Zebra ZD421T
• Compatibility
  Zebra ZD421T (thermal transfer) only
• Function
  Automatically peels label from liner and presents it for removal (peel-and-present)
• Installation
  Field-installable; front-mount module; requires removal of front bezel and two mounting screws (T10 driver)
• Power
  Powered by the printer (no external power required)
• Supported Media
  Labels and tag stock compatible with ZD421T; typical label thickness up to ~0.19 mm
• Operation Temperature Range
  Typical indoor printer environment (approx. 15°C–40°C)
• Print Resolution Support
  Compatible with ZD421T configurations (commonly 203 dpi)
• Weight (module)
  Approx. 90 g
• Package Weight
  Approx. 200 g (estimated)
• Materials
  Durable plastic housing (typical ABS/polymer) and metal mounting components
• Dimensions (module)
  Compact front-mounted module (manufacturer does not publish exact module dims; designed to fit ZD421T front bezel)
• Included Items
  Dispenser module/assembly, mounting screws/fasteners (as required), basic installation instructions
• Installation Steps Summary
  Power down and unplug printer → remove front bezel and two screws → slide dispenser module onto front until it engages → secure with screws → load media and feed liner through dispenser → run media calibration
• Limitations
  Designed for ZD421T thermal transfer model; not compatible with direct-thermal-only ZD421 variants without verification; may be mutually exclusive with some other factory options (check model configuration)
