xTool Apparel Printer incl. Oven - Ready2Use

Description

Technical Specifications

• Brand
  xTool
• Model / SKU / MPN / EAN
  xTool Apparel Printer incl. Oven - Ready2Use
• Category
  Laser- & Fertigungsmaschinen
• Type
  DTF apparel/textile printer bundle with automatic shaker oven / curing unit

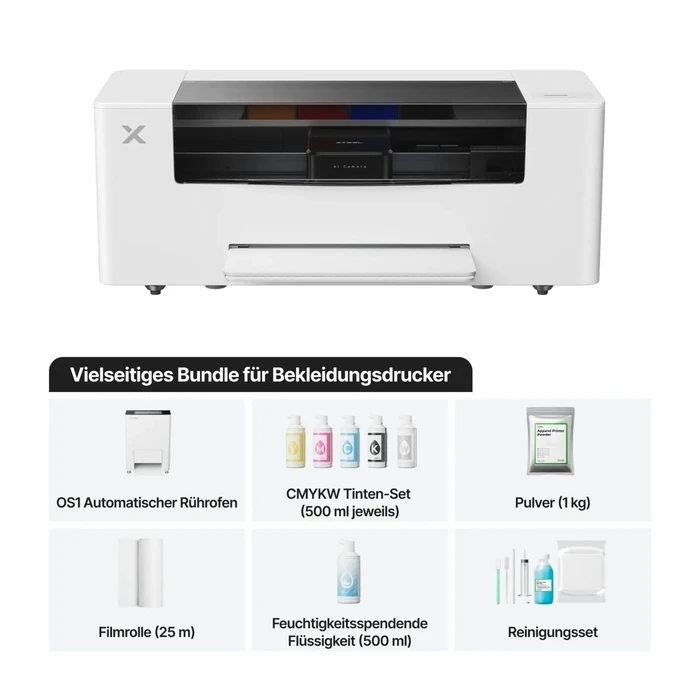

• Core bundle contents
  xTool Apparel Printer; xTool OS1 Automatic Shaker Oven; common accessories (power cable, data cable, adhesive powder, exhaust pipe, flange assembly, screws, wrench, screwdriver, oil collection kit, cleaning brush, manuals)
• Print technology
  Direct-to-Film (DTF)
• Print width
  356 mm / 14 in
• Max print area
  356 × 460 mm
• Printheads
  Dual Epson I1600
• Print resolution
  720 × 1800 DPI
• Ink system / Colors
  CMYK + White (white-ink circulation / WIMS on some listings)
• Minimum ink drop size
  3.8 pL
• Print speed
  Up to 50 sq ft/hr (~4.6 m²/h)
• Media handling
  Single-sheet-fed; roll-fed support noted in some bundles (varies by vendor)
• Calibration
  AI 16MP camera auto calibration
• Maintenance features
  Auto printhead cleaning; auto ink stirring/circulation; auto refill moisturization; remote monitoring app

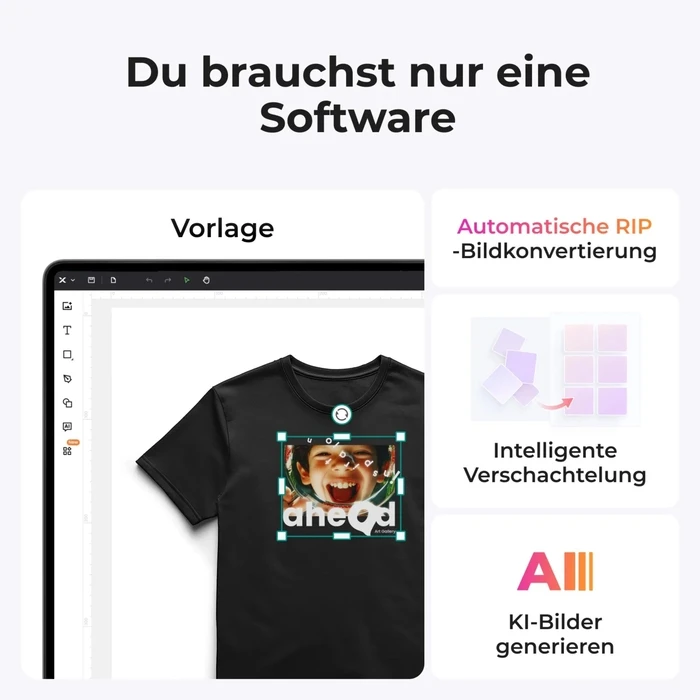

• Software
  xTool Creative Space (RIP, auto nesting, machine control, AI design tools)
• Supported OS
  macOS, Windows
• Oven model
  xTool OS1 Automatic Shaker Oven / Oven Machine

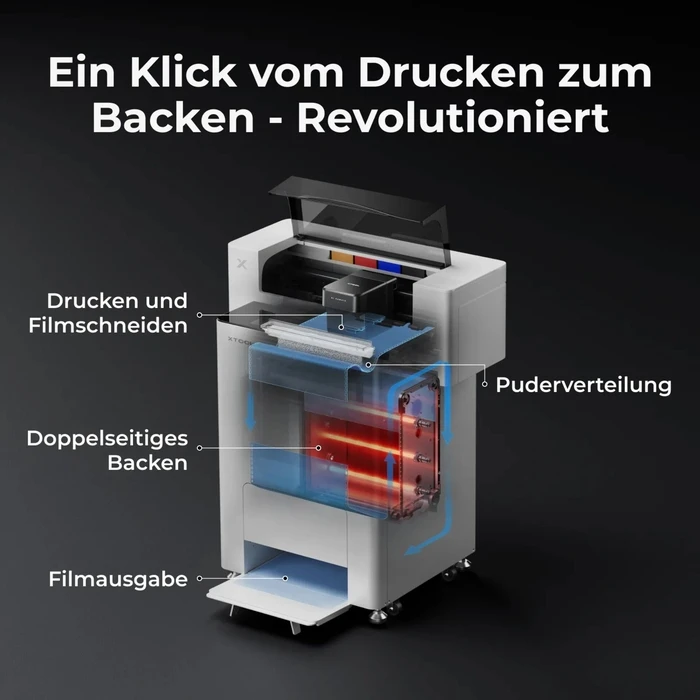

• Oven functions
  Automated powder application, shaker, and baking/curing; automated transfer via track system for continuous production
• Oven baking temperature
  90–130 °C
• Oven noise level
  65 dBA
• Oven powder capacity
  4.4 lb
• Oven max film width
  15.35 in
• Oven single-sheet length range
  10.43–20.87 in
• Printer dimensions
  905 × 365 × 356.5 mm
• Printer weight (typical listing)
  34,000 g (34 kg) — alternate listing 28,000 g exists
• Oven product dimensions
  25 × 23.15 × 36.54 in
• Oven product weight
  ~65,995 g (145.5 lb)
• Oven packaging dimensions
  34.6 × 27.6 × 43.7 in
• Oven packaging weight
  ~100,021 g (220.46 lb)
• Power consumption
  Printer listed ~350 W; sleep mode 23.5 W
• Power requirements
  AC 220–240 V 50/60 Hz (region-specific listings also show 100–240 V)
• Operating temperature
  15–30 °C (recommended 20–30 °C)
• Operating humidity
  30–80% RH (recommended 50–80% RH)
• Supported materials
  Cotton, polyester, denim, canvas, spandex, nylon and other fabrics
• Intended use
  Professional apparel/textile customization and production; single-piece to batch production
• Workflow highlights
  Fully automated print-to-bake workflow, integrated shaker oven reduces powder mess and manual steps
• Packaging footprint (oven)
  ~4.1 ft²
• Notes
  Product commonly sold as bundle/all-in-1 solution; some spec variations between vendors
