The WISUALARM DHI-HY-GW01A is a compact WLAN Base Station / wireless gateway for the WisuLink / Wisualarm ecosystem. It acts as the central gateway for interlinked wireless alarms and the Wisualarm app, supporting up to 24 WisuLink devices. Connectivity includes Ethernet and 2.4 GHz Wi‑Fi (IEEE...
More

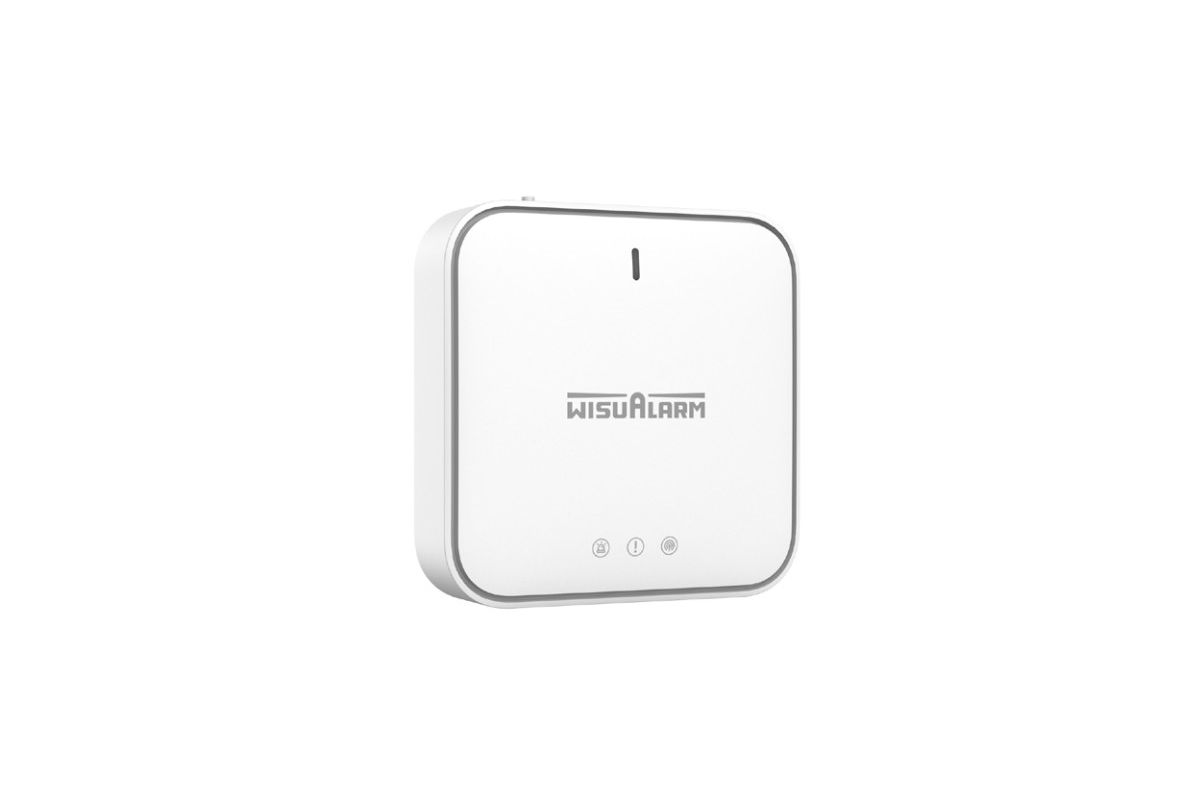

WISUALARM DHI-HY-GW01A WLAN Base Station (Wireless Gateway)
Product Code: 1117729698
Available in 1 - 3 days
37,39 €
or
1,17€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 113 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The WISUALARM DHI-HY-GW01A is a compact WLAN Base Station / wireless gateway for the WisuLink / Wisualarm ecosystem. It acts as the central gateway for interlinked wireless alarms and the Wisualarm app, supporting up to 24 WisuLink devices. Connectivity includes Ethernet and 2.4 GHz Wi‑Fi (IEEE 802.11 b/g/n); device radio uses 868 MHz. Powered by 5.0 V / 1.0 A, the unit provides visual and audible alarm indications (approx. 70 dB), four status LEDs (power, fault, alarm, internet), and can be wall-mounted or freestanding. The enclosure is white ABS; dimensions 78.2 × 78.2 × 22.9 mm; weight ~60 g. Typical use: remote monitoring and management of interconnected smoke/alarms and sensors via the Wisualarm mobile app.
-
Product NameWISUALARM DHI-HY-GW01A WLAN-Basisstation
-
BrandWISUALARM (Dahua Technology OEM in some listings)
-
Model / MPNDHI-HY-GW01A
-
SKU597586
-
EAN / GTIN6976643251076
-
Device TypeWireless gateway / WLAN base station / alarm gateway
-
Max connected devices24 WisuLink wireless devices
-
Wi‑Fi frequency2.4 GHz (only)
-
Wi‑Fi standardIEEE 802.11 b/g/n
-
Wi‑Fi rangeApprox. 50 m (164 ft) (typical indoor)
-
Device radio frequency868 MHz (WisuLink device comms)
-
External communicationEthernet and Wi‑Fi (some listings mention RS485)
-
Power supply5.0 V / 1.0 A
-
Alarm output~70 dB (audible alarm)
-
Indicators4 LEDs (power, fault, alarm, internet)
-
ColorWhite
-
Material / EnclosureABS plastic
-
Dimensions78.2 mm × 78.2 mm × 22.9 mm
-
Weight60 g (product)
-
MountingFreestanding or wall mounting
-
Operating temperature-10°C to +55°C
-
Operating humidity≤95% RH, non-condensing
-
Primary useCentral gateway for Wisualarm/WisuLink interlinked alarms and remote monitoring via app
Ratings
Description
The WISUALARM DHI-HY-GW01A is a compact WLAN Base Station / wireless gateway for the WisuLink / Wisualarm ecosystem. It acts as the central gateway for interlinked wireless alarms and the Wisualarm app, supporting up to 24 WisuLink devices. Connectivity includes Ethernet and 2.4 GHz Wi‑Fi (IEEE 802.11 b/g/n); device radio uses 868 MHz. Powered by 5.0 V / 1.0 A, the unit provides visual and audible alarm indications (approx. 70 dB), four status LEDs (power, fault, alarm, internet), and can be wall-mounted or freestanding. The enclosure is white ABS; dimensions 78.2 × 78.2 × 22.9 mm; weight ~60 g. Typical use: remote monitoring and management of interconnected smoke/alarms and sensors via the Wisualarm mobile app.
Technical Specifications
-
Product NameWISUALARM DHI-HY-GW01A WLAN-Basisstation
-
BrandWISUALARM (Dahua Technology OEM in some listings)
-
Model / MPNDHI-HY-GW01A
-
SKU597586
-
EAN / GTIN6976643251076
-
Device TypeWireless gateway / WLAN base station / alarm gateway
-
Max connected devices24 WisuLink wireless devices
-
Wi‑Fi frequency2.4 GHz (only)
-
Wi‑Fi standardIEEE 802.11 b/g/n
-
Wi‑Fi rangeApprox. 50 m (164 ft) (typical indoor)
-
Device radio frequency868 MHz (WisuLink device comms)
-
External communicationEthernet and Wi‑Fi (some listings mention RS485)
-
Power supply5.0 V / 1.0 A
-
Alarm output~70 dB (audible alarm)
-
Indicators4 LEDs (power, fault, alarm, internet)
-
ColorWhite
-
Material / EnclosureABS plastic
-
Dimensions78.2 mm × 78.2 mm × 22.9 mm
-
Weight60 g (product)
-
MountingFreestanding or wall mounting
-
Operating temperature-10°C to +55°C
-
Operating humidity≤95% RH, non-condensing
-
Primary useCentral gateway for Wisualarm/WisuLink interlinked alarms and remote monitoring via app
