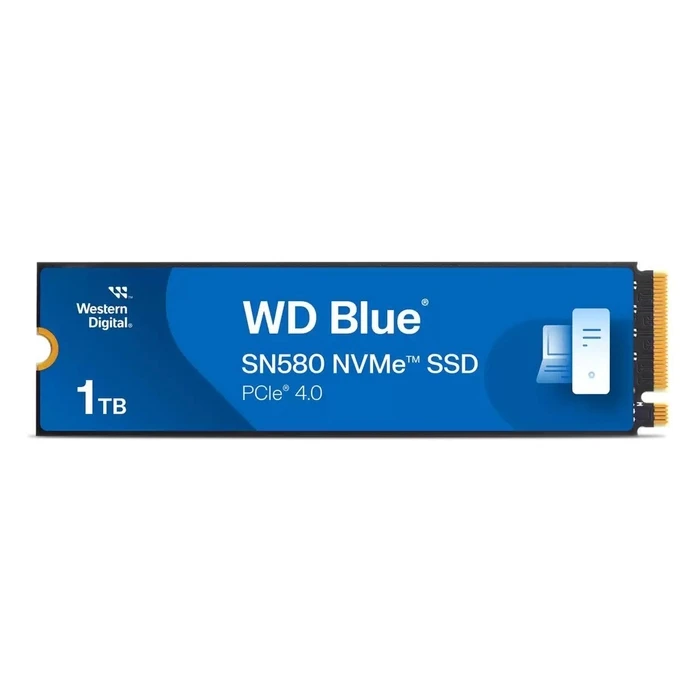

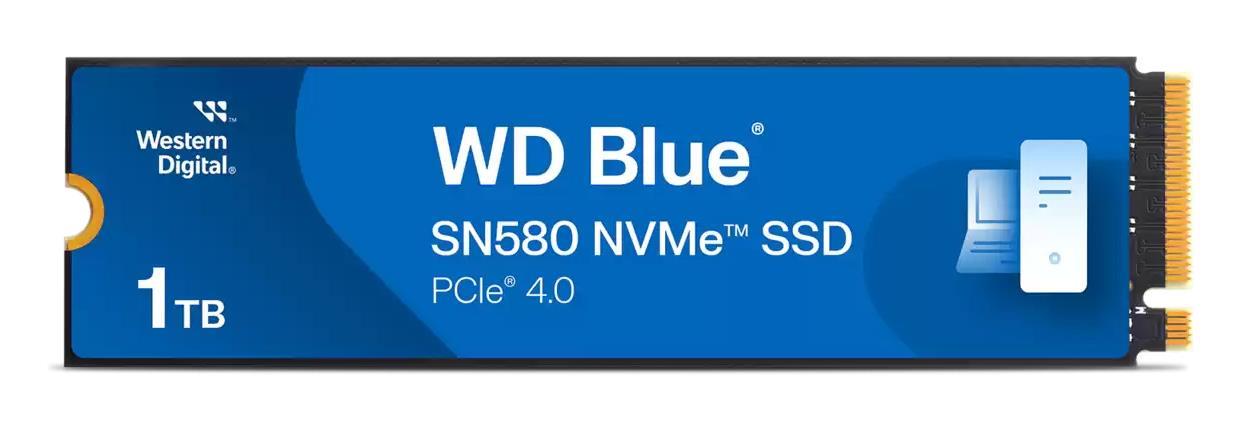

Western Digital WD Blue SN580 1TB M.2 NVMe SSD (WDS100T3B1E)

Description

Technical Specifications

• Brand
  Western Digital (WD)
• Product Line
  WD Blue SN580
• Model / MPN
  WDS100T3B1E (also referenced as WDS100T3B0E in some listings)
• SKU
  1462695
• EAN
  718037904597
• Capacity
  1 TB (1000 GB)
• Form Factor
  M.2 2280 (80 mm × 22 mm × 2.38 mm)
• Interface
  PCIe Gen4 x4, NVMe 1.4 / 1.4b
• Sequential Read
  Up to 4,150 MB/s (manufacturer-listed)
• Sequential Write
  Up to 4,150 MB/s (manufacturer-listed; some listings show up to 3,500 MB/s for 1TB variant)
• Random Read IOPS
  Up to 600K (1TB)
• Random Write IOPS
  Up to 750K (1TB)
• Endurance (TBW)
  600 TBW
• NAND Type
  112-layer 3D TLC (BiCS5) / WD-branded TLC
• Controller
  Polaris MP16+ / SanDisk variant reported by teardown databases
• DRAM
  No dedicated DRAM (uses Host Memory Buffer - HMB)
• MTTF / MTBF
  1.5 million hours
• Power (active)
  ~65 mW (typical active)
• Power (idle/sleep)
  ~3.3 mW (sleep, reported for PS5 compatibility)
• Operating Temperature
  0°C to 85°C
• Storage (non-operating) Temperature
  -40°C to 85°C
• Shock Resistance
  1,500G @ 0.5 ms
• Weight
  ~5.5 g (drive only)
• Warranty
  5-year limited warranty
• Security Features
  TCG Pyrite 2.01, ATA Security Passthrough over NVMe
• Software / Extras
  May include Acronis migration software (retailer dependent)
• Packaging
  Bulk / OEM packaging indicated by suffix -00CHF0 on WDS100T3B1E-00CHF0
• Target Market
  Mainstream / value consumer NVMe PCIe 4.0 SSD
• Certifications
  Typical regional certifications listed by resellers (CE, FCC, BSMI, VCCI, UL)
• Special Notes
  Some reseller pages and spec databases list slight variations (controller suffixes or model suffix differences) but core specifications match WD Blue SN580 1TB family
