Weidmüller IE-SW-EL08-8TX is an industrial unmanaged Fast Ethernet switch with 8 x RJ45 ports (10/100Base-T(X)). Metal housing, DIN-rail mounting, IP30 protection rating, and wide operating temperature range (-40 °C to 75 °C). Layer 2 store-and-forward switch with 1.6 Gbit/s backplane, 1K MAC...
More

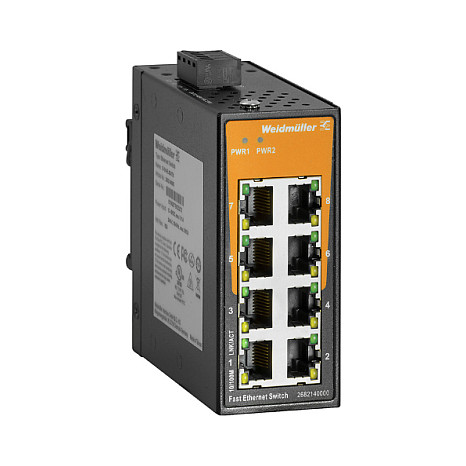

Weidmüller IE-SW-EL08-8TX Industrial Unmanaged Fast Ethernet Switch, 8x RJ45 (10/100Base-T)
Product Code: 1173701468
Available in 4 - 6 days
217,43 €
or
6,79€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 653 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Weidmüller IE-SW-EL08-8TX is an industrial unmanaged Fast Ethernet switch with 8 x RJ45 ports (10/100Base-T(X)). Metal housing, DIN-rail mounting, IP30 protection rating, and wide operating temperature range (-40 °C to 75 °C). Layer 2 store-and-forward switch with 1.6 Gbit/s backplane, 1K MAC address table, 448 kbit packet buffer. Power: 10.8–52.8 V DC (12/24/48 V DC typical) or 18–36 V AC (24 V AC typical) with 2 redundant inputs, reverse polarity and overload protection. LEDs for PWR1/PWR2, LNK/ACT and 10/100M per port. Order no. / MPN: 2682140000. EAN: 4050118692570. Seller SKU: 21187472 (not manufacturer-assigned).
-
BrandWeidmüller
-
ModelIE-SW-EL08-8TX
-
MPN / Order No.2682140000
-
EAN / Barcode4050118692570
-
Seller SKU21187472 (seller provided)
-
Product TypeIndustrial unmanaged Fast Ethernet switch
-
Ports8 x RJ45 10/100Base-T(X)
-
LayerLayer 2
-
Switching modeStore-and-forward
-
Backplane / Switch capacity1.6 Gbit/s
-
MAC address table1 K entries
-
Packet buffer448 kbit
-
Auto featuresAuto-Negotiation, Auto MDI/MDI-X, Flow-Control, Full-/Half-duplex
-
MountingDIN-rail
-
Protection ratingIP30
-
Housing materialMetal
-
ColorBlack
-
FanlessYes
-
Power supply10.8–52.8 V DC; 18–36 V AC (supports 12/24/48 V DC and 24 V AC)
-
Redundant power inputsYes (2 inputs)
-
Reverse polarity protectionYes
-
Overload current protectionYes
-
Power connectorRemovable 4-pin terminal block
-
Current consumption0.14 A at 24 V
-
Indicators / LEDsPWR1/PWR2, per-port LNK/ACT and 10/100M
-
Operating temperature-40 °C to 75 °C
-
Storage temperature-40 °C to 85 °C
-
Operating humidity5–95%
-
Weight350 g
-
Reported dimensions (depth)90 mm (depth reported in product listings)
-
Order family / seriesEcoLine unmanaged industrial Ethernet switches
Ratings
Description
Weidmüller IE-SW-EL08-8TX is an industrial unmanaged Fast Ethernet switch with 8 x RJ45 ports (10/100Base-T(X)). Metal housing, DIN-rail mounting, IP30 protection rating, and wide operating temperature range (-40 °C to 75 °C). Layer 2 store-and-forward switch with 1.6 Gbit/s backplane, 1K MAC address table, 448 kbit packet buffer. Power: 10.8–52.8 V DC (12/24/48 V DC typical) or 18–36 V AC (24 V AC typical) with 2 redundant inputs, reverse polarity and overload protection. LEDs for PWR1/PWR2, LNK/ACT and 10/100M per port. Order no. / MPN: 2682140000. EAN: 4050118692570. Seller SKU: 21187472 (not manufacturer-assigned).
Technical Specifications
-
BrandWeidmüller
-
ModelIE-SW-EL08-8TX
-
MPN / Order No.2682140000
-
EAN / Barcode4050118692570
-
Seller SKU21187472 (seller provided)
-
Product TypeIndustrial unmanaged Fast Ethernet switch
-
Ports8 x RJ45 10/100Base-T(X)
-
LayerLayer 2
-
Switching modeStore-and-forward
-
Backplane / Switch capacity1.6 Gbit/s
-
MAC address table1 K entries
-
Packet buffer448 kbit
-
Auto featuresAuto-Negotiation, Auto MDI/MDI-X, Flow-Control, Full-/Half-duplex
-
MountingDIN-rail
-
Protection ratingIP30
-
Housing materialMetal
-
ColorBlack
-
FanlessYes
-
Power supply10.8–52.8 V DC; 18–36 V AC (supports 12/24/48 V DC and 24 V AC)
-
Redundant power inputsYes (2 inputs)
-
Reverse polarity protectionYes
-
Overload current protectionYes
-
Power connectorRemovable 4-pin terminal block
-
Current consumption0.14 A at 24 V
-
Indicators / LEDsPWR1/PWR2, per-port LNK/ACT and 10/100M
-
Operating temperature-40 °C to 75 °C
-
Storage temperature-40 °C to 85 °C
-
Operating humidity5–95%
-
Weight350 g
-
Reported dimensions (depth)90 mm (depth reported in product listings)
-
Order family / seriesEcoLine unmanaged industrial Ethernet switches
