The WAGO 852-111 is an industrial unmanaged Ethernet switch (Industrial ECO Switch series) with 5 x 10/100BASE-TX RJ-45 ports. It supports 10/100 Mbps auto-negotiation, Auto-MDI/MDI-X, IEEE 802.3x flow control, store-and-forward switching, surge/overvoltage protection and front-panel diagnostic...
More

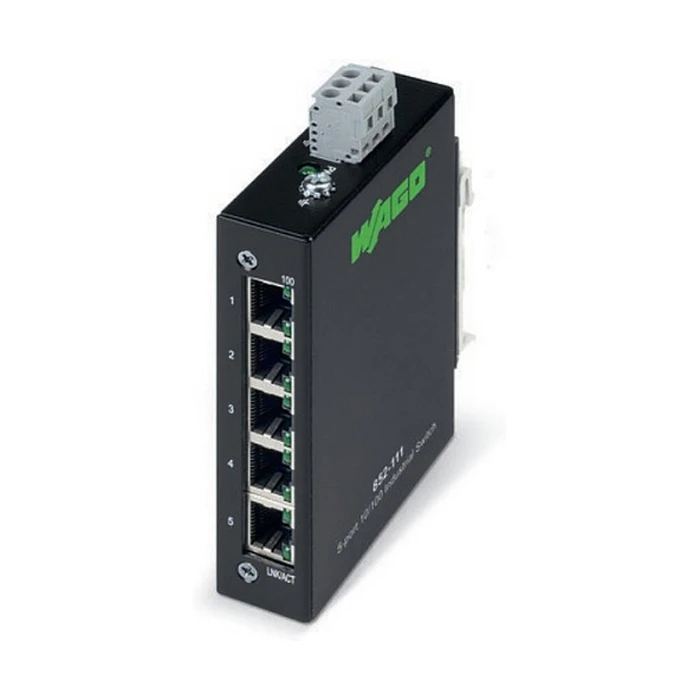

WAGO 852-111 5-Port 100BASE-TX Industrial Unmanaged Eco Switch
Product Code: 1173701464
Available in 4 - 6 days
152,44 €
or
4,76€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 458 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The WAGO 852-111 is an industrial unmanaged Ethernet switch (Industrial ECO Switch series) with 5 x 10/100BASE-TX RJ-45 ports. It supports 10/100 Mbps auto-negotiation, Auto-MDI/MDI-X, IEEE 802.3x flow control, store-and-forward switching, surge/overvoltage protection and front-panel diagnostic LEDs. Designed for DIN-35 rail mounting, it operates from 18–30 V DC, consumes ~3 W, and supports an operating temperature range of -40 °C to +70 °C. Compact, IP30-rated, and intended for industrial cabinet use.
-
BrandWAGO
-
Model / MPN852-111
-
SKU21187462
-
EAN4045454847593
-
SeriesIndustrial ECO Switch (Eco Switch Series)
-
Product TypeIndustrial unmanaged Ethernet switch
-
Port Count5
-
Port Type10/100BASE-TX RJ-45 (copper)
-
Data Rate10/100 Mbps (auto-negotiation)
-
Switching MethodStore-and-forward, non-blocking
-
MAC Address Table2000 (2K) entries
-
Jumbo Frame1536 bytes
-
Auto FeaturesAuto-negotiation; Auto-MDI/MDI-X per port
-
Duplex ModesFull/Half duplex
-
Flow ControlIEEE 802.3x (full-duplex)
-
DiagnosticsFront-panel LEDs
-
Maximum Cable Length100 m over Cat5/Cat5e/Cat6
-
Mounting35 mm DIN rail
-
Supply Voltage18–30 V DC
-
Power Consumption~3 W (maximum)
-
Operating Temperature-40 °C to +70 °C
-
Storage Temperature-40 °C to +80 °C
-
Relative HumidityUp to 95% non-condensing
-
Protection ClassIP30
-
Surge/ProtectionSurge/overvoltage protection (built-in)
-
EMC / StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
-
ColorBlack (variant 852-111/000-001)
-
Weight180 g
-
Dimensions (W × H × L)23.4 × 73.8 × 109.2 mm
-
Height above DIN rail(mounting dimension listed in datasheet)
-
Typical UseSmall to medium-sized industrial networks, control cabinets
-
PackagingDIN-rail mounting packaging; retail box (dimensions estimated)
-
IP RatingIP30
Ratings
Description
The WAGO 852-111 is an industrial unmanaged Ethernet switch (Industrial ECO Switch series) with 5 x 10/100BASE-TX RJ-45 ports. It supports 10/100 Mbps auto-negotiation, Auto-MDI/MDI-X, IEEE 802.3x flow control, store-and-forward switching, surge/overvoltage protection and front-panel diagnostic LEDs. Designed for DIN-35 rail mounting, it operates from 18–30 V DC, consumes ~3 W, and supports an operating temperature range of -40 °C to +70 °C. Compact, IP30-rated, and intended for industrial cabinet use.
Technical Specifications
-
BrandWAGO
-
Model / MPN852-111
-
SKU21187462
-
EAN4045454847593
-
SeriesIndustrial ECO Switch (Eco Switch Series)
-
Product TypeIndustrial unmanaged Ethernet switch
-
Port Count5
-
Port Type10/100BASE-TX RJ-45 (copper)
-
Data Rate10/100 Mbps (auto-negotiation)
-
Switching MethodStore-and-forward, non-blocking
-
MAC Address Table2000 (2K) entries
-
Jumbo Frame1536 bytes
-
Auto FeaturesAuto-negotiation; Auto-MDI/MDI-X per port
-
Duplex ModesFull/Half duplex
-
Flow ControlIEEE 802.3x (full-duplex)
-
DiagnosticsFront-panel LEDs
-
Maximum Cable Length100 m over Cat5/Cat5e/Cat6
-
Mounting35 mm DIN rail
-
Supply Voltage18–30 V DC
-
Power Consumption~3 W (maximum)
-
Operating Temperature-40 °C to +70 °C
-
Storage Temperature-40 °C to +80 °C
-
Relative HumidityUp to 95% non-condensing
-
Protection ClassIP30
-
Surge/ProtectionSurge/overvoltage protection (built-in)
-
EMC / StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
-
ColorBlack (variant 852-111/000-001)
-
Weight180 g
-
Dimensions (W × H × L)23.4 × 73.8 × 109.2 mm
-
Height above DIN rail(mounting dimension listed in datasheet)
-
Typical UseSmall to medium-sized industrial networks, control cabinets
-
PackagingDIN-rail mounting packaging; retail box (dimensions estimated)
-
IP RatingIP30
