WAGO 750-530 is an 8-channel digital output module for 24 V DC systems. Each channel provides up to 0.5 A. The module uses transistor-type digital outputs and spring-clamp (spring-cage) electrical connections, and is designed for DIN-rail mounting. Nominal supply voltage is 24 V DC with an...
More

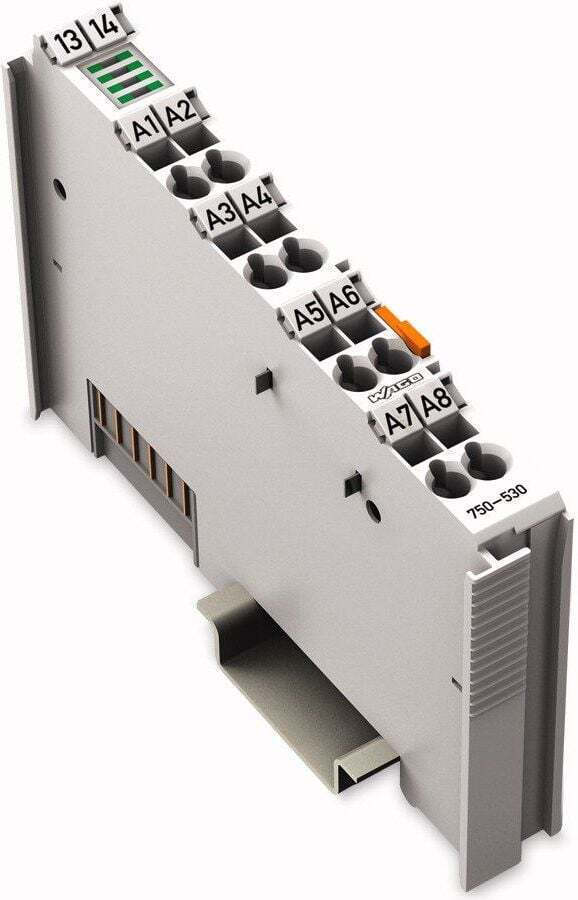

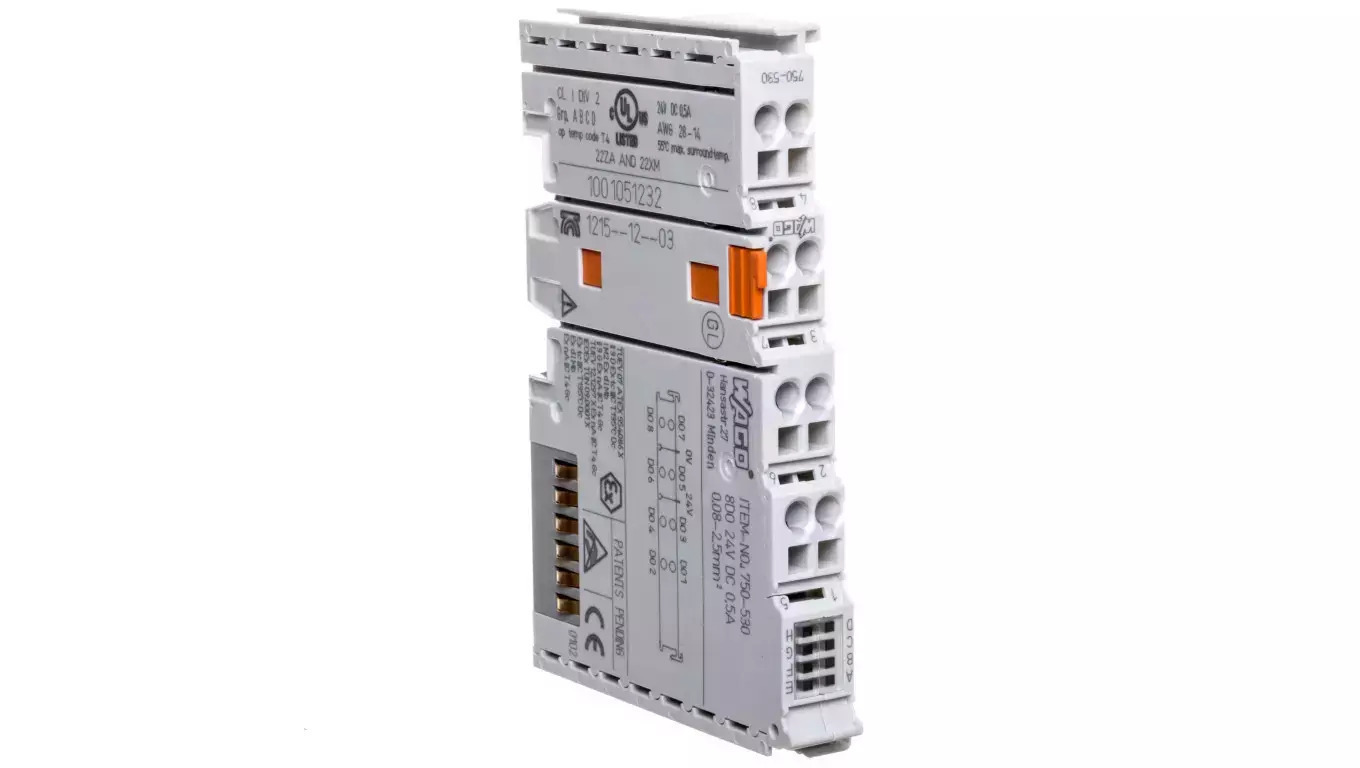

WAGO 8-Channel Digital Output Module 24 V DC 0.5 A (Model 750-530)
Product Code: 1173734340
Available in 4 - 6 days
124,56 €
or
3,89€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 374 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
WAGO 750-530 is an 8-channel digital output module for 24 V DC systems. Each channel provides up to 0.5 A. The module uses transistor-type digital outputs and spring-clamp (spring-cage) electrical connections, and is designed for DIN-rail mounting. Nominal supply voltage is 24 V DC with an operating range of 18 V DC to 31.2 V DC. Compact light-gray housing. Typical application: industrial I/O for controllers and fieldbus systems.
-
BrandWAGO
-
Model750-530
-
SKU21379341
-
EAN4045454686901
-
Product Type8-channel digital output module
-
Number of Outputs (channels)8
-
Number of Inputs0
-
Digital Output TypeTransistor outputs
-
Nominal Output Voltage24 V DC
-
Supply Voltage Range18 V DC to 31.2 V DC
-
Rated Current per Output0.5 A
-
Maximum DC Voltage31.2 V
-
Minimum DC Voltage18 V
-
Electrical Connection TypeSpring-cage (spring clamp) terminals
-
MountingDIN-rail mounting
-
Width12 mm
-
Height100 mm
-
Depth65 mm
-
ColorLight gray
-
Housing MaterialPlastic (industrial-grade polymer)
-
ApplicationIndustrial automation I/O module for controllers and fieldbus systems
Ratings
Description
WAGO 750-530 is an 8-channel digital output module for 24 V DC systems. Each channel provides up to 0.5 A. The module uses transistor-type digital outputs and spring-clamp (spring-cage) electrical connections, and is designed for DIN-rail mounting. Nominal supply voltage is 24 V DC with an operating range of 18 V DC to 31.2 V DC. Compact light-gray housing. Typical application: industrial I/O for controllers and fieldbus systems.
Technical Specifications
-
BrandWAGO
-
Model750-530
-
SKU21379341
-
EAN4045454686901
-
Product Type8-channel digital output module
-
Number of Outputs (channels)8
-
Number of Inputs0
-
Digital Output TypeTransistor outputs
-
Nominal Output Voltage24 V DC
-
Supply Voltage Range18 V DC to 31.2 V DC
-
Rated Current per Output0.5 A
-
Maximum DC Voltage31.2 V
-
Minimum DC Voltage18 V
-
Electrical Connection TypeSpring-cage (spring clamp) terminals
-
MountingDIN-rail mounting
-
Width12 mm
-
Height100 mm
-
Depth65 mm
-
ColorLight gray
-
Housing MaterialPlastic (industrial-grade polymer)
-
ApplicationIndustrial automation I/O module for controllers and fieldbus systems
