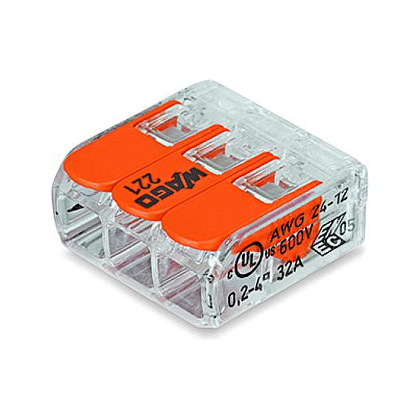

WAGO 221-413 COMPACT 3-conductor splicing connector, 4 mm², 50 pcs

Description

Technical Specifications

• Type
  COMPACT splicing connector
• Brand
  WAGO
• Model / MPN
  221-413
• SKU
  21307581
• EAN / GTIN
  4050821808442
• Pack size
  50 pieces
• Number of conductors
  3
• Number of potentials
  1
• Connection technology
  CAGE CLAMP® (lever-actuated)
• Actuation type
  Lever (tool-free)
• Wiring direction
  Side-entry wiring
• Nominal cross section
  4 mm²
• Compatible conductor types
  Copper only (solid, stranded, fine-stranded)
• Solid conductor range
  0.2–4 mm² (24–12 AWG)
• Stranded conductor range
  0.2–4 mm² (24–12 AWG)
• Fine-stranded conductor range
  0.14–4 mm² (24–12 AWG)
• Strip length
  11 mm
• Rated voltage
  450 V
• Rated impulse voltage
  4 kV
• Rated current
  32 A
• Dimensions (W × H × D)
  18.7 × 8.3 × 18.6 mm
• Weight (per piece)
  2.527 g
• Color
  Transparent housing
• Flammability class
  UL94 V2
• Operating temperature
  max 85 °C (T85)
• Test points
  Two test slots for voltage testing
• Reusable
  Yes (reusable for repeated connections)
• Country of origin
  Germany
• Series
  WAGO 221 (available in 2-, 3- and 5-wire variants)
• Application notes
  Compact design for tight spaces; ~40% less space vs older 222 series; suitable for quick device installations with higher power consumption
