The Victron Energy SmartSolar MPPT 150/60-Tr is an advanced MPPT solar charge controller designed for 48 V battery systems with a maximum charging current of 60 A. It supports a maximum PV open-circuit voltage (Voc) of 150 V. The unit features integrated Bluetooth and a VE.Direct communication port...
More

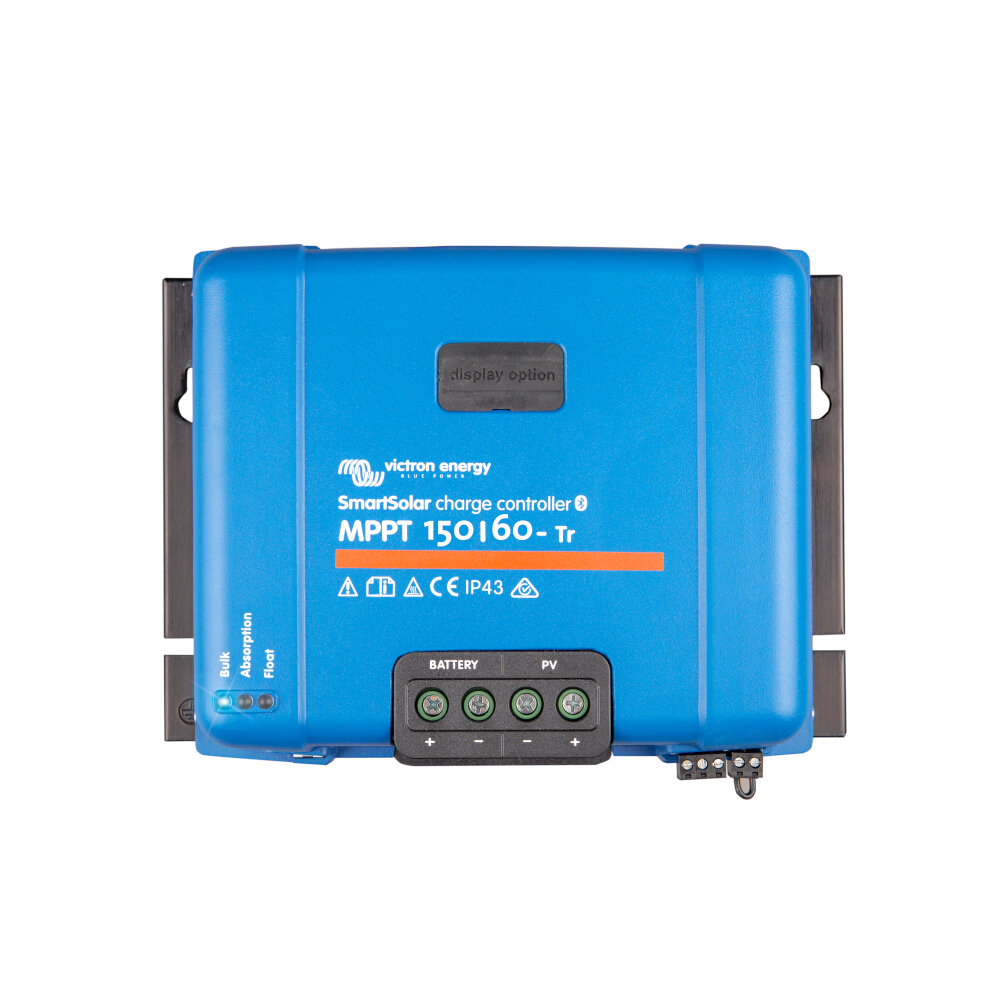

Victron Energy SmartSolar MPPT 150/60-Tr Charge Controller 48V 60A
Product Code: 1127684568
Available in 4 - 10 days
469,94 €
or
14,68€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Victron Energy SmartSolar MPPT 150/60-Tr is an advanced MPPT solar charge controller designed for 48 V battery systems with a maximum charging current of 60 A. It supports a maximum PV open-circuit voltage (Voc) of 150 V. The unit features integrated Bluetooth and a VE.Direct communication port for monitoring and configuration via VictronConnect. It offers multi-stage charging (Bulk, Absorption, Float), selectable charge profiles for different battery chemistries (Flooded, AGM, Gel, Li-ion), temperature-compensated charging, and multiple protections including reverse polarity, over-temperature and over-current protection. The SmartSolar MPPT employs an efficient MPPT algorithm to maximize PV harvest and is suitable for both residential and professional PV installations. Model number: SmartSolar MPPT 150/60-Tr. MPN: SCC115060211. EAN: 8719076051381. Approximate product weight: 2.2 kg; package dimensions (estimated): 28 x 20 x 11 cm.
-
TypeMPPT
-
ModelSmartSolar MPPT 150/60-Tr
-
Nominal Battery Voltage48 V
-
Maximum Charge Current60 A
-
Maximum PV Open-Circuit Voltage (Voc)150 V
-
CommunicationBuilt-in Bluetooth (VictronConnect) and VE.Direct port
-
Charging AlgorithmsMulti-stage: Bulk, Absorption, Float; selectable battery types (Flooded, AGM, Gel, Li-ion)
-
Temperature CompensationYes (temperature sensor support)
-
ProtectionsReverse polarity protection, Over-temperature protection, Over-current protection
-
MPPT EfficiencyHigh-efficiency MPPT algorithm (industry leading performance)
-
MountingWall/surface mounting (heatsink integrated)
-
MPNSCC115060211
-
EAN8719076051381
-
ManufacturerVictron Energy
-
Approximate Product Weight2200 g
-
Approximate Package Weight3500 g
-
Package Dimensions (estimated)28 x 20 x 11 cm
Ratings
Description
The Victron Energy SmartSolar MPPT 150/60-Tr is an advanced MPPT solar charge controller designed for 48 V battery systems with a maximum charging current of 60 A. It supports a maximum PV open-circuit voltage (Voc) of 150 V. The unit features integrated Bluetooth and a VE.Direct communication port for monitoring and configuration via VictronConnect. It offers multi-stage charging (Bulk, Absorption, Float), selectable charge profiles for different battery chemistries (Flooded, AGM, Gel, Li-ion), temperature-compensated charging, and multiple protections including reverse polarity, over-temperature and over-current protection. The SmartSolar MPPT employs an efficient MPPT algorithm to maximize PV harvest and is suitable for both residential and professional PV installations. Model number: SmartSolar MPPT 150/60-Tr. MPN: SCC115060211. EAN: 8719076051381. Approximate product weight: 2.2 kg; package dimensions (estimated): 28 x 20 x 11 cm.
Technical Specifications
-
TypeMPPT
-
ModelSmartSolar MPPT 150/60-Tr
-
Nominal Battery Voltage48 V
-
Maximum Charge Current60 A
-
Maximum PV Open-Circuit Voltage (Voc)150 V
-
CommunicationBuilt-in Bluetooth (VictronConnect) and VE.Direct port
-
Charging AlgorithmsMulti-stage: Bulk, Absorption, Float; selectable battery types (Flooded, AGM, Gel, Li-ion)
-
Temperature CompensationYes (temperature sensor support)
-
ProtectionsReverse polarity protection, Over-temperature protection, Over-current protection
-
MPPT EfficiencyHigh-efficiency MPPT algorithm (industry leading performance)
-
MountingWall/surface mounting (heatsink integrated)
-
MPNSCC115060211
-
EAN8719076051381
-
ManufacturerVictron Energy
-
Approximate Product Weight2200 g
-
Approximate Package Weight3500 g
-
Package Dimensions (estimated)28 x 20 x 11 cm
