The Victron Energy SmartSolar MPPT 150/45 is a Maximum Power Point Tracking (MPPT) solar charge controller designed for 48 V battery systems. It delivers up to 45 A charging current with high peak efficiency (~98%), and features protection against overheating and short circuits. PV open-circuit...
More

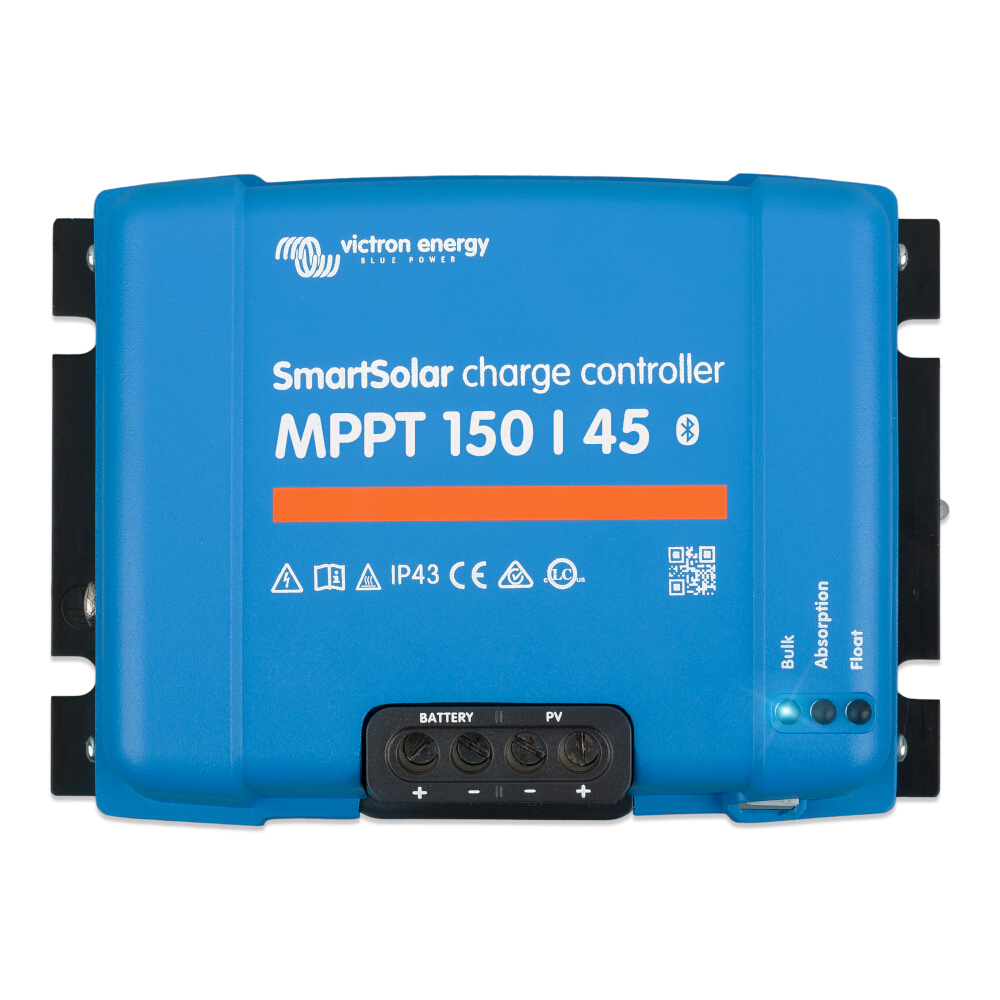

Victron Energy SmartSolar MPPT 150/45 Charge Controller 48V 45A
Product Code: 1127684566
Available in 4 - 10 days
280,01 €
or
8,74€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Victron Energy SmartSolar MPPT 150/45 is a Maximum Power Point Tracking (MPPT) solar charge controller designed for 48 V battery systems. It delivers up to 45 A charging current with high peak efficiency (~98%), and features protection against overheating and short circuits. PV open-circuit voltage is rated up to 150 V and maximum short-circuit current is 50 A. Rated operating temperature range: -30 to 60 °C. The unit comes in a blue housing, has no built-in display, supports AWG up to 6, and is compact and lightweight (approx. 1.25 kg). Model/identifiers: MPN SCC115045212, SKU WLONONWCROEYM, EAN 8719076053026.
-
TypeMPPT
-
Battery Voltage48 V
-
Charging Current (Max)45 A
-
Maximum Open Circuit Voltage (PV Voc)150 V
-
Maximum Short Circuit Current (Isc)50 A
-
Efficiency (Peak)98%
-
Power Protection FeaturesOverheating, Short circuit
-
Built-in DisplayNo
-
AWG Wire Size (Max)6
-
Operating Temperature Range-30 - 60 °C
-
Dimensions (W x H x D)186 x 130 x 70 mm
-
Weight1250 g
-
Product ColourBlue
-
International Protection (IP) codeIP22, IP43
-
Depth70 mm
-
Width186 mm
-
Height130 mm
-
MPNSCC115045212
-
SKUWLONONWCROEYM
-
EAN8719076053026
-
ModelSmartSolar MPPT 150/45
Ratings
Description
The Victron Energy SmartSolar MPPT 150/45 is a Maximum Power Point Tracking (MPPT) solar charge controller designed for 48 V battery systems. It delivers up to 45 A charging current with high peak efficiency (~98%), and features protection against overheating and short circuits. PV open-circuit voltage is rated up to 150 V and maximum short-circuit current is 50 A. Rated operating temperature range: -30 to 60 °C. The unit comes in a blue housing, has no built-in display, supports AWG up to 6, and is compact and lightweight (approx. 1.25 kg). Model/identifiers: MPN SCC115045212, SKU WLONONWCROEYM, EAN 8719076053026.
Technical Specifications
-
TypeMPPT
-
Battery Voltage48 V
-
Charging Current (Max)45 A
-
Maximum Open Circuit Voltage (PV Voc)150 V
-
Maximum Short Circuit Current (Isc)50 A
-
Efficiency (Peak)98%
-
Power Protection FeaturesOverheating, Short circuit
-
Built-in DisplayNo
-
AWG Wire Size (Max)6
-
Operating Temperature Range-30 - 60 °C
-
Dimensions (W x H x D)186 x 130 x 70 mm
-
Weight1250 g
-
Product ColourBlue
-
International Protection (IP) codeIP22, IP43
-
Depth70 mm
-
Width186 mm
-
Height130 mm
-
MPNSCC115045212
-
SKUWLONONWCROEYM
-
EAN8719076053026
-
ModelSmartSolar MPPT 150/45
