The Victron Energy Orion-Tr Smart 24/12-20A (Model ORI241224120, SKU WLONONWCROFHL, EAN 8719076046080) is an isolated DC/DC step-down converter designed to convert a 24 V nominal input to a 12 V output. Rated continuous output current is 20 A (240 W). The 'Smart' variant supports Bluetooth...
More

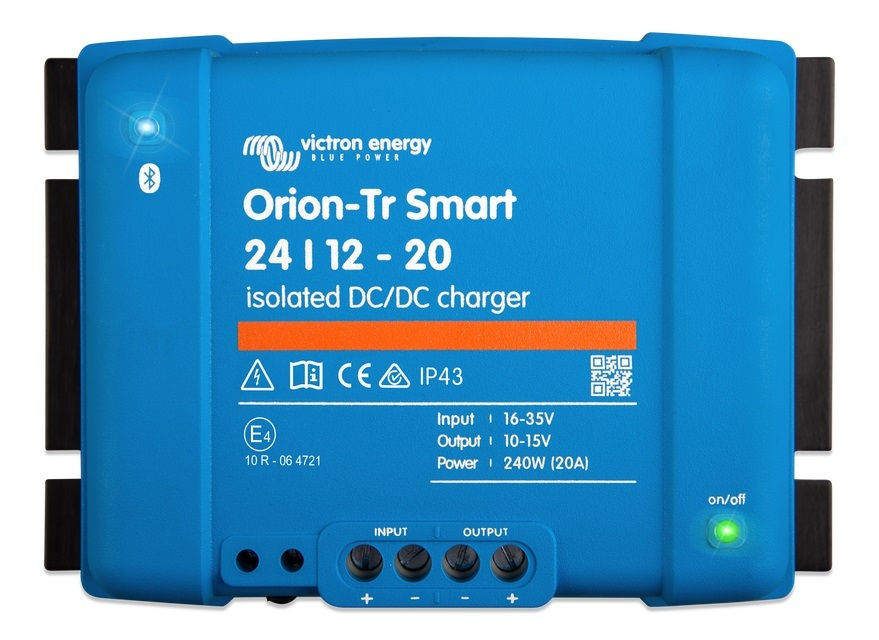

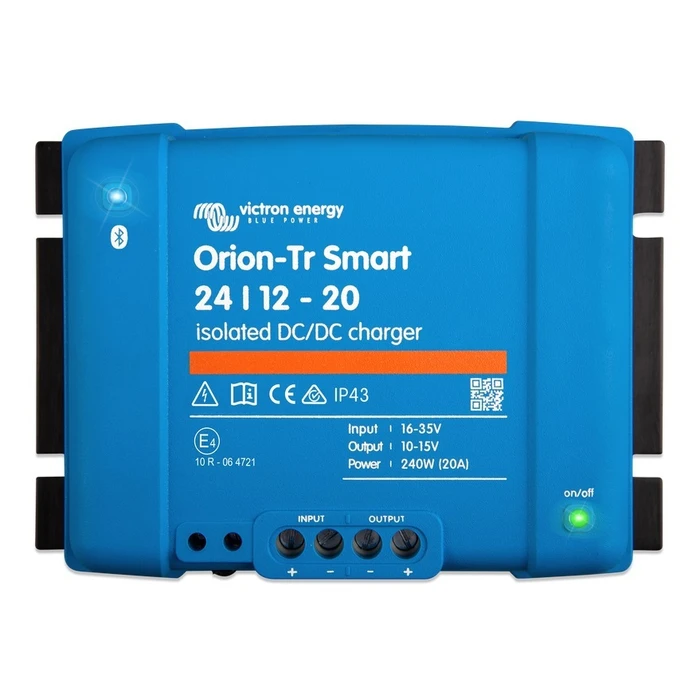

Victron Energy Orion-Tr Smart 24/12-20A Isolated DC/DC Converter 24V to 12V (ORI241224120)
Product Code: 1127684548
Available in 4 - 10 days
206,65 €
or
6,45€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Victron Energy Orion-Tr Smart 24/12-20A (Model ORI241224120, SKU WLONONWCROFHL, EAN 8719076046080) is an isolated DC/DC step-down converter designed to convert a 24 V nominal input to a 12 V output. Rated continuous output current is 20 A (240 W). The 'Smart' variant supports Bluetooth monitoring and configuration via the VictronConnect app. The unit provides galvanic isolation between input and output, high efficiency power conversion, and built-in protections including overload, short-circuit and over-temperature protection, plus intelligent current limiting and remote on/off functionality. It is housed in a robust metal (aluminium) enclosure for chassis/surface mounting and wired via screw terminals. Typical applications include automotive, marine and off-grid battery systems. Approximate product weight: 600 g. Packaged dimensions (L×W×H): 18 × 12 × 6 cm. Manufacturer: Victron Energy.
-
TypeDC/DC
-
Input Voltage24 V
-
Output Voltage12 V
-
Continuous Power240 W
-
Max Output Current20 A
-
IsolationIsolated (galvanic isolation)
-
ModelORI241224120
-
MPNORI241224120
-
SKUWLONONWCROFHL
-
EAN8719076046080
-
BrandVictron Energy
-
Smart FeaturesBluetooth monitoring and configuration via VictronConnect
-
ProtectionsOverload, short-circuit, over-temperature protection and intelligent current limiting
-
Housing MaterialAluminium / metal housing
-
MountingChassis / surface mounting
-
ConnectionsScrew terminal input/output and remote on/off
-
Typical ApplicationsAutomotive, marine, off-grid battery systems
-
Product Weight600 g
-
Package Weight1000 g
Ratings
Description
The Victron Energy Orion-Tr Smart 24/12-20A (Model ORI241224120, SKU WLONONWCROFHL, EAN 8719076046080) is an isolated DC/DC step-down converter designed to convert a 24 V nominal input to a 12 V output. Rated continuous output current is 20 A (240 W). The 'Smart' variant supports Bluetooth monitoring and configuration via the VictronConnect app. The unit provides galvanic isolation between input and output, high efficiency power conversion, and built-in protections including overload, short-circuit and over-temperature protection, plus intelligent current limiting and remote on/off functionality. It is housed in a robust metal (aluminium) enclosure for chassis/surface mounting and wired via screw terminals. Typical applications include automotive, marine and off-grid battery systems. Approximate product weight: 600 g. Packaged dimensions (L×W×H): 18 × 12 × 6 cm. Manufacturer: Victron Energy.
Technical Specifications
-
TypeDC/DC
-
Input Voltage24 V
-
Output Voltage12 V
-
Continuous Power240 W
-
Max Output Current20 A
-
IsolationIsolated (galvanic isolation)
-
ModelORI241224120
-
MPNORI241224120
-
SKUWLONONWCROFHL
-
EAN8719076046080
-
BrandVictron Energy
-
Smart FeaturesBluetooth monitoring and configuration via VictronConnect
-
ProtectionsOverload, short-circuit, over-temperature protection and intelligent current limiting
-
Housing MaterialAluminium / metal housing
-
MountingChassis / surface mounting
-
ConnectionsScrew terminal input/output and remote on/off
-
Typical ApplicationsAutomotive, marine, off-grid battery systems
-
Product Weight600 g
-
Package Weight1000 g
