The VenCore 3368-10004 is an IP65-rated dual PIR motion sensor designed for exterior or protected interior installations. It operates on 220–240 V AC (50/60 Hz) and features two PIR detectors providing combined coverage (180° + 120°) for enhanced detection. Detection range is up to 12 meters...
More
VenCore 3368-10004 - IP65 Dual PIR Motion Sensor 230V 12m Black
Product Code: 1183798149
Available in 4 - 6 days
13,95 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

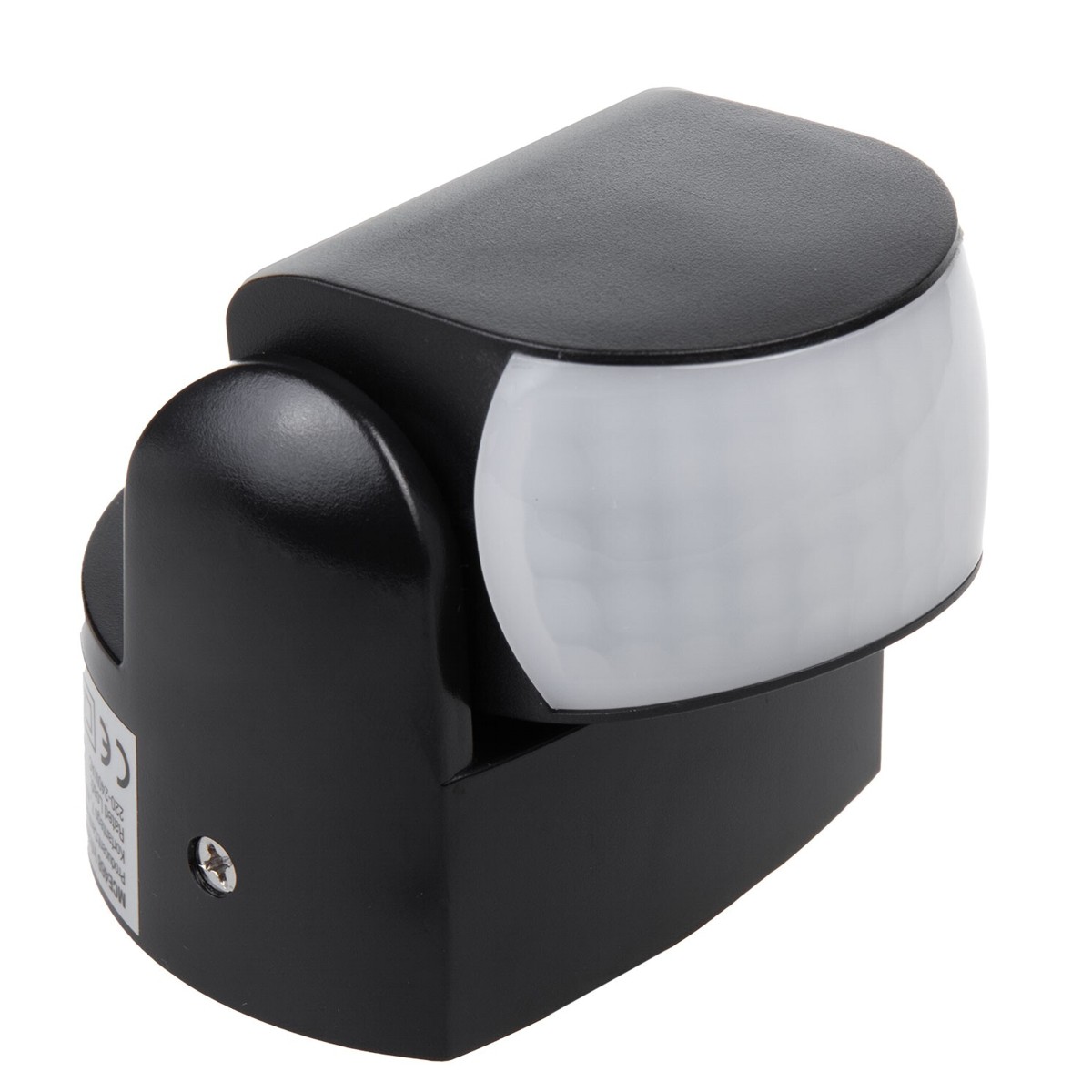

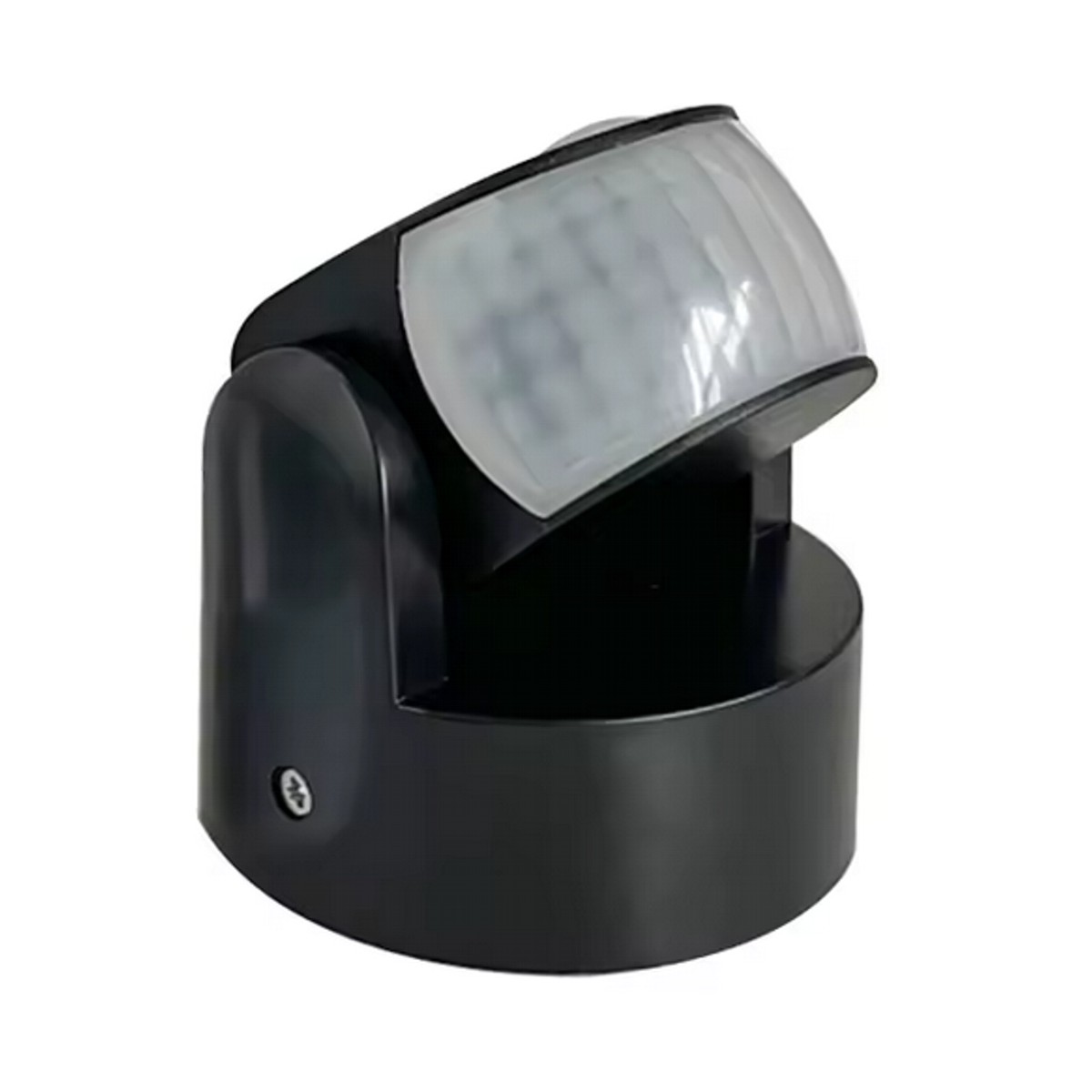

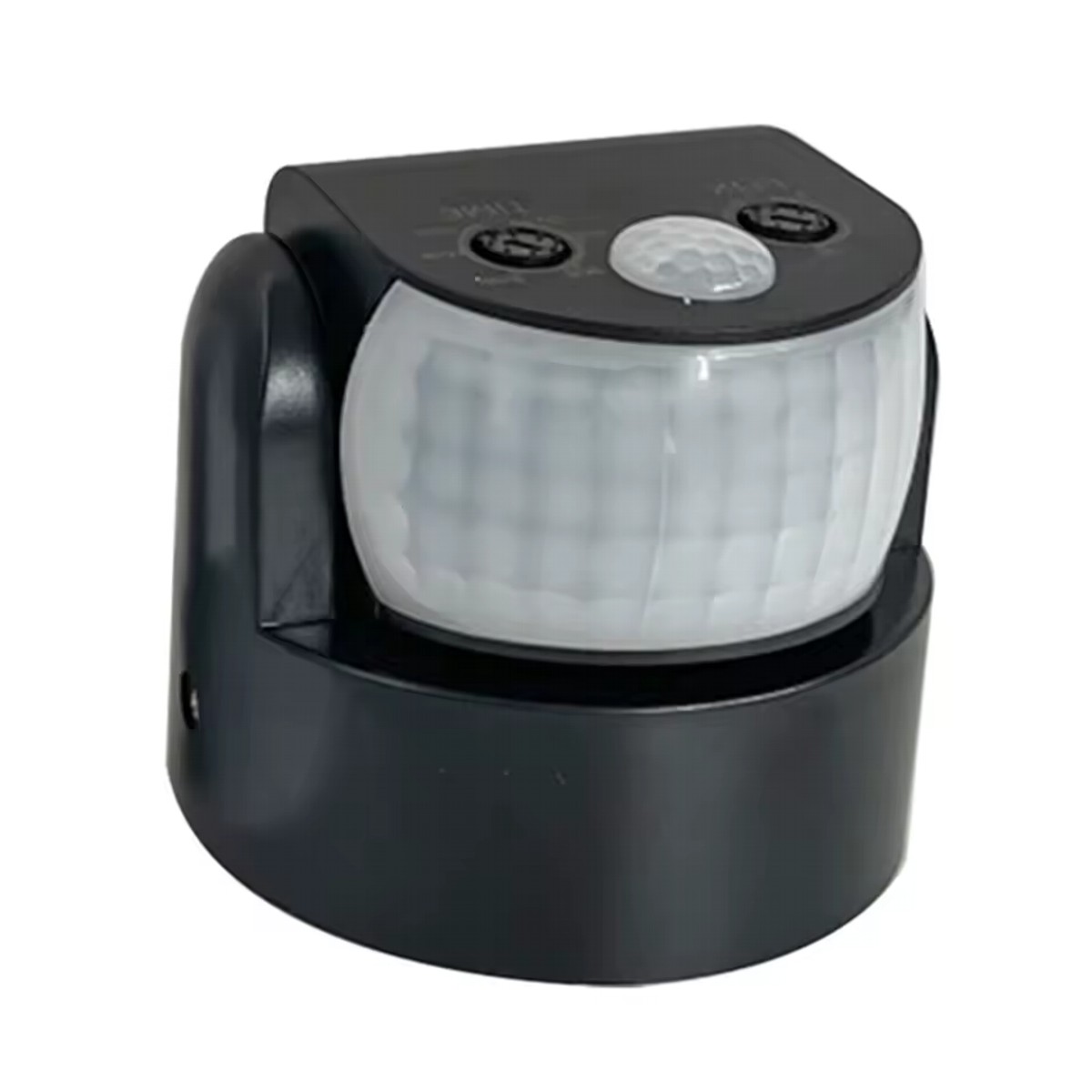

The VenCore 3368-10004 is an IP65-rated dual PIR motion sensor designed for exterior or protected interior installations. It operates on 220–240 V AC (50/60 Hz) and features two PIR detectors providing combined coverage (180° + 120°) for enhanced detection. Detection range is up to 12 meters (typical, <24°C) with a recommended mounting height of 1.8–2.5 m and target walking speed 0.6–1.5 m/s. Light sensitivity (lux) is adjustable (~3–2000 LUX) and the time delay is adjustable from approx. 10 seconds up to 15 minutes. Electrical ratings include up to 1200 W resistive (ohmic) load and up to 600 W inductive/capacitive loads (overall max indicated 1200 W). The sensor is housed in a black plastic body, rated Class II double insulated, and rated IP65 for dust/water protection. Operating temperature range is -20°C to +40°C. No anti-masking or tamper functions are provided. Ideal for controlling lamps, LED luminaires and lighting circuits where automatic presence detection is required. Warranty: 24 months.
-
BrandVenCore
-
Model3368-10004
-
TypeDual PIR motion sensor (two PIR detectors)
-
Protection RatingIP65 (suitable for outdoor/protected outdoor use)
-
Supply Voltage220–240 V AC
-
Frequency50/60 Hz
-

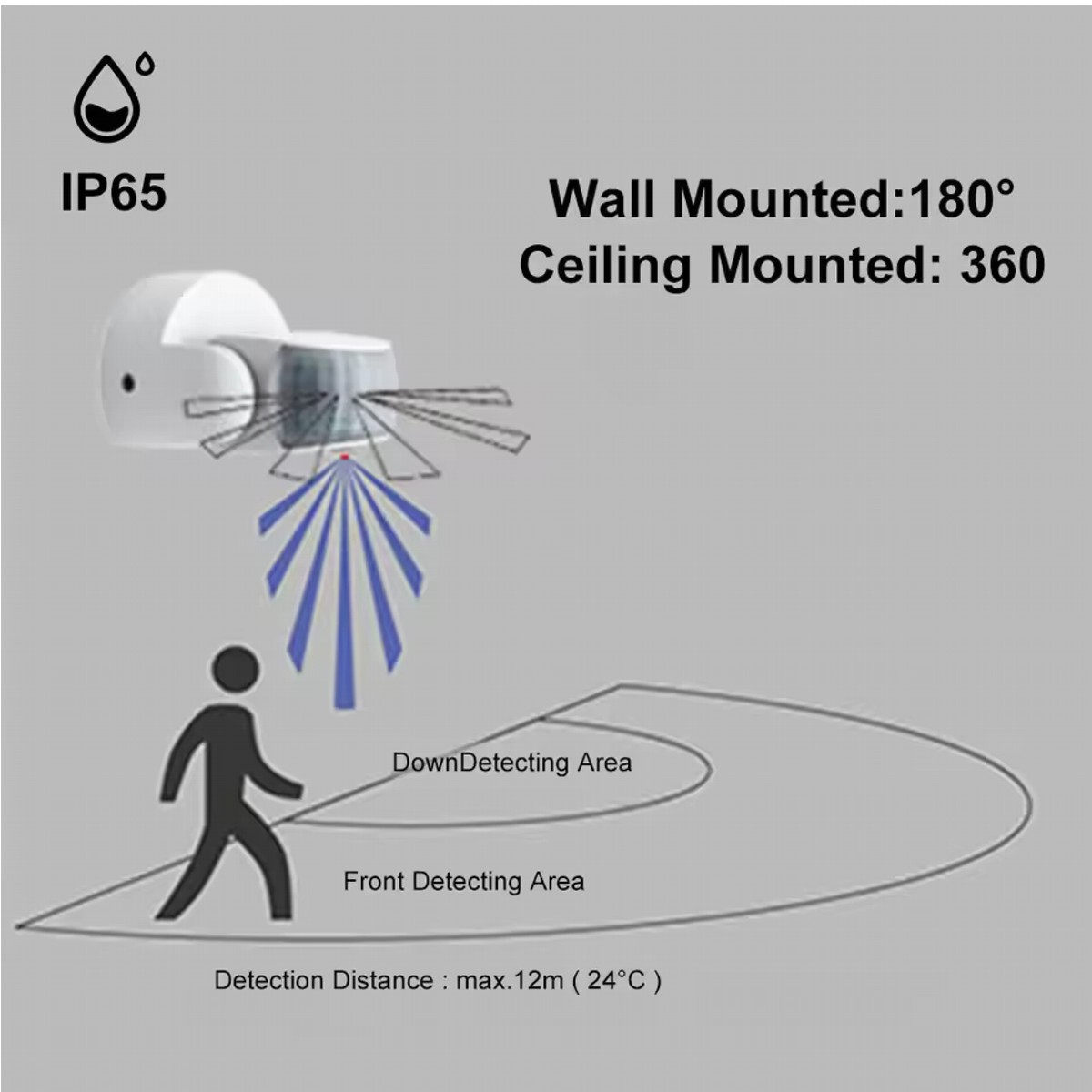

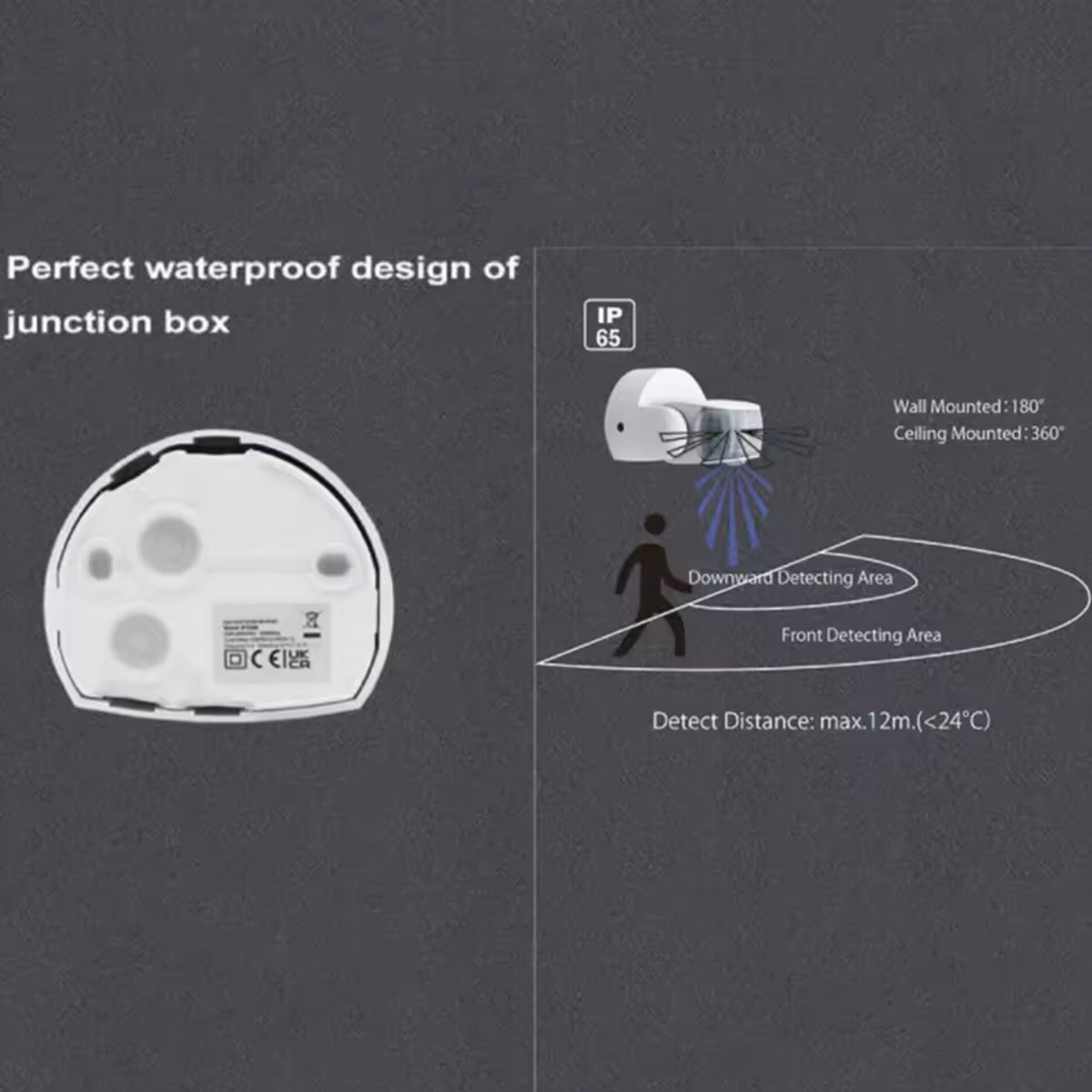

Detection Angle180° + 120° combined
-
Detection RangeUp to 12 m (typical, <24°C)
-
Mounting Height1.8 – 2.5 m
-
Target Speed0.6 – 1.5 m/s
-

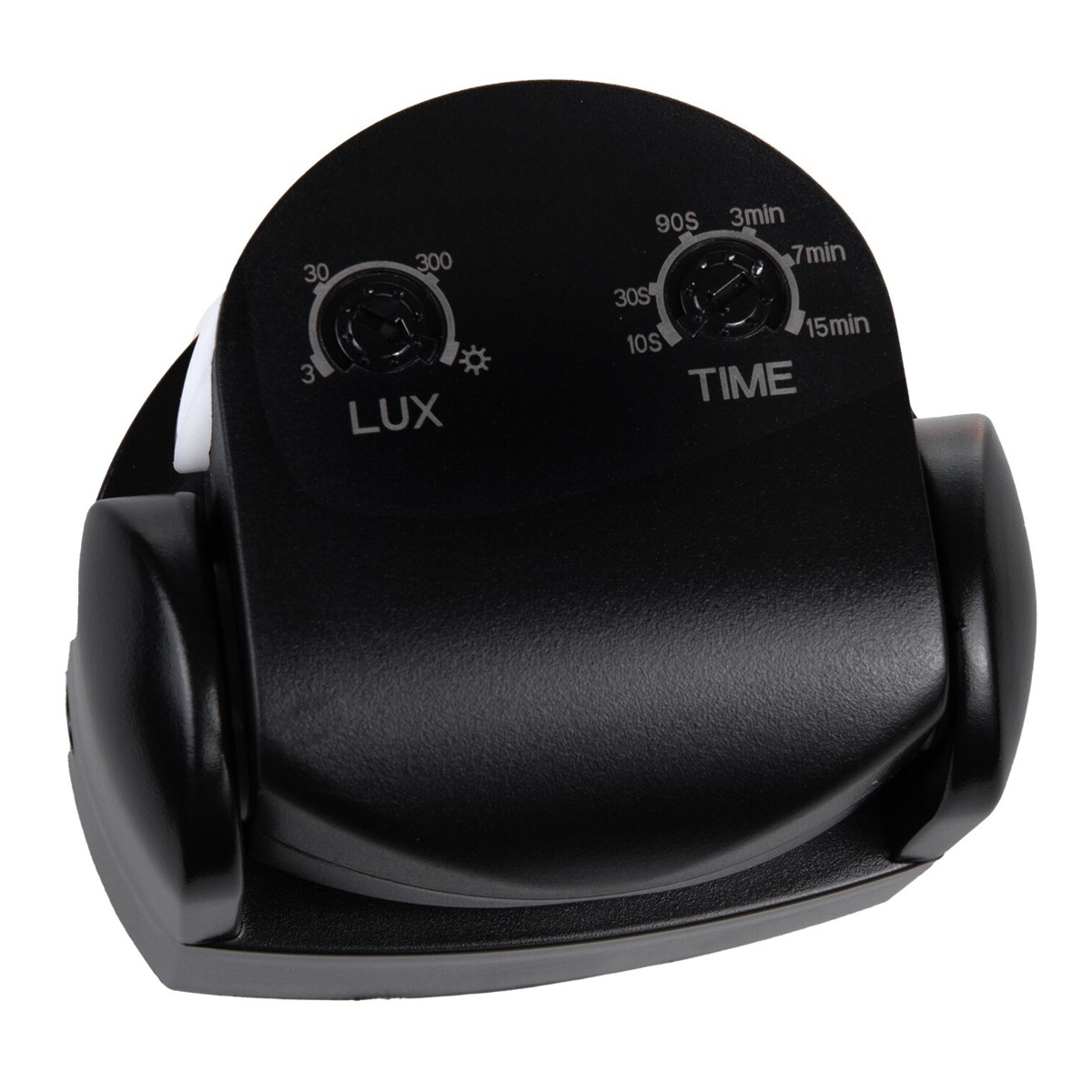

Light Sensitivity (Lux)Adjustable, approx. <3 – 2000 LUX
-
Time DelayAdjustable, approx. 10 seconds – 15 minutes
-
Max Resistive Load1200 W (ohmic)
-
Max Inductive/Capacitive Load600 W
-
Maximum Combined Load1200 W (recommended maximum)
-
ClassClass II (double insulated)
-
Body ColorBlack
-
Body MaterialPlastic (housing)
-
Ingress ProtectionIP65
-
Operating Temperature-20°C to +40°C
-
Humidity<93% RH
-
Warranty24 months
-
AntimaskingNo
-
TamperNo
-
Pet ImmunityNo
Ratings
Description
The VenCore 3368-10004 is an IP65-rated dual PIR motion sensor designed for exterior or protected interior installations. It operates on 220–240 V AC (50/60 Hz) and features two PIR detectors providing combined coverage (180° + 120°) for enhanced detection. Detection range is up to 12 meters (typical, <24°C) with a recommended mounting height of 1.8–2.5 m and target walking speed 0.6–1.5 m/s. Light sensitivity (lux) is adjustable (~3–2000 LUX) and the time delay is adjustable from approx. 10 seconds up to 15 minutes. Electrical ratings include up to 1200 W resistive (ohmic) load and up to 600 W inductive/capacitive loads (overall max indicated 1200 W). The sensor is housed in a black plastic body, rated Class II double insulated, and rated IP65 for dust/water protection. Operating temperature range is -20°C to +40°C. No anti-masking or tamper functions are provided. Ideal for controlling lamps, LED luminaires and lighting circuits where automatic presence detection is required. Warranty: 24 months.
Technical Specifications
-
BrandVenCore
-
Model3368-10004
-
TypeDual PIR motion sensor (two PIR detectors)
-
Protection RatingIP65 (suitable for outdoor/protected outdoor use)
-
Supply Voltage220–240 V AC
-
Frequency50/60 Hz
-
Detection Angle180° + 120° combined
-
Detection RangeUp to 12 m (typical, <24°C)
-
Mounting Height1.8 – 2.5 m
-
Target Speed0.6 – 1.5 m/s
-
Light Sensitivity (Lux)Adjustable, approx. <3 – 2000 LUX
-
Time DelayAdjustable, approx. 10 seconds – 15 minutes
-
Max Resistive Load1200 W (ohmic)
-
Max Inductive/Capacitive Load600 W
-
Maximum Combined Load1200 W (recommended maximum)
-
ClassClass II (double insulated)
-
Body ColorBlack
-
Body MaterialPlastic (housing)
-
Ingress ProtectionIP65
-
Operating Temperature-20°C to +40°C
-
Humidity<93% RH
-
Warranty24 months
-
AntimaskingNo
-
TamperNo
-
Pet ImmunityNo
