The VenCore 3368-10003 is an IP65-rated dual PIR motion sensor for 230V AC mains. It features two independent PIR sensors with combined detection angles of 180° + 120° and a maximum detection range of up to 12 meters. Designed for outdoor and indoor use with a white plastic housing (Class II double...
More

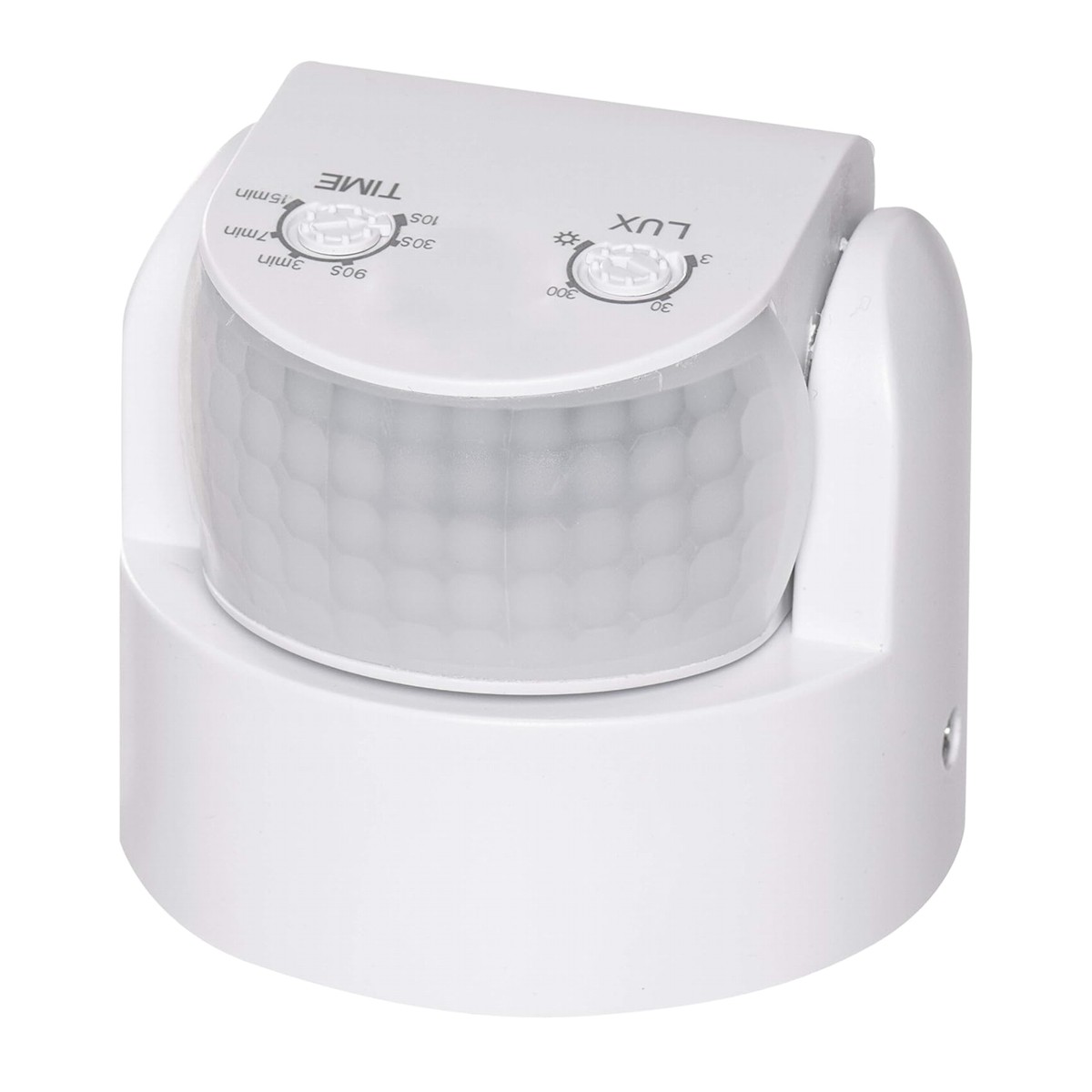

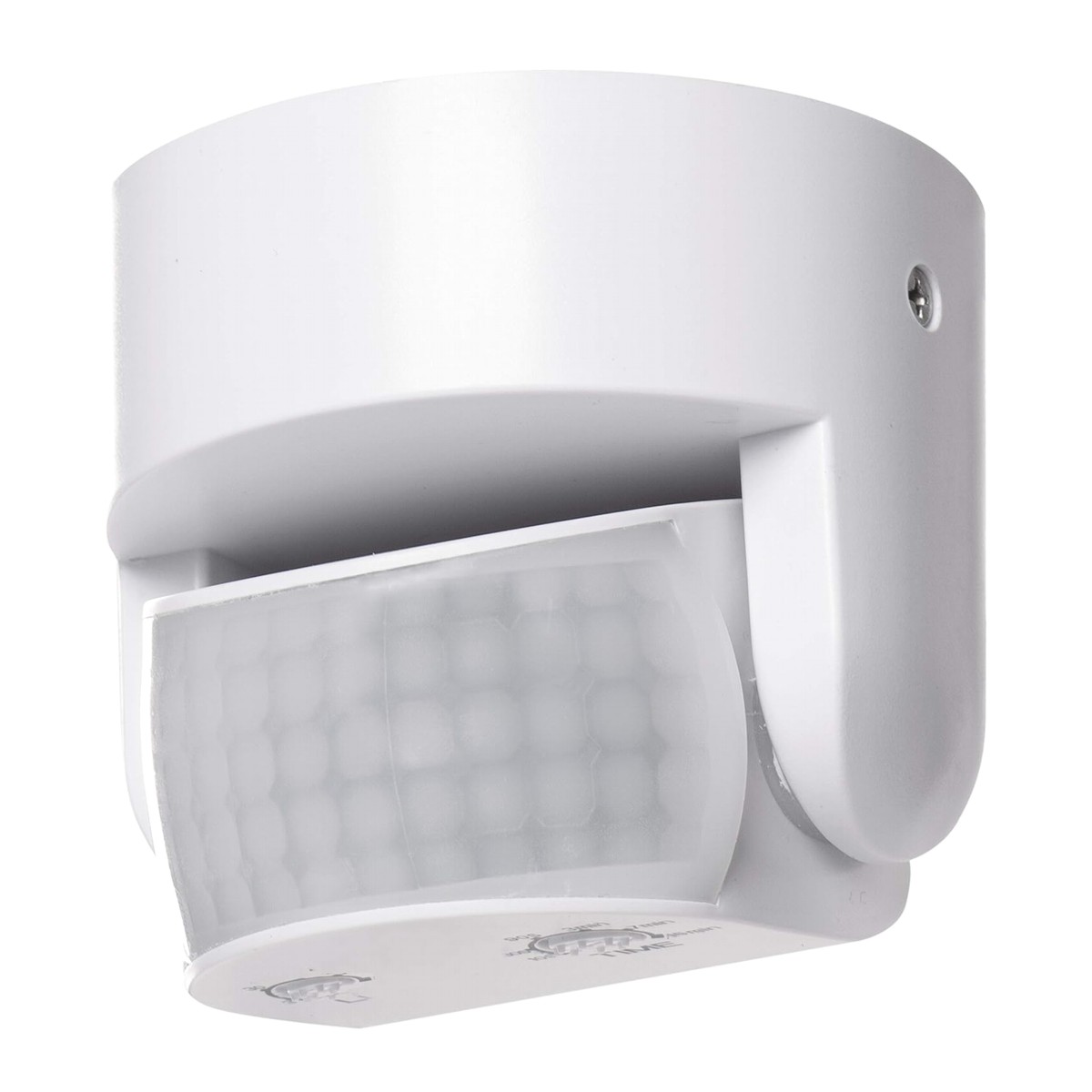

VenCore 3368-10003 - IP65 Dual PIR Motion Sensor 230V 1200W White
Product Code: 1183798148
Available in 4 - 6 days
13,95 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The VenCore 3368-10003 is an IP65-rated dual PIR motion sensor for 230V AC mains. It features two independent PIR sensors with combined detection angles of 180° + 120° and a maximum detection range of up to 12 meters. Designed for outdoor and indoor use with a white plastic housing (Class II double insulated), it supports incandescent, LED and various ballast-driven luminaires. Power supply: 220–240V AC, 50/60 Hz. Adjustable settings include time delay (approx. 10 seconds to 15 minutes) and light sensitivity (adjustable lux). Recommended mounting height: 1.8–2.5 m. Operating temperature: -20°C to +40°C. Relative humidity <93% RH. Maximum resistive load up to 1200 W (specified), inductive/fluorescent loads rated lower (e.g. 600 W). Ideal for entrances, porches, driveways and exterior lighting control. Brand: VenCore. Model/SKU: 3368-10003. EAN: 5212062202420.
-
BrandVenCore
-
Model / SKU3368-10003
-
EAN5212062202420
-
MPN3368-10003
-
Product TypeDual PIR Motion Sensor
-
Power Supply220-240 V AC, 50/60 Hz
-
Maximum Resistive Load1200 W (ωμικό φορτίο)
-
Maximum Inductive/Fluorescent Load600 W (επαγωγικό / φθορισμού)
-

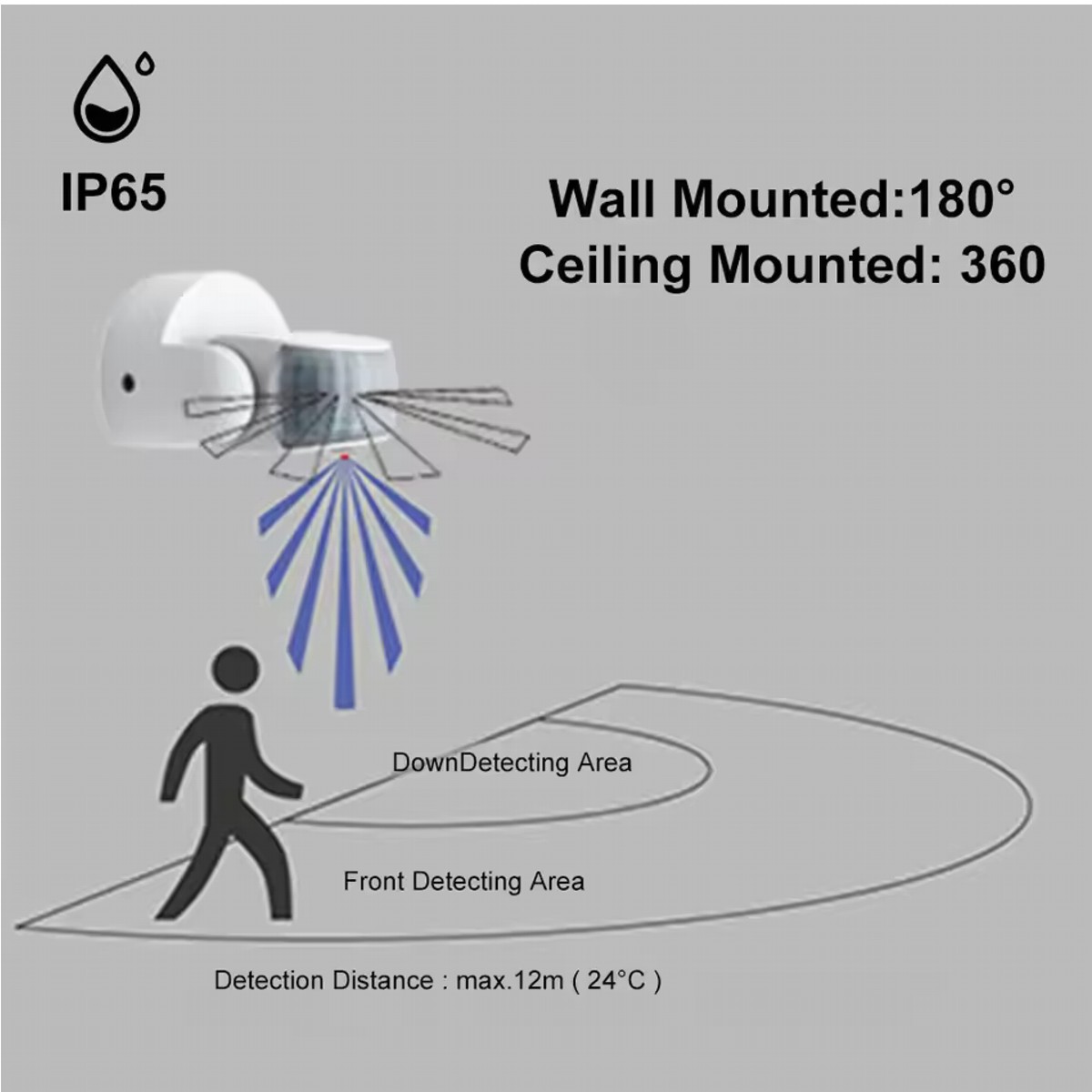

Detection Angle180° + 120° (διπλός αισθητήρας)
-
Detection RangeΈως 12 m
-
Mounting Height1.8 – 2.5 m
-
Target Speed (Detection)0.6 – 1.5 m/s
-
Time Delay (adjustable)≈10 seconds (min) to 15 minutes (max)
-
Light Sensor (Lux) (adjustable)<3 – 2000 LUX (ρυθμιζόμενο)
-
IP RatingIP65 (ανθεκτικό σε καιρικές συνθήκες)
-
Operating Temperature-20°C to +40°C
-
Relative Humidity<93% RH
-
Protection ClassClass II (διπλή μόνωση)
-
Body ColorWhite
-
Body MaterialDurable plastic (πλαστικό σώμα)
-
CompatibilityLED lamps, incandescent lamps, electronic ballasts
-
AntimaskingNo
-
Tamper SwitchNo
-
PET ImmunityNo
-
Typical UseExterior & interior lighting control (entrances, porches, driveways)
-
EAN / UPC5212062202420
Ratings
Description
The VenCore 3368-10003 is an IP65-rated dual PIR motion sensor for 230V AC mains. It features two independent PIR sensors with combined detection angles of 180° + 120° and a maximum detection range of up to 12 meters. Designed for outdoor and indoor use with a white plastic housing (Class II double insulated), it supports incandescent, LED and various ballast-driven luminaires. Power supply: 220–240V AC, 50/60 Hz. Adjustable settings include time delay (approx. 10 seconds to 15 minutes) and light sensitivity (adjustable lux). Recommended mounting height: 1.8–2.5 m. Operating temperature: -20°C to +40°C. Relative humidity <93% RH. Maximum resistive load up to 1200 W (specified), inductive/fluorescent loads rated lower (e.g. 600 W). Ideal for entrances, porches, driveways and exterior lighting control. Brand: VenCore. Model/SKU: 3368-10003. EAN: 5212062202420.
Technical Specifications
-
BrandVenCore
-
Model / SKU3368-10003
-
EAN5212062202420
-
MPN3368-10003
-
Product TypeDual PIR Motion Sensor
-
Power Supply220-240 V AC, 50/60 Hz
-
Maximum Resistive Load1200 W (ωμικό φορτίο)
-
Maximum Inductive/Fluorescent Load600 W (επαγωγικό / φθορισμού)
-
Detection Angle180° + 120° (διπλός αισθητήρας)
-
Detection RangeΈως 12 m
-
Mounting Height1.8 – 2.5 m
-
Target Speed (Detection)0.6 – 1.5 m/s
-
Time Delay (adjustable)≈10 seconds (min) to 15 minutes (max)
-
Light Sensor (Lux) (adjustable)<3 – 2000 LUX (ρυθμιζόμενο)
-
IP RatingIP65 (ανθεκτικό σε καιρικές συνθήκες)
-
Operating Temperature-20°C to +40°C
-
Relative Humidity<93% RH
-
Protection ClassClass II (διπλή μόνωση)
-
Body ColorWhite
-
Body MaterialDurable plastic (πλαστικό σώμα)
-
CompatibilityLED lamps, incandescent lamps, electronic ballasts
-
AntimaskingNo
-
Tamper SwitchNo
-
PET ImmunityNo
-
Typical UseExterior & interior lighting control (entrances, porches, driveways)
-
EAN / UPC5212062202420
