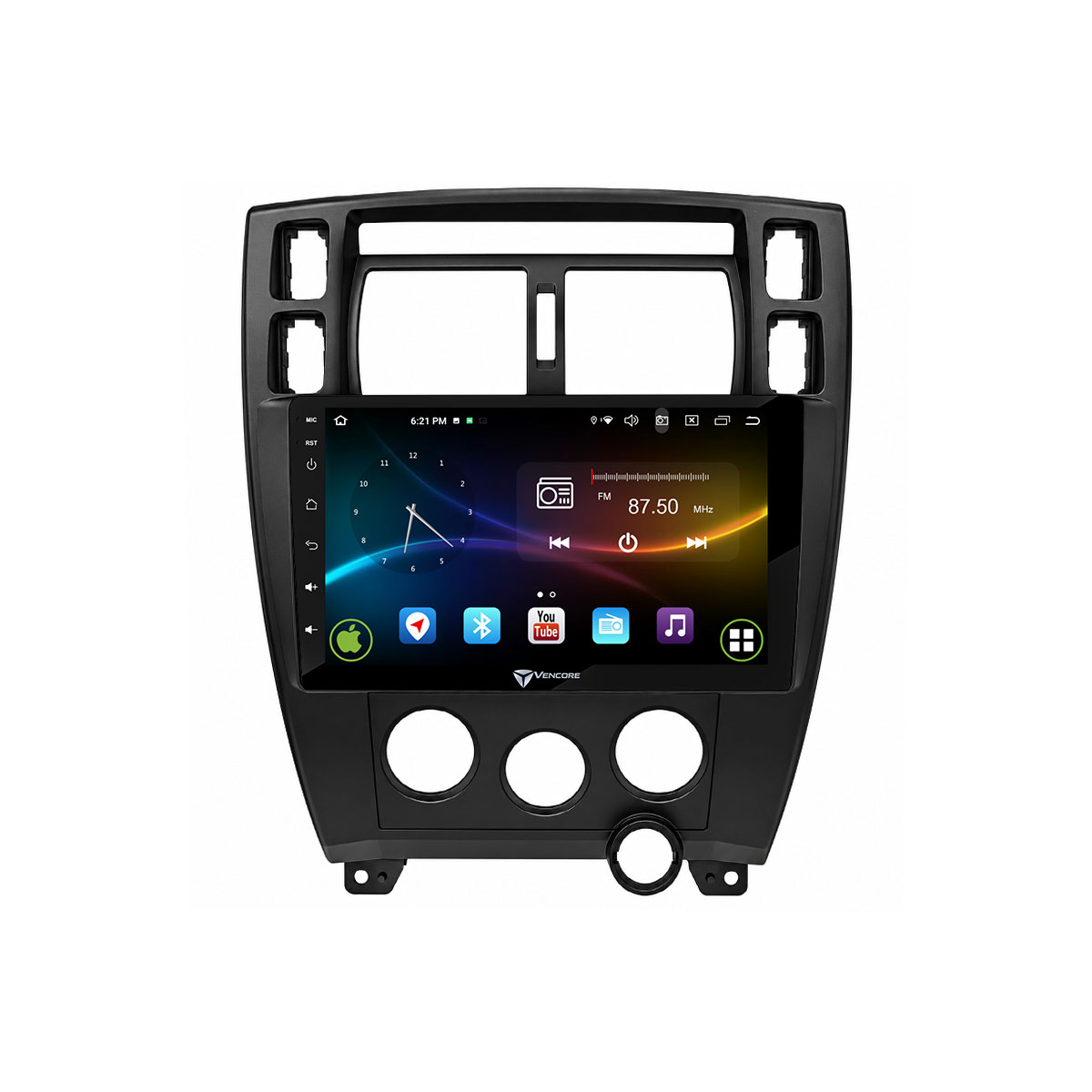

Complete multimedia head unit set for Hyundai Tucson (2004-2010) with 10.1" IPS capacitive touch front panel. Runs Android 15 on MTK6762 Octa‑Core (4x Cortex‑A53 @2.0GHz + 4x Cortex‑A53 @1.6GHz), 2GB DDR3 RAM and 32GB internal storage. Display resolution 1280×720, supports Split Screen /...
More
VenCore 3236-10008-0712B - Android 15 10.1" Multimedia Head Unit for Hyundai Tucson 2004-2010, MTK6762 Octa-Core, 2GB/32GB, IPS, CarPlay & Android Auto, AHD Rear Camera Support - Black
Product Code: 1183798498
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Complete multimedia head unit set for Hyundai Tucson (2004-2010) with 10.1" IPS capacitive touch front panel. Runs Android 15 on MTK6762 Octa‑Core (4x Cortex‑A53 @2.0GHz + 4x Cortex‑A53 @1.6GHz), 2GB DDR3 RAM and 32GB internal storage. Display resolution 1280×720, supports Split Screen / Multi‑Window. Compatible with Apple CarPlay, Android Auto and Screen Mirroring/MirrorLink. Dual‑band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 with hands‑free and A2DP. Built‑in GPS with external antenna (compatible with Google Maps). Integrated audio amplifier YD7388 (4×50W, 4.1 channel) with subwoofer output; FM (RDS) and AM radio supported. Audio formats: AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR. I/O: 2×USB 2.0, AUX, AHD/TVI video input up to 1080p, front/rear RCA outputs, GPS connector, CANbus box and all installation cables included. Power input 9–14.4V, recommended fuse/current 10A. Includes 10.1" fascia for Hyundai Tucson 2004–2010 (front trim ref. 3550-0712B). Package weight ~2.5 kg.
-
BrandVenCore
-
Model / SKU3236-10008-0712B
-
Product TypeAndroid multimedia head unit / in-dash screen
-
Compatible ModelsHyundai Tucson 2004-2010
-
Screen Size10.1 inches (front fascia), 10" nominal display
-
Panel TypeIPS
-
Resolution1280 x 720 pixels (HD)
-
Touch TypeCapacitive multi-touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762
-
CPUOcta-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi-FiDual-band 2.4GHz / 5GHz
-
BluetoothBluetooth 5.0 (Hands-Free, A2DP)
-
Smartphone IntegrationApple CarPlay, Android Auto, Screen Mirroring / MirrorLink
-
GPSBuilt-in GPS with external antenna (supports Google Maps)
-
Amplifier ICYD7388
-
Audio Output Power4 × 50W (peak spec stated)
-
Audio Channels4.1 Channel, subwoofer output
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
RadioFM with RDS (18 presets), AM (12 presets)
-
Camera InputAHD / TVI video input, supports 720p / 1080p AHD cameras
-
360° Camera SupportNo (not supplied)
-
CANbusIncluded CANbus Box (for steering wheel controls & vehicle integration)
-
USB2 × USB 2.0 (data + charging output 500mA)
-
AUXYes
-
RCA OutputsFront RCA outputs, rear RCA outputs
-
Power Input Voltage9–14.4V
-
Recommended Fuse / Current10A
-
Operating Temperature−20°C to 70°C
-

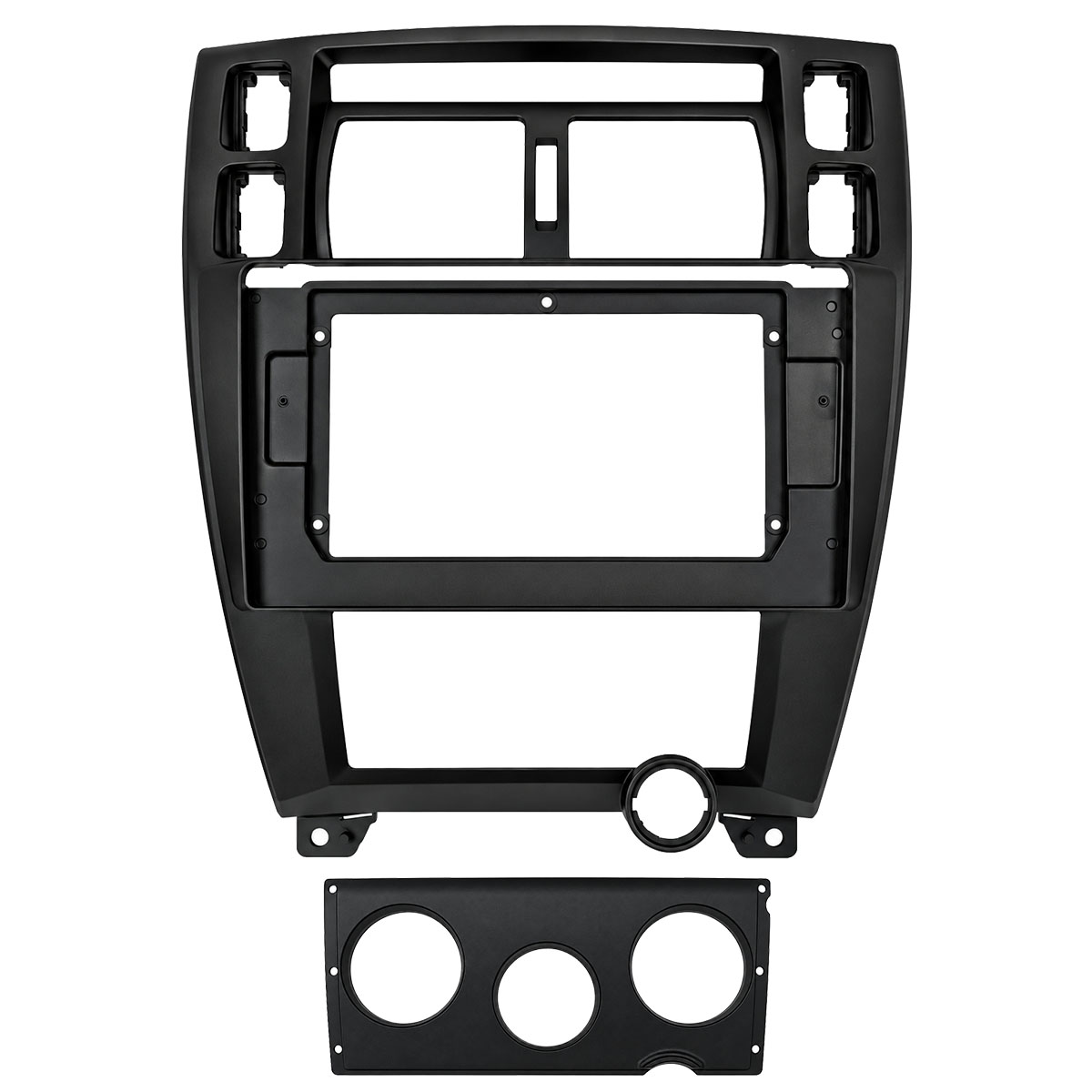

Mounting / FitmentIncludes 10.1" fascia for Hyundai Tucson 2004-2010 (ref. 3550-0712B)
-
Package ContentsMultimedia head unit, 10.1" fascia, CANbus box, 6‑pin multimedia harness, ISO power cable, USB adapter 4P/6P, front RCA output cable 20P, AUX cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna
-
ColorBlack
-
Weight (set)2.50 kg
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware Update MethodUSB
-
EAN5212062209306
-
MPN3236-10008-0712B
Ratings
Description
Complete multimedia head unit set for Hyundai Tucson (2004-2010) with 10.1" IPS capacitive touch front panel. Runs Android 15 on MTK6762 Octa‑Core (4x Cortex‑A53 @2.0GHz + 4x Cortex‑A53 @1.6GHz), 2GB DDR3 RAM and 32GB internal storage. Display resolution 1280×720, supports Split Screen / Multi‑Window. Compatible with Apple CarPlay, Android Auto and Screen Mirroring/MirrorLink. Dual‑band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 with hands‑free and A2DP. Built‑in GPS with external antenna (compatible with Google Maps). Integrated audio amplifier YD7388 (4×50W, 4.1 channel) with subwoofer output; FM (RDS) and AM radio supported. Audio formats: AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR. I/O: 2×USB 2.0, AUX, AHD/TVI video input up to 1080p, front/rear RCA outputs, GPS connector, CANbus box and all installation cables included. Power input 9–14.4V, recommended fuse/current 10A. Includes 10.1" fascia for Hyundai Tucson 2004–2010 (front trim ref. 3550-0712B). Package weight ~2.5 kg.
Technical Specifications
-
BrandVenCore
-
Model / SKU3236-10008-0712B
-
Product TypeAndroid multimedia head unit / in-dash screen
-
Compatible ModelsHyundai Tucson 2004-2010
-
Screen Size10.1 inches (front fascia), 10" nominal display
-
Panel TypeIPS
-
Resolution1280 x 720 pixels (HD)
-
Touch TypeCapacitive multi-touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762
-
CPUOcta-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi-FiDual-band 2.4GHz / 5GHz
-
BluetoothBluetooth 5.0 (Hands-Free, A2DP)
-
Smartphone IntegrationApple CarPlay, Android Auto, Screen Mirroring / MirrorLink
-
GPSBuilt-in GPS with external antenna (supports Google Maps)
-
Amplifier ICYD7388
-
Audio Output Power4 × 50W (peak spec stated)
-
Audio Channels4.1 Channel, subwoofer output
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
RadioFM with RDS (18 presets), AM (12 presets)
-
Camera InputAHD / TVI video input, supports 720p / 1080p AHD cameras
-
360° Camera SupportNo (not supplied)
-
CANbusIncluded CANbus Box (for steering wheel controls & vehicle integration)
-
USB2 × USB 2.0 (data + charging output 500mA)
-
AUXYes
-
RCA OutputsFront RCA outputs, rear RCA outputs
-
Power Input Voltage9–14.4V
-
Recommended Fuse / Current10A
-
Operating Temperature−20°C to 70°C
-
Mounting / FitmentIncludes 10.1" fascia for Hyundai Tucson 2004-2010 (ref. 3550-0712B)
-
Package ContentsMultimedia head unit, 10.1" fascia, CANbus box, 6‑pin multimedia harness, ISO power cable, USB adapter 4P/6P, front RCA output cable 20P, AUX cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna
-
ColorBlack
-
Weight (set)2.50 kg
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware Update MethodUSB
-
EAN5212062209306
-
MPN3236-10008-0712B
