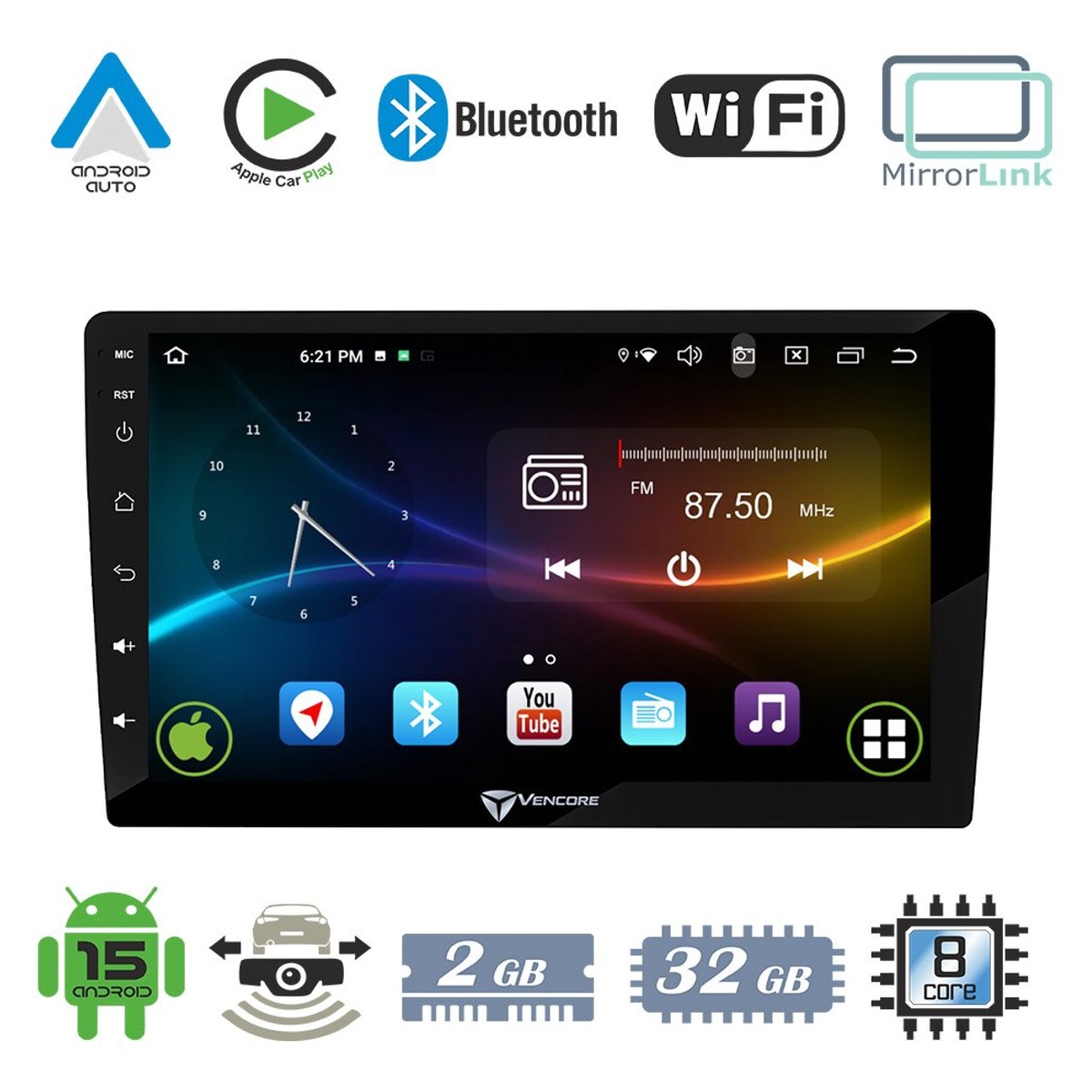

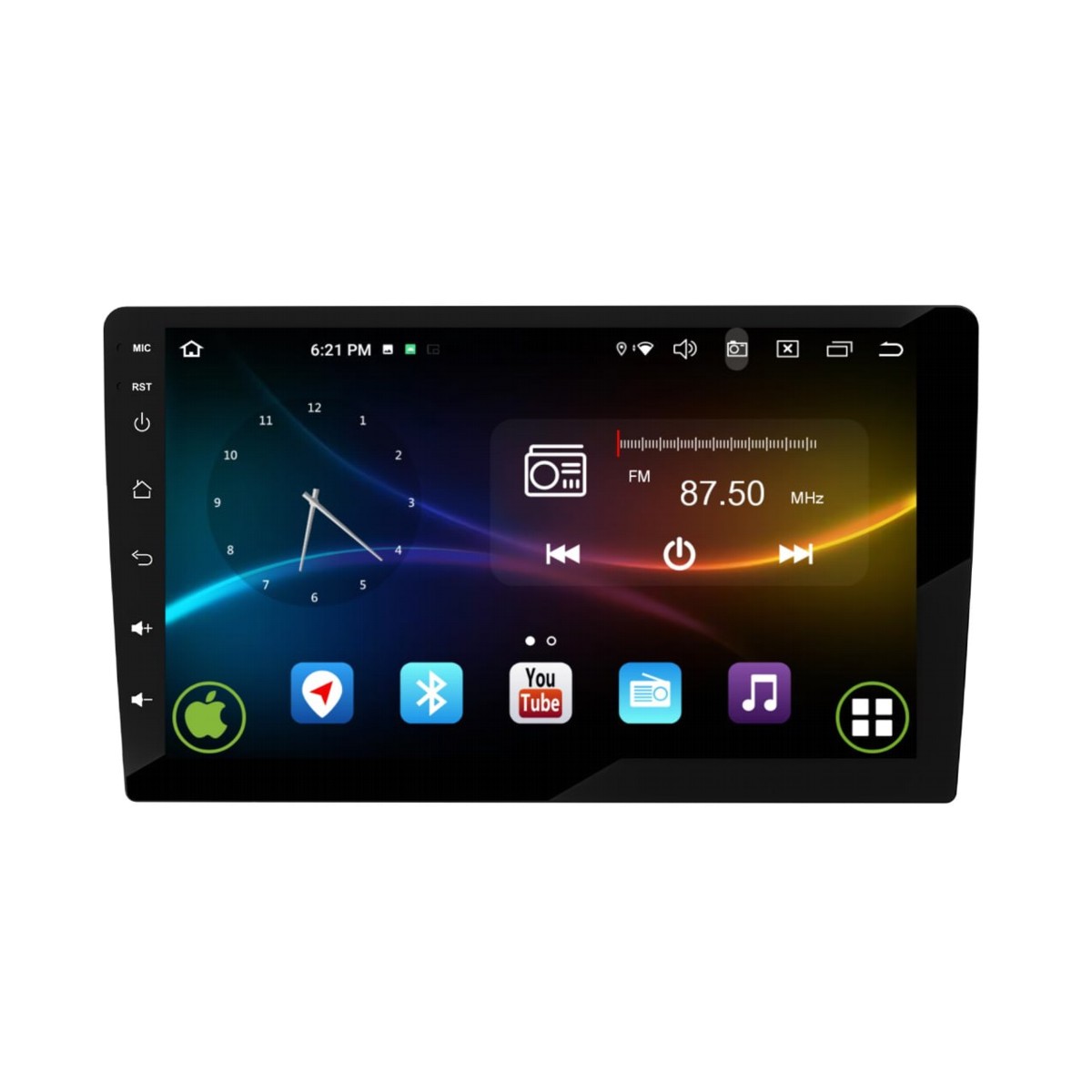

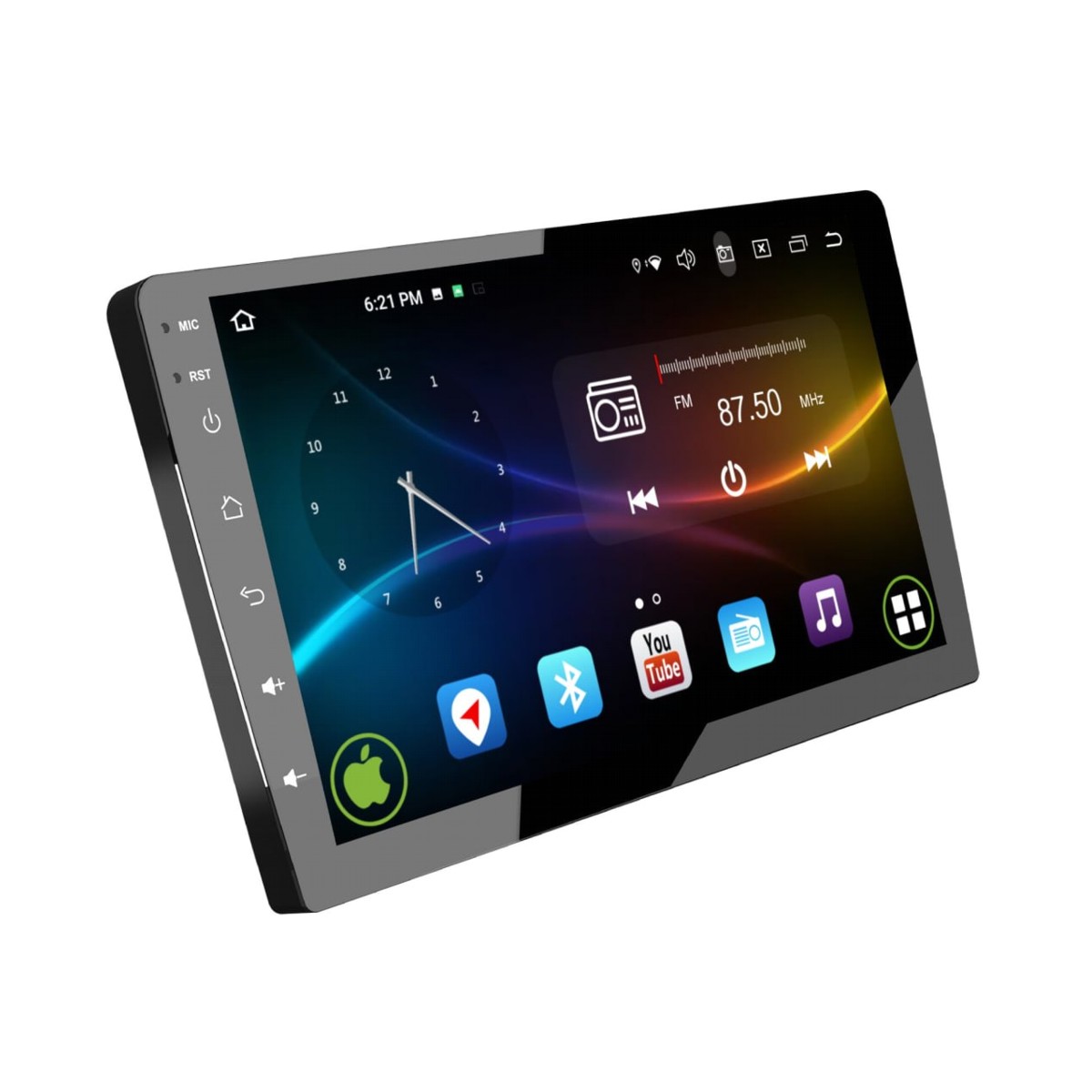

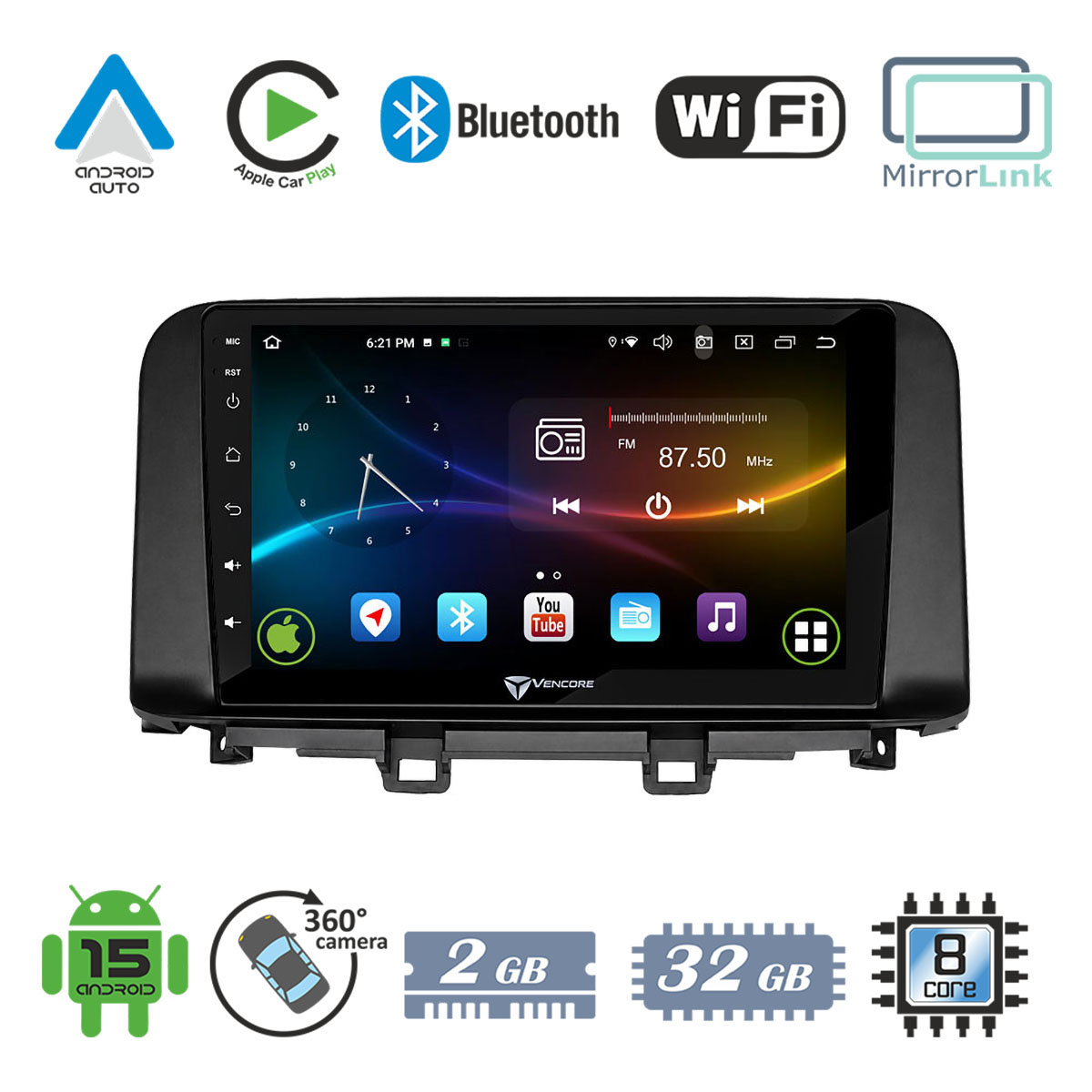

VenCore 3236-10008-0342B - Android 15 10.1" Multimedia Car Head Unit for Hyundai Kona 2018-2023 - Black

Description

Technical Specifications

• Brand
  VenCore
• Model / SKU
  3236-10008-0342B
• MPN
  3236-10008-0342B
• EAN
  5212062207593
• Product Type
  Android multimedia head unit / in-dash car stereo
• Compatible Vehicle
  Hyundai Kona
• Compatible Years
  2018, 2019, 2020, 2021, 2022, 2023
• Front Panel / Fit

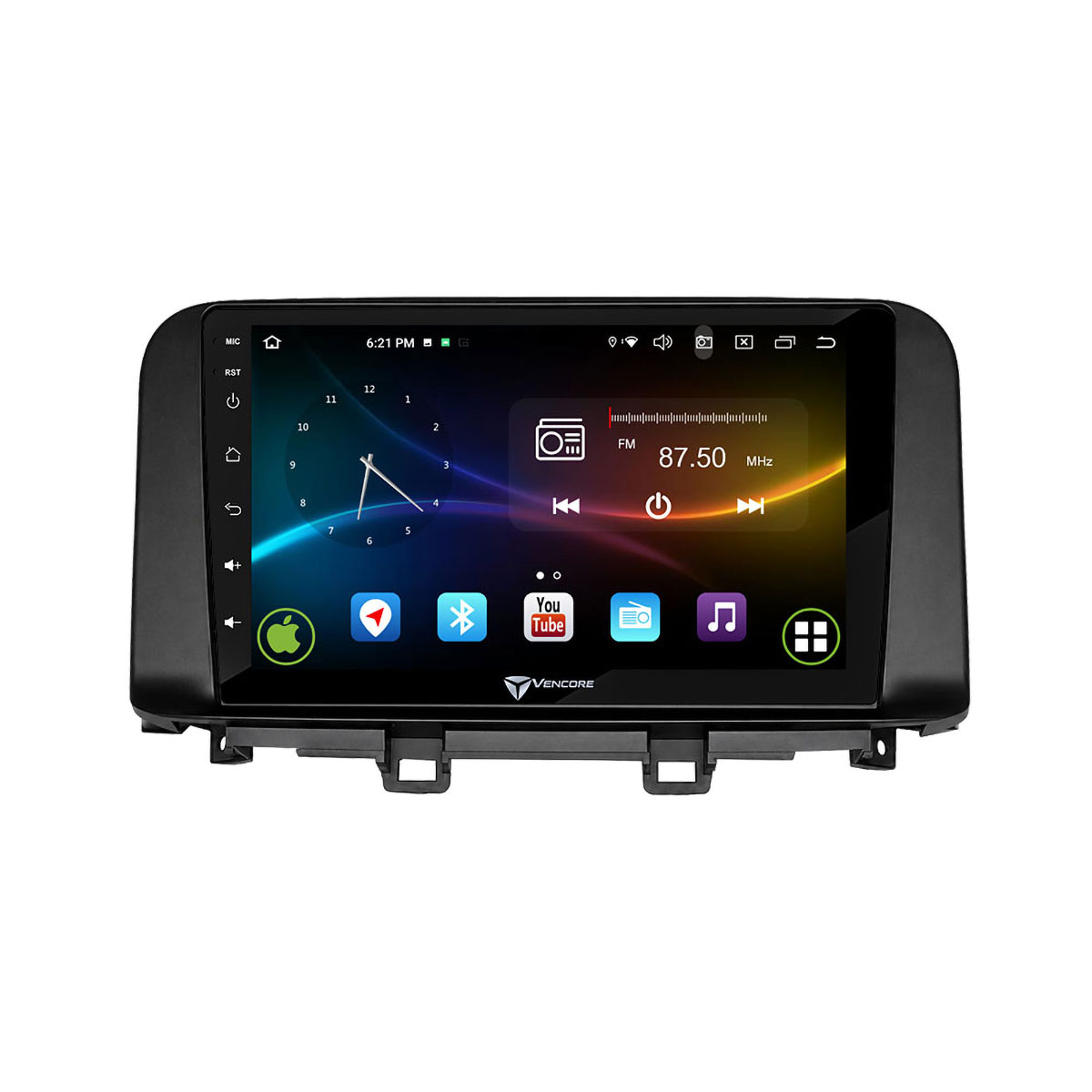

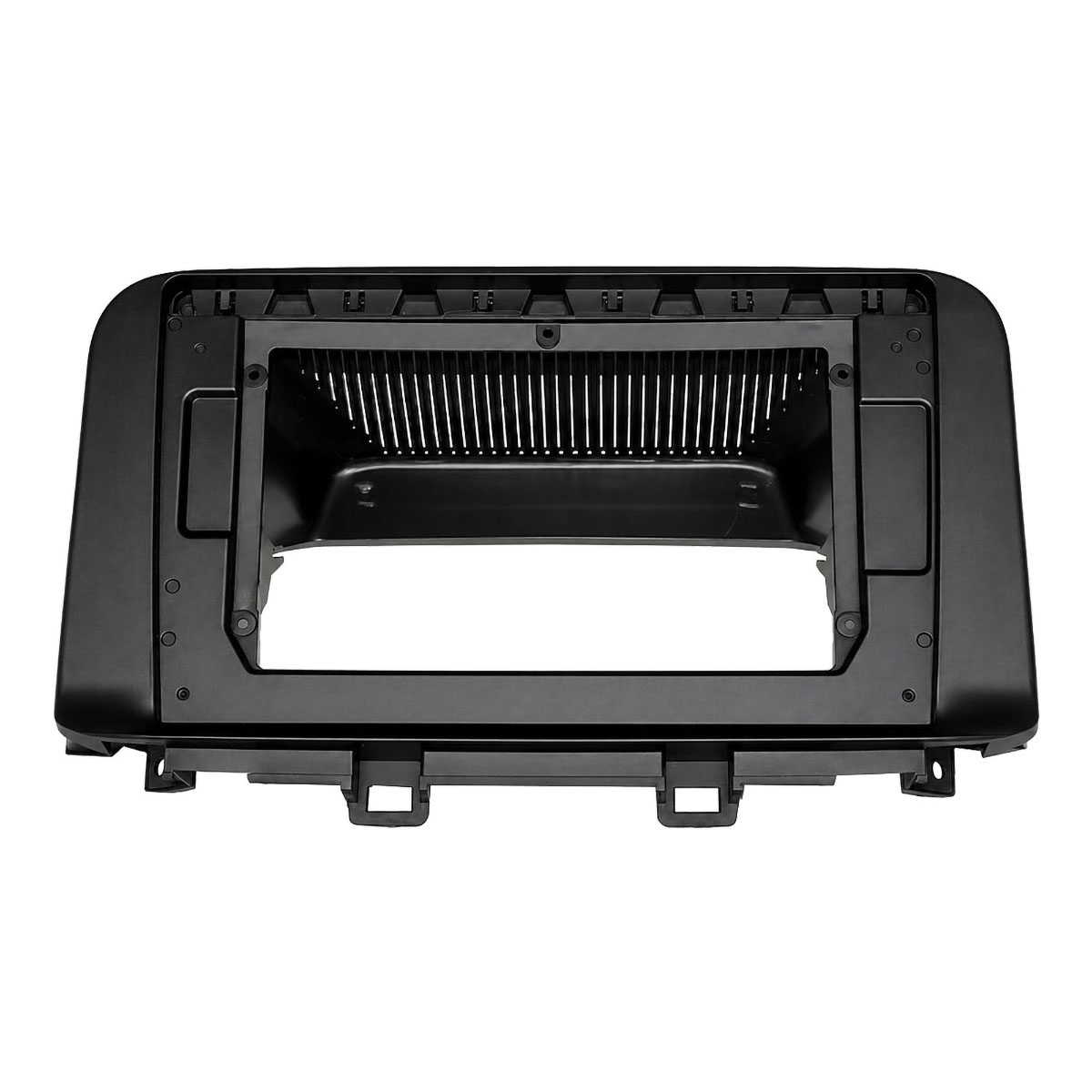

  Designed for Hyundai Kona 10.1" front panel (model 3550-0342B compatible slot)
• Screen Size
  10.1 inches
• Panel Type
  IPS
• Screen Resolution
  1280 x 720 pixels (HD)
• Touch Type
  Capacitive multi-touch
• Operating System
  Android 15
• Chipset
  MTK6762
• CPU
  Octa-Core (4 x Cortex-A53 @2.0GHz + 4 x Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Fast Boot / Sleep Mode
  Yes
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  5.0 (Hands-Free, A2DP)
• Apple CarPlay
  Yes
• Android Auto
  Yes
• Screen Mirroring / MirrorLink
  Yes
• GPS
  Yes (built-in) with external GPS antenna included
• Navigation Apps
  Supports Google Maps and navigation apps
• FM Radio
  Yes, RDS
• FM Presets
  18
• AM Radio
  Yes
• AM Presets
  12
• Audio Amplifier
  YD7388 integrated amplifier
• Speaker Output Power
  4 x 50W
• Audio Channels
  4.1 Channel (support for external subwoofer)
• Subwoofer Output
  Yes (dedicated output)
• Supported Audio Formats
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• USB Ports
  2 x USB 2.0
• USB Charging Output
  500 mA
• AUX Input
  Yes
• Video Inputs (AHD/TVI)
  Supports AHD/TVI video input up to 1080p
• Rear Camera Input
  AHD rear camera support (720p / 1080p)
• 360° Camera System Support
  No
• CANbus Box
  Included (for steering wheel controls and vehicle integration)
• Steering Wheel Control Support
  Yes (via CANbus)
• Included Accessories
  Multimedia head unit, 10.1" front panel, CANbus box, wiring harness (ISO power cable), USB adapter cable 4P/6P, front RCA output cable, AUX cable, rear view input & antenna cable, rear RCA output & CANbus cable, GPS antenna, screws
• Power Supply (working)
  9 - 14.4V
• Maximum Fuse / Current
  10A
• Operating Temperature
  -20°C to 70°C
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update
  Via USB
• Weight (product)
  2000 g (approx.)
• Package Weight
  2500 g
• Materials
  Housing/materials not specifically stated
• Color
  Black
• Warranty / Support
  1 year (vendor indicated; terms may vary)
