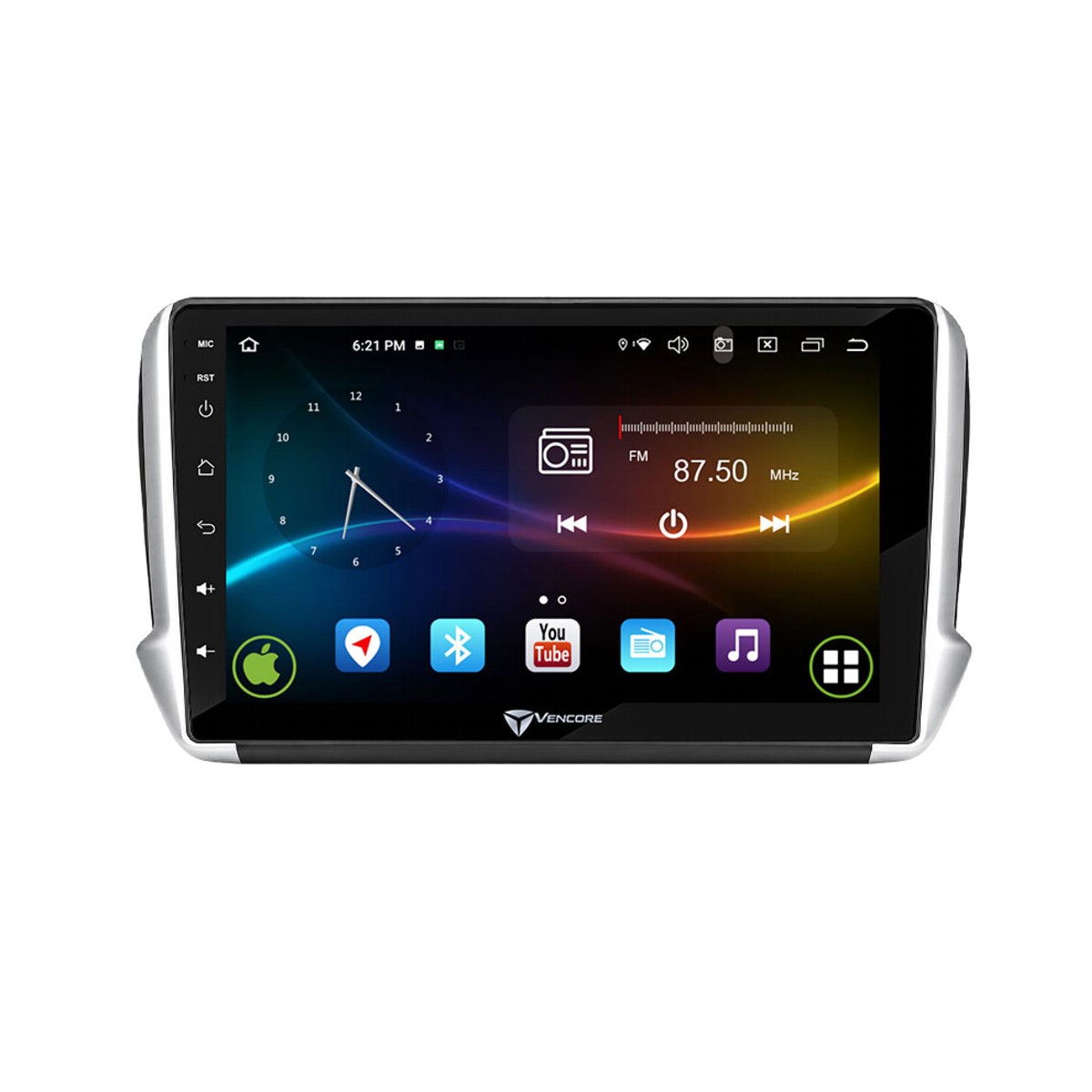

The VenCore 3236-10008-0164B is a complete Android multimedia head unit kit specifically made for Peugeot 208/2008 models (2012-2016). It features a 10.1" IPS capacitive multi-touch display (panel 10") with 1280×720 resolution and Split Screen / Multi-Window capability. The unit runs Android 15 on...
More
VenCore 3236-10008-0164B - Android 15 Multimedia Screen 10.1" 9109A MTK6762 2GB/32GB for Peugeot 208/2008 2012-2016 - Black
Product Code: 1183798264
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The VenCore 3236-10008-0164B is a complete Android multimedia head unit kit specifically made for Peugeot 208/2008 models (2012-2016). It features a 10.1" IPS capacitive multi-touch display (panel 10") with 1280×720 resolution and Split Screen / Multi-Window capability. The unit runs Android 15 on an MTK6762 Octa-Core chipset (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz) with 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, Dual-Band Wi‑Fi (2.4/5 & 5GHz), Bluetooth 5.0 (hands-free, A2DP) and built-in GPS (with external GPS antenna). The set includes a CANbus Box for vehicle integration and an internal audio processor YD7388 rated 4×50W (4.1 channel) with subwoofer output support. Radio: FM with RDS (18 presets) and AM (12 presets). I/O: 2×USB 2.0, AUX input, AHD/TVI video input up to 1080p for reversing cameras (camera not included). Supports AHD reversing cameras 720p/1080p but does NOT support 360° camera systems. Power: 9–14.4V, fuse 10A. Operating temperature range -20°C to 70°C. Included in the package: 10" multimedia head unit (10.1" front panel compatible with Peugeot 3550-0164B), CANbus Box, ISO power cable, USB adapter cable 4P/6P, front RCA output cable 20P, AUX cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, mounting screws. Color: Black. Brand: VenCore. Model/SKU: 3236-10008-0164B. EAN: 5212062206961.
-
BrandVenCore
-
Model / Code3236-10008-0164B
-
SKU / MPN3236-10008-0164B
-
EAN5212062206961
-
Product TypeAndroid multimedia head unit with front panel and CANbus Box
-
Compatible VehiclesPeugeot 208 / Peugeot 2008 (2012-2016)
-

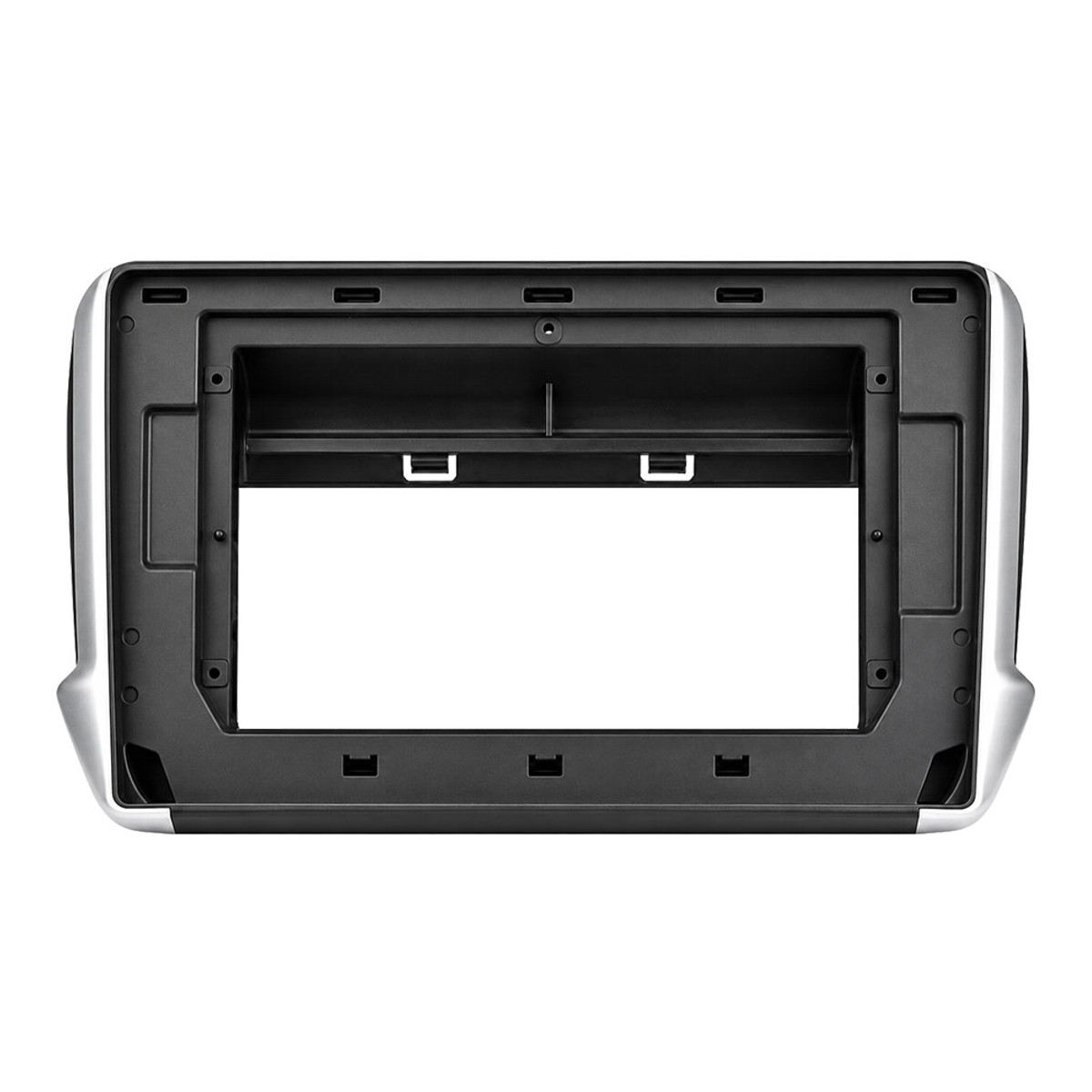

Front Panel Model10.1" front (compatible part no 3550-0164B)
-
Screen Size10.1 inches (10" panel)
-
Panel TypeIPS
-
Resolution1280 × 720 pixels (HD)
-
Touch TypeCapacitive Multi-Touch
-
Split Screen / Multi-WindowYes
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
-
RAM2 GB DDR3
-
Internal Storage32 GB
-
GPSYes (external GPS antenna included)
-
GPS MapsSupports Google Maps and navigation apps
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands-Free, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
Built-in Amplifier / Audio ICYD7388 (4×50W output) 4.1 channel
-
Audio Output Power4×50W
-
Subwoofer OutputYes (external subwoofer support)
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
RadioFM with RDS (18 presets)
-
AM RadioYes (12 presets)
-
USB Ports2 × USB 2.0
-
USB Charging Output500 mA
-
AUX InputYes
-
Video InputsAHD / TVI video input (up to 1080p)
-
Rear Camera SupportAHD 720p / 1080p (camera not included)
-
360° Camera SupportNo
-
CANbusIncluded (CANbus Box for steering wheel controls and vehicle signals)
-
Included AccessoriesCANbus Box, ISO power cable, USB adapter 4P/6P, Front RCA output cable 20P, AUX cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Power Supply Voltage9–14.4 V
-
Maximum Fuse / Current10 A
-
Operating Temperature Range-20°C to 70°C
-
Firmware Update MethodUSB
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
ColorBlack
-
Package Weight2.50 kg
Ratings
Description
The VenCore 3236-10008-0164B is a complete Android multimedia head unit kit specifically made for Peugeot 208/2008 models (2012-2016). It features a 10.1" IPS capacitive multi-touch display (panel 10") with 1280×720 resolution and Split Screen / Multi-Window capability. The unit runs Android 15 on an MTK6762 Octa-Core chipset (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz) with 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, Dual-Band Wi‑Fi (2.4/5 & 5GHz), Bluetooth 5.0 (hands-free, A2DP) and built-in GPS (with external GPS antenna). The set includes a CANbus Box for vehicle integration and an internal audio processor YD7388 rated 4×50W (4.1 channel) with subwoofer output support. Radio: FM with RDS (18 presets) and AM (12 presets). I/O: 2×USB 2.0, AUX input, AHD/TVI video input up to 1080p for reversing cameras (camera not included). Supports AHD reversing cameras 720p/1080p but does NOT support 360° camera systems. Power: 9–14.4V, fuse 10A. Operating temperature range -20°C to 70°C. Included in the package: 10" multimedia head unit (10.1" front panel compatible with Peugeot 3550-0164B), CANbus Box, ISO power cable, USB adapter cable 4P/6P, front RCA output cable 20P, AUX cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, mounting screws. Color: Black. Brand: VenCore. Model/SKU: 3236-10008-0164B. EAN: 5212062206961.
Technical Specifications
-
BrandVenCore
-
Model / Code3236-10008-0164B
-
SKU / MPN3236-10008-0164B
-
EAN5212062206961
-
Product TypeAndroid multimedia head unit with front panel and CANbus Box
-
Compatible VehiclesPeugeot 208 / Peugeot 2008 (2012-2016)
-
Front Panel Model10.1" front (compatible part no 3550-0164B)
-
Screen Size10.1 inches (10" panel)
-
Panel TypeIPS
-
Resolution1280 × 720 pixels (HD)
-
Touch TypeCapacitive Multi-Touch
-
Split Screen / Multi-WindowYes
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
-
RAM2 GB DDR3
-
Internal Storage32 GB
-
GPSYes (external GPS antenna included)
-
GPS MapsSupports Google Maps and navigation apps
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands-Free, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
Built-in Amplifier / Audio ICYD7388 (4×50W output) 4.1 channel
-
Audio Output Power4×50W
-
Subwoofer OutputYes (external subwoofer support)
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
RadioFM with RDS (18 presets)
-
AM RadioYes (12 presets)
-
USB Ports2 × USB 2.0
-
USB Charging Output500 mA
-
AUX InputYes
-
Video InputsAHD / TVI video input (up to 1080p)
-
Rear Camera SupportAHD 720p / 1080p (camera not included)
-
360° Camera SupportNo
-
CANbusIncluded (CANbus Box for steering wheel controls and vehicle signals)
-
Included AccessoriesCANbus Box, ISO power cable, USB adapter 4P/6P, Front RCA output cable 20P, AUX cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Power Supply Voltage9–14.4 V
-
Maximum Fuse / Current10 A
-
Operating Temperature Range-20°C to 70°C
-
Firmware Update MethodUSB
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
ColorBlack
-
Package Weight2.50 kg
