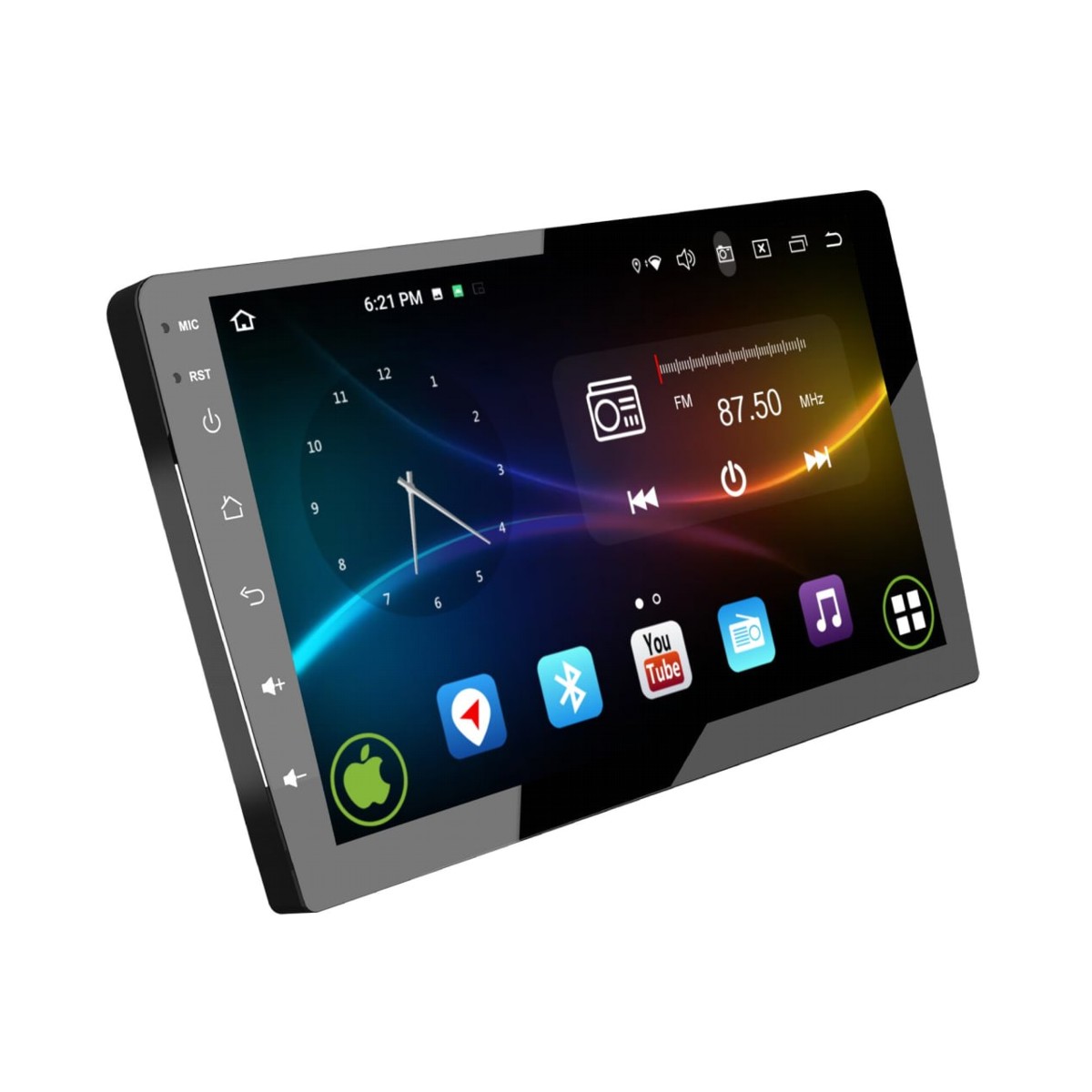

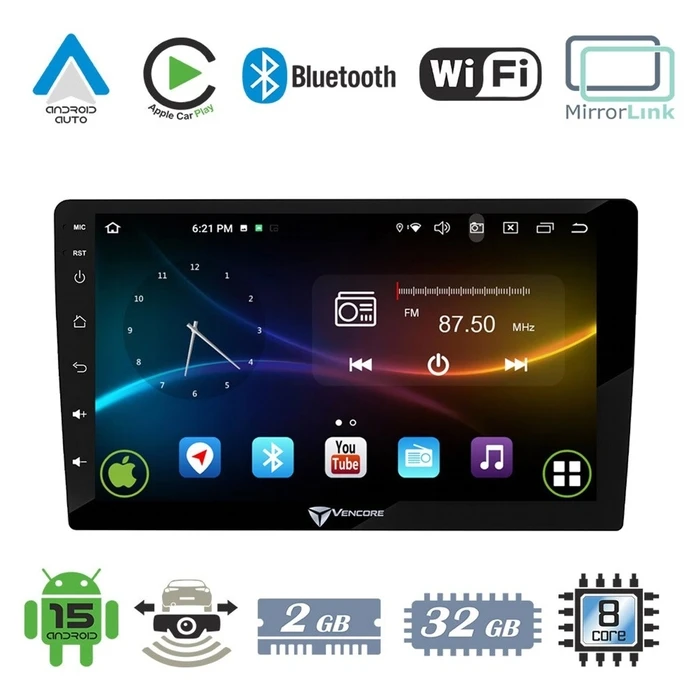

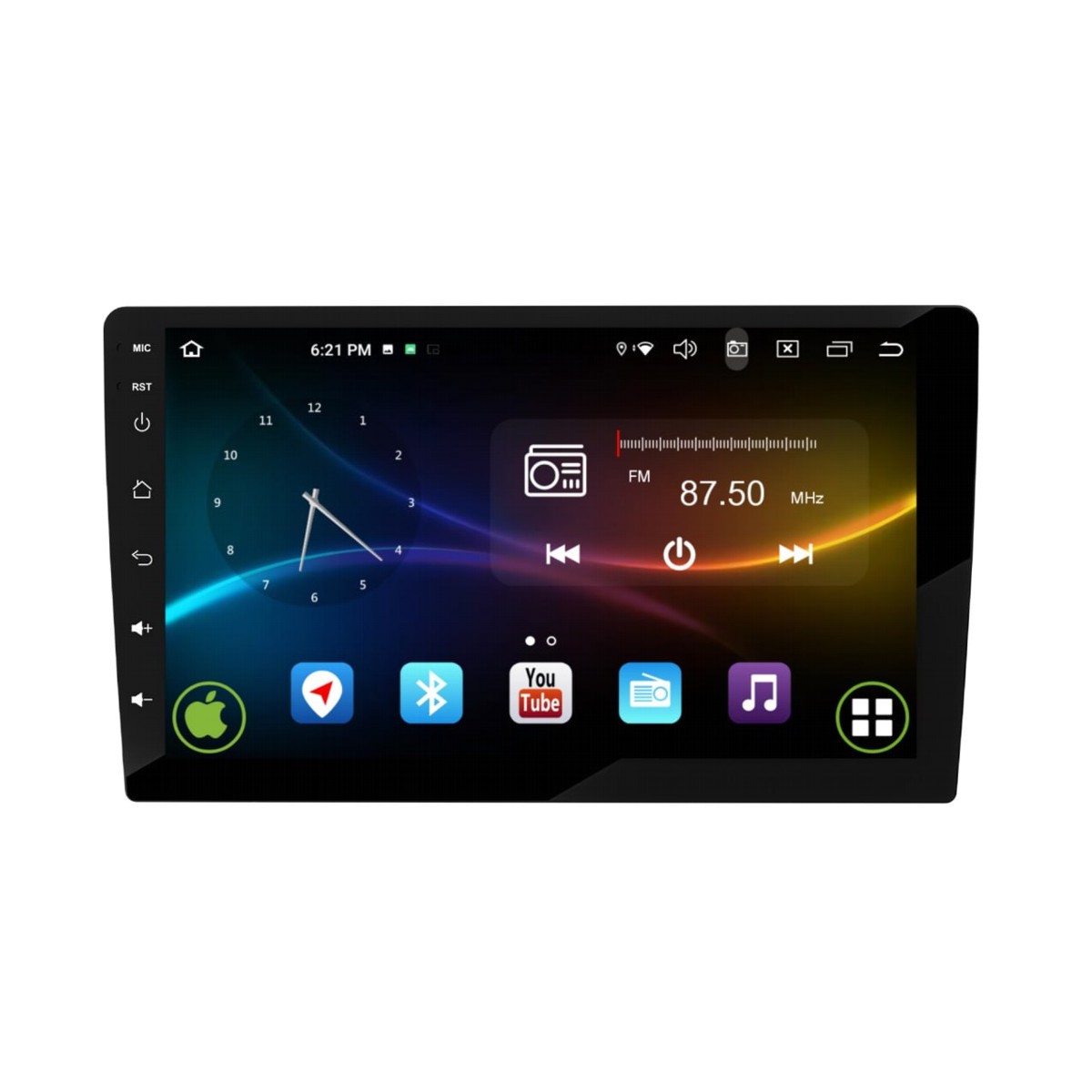

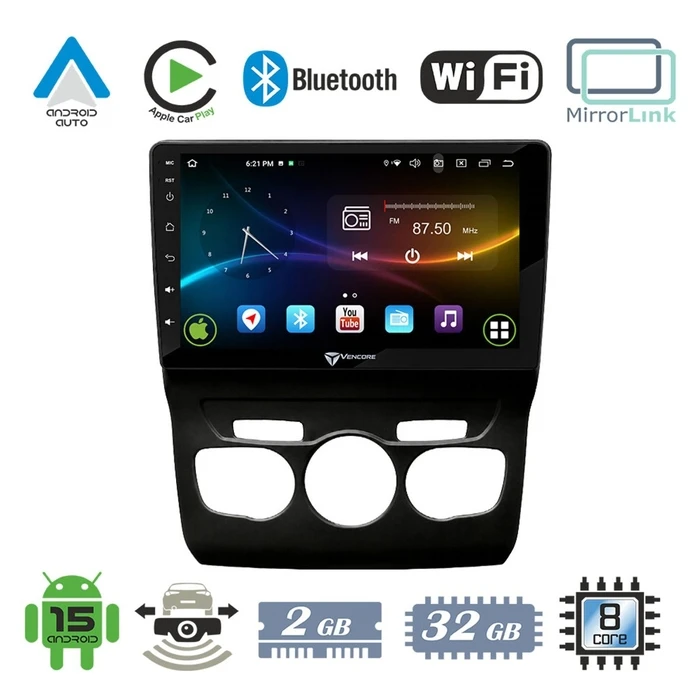

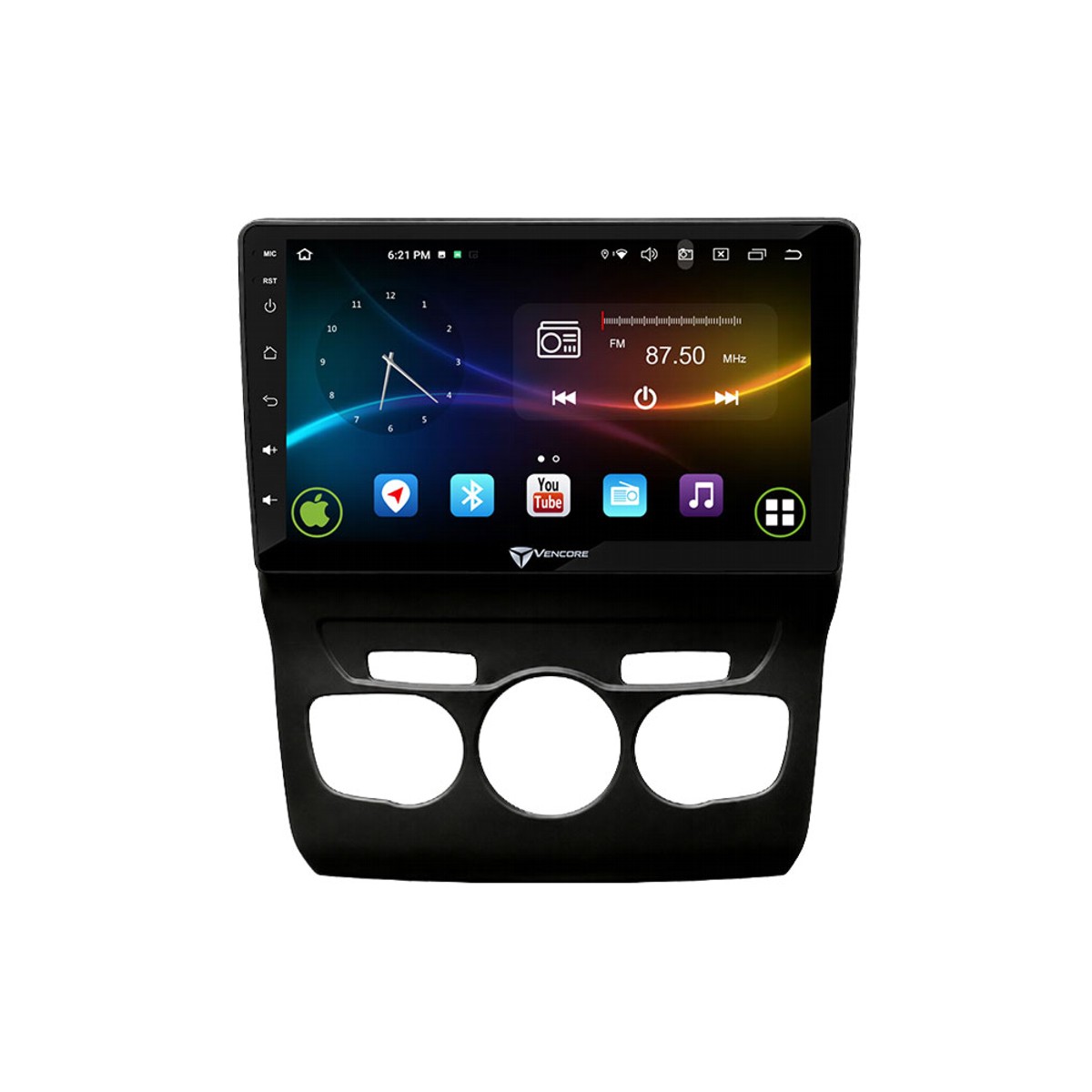

VenCore 3236-10008-0131B - Android 15 Multimedia Head Unit 10.1" IPS for Citroen C4L 2011-2016 - Black

Description

Technical Specifications

• Brand
  VenCore
• Model / SKU
  3236-10008-0131B
• MPN
  3236-10008-0131B
• EAN
  5212062206459
• Product Type
  Android multimedia head unit with front panel (replacement for Citroen C4L)
• Compatible Vehicles
  Citroen C4L 2011-2016
• Screen Size (advertised)
  10.1 inches
• Display Panel
  IPS
• Resolution
  1280 × 720 pixels (HD)
• Touch Type
  Capacitive Multi-Touch
• Operating System
  Android 15
• Chipset
  MTK6762
• CPU
  Octa‑Core (4×Cortex‑A53 @2.0GHz + 4×Cortex‑A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  Bluetooth 5.0 (Hands‑Free, A2DP)
• Smartphone Connectivity
  Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink
• GPS
  Built‑in GPS with external GPS antenna (supports Google Maps)
• Audio Processor / Amp
  YD7388 integrated audio processor, 4×50W, 4.1 channel

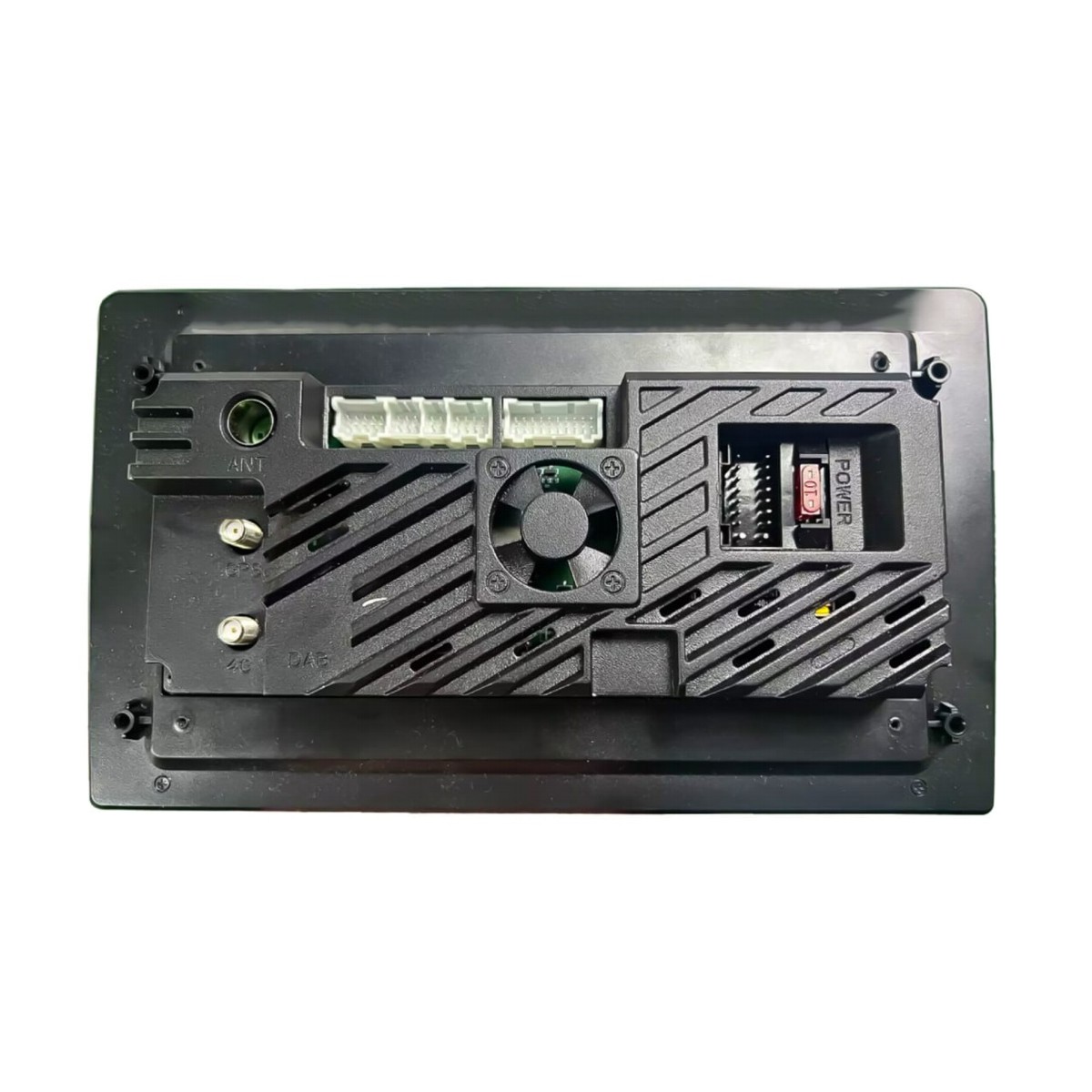

• Audio Outputs
  Front RCA outputs, Rear RCA outputs, Subwoofer output
• Supported Audio Formats
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• Radio
  FM with RDS (18 FM presets), AM radio (12 AM presets)
• Camera Input
  AHD / TVI video input (supports 720p / 1080p)
• 360° Camera Support
  Yes (support for 360° camera systems)
• CANbus
  Included (CANbus box for steering wheel controls and vehicle signals)
• Front Panel Colour
  Black
• USB Ports
  2 × USB 2.0
• USB Charging Output
  500 mA
• AUX Input
  Yes
• Power Supply (operating)
  9–14.4V
• Fuse / Max Current
  10A fuse recommended
• Operating Temperature Range
  −20°C to 70°C
• Firmware Update
  Via USB
• Package Contents

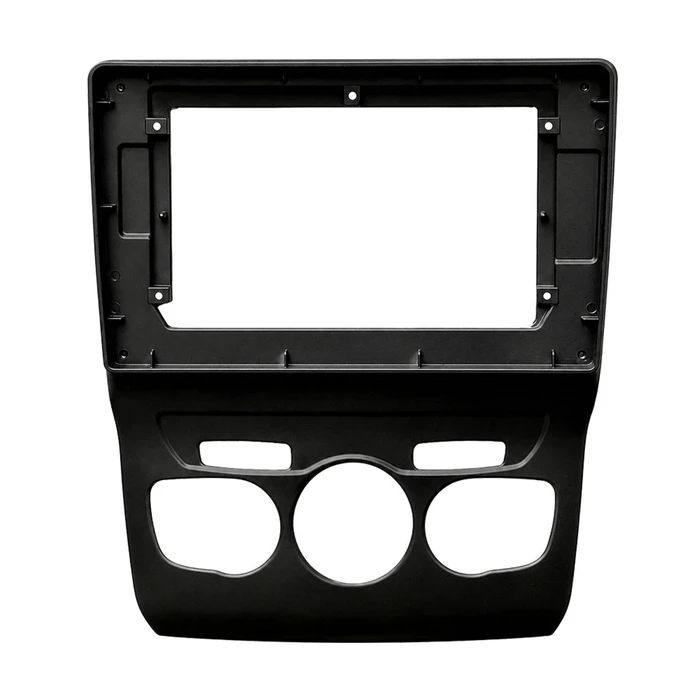

  Multimedia head unit 10", CANbus Box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable (20P), AUX input cable, Rear view & antenna cable (10P), Rear RCA output & CANbus cable (8P), GPS antenna, mounting brackets
• Set Weight (advertised)
  2.50 kg
