9-inch in-dash multimedia Android head unit specifically made for Isuzu D-MAX 2020-2025. Features a 9.0" IPS capacitive touchscreen with 1280×720 resolution and multi-touch, split-screen / multi-window support. Runs Android 15 on an MTK6762 Octa-Core chipset (4×Cortex-A53 @2.0GHz + 4×Cortex-A53...
More
VenCore 3236-10007-0715B - 9" Android 15 Multimedia Head Unit 9109A MTK6762 Octa-Core 2GB/32GB IPS with Front Panel, CarPlay, Android Auto and AHD Rear Camera Support for Isuzu D-MAX 2020-2025 - Black
Product Code: 1183798364
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

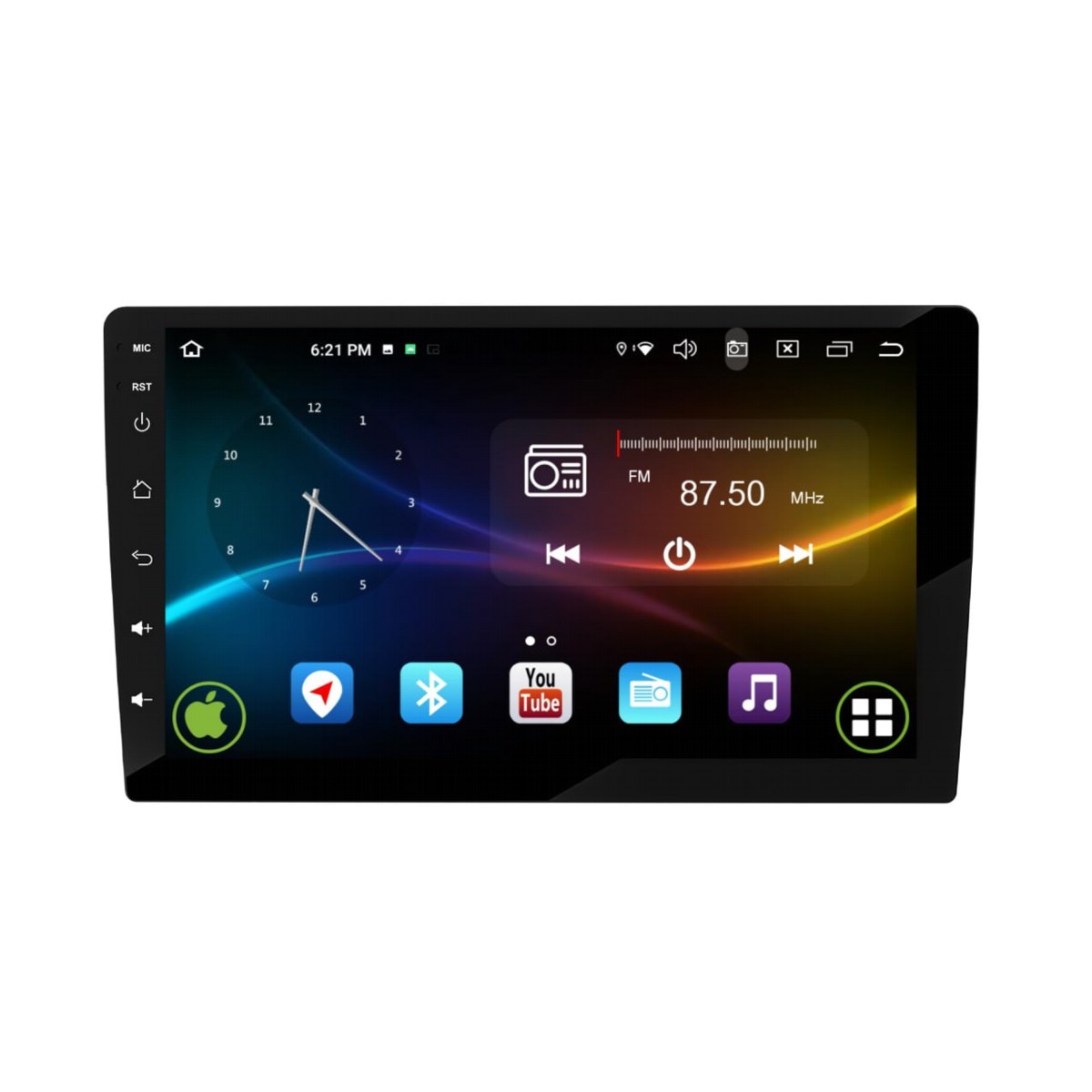

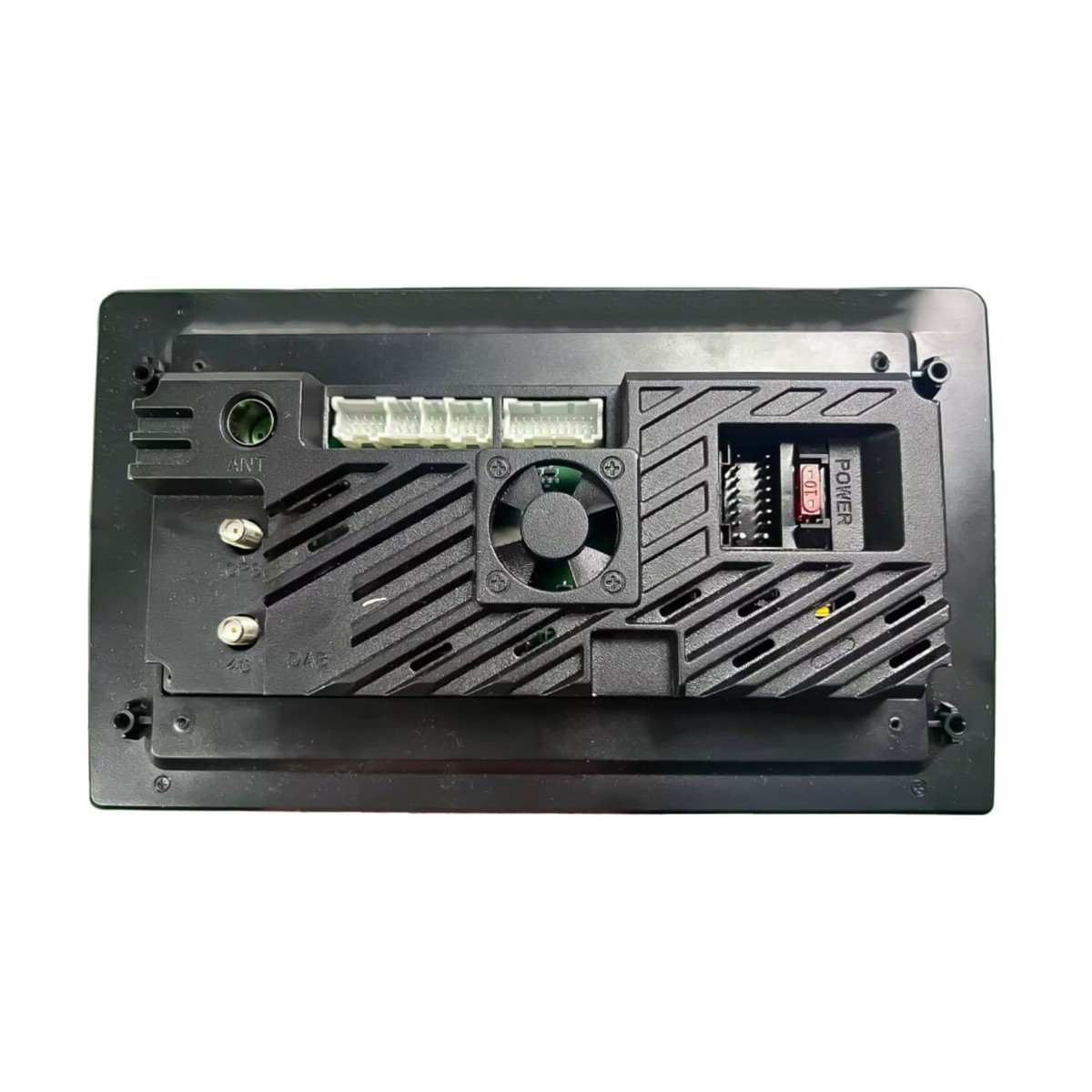

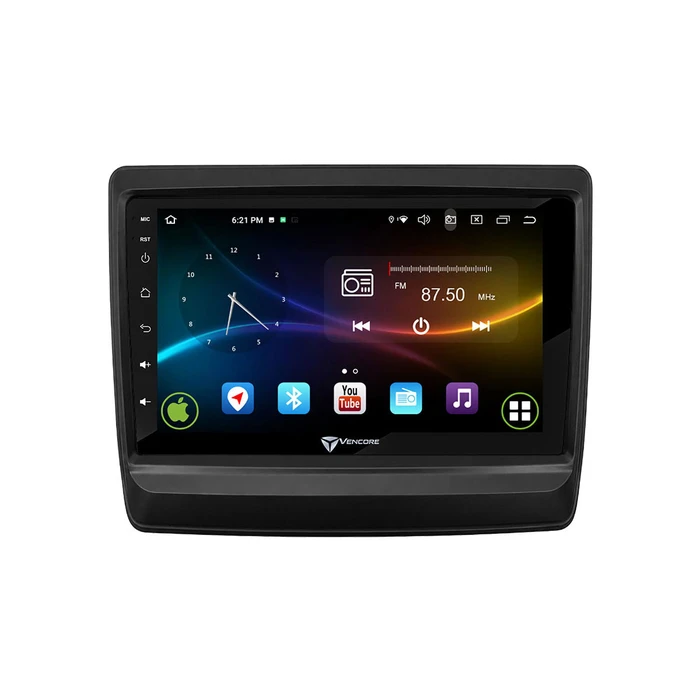

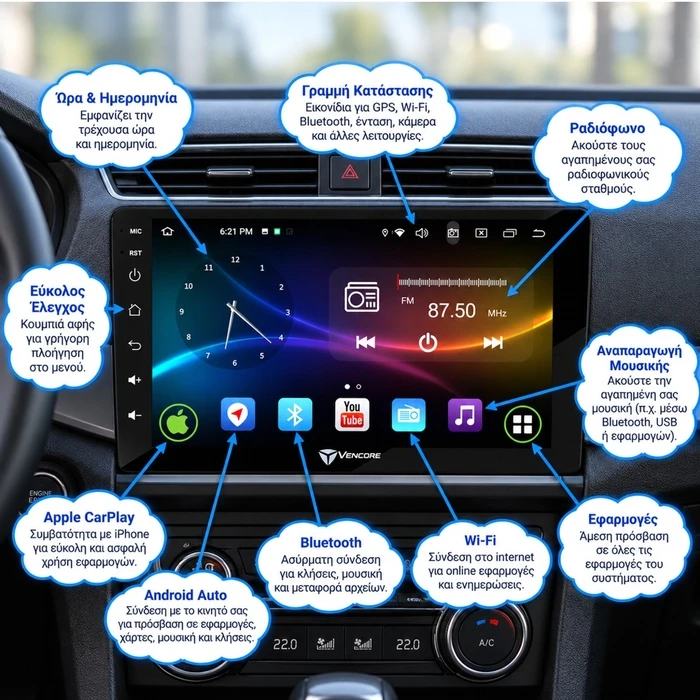

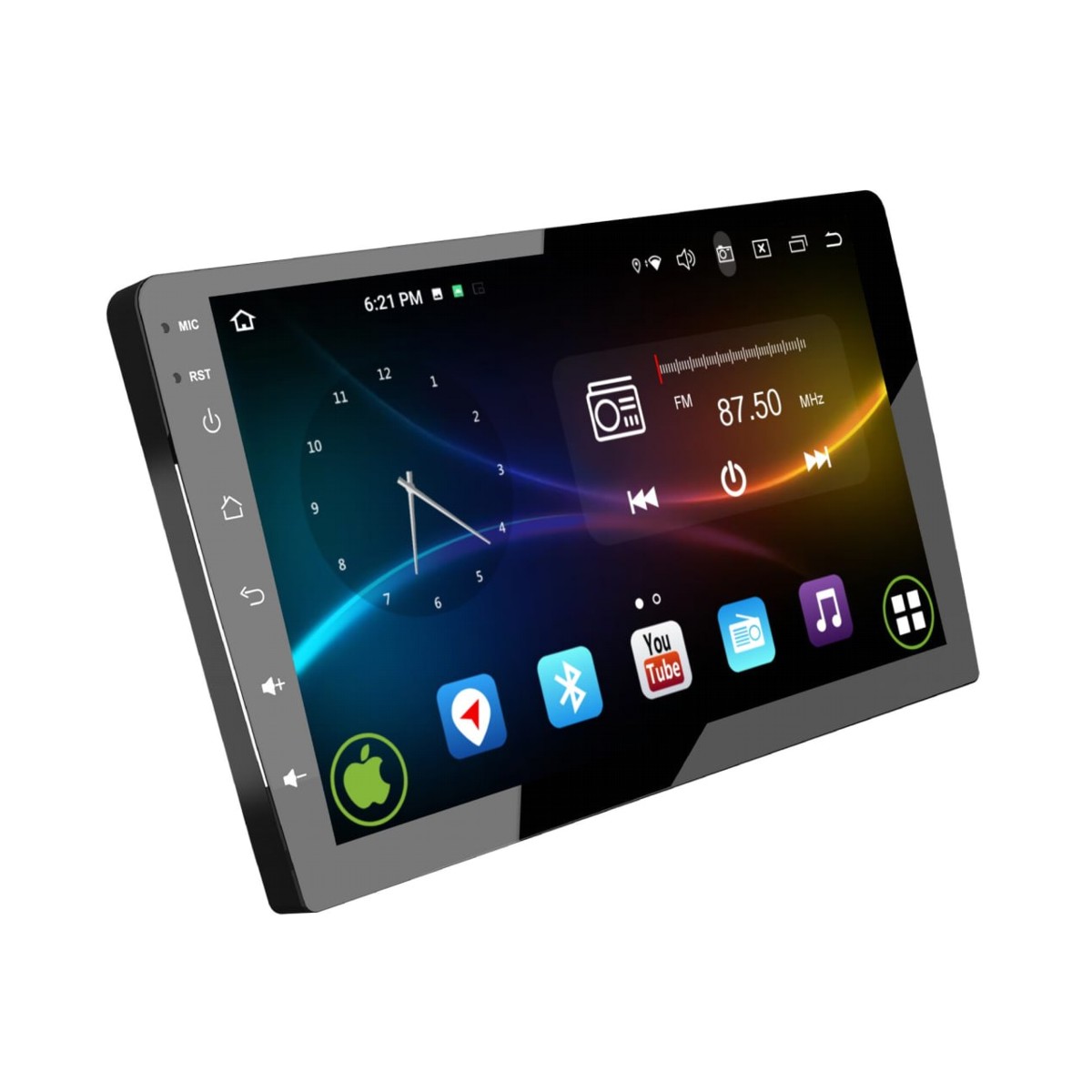

9-inch in-dash multimedia Android head unit specifically made for Isuzu D-MAX 2020-2025. Features a 9.0" IPS capacitive touchscreen with 1280×720 resolution and multi-touch, split-screen / multi-window support. Runs Android 15 on an MTK6762 Octa-Core chipset (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz) with 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink, Dual-Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 with hands-free calling and A2DP. Built-in GPS with external antenna supporting Google Maps and offline maps. Audio subsystem uses YD7388 amplifier (4.1 channel, 4×50W) with subwoofer output; supports common audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR). Radio: FM with RDS (18 presets) and AM (12 presets). Inputs/outputs: 2×USB 2.0 (charging output 500mA), AUX input, AHD/TVI video input up to 1080p, front and rear RCA outputs, subwoofer output. CANbus box included for steering wheel control retention and vehicle integration. Power: 9–14.4V, max fuse/current 10A. Operating temperature -20°C to 70°C. Certifications: CE, RoHS, CE-EMC, CE-RED, FCC, E-mark. Firmware update via USB. Package includes head unit, CANbus box, ISO power cable, USB adapter cable (4P/6P), front RCA output cable (20P), AUX cable, rear view input & antenna cable (10P), rear RCA output & CANbus cable (8P), GPS antenna and manual. Color: Black. Brand: VenCore. Model / SKU / MPN: 3236-10007-0715B. EAN: 5212062209276.
-
BrandVenCore
-
MPN / Κωδικός προϊόντος3236-10007-0715B
-
Model / Multimedia module9109A
-
Compatible vehiclesIsuzu D-MAX 2020-2025
-
Screen size9 inches
-
Panel typeIPS
-
Resolution1280×720 pixels
-
Touch typeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core
-
CPU4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz
-
RAM2GB DDR3
-
Internal Storage32GB
-
Smartphone connectivityApple CarPlay, Android Auto, Screen Mirroring / MirrorLink
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
BluetoothBluetooth 5.0 (Hands-Free, A2DP)
-
GPSYes (external GPS antenna included; supports Google Maps and offline navigation)
-
Audio amplifierYD7388 integrated (4.1 Channel, 4×50W)
-
Audio outputsFront/Rear RCA, Subwoofer output
-
Audio formats supportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
RadioFM with RDS (18 presets), AM (12 presets)
-
Camera input supportAHD / TVI video input up to 1080p (reverse camera AHD 720p/1080p)
-
360° camera supportNo
-
CANbusIncluded (CANbus box for vehicle integration and steering wheel controls)
-
USB ports2×USB 2.0 (USB charging output 500mA)
-
AUXYes
-
Power supply9–14.4V
-
Max current / Fuse rating10A
-
Operating temperature range-20°C to 70°C
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware update methodUSB
-
ColorBlack
-
Package contentsMultimedia head unit 9", CANbus box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable (20P), AUX cable, Rear view input & antenna cable (10P), Rear RCA output & CANbus cable (8P), GPS antenna, Manual
-
Weight (product approx.)1800 g
-
Package weight2500 g
Ratings
Description
9-inch in-dash multimedia Android head unit specifically made for Isuzu D-MAX 2020-2025. Features a 9.0" IPS capacitive touchscreen with 1280×720 resolution and multi-touch, split-screen / multi-window support. Runs Android 15 on an MTK6762 Octa-Core chipset (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz) with 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink, Dual-Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 with hands-free calling and A2DP. Built-in GPS with external antenna supporting Google Maps and offline maps. Audio subsystem uses YD7388 amplifier (4.1 channel, 4×50W) with subwoofer output; supports common audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR). Radio: FM with RDS (18 presets) and AM (12 presets). Inputs/outputs: 2×USB 2.0 (charging output 500mA), AUX input, AHD/TVI video input up to 1080p, front and rear RCA outputs, subwoofer output. CANbus box included for steering wheel control retention and vehicle integration. Power: 9–14.4V, max fuse/current 10A. Operating temperature -20°C to 70°C. Certifications: CE, RoHS, CE-EMC, CE-RED, FCC, E-mark. Firmware update via USB. Package includes head unit, CANbus box, ISO power cable, USB adapter cable (4P/6P), front RCA output cable (20P), AUX cable, rear view input & antenna cable (10P), rear RCA output & CANbus cable (8P), GPS antenna and manual. Color: Black. Brand: VenCore. Model / SKU / MPN: 3236-10007-0715B. EAN: 5212062209276.
Technical Specifications
-
BrandVenCore
-
MPN / Κωδικός προϊόντος3236-10007-0715B
-
Model / Multimedia module9109A
-
Compatible vehiclesIsuzu D-MAX 2020-2025
-
Screen size9 inches
-
Panel typeIPS
-
Resolution1280×720 pixels
-
Touch typeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core
-
CPU4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz
-
RAM2GB DDR3
-
Internal Storage32GB
-
Smartphone connectivityApple CarPlay, Android Auto, Screen Mirroring / MirrorLink
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
BluetoothBluetooth 5.0 (Hands-Free, A2DP)
-
GPSYes (external GPS antenna included; supports Google Maps and offline navigation)
-
Audio amplifierYD7388 integrated (4.1 Channel, 4×50W)
-
Audio outputsFront/Rear RCA, Subwoofer output
-
Audio formats supportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
RadioFM with RDS (18 presets), AM (12 presets)
-
Camera input supportAHD / TVI video input up to 1080p (reverse camera AHD 720p/1080p)
-
360° camera supportNo
-
CANbusIncluded (CANbus box for vehicle integration and steering wheel controls)
-
USB ports2×USB 2.0 (USB charging output 500mA)
-
AUXYes
-
Power supply9–14.4V
-
Max current / Fuse rating10A
-
Operating temperature range-20°C to 70°C
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware update methodUSB
-
ColorBlack
-
Package contentsMultimedia head unit 9", CANbus box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable (20P), AUX cable, Rear view input & antenna cable (10P), Rear RCA output & CANbus cable (8P), GPS antenna, Manual
-
Weight (product approx.)1800 g
-
Package weight2500 g
