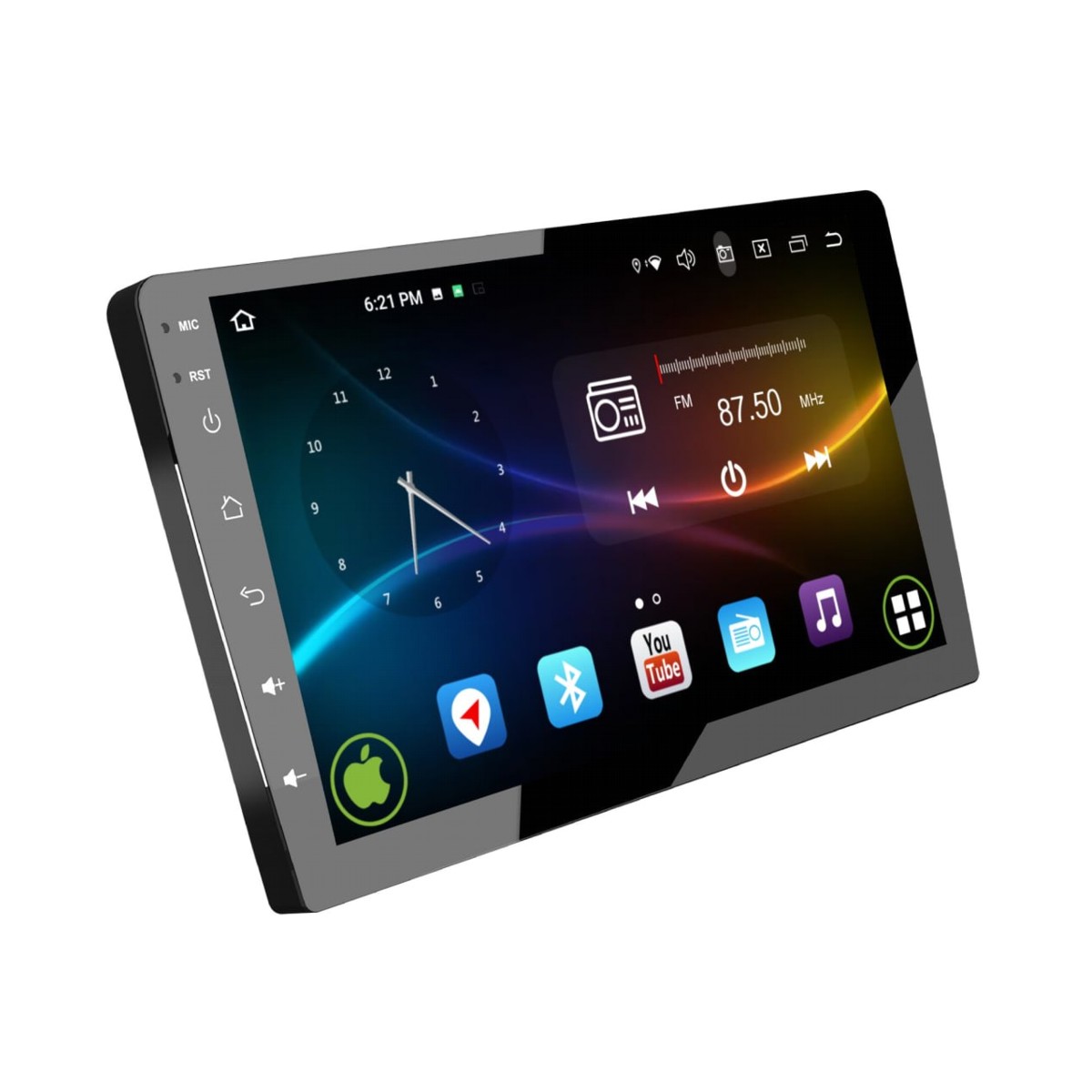

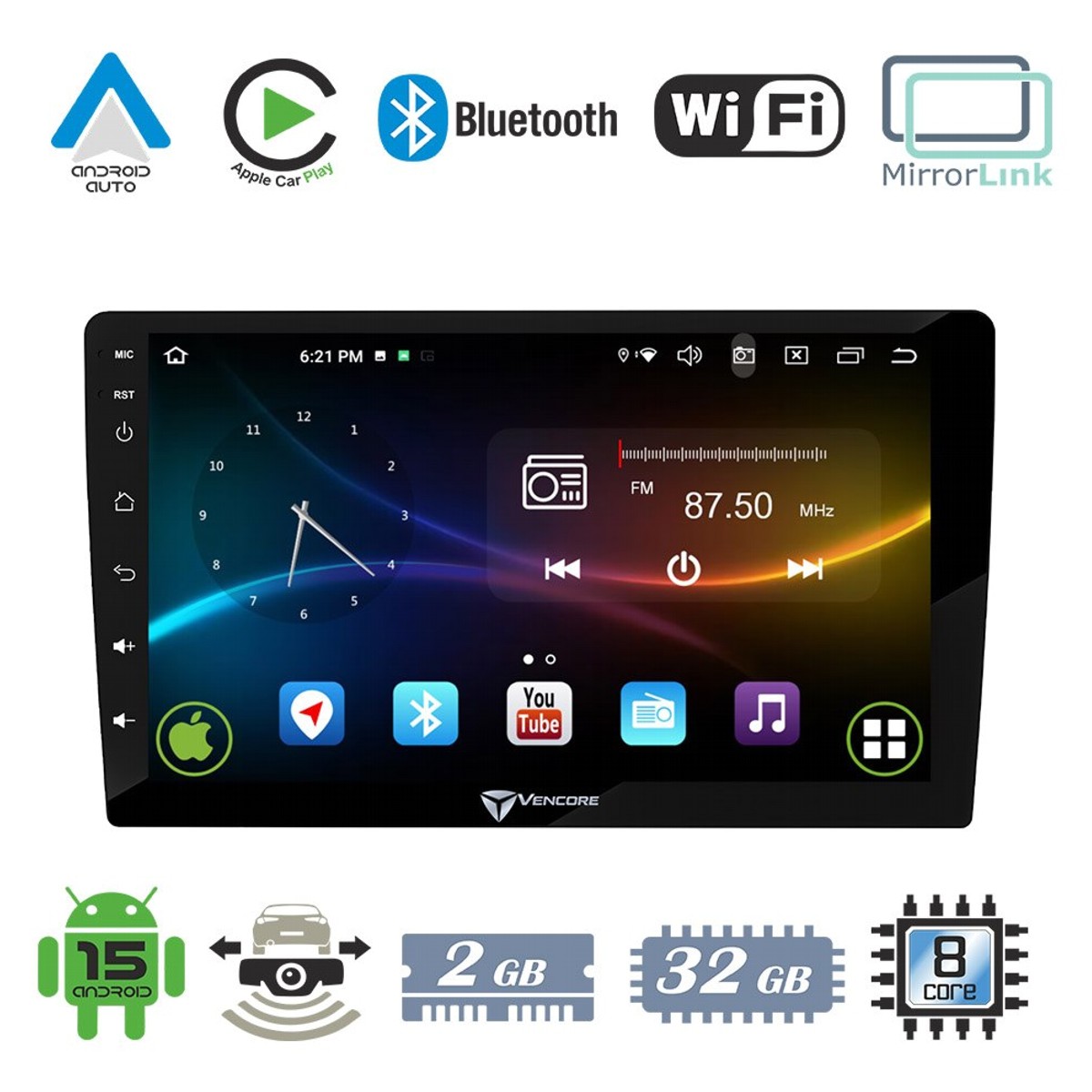

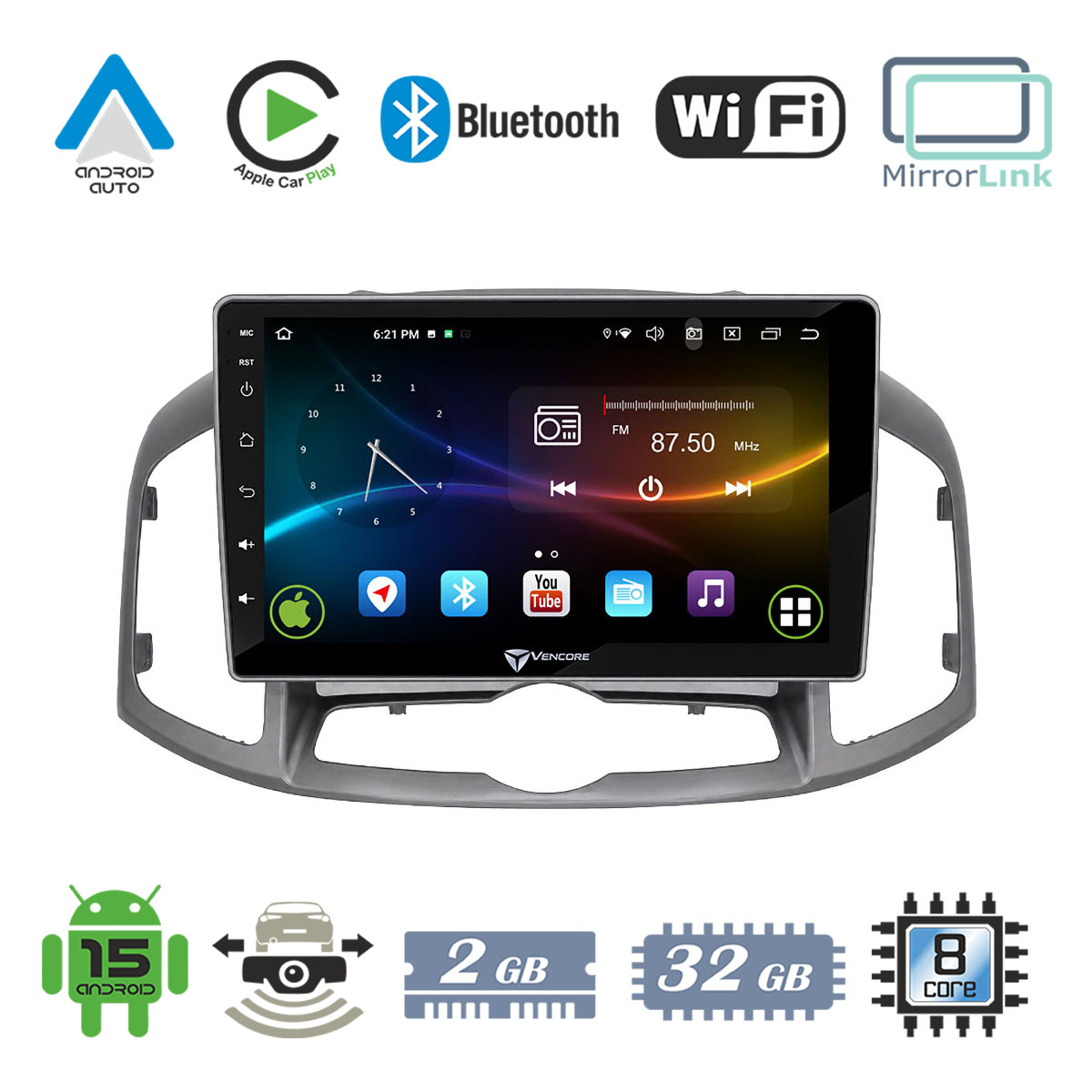

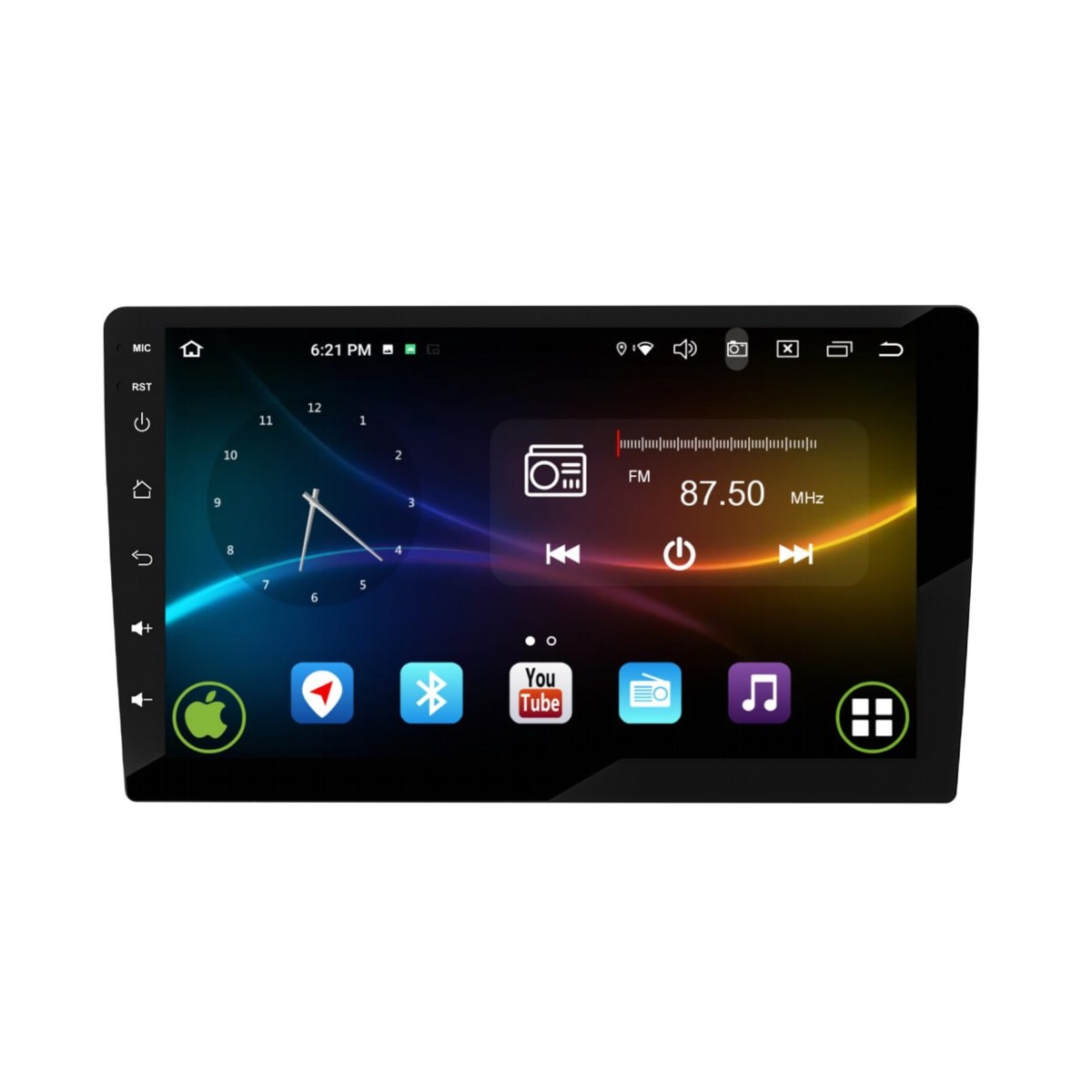

VenCore 3236-10007-0703S - 9" Multimedia Android Head Unit (Android 15) MTK6762 Octa-Core 2GB/32GB IPS, CarPlay/Android Auto, AHD Rear Camera Support for Chevrolet Captiva 2012-2016 - Silver

Description

Technical Specifications

• Brand
  VenCore
• Model / SKU
  3236-10007-0703S
• Multimedia Model
  9109A
• Compatible Vehicle
  Chevrolet Captiva
• Compatible Years
  2012-2013-2014-2015-2016
• Screen Size
  9"
• Panel Type
  IPS
• Resolution
  1280 x 720 pixels
• Touch Type
  Capacitive Multi-Touch
• Operating System
  Android 15
• Chipset
  MTK6762 Octa-Core
• CPU
  4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Dual Band Wi‑Fi
  2.4GHz / 5GHz
• Bluetooth
  5.0 (Hands-Free, A2DP)
• Apple CarPlay
  Yes
• Android Auto
  Yes
• Screen Mirroring / MirrorLink
  Yes
• GPS
  Built-in (with external GPS antenna)
• FM Radio
  Yes (RDS)
• AM Radio
  Yes
• FM Channels Memory
  18
• AM Channels Memory
  12
• Audio Amplifier IC
  YD7388
• Audio Power Output
  4 x 50W
• Audio Channel
  4.1 Channel
• Pre-Outs
  Yes (Front/Rear/Subwoofer pre-out)
• Subwoofer Output
  Yes
• Supported Camera Input
  AHD / TVI (720p / 1080p)
• 360° Camera Support
  No
• Steering Wheel Control Support
  Yes (via CANbus)
• CANbus Box Included
  Yes
• USB Ports
  2 x USB 2.0
• USB Charging Output
  500mA
• AUX Input
  Yes
• Video Input (AHD/TVI)
  Supports 1080p
• Power Supply Voltage
  9 - 14.4V
• Max Current
  10A
• Operating Temperature Range
  -20°C to 70°C
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update
  Via USB
• Color / Finish
  Silver (front fascia)
• Package Weight
  2500 g

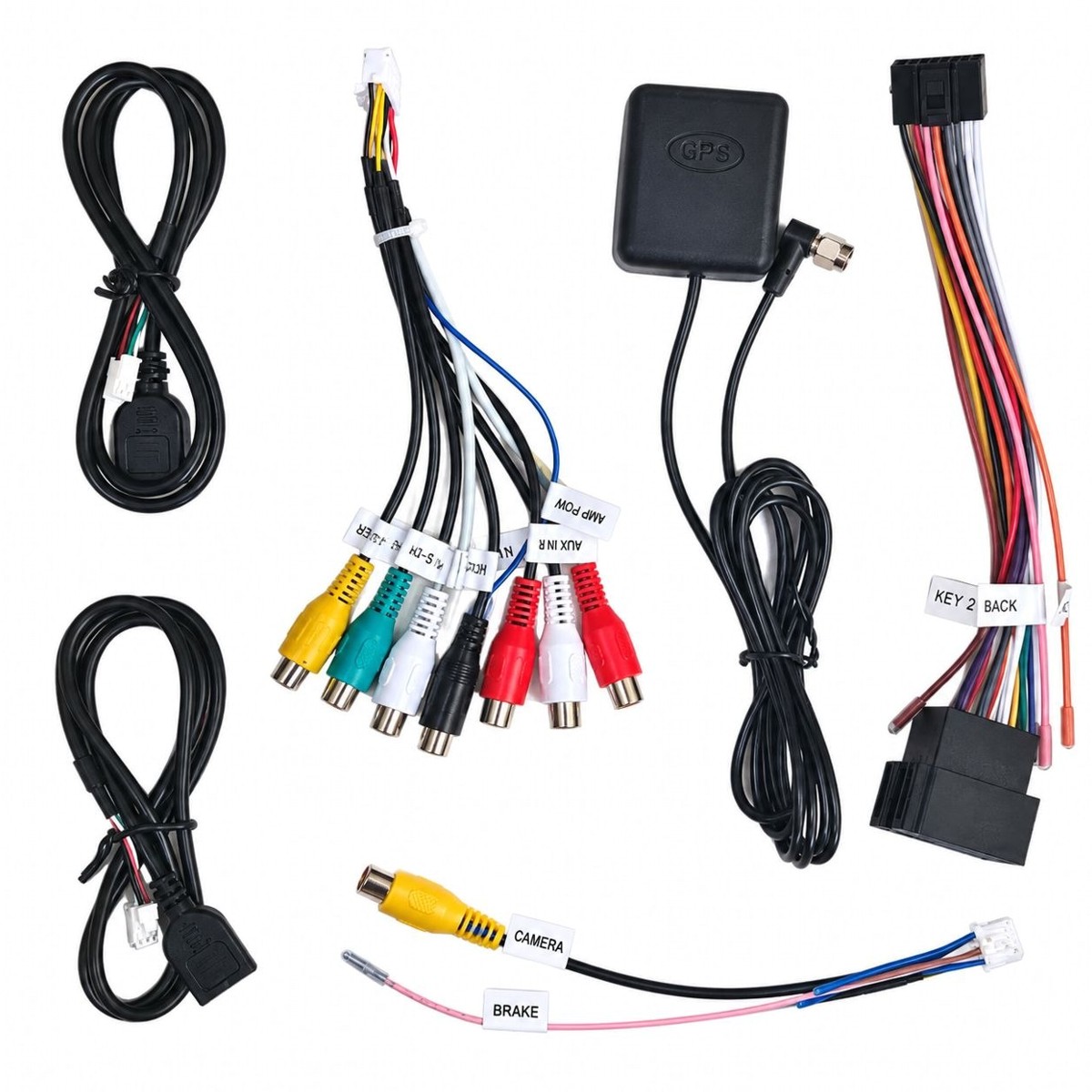

• Package Contents
  Multimedia head unit 9", CANbus Box, CANbus & wiring harness, power ISO cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, trim/facia for Captiva
• Special Notes

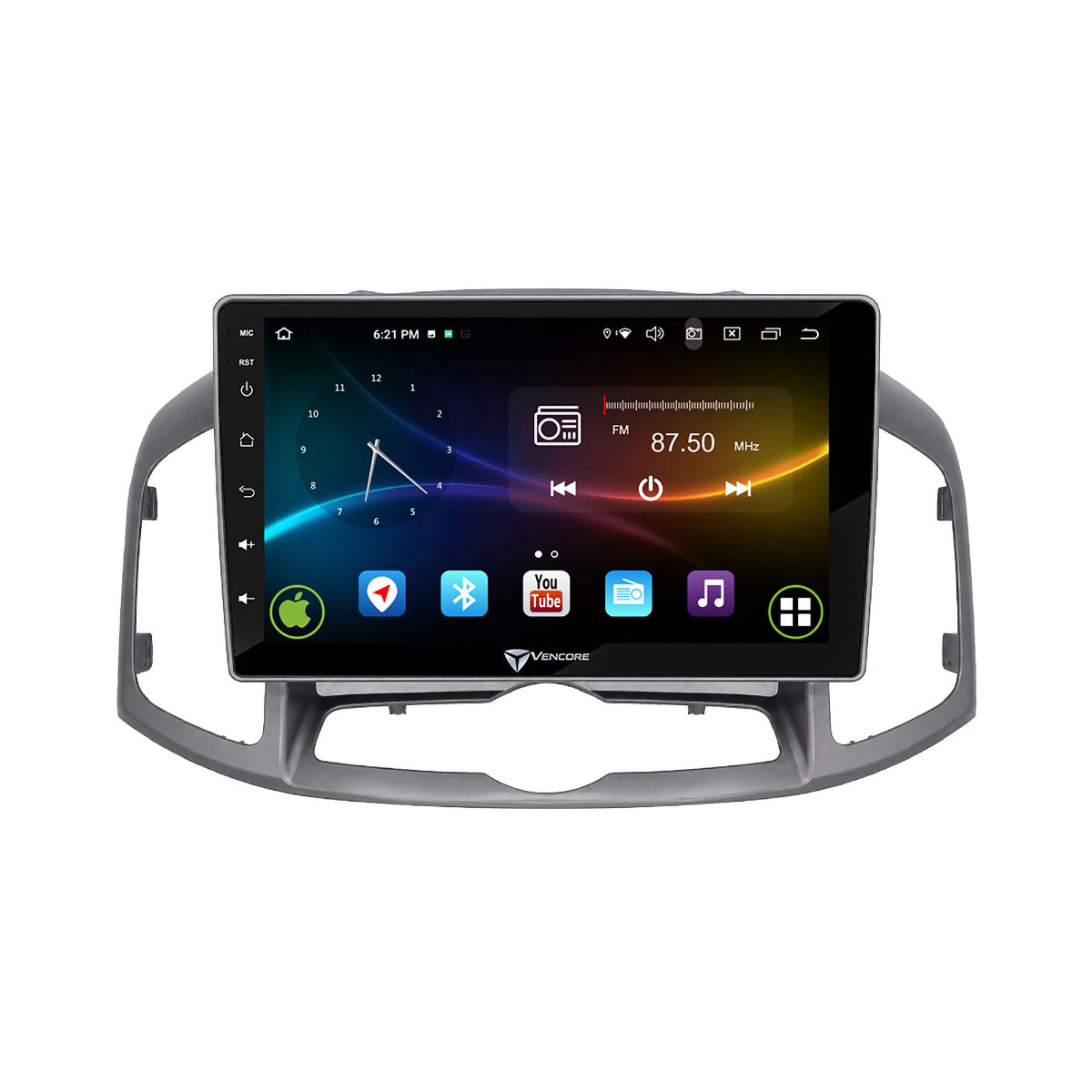

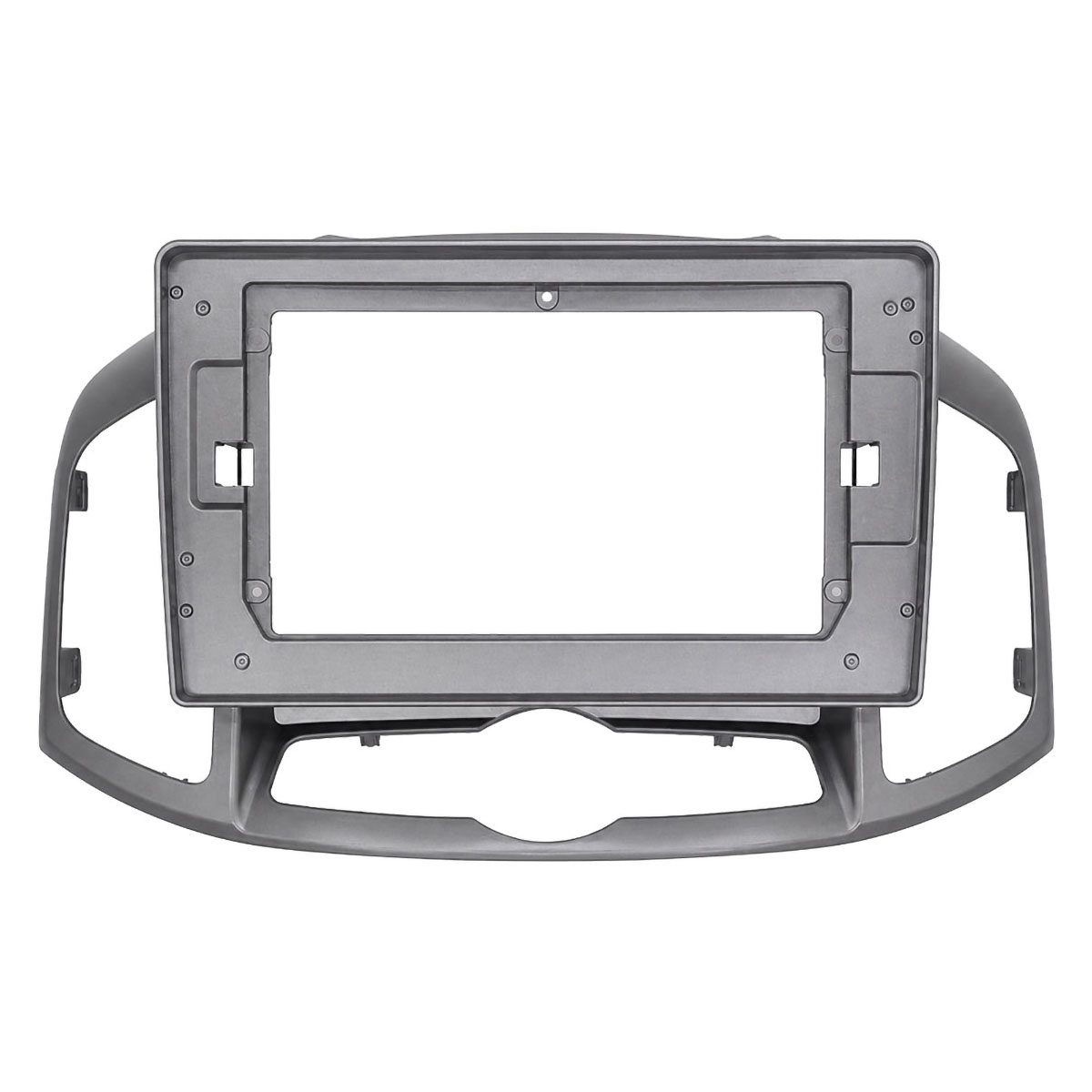

  Designed to fit factory dashboard (specific fascia for Captiva 3550-0703S).
