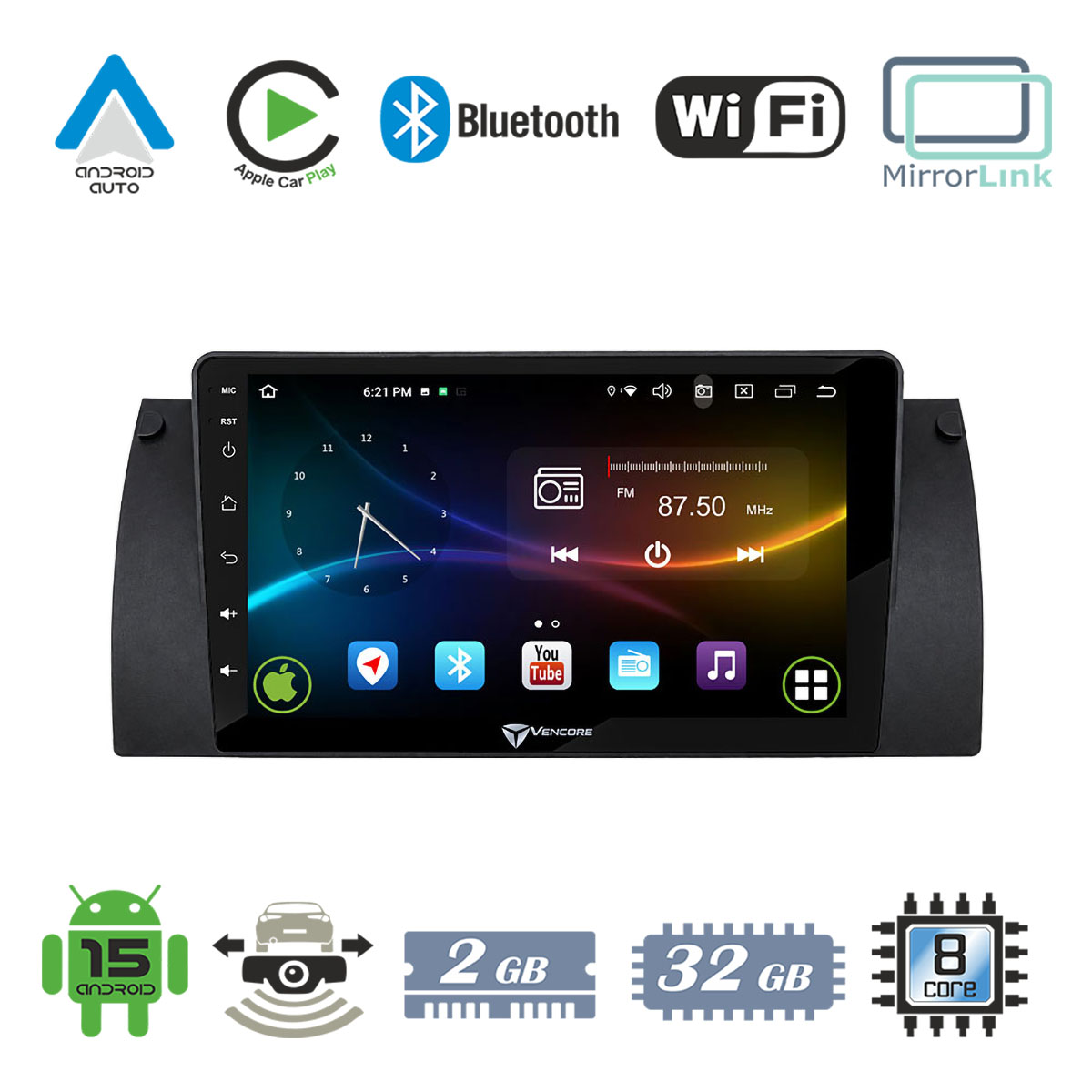

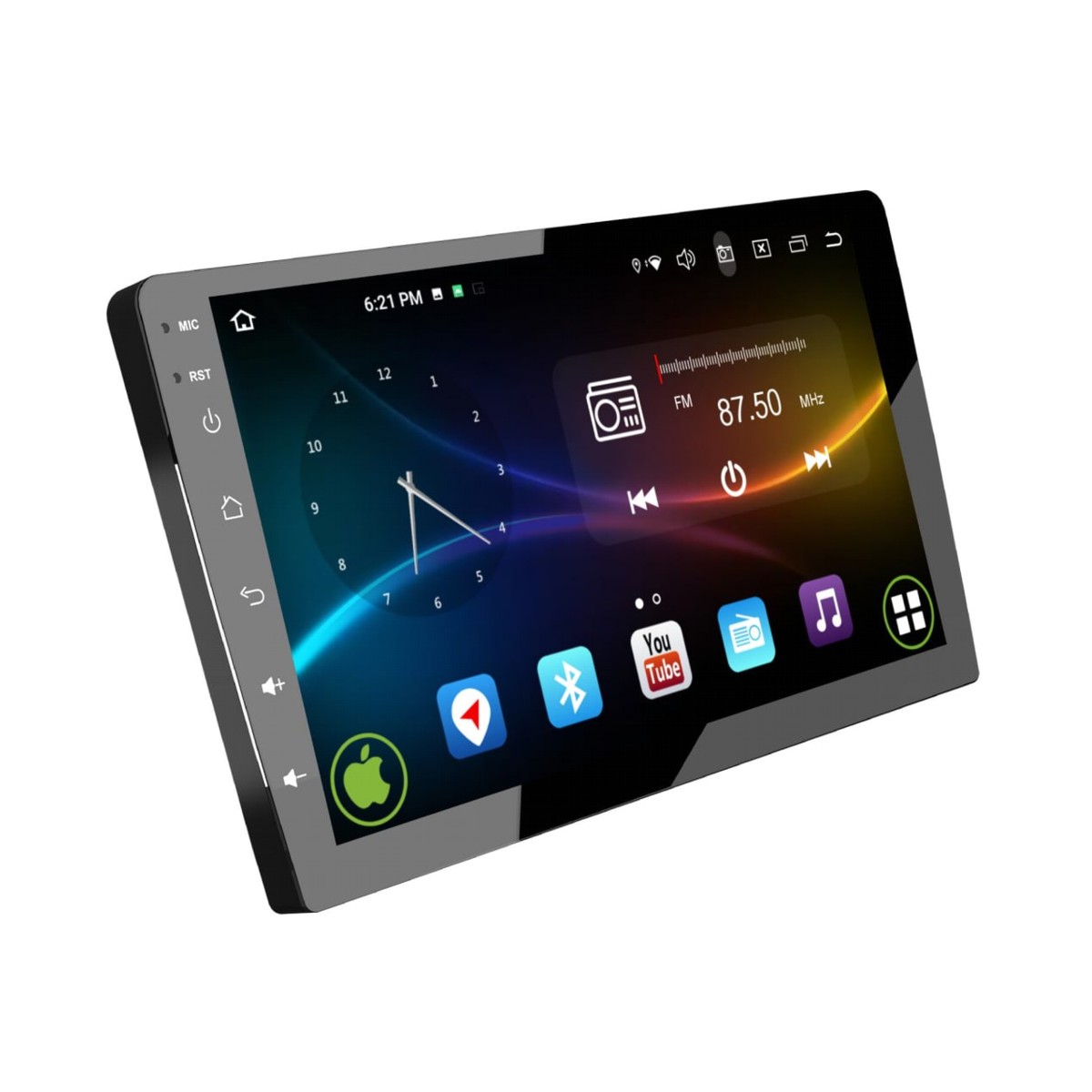

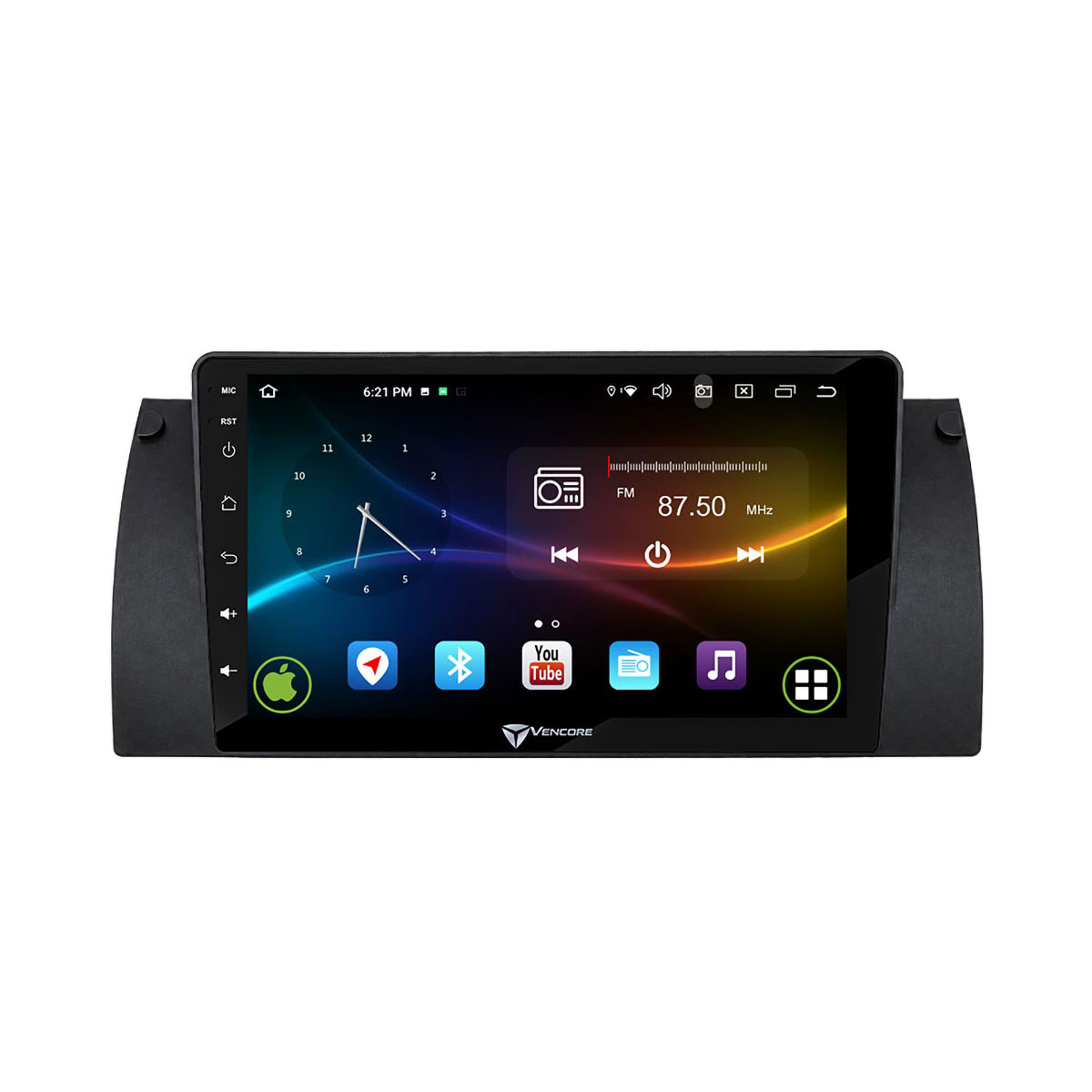

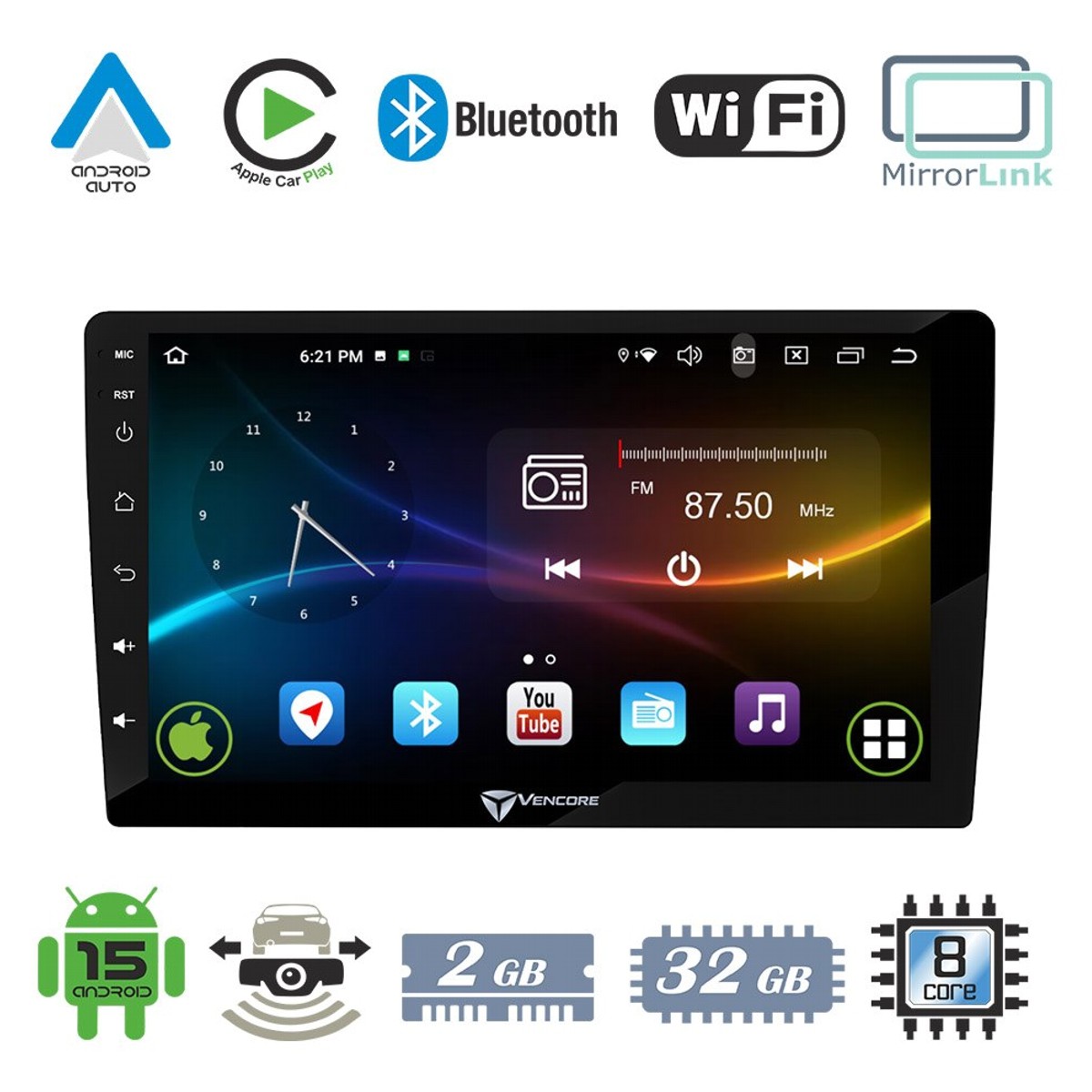

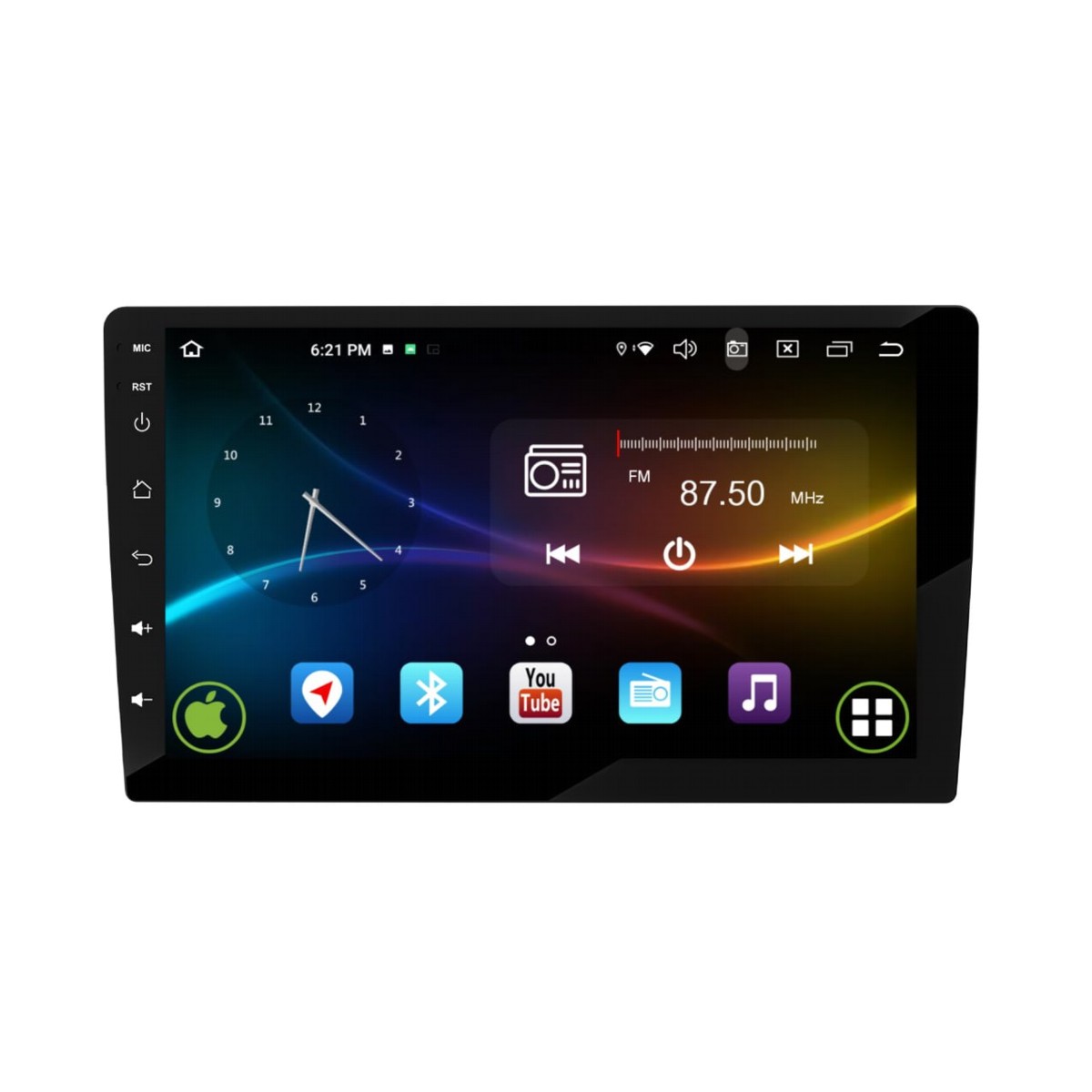

VenCore 3236-10007-0604B2 - Android 15 Multimedia Screen 9" (9109A) MTK6762 Octa-Core 2GB/32GB with Front Panel, CarPlay & Android Auto for Range Rover 2002-2009 - Black

Description

Technical Specifications

• Brand
  VenCore
• Model / Part Number
  3236-10007-0604B2
• Multimedia Model
  9109A
• Compatible Vehicles
  Range Rover (2002-2009)
• Screen Size
  9 inches
• Panel Type
  IPS
• Screen Resolution
  1280 × 720 pixels
• Touch Type
  Capacitive Multi-Touch
• Operating System
  Android 15
• Chipset
  MTK6762 Octa-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Apple CarPlay
  Yes
• Android Auto
  Yes
• Screen Mirroring / MirrorLink
  Yes
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  5.0 (Hands-Free, A2DP)
• GPS
  Yes (with external GPS antenna)
• Navigation App
  Compatible with Google Maps
• FM Radio
  FM with RDS (18 presets)
• AM Radio
  Yes (12 presets)
• Amplifier / Audio IC
  YD7388 (integrated amplifier support)
• Speaker Output Power
  4 × 50W (4.1 channel)
• Subwoofer Output
  Yes (external subwoofer support)
• Audio Formats Supported
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• Rear Camera Input
  AHD / TVI video input (supports 720p / 1080p)
• 360° Camera Support
  No
• Front Camera Support
  No (not supported for parking assist)
• USB Ports
  2 × USB 2.0
• USB Charging Output
  500 mA
• AUX Input
  Yes
• RCA Outputs
  Rear RCA outputs included
• CANbus Box
  Included (preserve steering wheel controls and vehicle signals)
• Power Supply Voltage
  9–14.4V
• Maximum Fuse
  10A
• Operating Temperature Range
  -20°C to 70°C
• Color
  Black
• Weight (package)
  2500 g
• Product Weight (approx.)
  1800 g
• EAN
  5212062208552
• MPN
  3236-10007-0604B2
• Included Accessories

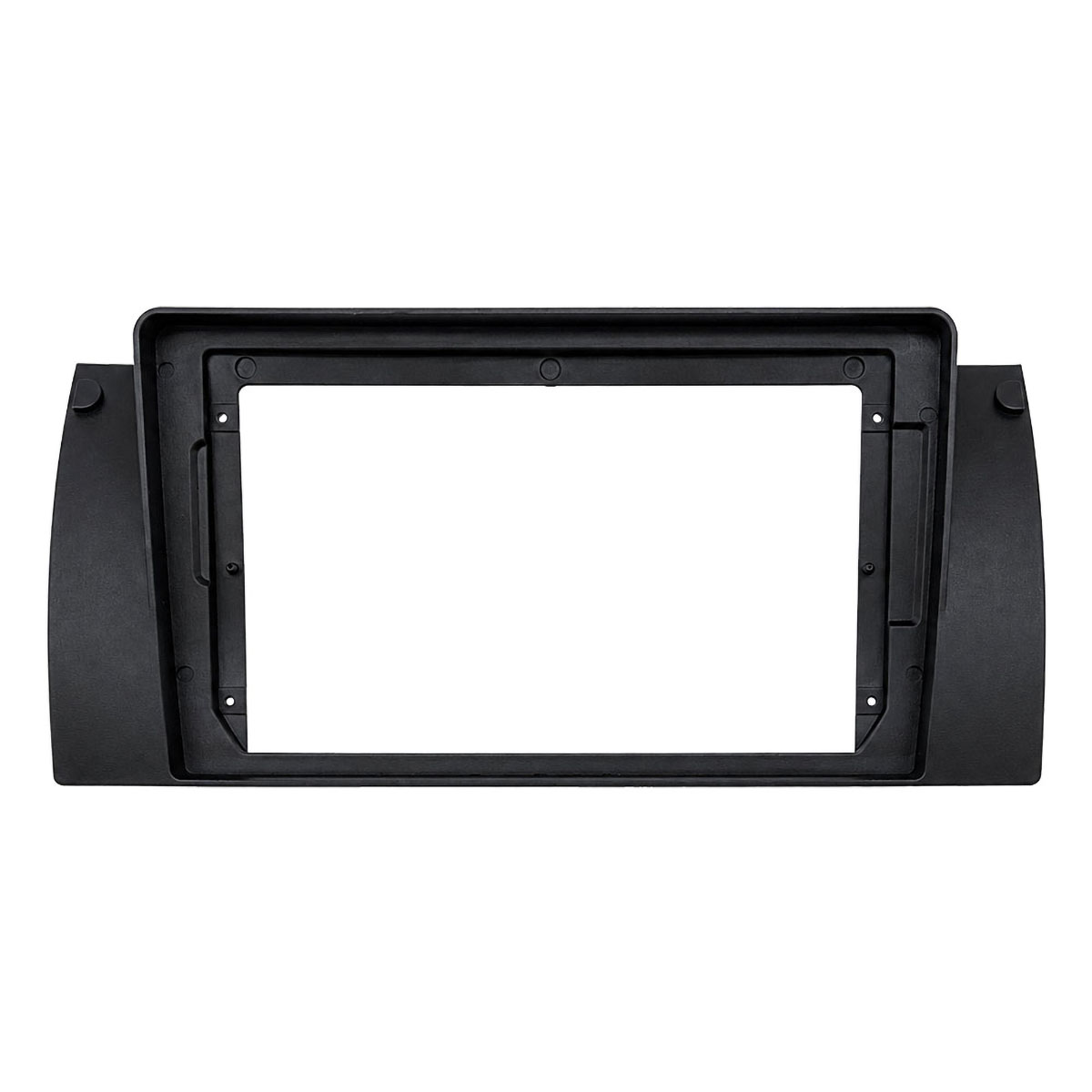

  Multimedia head unit 9", CANbus Box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable 20P, AUX cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, mounting brackets
