Full multimedia replacement head unit for BMW X5 (E53) 1999-2006. 9" IPS capacitive multi-touch display 1280x720, Android 15 OS, MTK6762 Octa‑Core chipset (4x Cortex‑A53 @2.0GHz + 4x Cortex‑A53 @1.6GHz). 2GB DDR3 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, Screen Mirroring...
More

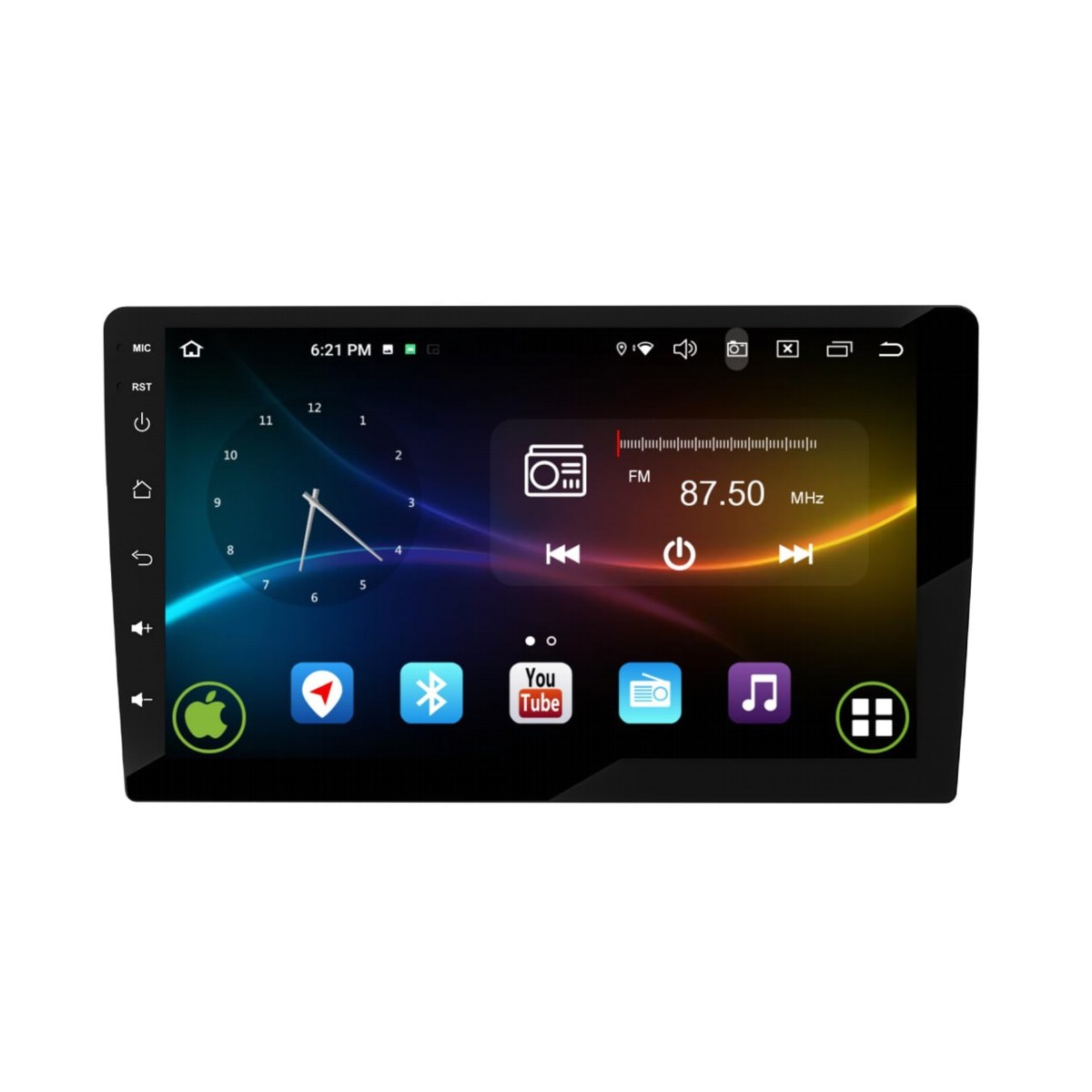

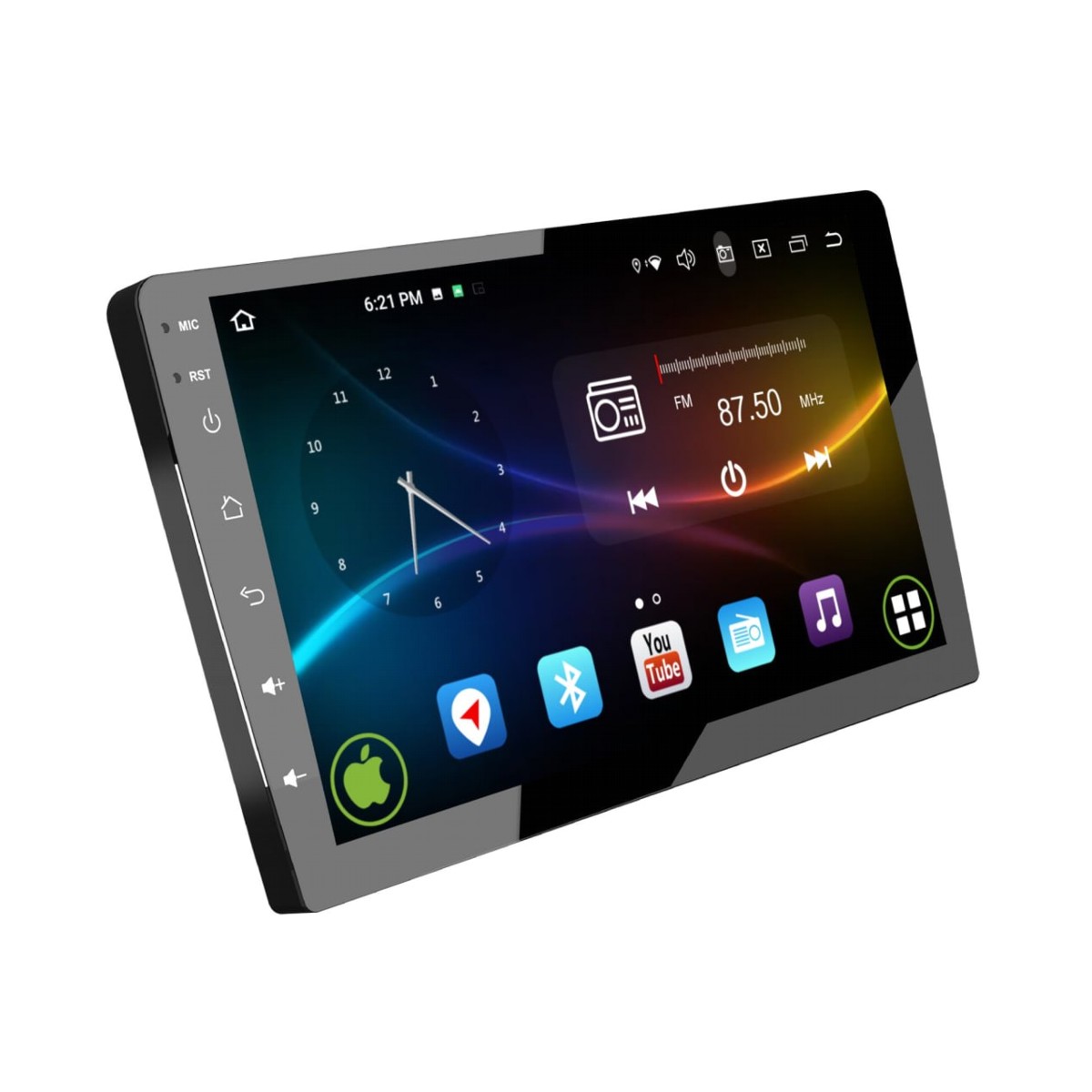

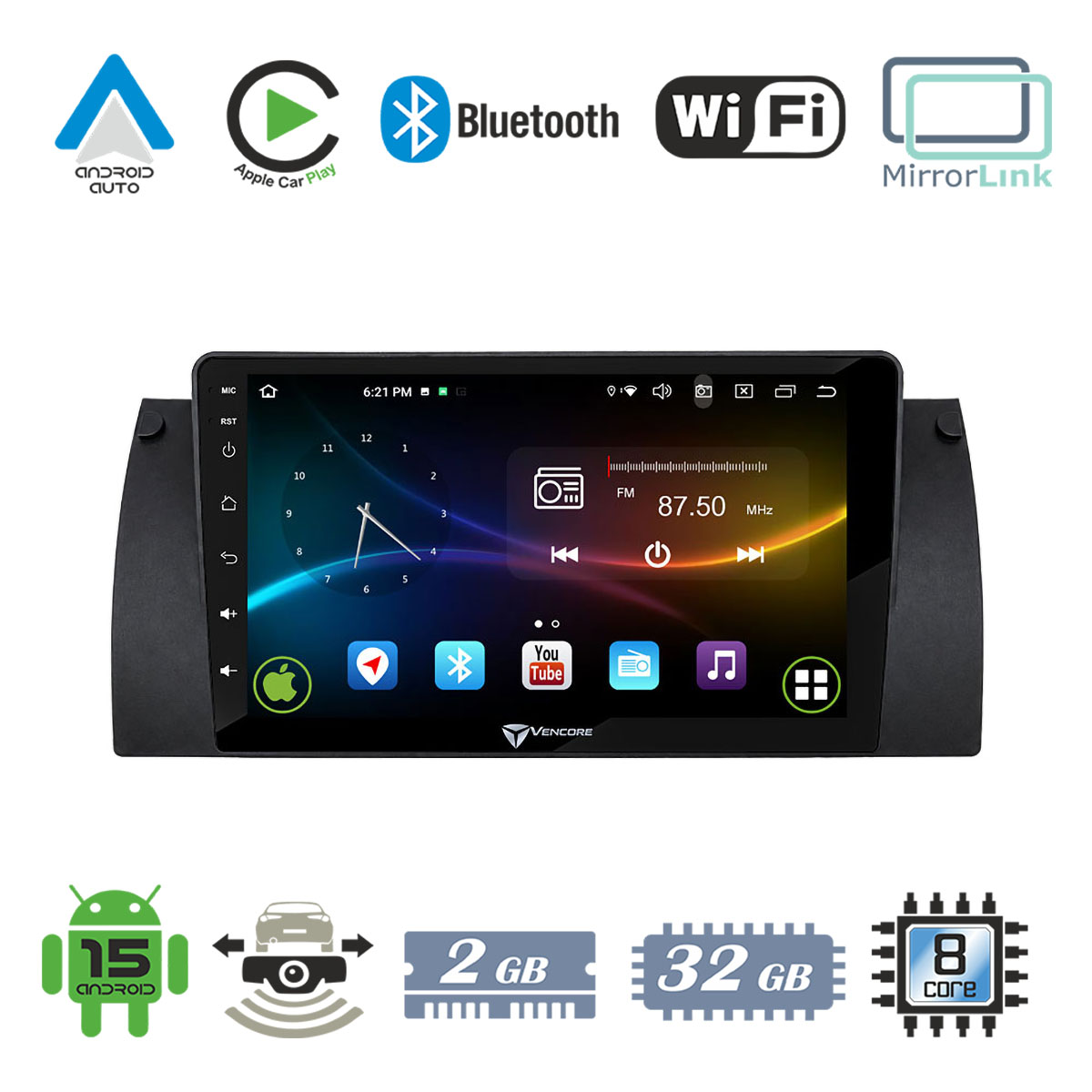

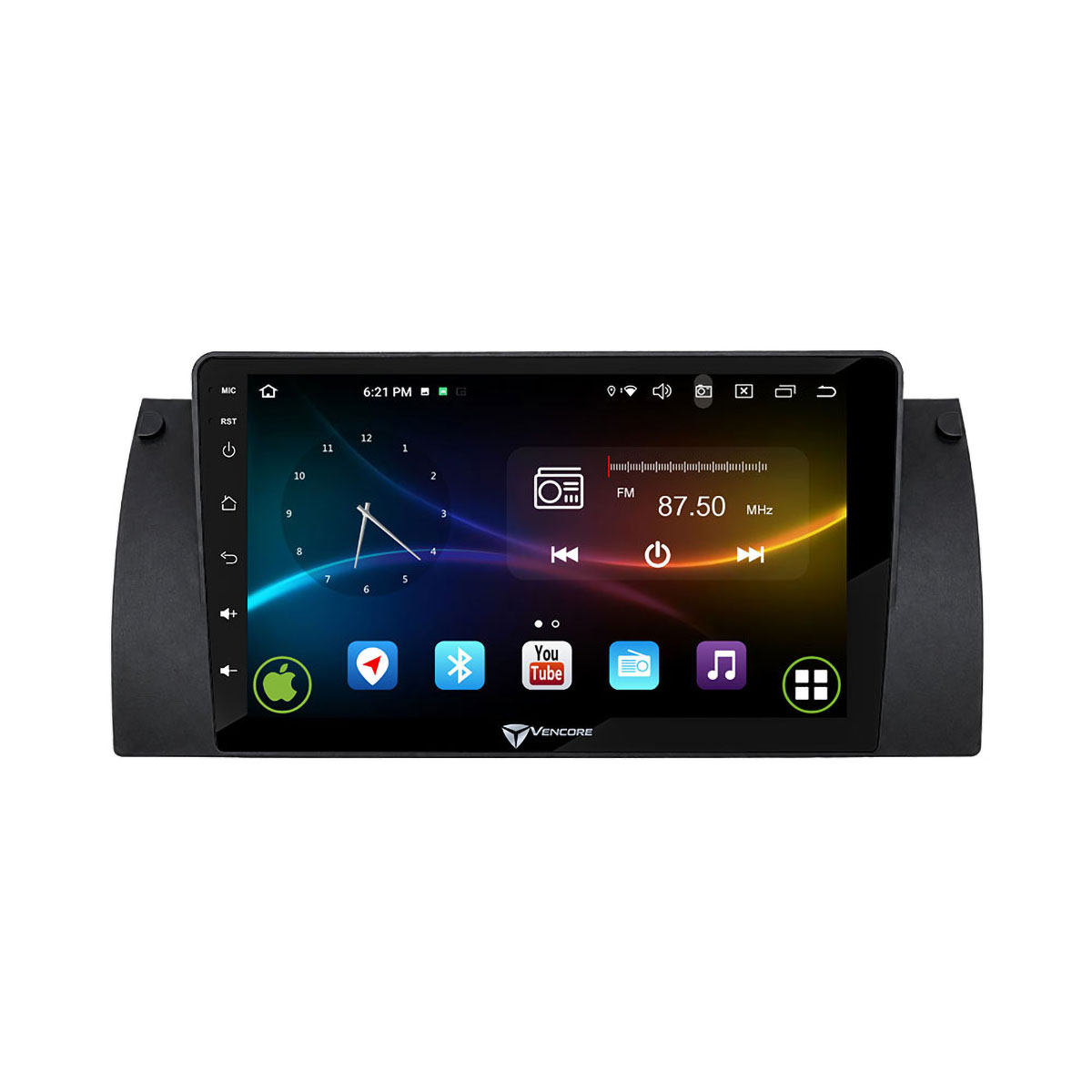

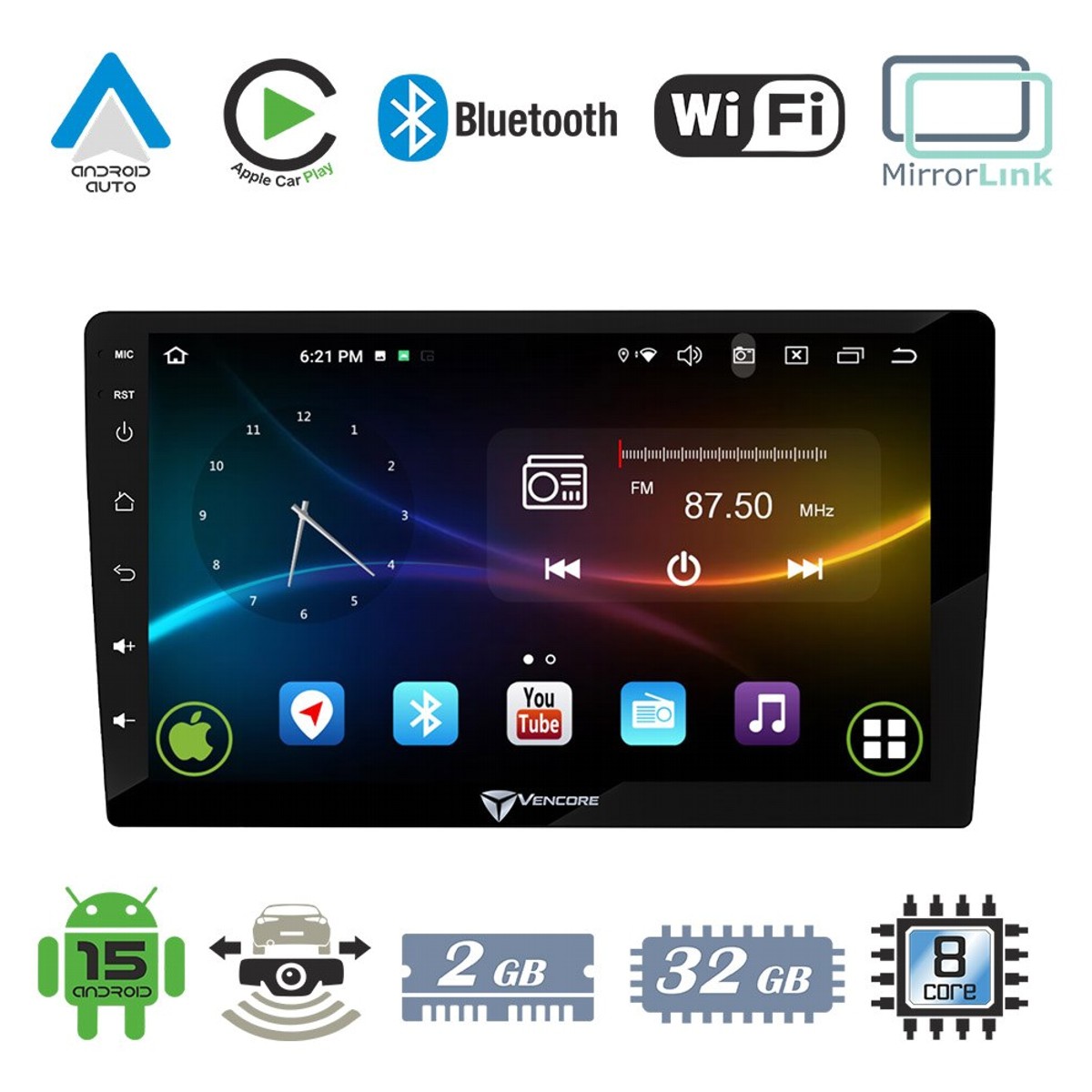

VenCore 3236-10007-0604B1 - 9" Android 15 Multimedia Head Unit (9109A) for BMW X5 E53 1999-2006 - Black
Product Code: 1183798516
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Full multimedia replacement head unit for BMW X5 (E53) 1999-2006. 9" IPS capacitive multi-touch display 1280x720, Android 15 OS, MTK6762 Octa‑Core chipset (4x Cortex‑A53 @2.0GHz + 4x Cortex‑A53 @1.6GHz). 2GB DDR3 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink, Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 with hands‑free and A2DP. Built‑in GPS with external antenna. Integrated audio amplifier module YD7388 (4 x 50W, 4.1 channel). Radio: FM with RDS (18 FM presets) and AM (12 presets). Rear camera input supports AHD 720p/1080p (no 360° camera included). CANbus box included to retain factory functions and steering wheel controls. Inputs/outputs: 2x USB 2.0, AUX, AHD/TVI video inputs (1080p), RCA outputs, multiple vehicle cables. Power: 9–14.4V, max fuse/current 10A. Operating temperature -20°C to 70°C. Firmware updates via USB. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Color: Black. SKU/MPN: 3236-10007-0604B1 / 3236-10007-0604B1. Brand: VenCore.
-
BrandVenCore
-
Model / SKU3236-10007-0604B1
-
Multimedia Model9109A
-
Compatible VehiclesBMW X5 (E53) 1999-2006
-
Screen Size9 inches
-
Front Panel Size9 inches
-
Panel TypeIPS
-
Resolution1280 × 720 pixels (HD)
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762
-
CPUOcta-Core (4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz)
-
RAM2GB DDR3
-
Internal Storage32GB
-
Fast Boot / Sleep ModeYes
-
Wi-FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands‑Free, Audio Streaming, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt-in GPS with external GPS antenna included
-
Navigation SupportGoogle Maps and navigation apps supported
-
Audio Amplifier ModuleYD7388
-
Audio Output Power4 x 50W
-
Audio Channel4.1 channel
-
Subwoofer OutputYes (external subwoofer output supported)
-
Audio FormatsAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
FM RadioYes (RDS)
-
FM Presets18
-
AM RadioYes
-
AM Presets12
-
Rear Camera InputAHD 720p / 1080p supported
-
360° Camera SupportNo (not included)
-
CANbus BoxIncluded (for vehicle integration and steering wheel controls)
-
Steering Wheel ControlsRetained via CANbus
-
Original Dashboard FitmentDesigned for BMW X5 E53 1999-2006 (replacement for factory 3550-0604B1)
-
USB Ports2 × USB 2.0
-
USB Charging Output500 mA
-
AUX InputYes
-
Video Input (AHD/TVI)Yes (1080p)
-
RCA OutputsFront and Rear RCA outputs provided
-
Power Supply Voltage9–14.4 V
-
Maximum Fuse / Current10 A
-
Operating Temperature Range-20°C to 70°C
-
CertificationsCE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark
-
Firmware UpdateVia USB
-

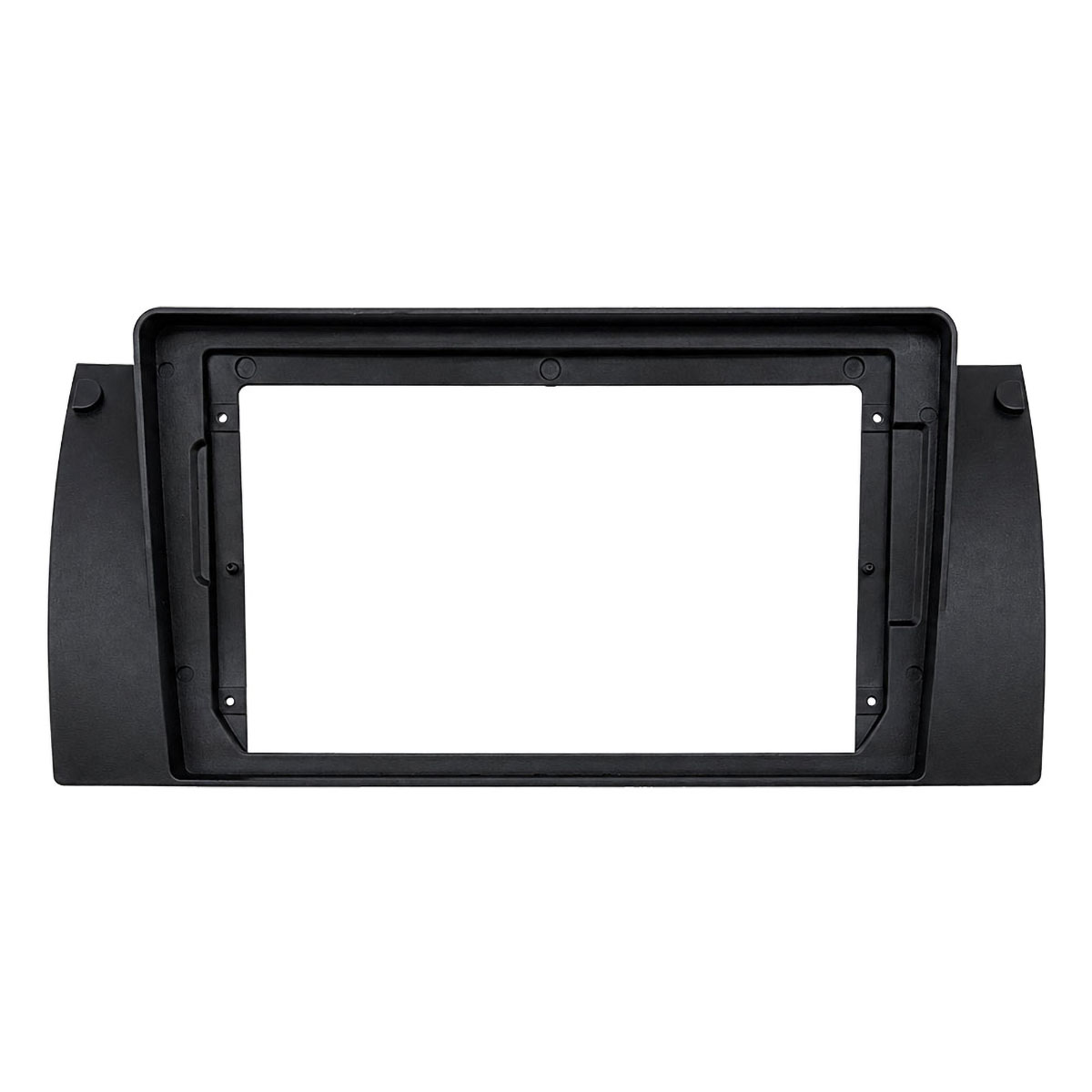

Package ContentsMultimedia Head Unit 9", 9" front trim, CANbus Box, ISO power cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
-
ColorBlack
-
Set Weight2.50 kg
Ratings
Description
Full multimedia replacement head unit for BMW X5 (E53) 1999-2006. 9" IPS capacitive multi-touch display 1280x720, Android 15 OS, MTK6762 Octa‑Core chipset (4x Cortex‑A53 @2.0GHz + 4x Cortex‑A53 @1.6GHz). 2GB DDR3 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink, Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 with hands‑free and A2DP. Built‑in GPS with external antenna. Integrated audio amplifier module YD7388 (4 x 50W, 4.1 channel). Radio: FM with RDS (18 FM presets) and AM (12 presets). Rear camera input supports AHD 720p/1080p (no 360° camera included). CANbus box included to retain factory functions and steering wheel controls. Inputs/outputs: 2x USB 2.0, AUX, AHD/TVI video inputs (1080p), RCA outputs, multiple vehicle cables. Power: 9–14.4V, max fuse/current 10A. Operating temperature -20°C to 70°C. Firmware updates via USB. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Color: Black. SKU/MPN: 3236-10007-0604B1 / 3236-10007-0604B1. Brand: VenCore.
Technical Specifications
-
BrandVenCore
-
Model / SKU3236-10007-0604B1
-
Multimedia Model9109A
-
Compatible VehiclesBMW X5 (E53) 1999-2006
-
Screen Size9 inches
-
Front Panel Size9 inches
-
Panel TypeIPS
-
Resolution1280 × 720 pixels (HD)
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762
-
CPUOcta-Core (4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz)
-
RAM2GB DDR3
-
Internal Storage32GB
-
Fast Boot / Sleep ModeYes
-
Wi-FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands‑Free, Audio Streaming, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt-in GPS with external GPS antenna included
-
Navigation SupportGoogle Maps and navigation apps supported
-
Audio Amplifier ModuleYD7388
-
Audio Output Power4 x 50W
-
Audio Channel4.1 channel
-
Subwoofer OutputYes (external subwoofer output supported)
-
Audio FormatsAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
FM RadioYes (RDS)
-
FM Presets18
-
AM RadioYes
-
AM Presets12
-
Rear Camera InputAHD 720p / 1080p supported
-
360° Camera SupportNo (not included)
-
CANbus BoxIncluded (for vehicle integration and steering wheel controls)
-
Steering Wheel ControlsRetained via CANbus
-
Original Dashboard FitmentDesigned for BMW X5 E53 1999-2006 (replacement for factory 3550-0604B1)
-
USB Ports2 × USB 2.0
-
USB Charging Output500 mA
-
AUX InputYes
-
Video Input (AHD/TVI)Yes (1080p)
-
RCA OutputsFront and Rear RCA outputs provided
-
Power Supply Voltage9–14.4 V
-
Maximum Fuse / Current10 A
-
Operating Temperature Range-20°C to 70°C
-
CertificationsCE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark
-
Firmware UpdateVia USB
-
Package ContentsMultimedia Head Unit 9", 9" front trim, CANbus Box, ISO power cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
-
ColorBlack
-
Set Weight2.50 kg
