Complete multimedia head unit kit for BMW Series 5 Lite E39 (1997-2003). 9" IPS capacitive multi-touch display with 1280x720 resolution running Android 15. Powered by MTK6762 Octa-Core chipset (4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz) with 2GB DDR3 RAM and 32GB internal storage. Supports...
More
VenCore 3236-10007-0604B 9" Android 15 Multimedia Head Unit for BMW Series 5 Lite E39 (1997-2003)
Product Code: 1183798478
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Complete multimedia head unit kit for BMW Series 5 Lite E39 (1997-2003). 9" IPS capacitive multi-touch display with 1280x720 resolution running Android 15. Powered by MTK6762 Octa-Core chipset (4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz) with 2GB DDR3 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, Dual-Band Wi‑Fi (2.4/5GHz) and Bluetooth 5.0 with hands-free calling and A2DP. Includes CANbus Box for vehicle integration (steering wheel control support and central console data). Integrated GPS with external antenna for navigation (Google Maps). Audio system uses YD7388 amplifier 4x50W (4.1 channel) with subwoofer output, supporting common audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR). FM radio with RDS (18 FM presets), AM (12 presets). AHD/TVI video inputs support 720p/1080p for rear camera (AHD up to 1080p). I/O: 2x USB 2.0 (500mA charging output), AUX input, AHD/TVI video input, front/rear RCA outputs, GPS antenna, full wiring harness (ISO power cable, USB adapter cables, RCA cables, CANbus cable). Power: 9–14.4V, max current 10A. Operating temperature -20°C to 70°C. Front finish: Black. Kit weight ~2.5 kg. One-year warranty as provided by seller.
-
BrandVenCore
-
Model / Part Number3236-10007-0604B
-
Multimedia Model9109A
-
Vehicle CompatibilityBMW Series 5 Lite E39 (1997-2003)
-
Screen Size9 inches
-
Panel TypeIPS
-
Screen Resolution1280 x 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core
-
CPU Configuration4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi-FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands-Free, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt-in with external GPS antenna
-
GPS NavigationSupports Google Maps
-
Integrated AmplifierYD7388
-
Amplifier Power4 x 50W (4.1 Channel)
-
Subwoofer OutputYes
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
FM RadioYes (RDS)
-
FM Presets18
-
AM RadioYes
-
AM Presets12
-
Rear Camera InputAHD / TVI video input (supports 720p / 1080p)
-
360° Camera SystemNot supported
-
CANbus BoxIncluded (vehicle integration, steering wheel control)
-
USB Ports2 x USB 2.0
-
USB Charging Output500mA
-
AUX InputYes
-

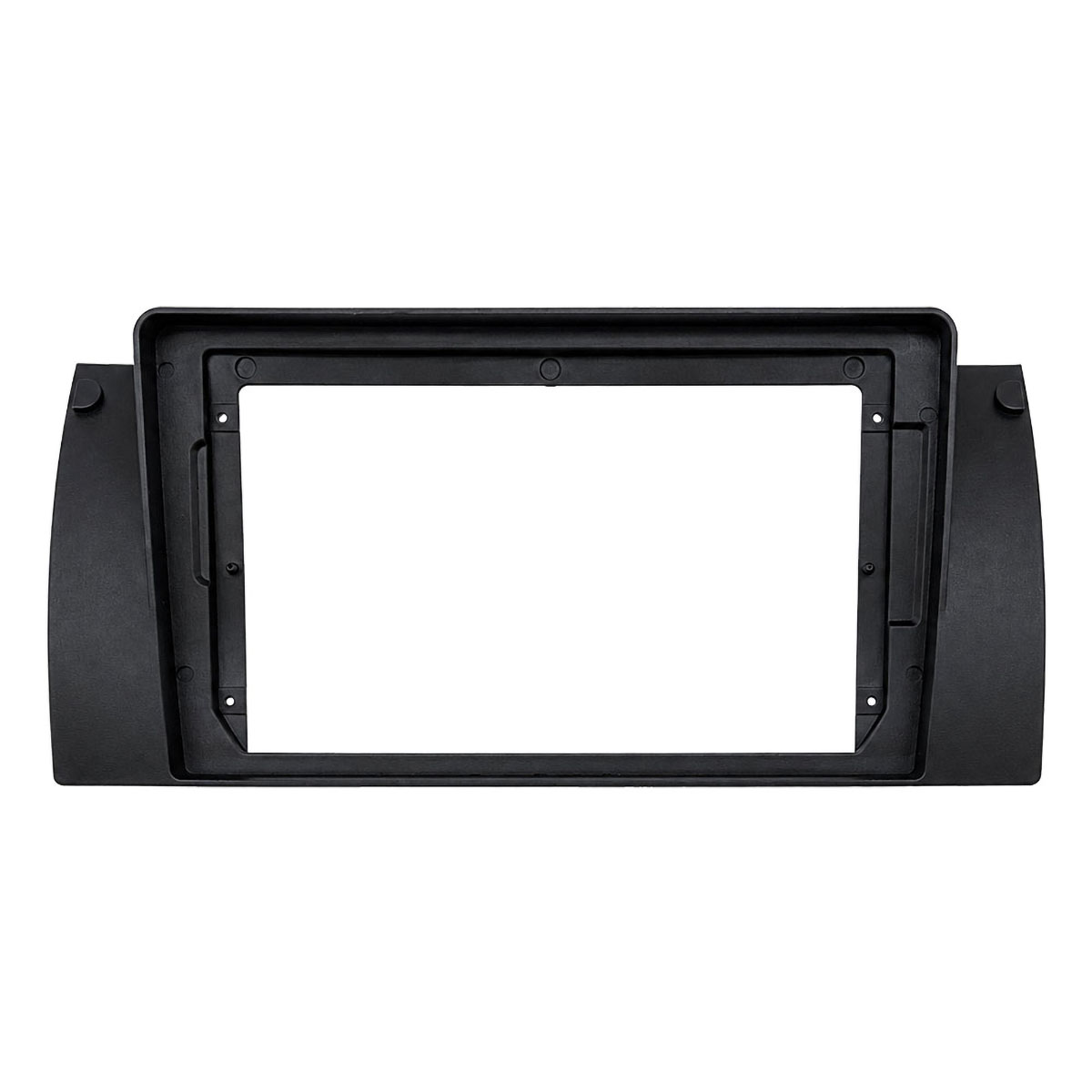

Included AccessoriesMultimedia head unit, 9" front panel, CANbus Box, wiring harness, power ISO cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Power Supply Voltage9–14.4V
-
Max Operating Current / Fuse10A
-
Operating Temperature Range-20°C to 70°C
-
Weight (kit)2500 g
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware UpdateVia USB
-
Warranty1 year (as provided by seller)
Ratings
Description
Complete multimedia head unit kit for BMW Series 5 Lite E39 (1997-2003). 9" IPS capacitive multi-touch display with 1280x720 resolution running Android 15. Powered by MTK6762 Octa-Core chipset (4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz) with 2GB DDR3 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, Dual-Band Wi‑Fi (2.4/5GHz) and Bluetooth 5.0 with hands-free calling and A2DP. Includes CANbus Box for vehicle integration (steering wheel control support and central console data). Integrated GPS with external antenna for navigation (Google Maps). Audio system uses YD7388 amplifier 4x50W (4.1 channel) with subwoofer output, supporting common audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR). FM radio with RDS (18 FM presets), AM (12 presets). AHD/TVI video inputs support 720p/1080p for rear camera (AHD up to 1080p). I/O: 2x USB 2.0 (500mA charging output), AUX input, AHD/TVI video input, front/rear RCA outputs, GPS antenna, full wiring harness (ISO power cable, USB adapter cables, RCA cables, CANbus cable). Power: 9–14.4V, max current 10A. Operating temperature -20°C to 70°C. Front finish: Black. Kit weight ~2.5 kg. One-year warranty as provided by seller.
Technical Specifications
-
BrandVenCore
-
Model / Part Number3236-10007-0604B
-
Multimedia Model9109A
-
Vehicle CompatibilityBMW Series 5 Lite E39 (1997-2003)
-
Screen Size9 inches
-
Panel TypeIPS
-
Screen Resolution1280 x 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core
-
CPU Configuration4x Cortex-A53 @2.0GHz + 4x Cortex-A53 @1.6GHz
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi-FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands-Free, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt-in with external GPS antenna
-
GPS NavigationSupports Google Maps
-
Integrated AmplifierYD7388
-
Amplifier Power4 x 50W (4.1 Channel)
-
Subwoofer OutputYes
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
FM RadioYes (RDS)
-
FM Presets18
-
AM RadioYes
-
AM Presets12
-
Rear Camera InputAHD / TVI video input (supports 720p / 1080p)
-
360° Camera SystemNot supported
-
CANbus BoxIncluded (vehicle integration, steering wheel control)
-
USB Ports2 x USB 2.0
-
USB Charging Output500mA
-
AUX InputYes
-
Included AccessoriesMultimedia head unit, 9" front panel, CANbus Box, wiring harness, power ISO cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Power Supply Voltage9–14.4V
-
Max Operating Current / Fuse10A
-
Operating Temperature Range-20°C to 70°C
-
Weight (kit)2500 g
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware UpdateVia USB
-
Warranty1 year (as provided by seller)
