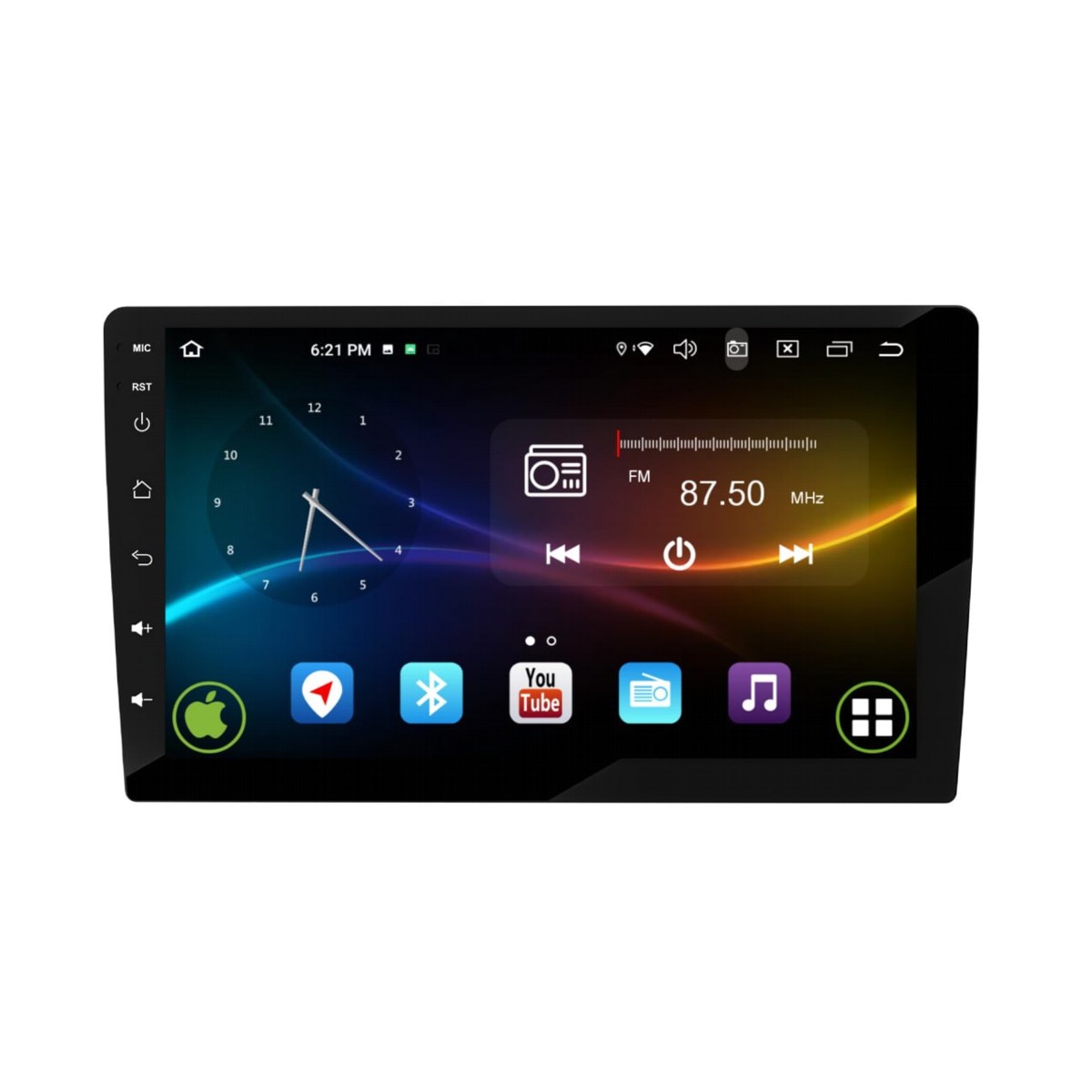

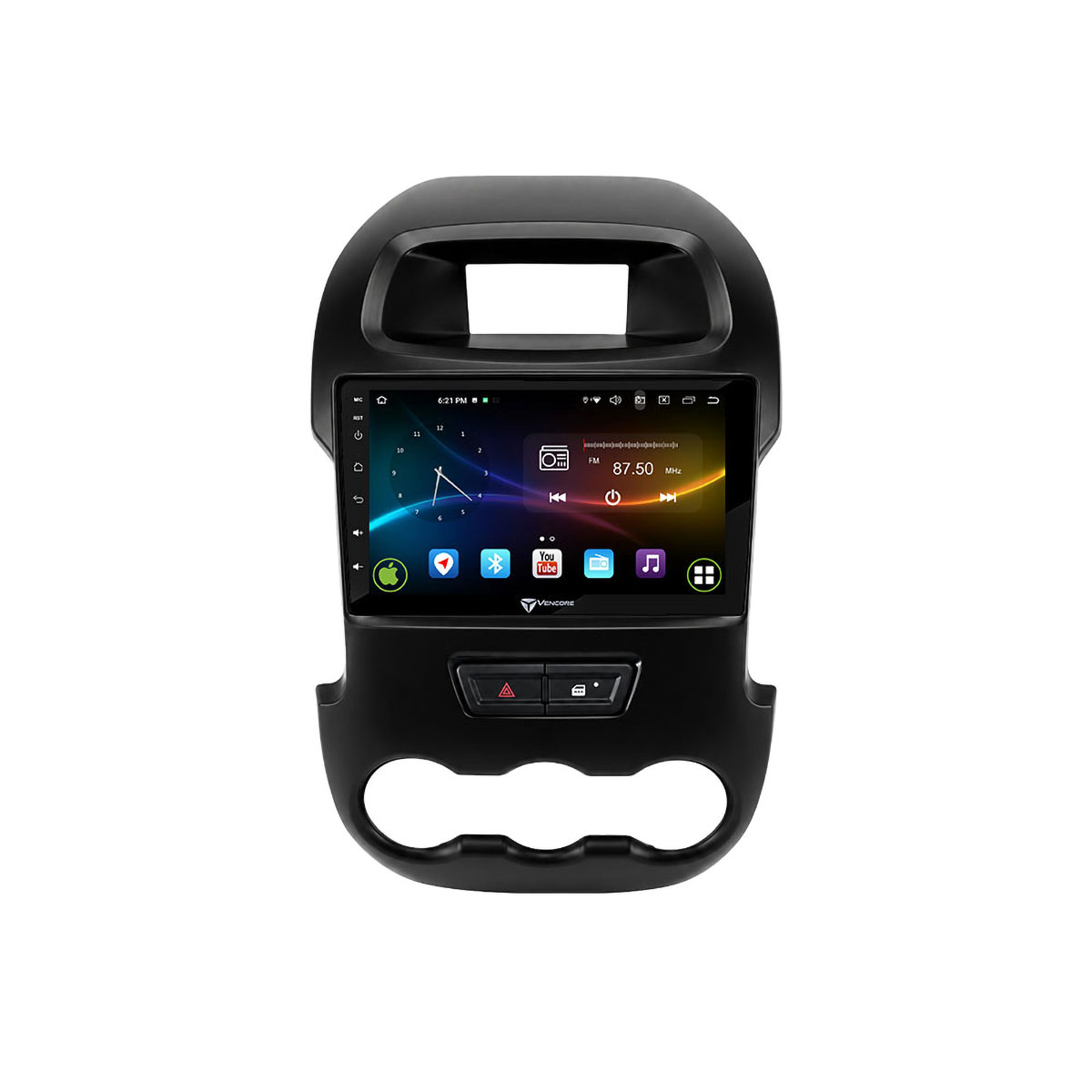

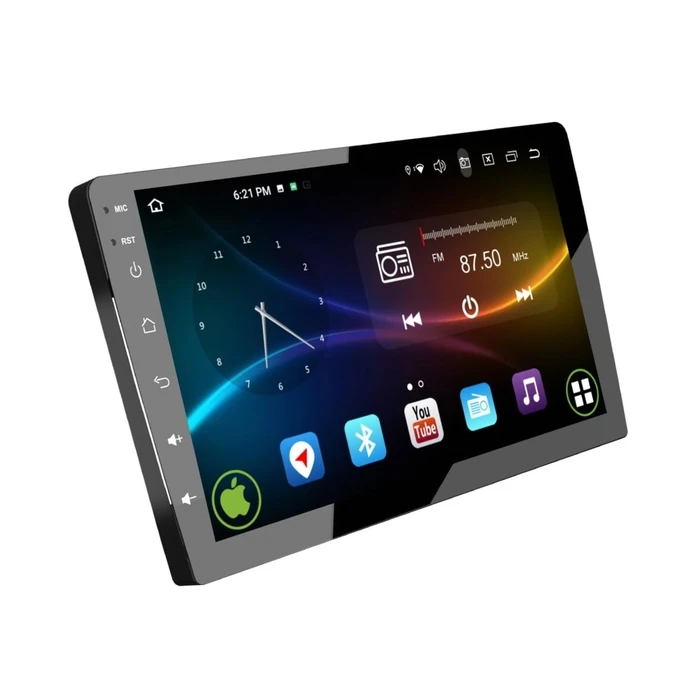

VenCore 3236-10007-0591B - 9" Android 15 Multimedia Head Unit for Ford Ranger 2012-2016 - Black

Description

Technical Specifications

• Brand
  VenCore
• Model / SKU
  3236-10007-0591B
• Multimedia Model
  9109A
• Compatible Models
  Ford Ranger 2012, 2013, 2014, 2015, 2016
• Screen Size
  9 inches
• Panel Type
  IPS
• Screen Resolution
  1280 × 720 pixels
• Touch Type
  Capacitive Multi-Touch
• Operating System
  Android 15
• Chipset
  MTK6762 Octa-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Smartphone Connectivity
  Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  5.0 (Hands-Free, A2DP)
• GPS
  Yes (external GPS antenna included)
• Radio
  FM with RDS (18 preset FM stations), AM (12 presets)
• Audio Amplifier
  YD7388 built-in amplifier
• Audio Output Power
  4 × 50W
• Audio Channels
  4.1 Channel
• Subwoofer Output
  Pre-out available
• Supported Audio Formats
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• Rear Camera Input
  AHD / TVI 720p / 1080p compatible
• 360° Camera Support
  Yes (system support; camera not included)
• CANbus
  Included (CANbus Box for vehicle integration)
• USB Ports
  2 × USB 2.0
• USB Charging Output
  500 mA
• AUX Input
  Yes
• Video Inputs
  AHD/TVI video input (1080p)
• Power Supply Range
  9 – 14.4 V
• Typical Current / Fuse
  10 A
• Operating Temperature
  -20°C to 70°C
• Package Weight
  2500 g
• Package Contents

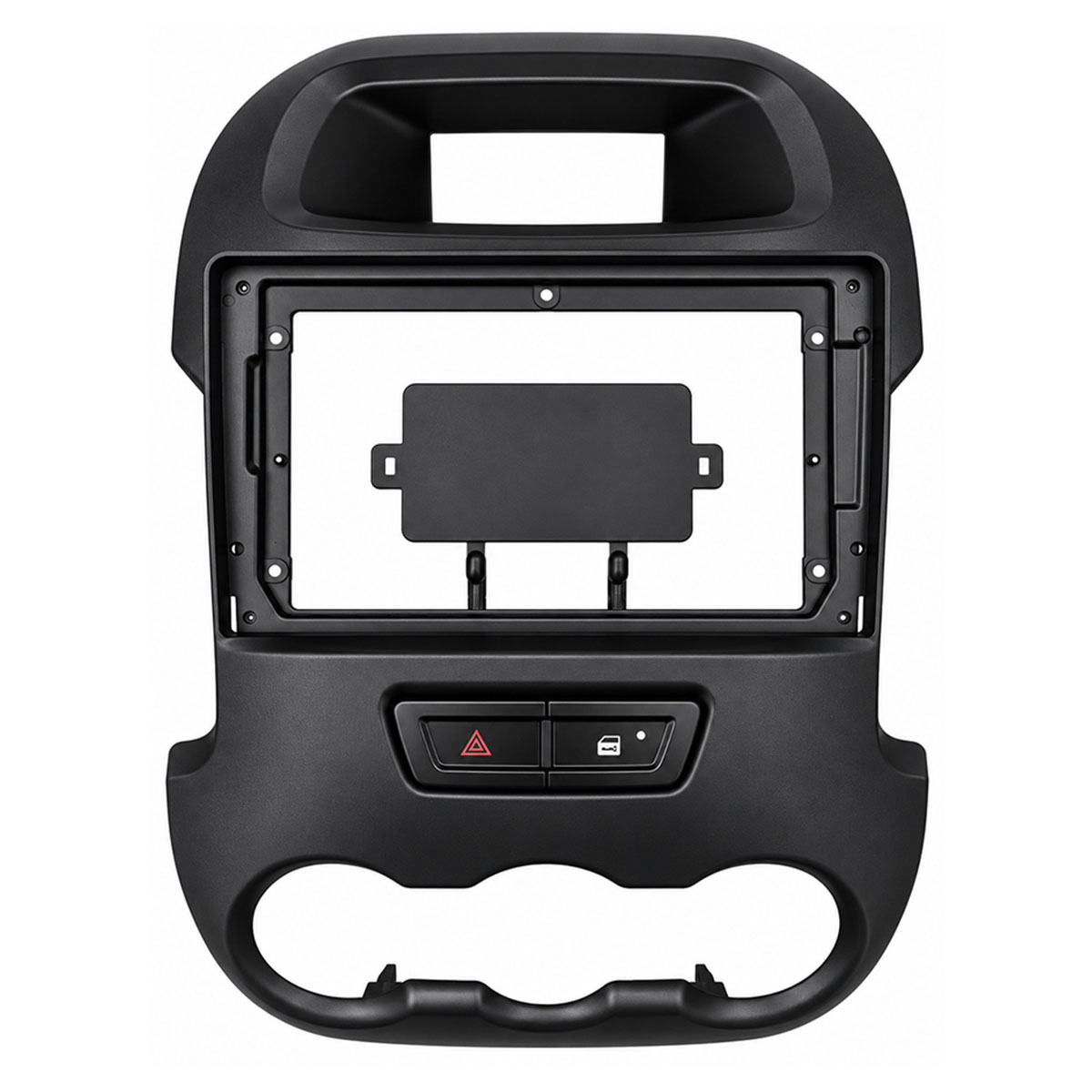

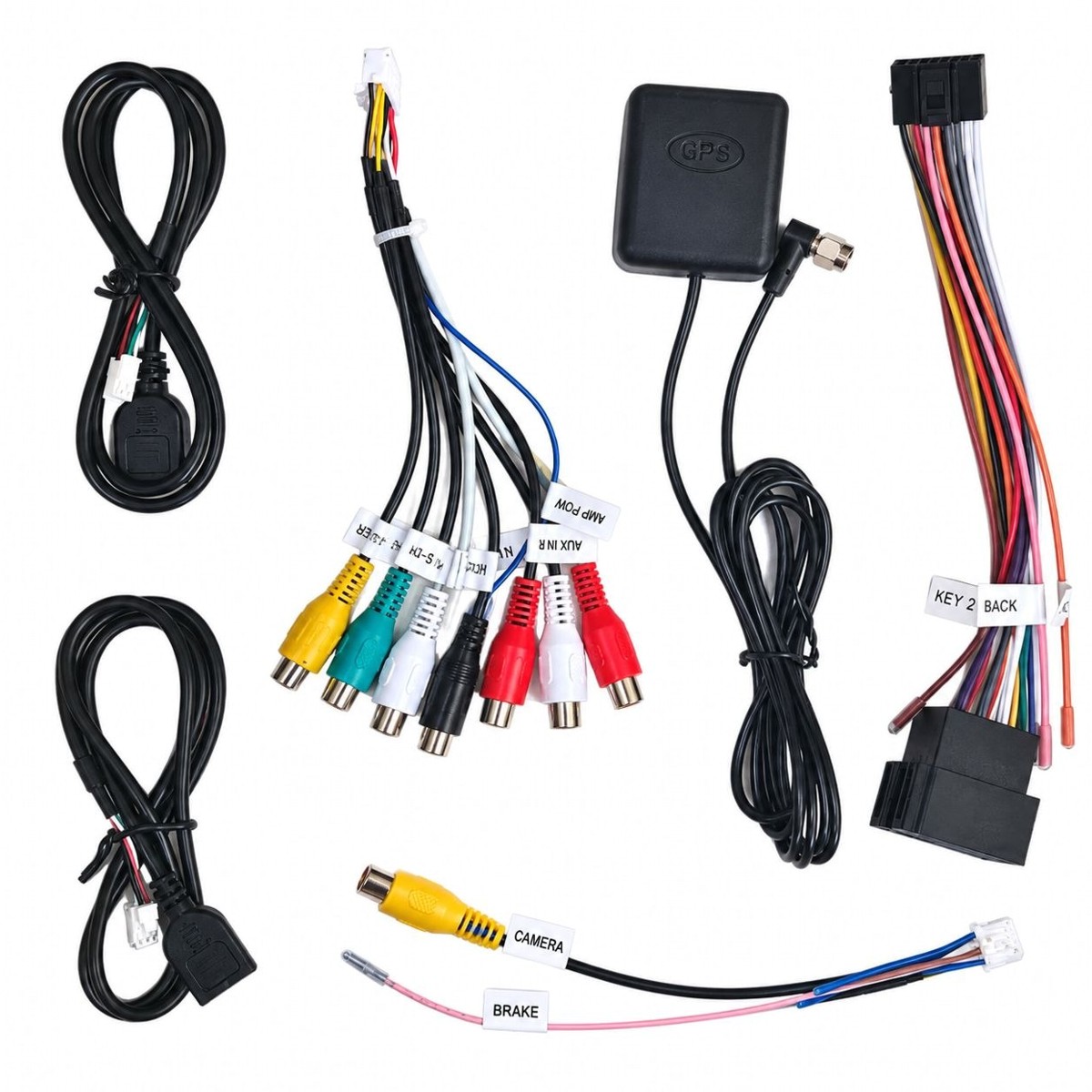

  9" Multimedia Head Unit, 9" front panel (model 3550-0591B replacement), CANbus Box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable (20P), AUX input cable, Rear view input & antenna cable (10P), Rear RCA output & CANbus cable (8P), GPS antenna, manual
• Product Color
  Black
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Firmware Update
  Via USB
• Notes
  Camera(s) and some optional accessories not included
