The VenCore 3236-10007-0540B is a complete multimedia head unit kit tailored for Peugeot 206 (1998–2006). It features a 9" IPS capacitive multi-touch display with 1280×720 resolution, runs Android 15 on an MTK6762 octa-core chipset (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz), and includes 2GB...
More
VenCore 3236-10007-0540B - Multimedia Android 15 9" IPS Display (9109A) MTK6762 Octa-Core 2GB/32GB with Front Panel, CarPlay, Android Auto & AHD Rear Camera Support for Peugeot 206 1998-2006 – Black
Product Code: 1183798260
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The VenCore 3236-10007-0540B is a complete multimedia head unit kit tailored for Peugeot 206 (1998–2006). It features a 9" IPS capacitive multi-touch display with 1280×720 resolution, runs Android 15 on an MTK6762 octa-core chipset (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz), and includes 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Dual-Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 (hands-free, A2DP), Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, and built-in GPS with antenna (supports Google Maps). Audio is handled by an integrated amplifier (YD7388) with up to 4×50W output and 4.1 channel support plus subwoofer output. The unit supports FM/RDS radio, USB inputs (2× USB 2.0), AUX, and AHD/TVI video inputs (720p/1080p) for rear camera support. The package includes a CANbus box for vehicle integration, ISO power cable, GPS antenna, multiple RCA/USB/AUX cables and a 9" front panel specific for Peugeot 206. Power supply: 9–14.4V, fuse recommendation 10A. Colour: Black.
-
BrandVenCore
-
Model / Part Number3236-10007-0540B (Multimedia model 9109A)
-
Compatible VehiclesPeugeot 206 (1998-2006)
-
Screen Size9 inches
-
Panel TypeIPS
-
Resolution1280×720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762
-
CPUOcta-Core: 4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi-FiDual Band 2.4GHz / 5GHz
-
BluetoothBluetooth 5.0 (Hands-Free, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt-in GPS with external antenna (supports Google Maps)
-
RadioFM with RDS (18 FM stations memory), AM support (12 AM stations memory)
-
Amplifier ChipYD7388
-
Audio Output Power4×50W (max per channel)
-
Audio Channels4.1 Channel, Subwoofer output
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
USB Ports2 × USB 2.0 (data & charging)
-
USB Charging Output500mA
-
AUX InputYes
-
Video InputsAHD/TVI video input up to 1080p
-
Rear Camera SupportAHD 720p / 1080p (auto reverse-trigger supported)
-
360° Camera SupportNo (device does not include 360° stitched camera system)
-
CANbus Box IncludedYes (for vehicle signals and steering wheel control integration)
-
Steering Wheel Control SupportYes (via CANbus)
-

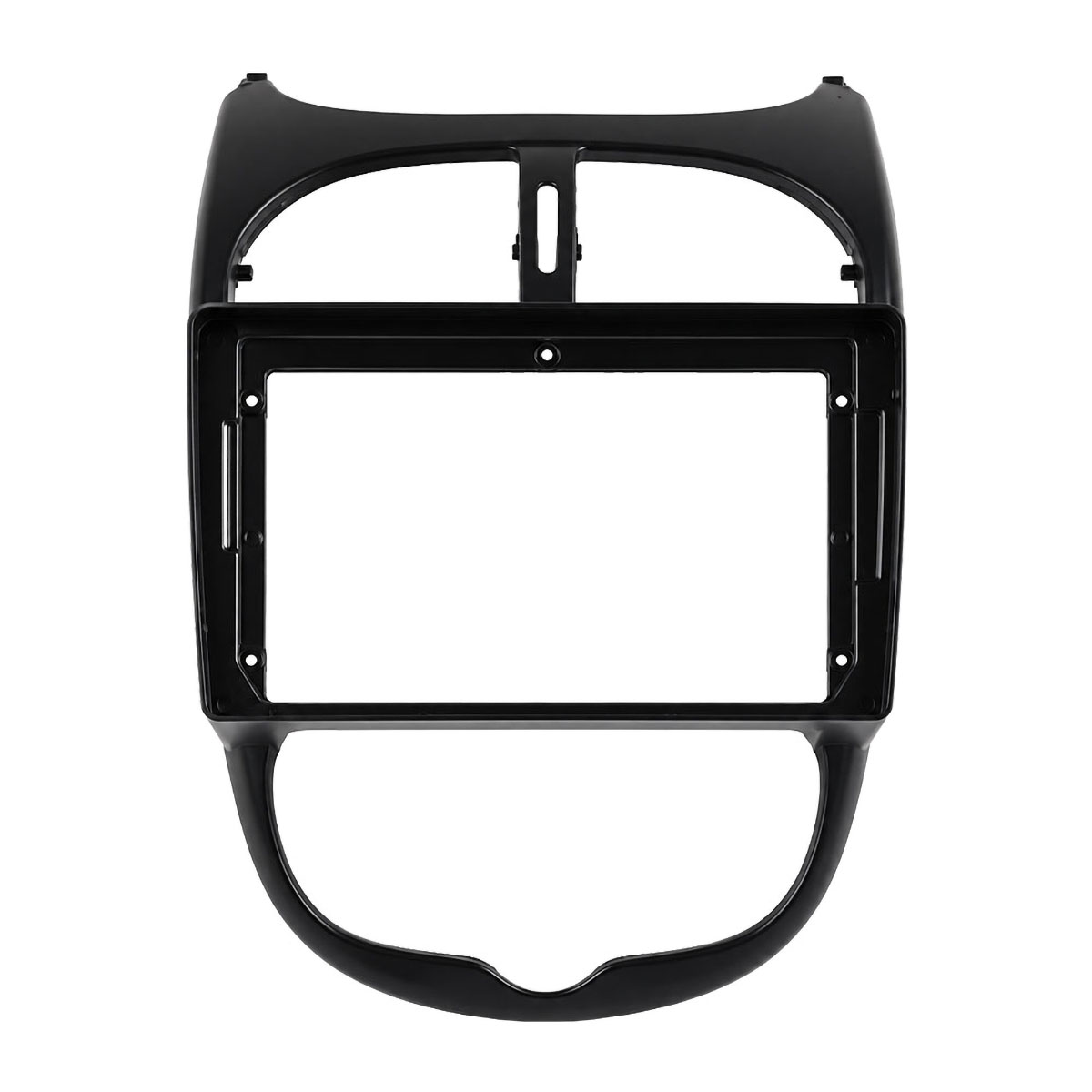

Front Panel9" dedicated facia for Peugeot 206 (part 3550-0540B compatible)
-
Power Supply9–14.4V
-
Recommended Fuse10A
-
Operating Temperature Range-20°C to 70°C
-
Firmware UpdateUSB
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Package ContentsMultimedia head unit 9", 9" front panel, CANbus box, power cable ISO, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Weight (set)2500 g
Ratings
Description
The VenCore 3236-10007-0540B is a complete multimedia head unit kit tailored for Peugeot 206 (1998–2006). It features a 9" IPS capacitive multi-touch display with 1280×720 resolution, runs Android 15 on an MTK6762 octa-core chipset (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz), and includes 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Dual-Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 (hands-free, A2DP), Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, and built-in GPS with antenna (supports Google Maps). Audio is handled by an integrated amplifier (YD7388) with up to 4×50W output and 4.1 channel support plus subwoofer output. The unit supports FM/RDS radio, USB inputs (2× USB 2.0), AUX, and AHD/TVI video inputs (720p/1080p) for rear camera support. The package includes a CANbus box for vehicle integration, ISO power cable, GPS antenna, multiple RCA/USB/AUX cables and a 9" front panel specific for Peugeot 206. Power supply: 9–14.4V, fuse recommendation 10A. Colour: Black.
Technical Specifications
-
BrandVenCore
-
Model / Part Number3236-10007-0540B (Multimedia model 9109A)
-
Compatible VehiclesPeugeot 206 (1998-2006)
-
Screen Size9 inches
-
Panel TypeIPS
-
Resolution1280×720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762
-
CPUOcta-Core: 4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi-FiDual Band 2.4GHz / 5GHz
-
BluetoothBluetooth 5.0 (Hands-Free, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt-in GPS with external antenna (supports Google Maps)
-
RadioFM with RDS (18 FM stations memory), AM support (12 AM stations memory)
-
Amplifier ChipYD7388
-
Audio Output Power4×50W (max per channel)
-
Audio Channels4.1 Channel, Subwoofer output
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
USB Ports2 × USB 2.0 (data & charging)
-
USB Charging Output500mA
-
AUX InputYes
-
Video InputsAHD/TVI video input up to 1080p
-
Rear Camera SupportAHD 720p / 1080p (auto reverse-trigger supported)
-
360° Camera SupportNo (device does not include 360° stitched camera system)
-
CANbus Box IncludedYes (for vehicle signals and steering wheel control integration)
-
Steering Wheel Control SupportYes (via CANbus)
-
Front Panel9" dedicated facia for Peugeot 206 (part 3550-0540B compatible)
-
Power Supply9–14.4V
-
Recommended Fuse10A
-
Operating Temperature Range-20°C to 70°C
-
Firmware UpdateUSB
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Package ContentsMultimedia head unit 9", 9" front panel, CANbus box, power cable ISO, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Weight (set)2500 g
