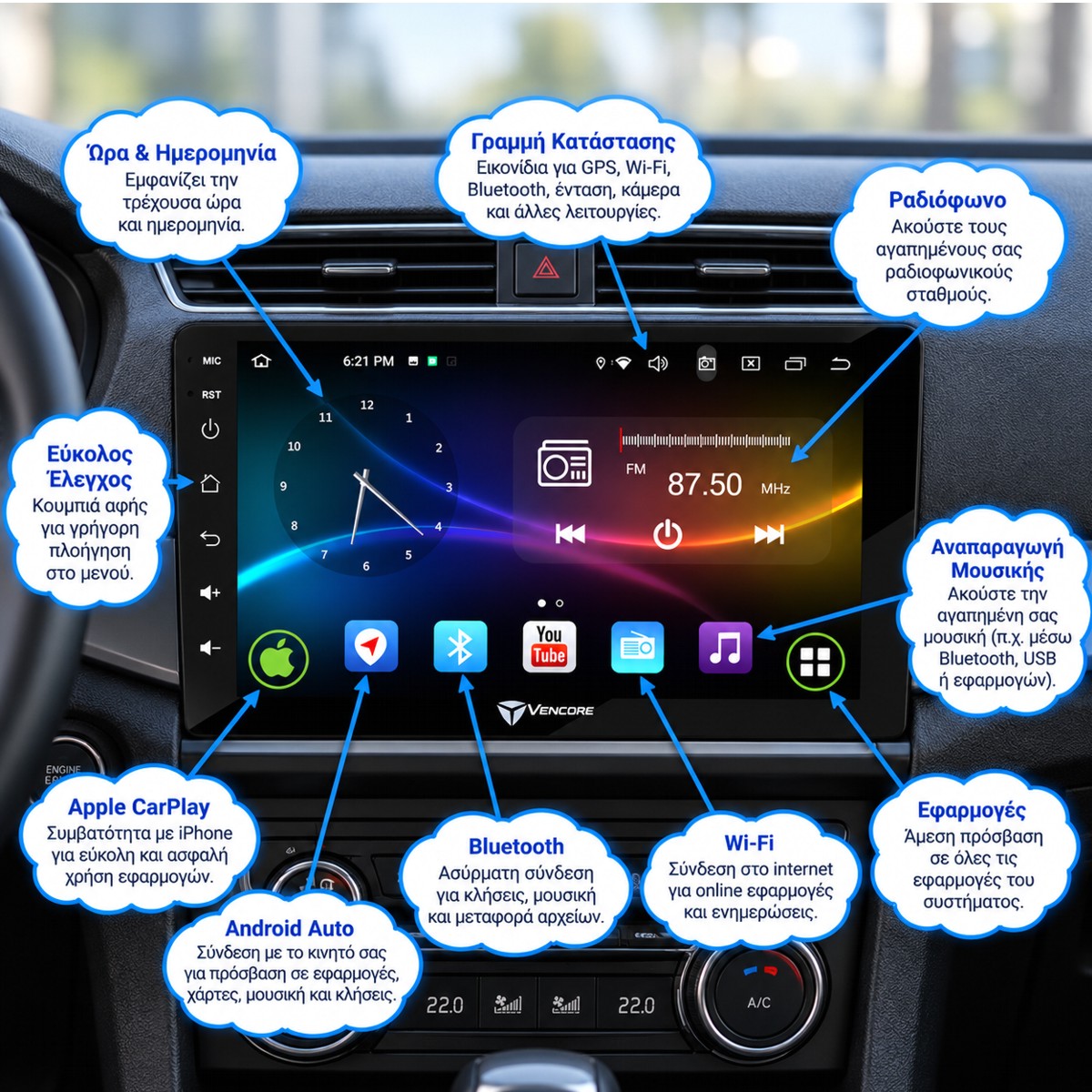

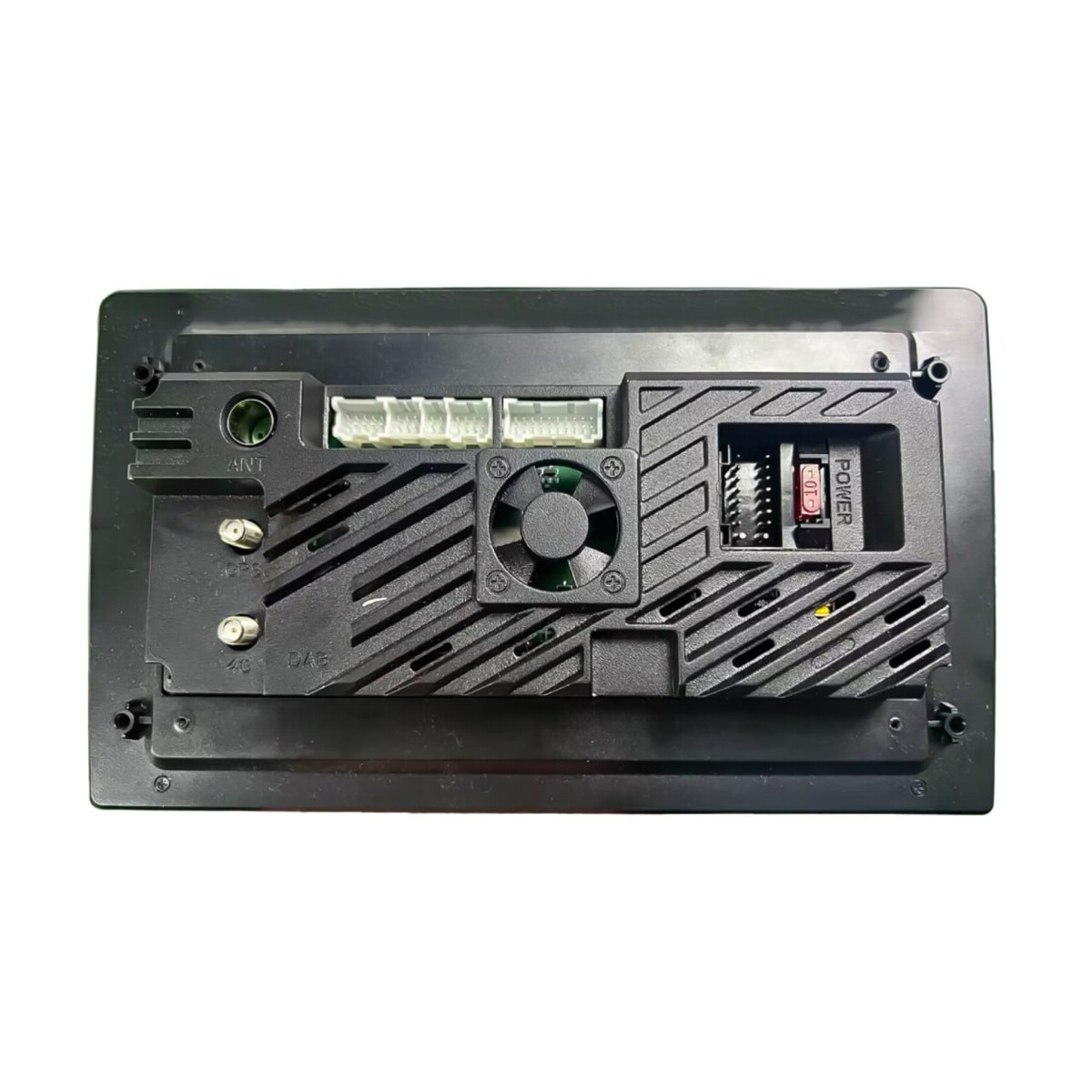

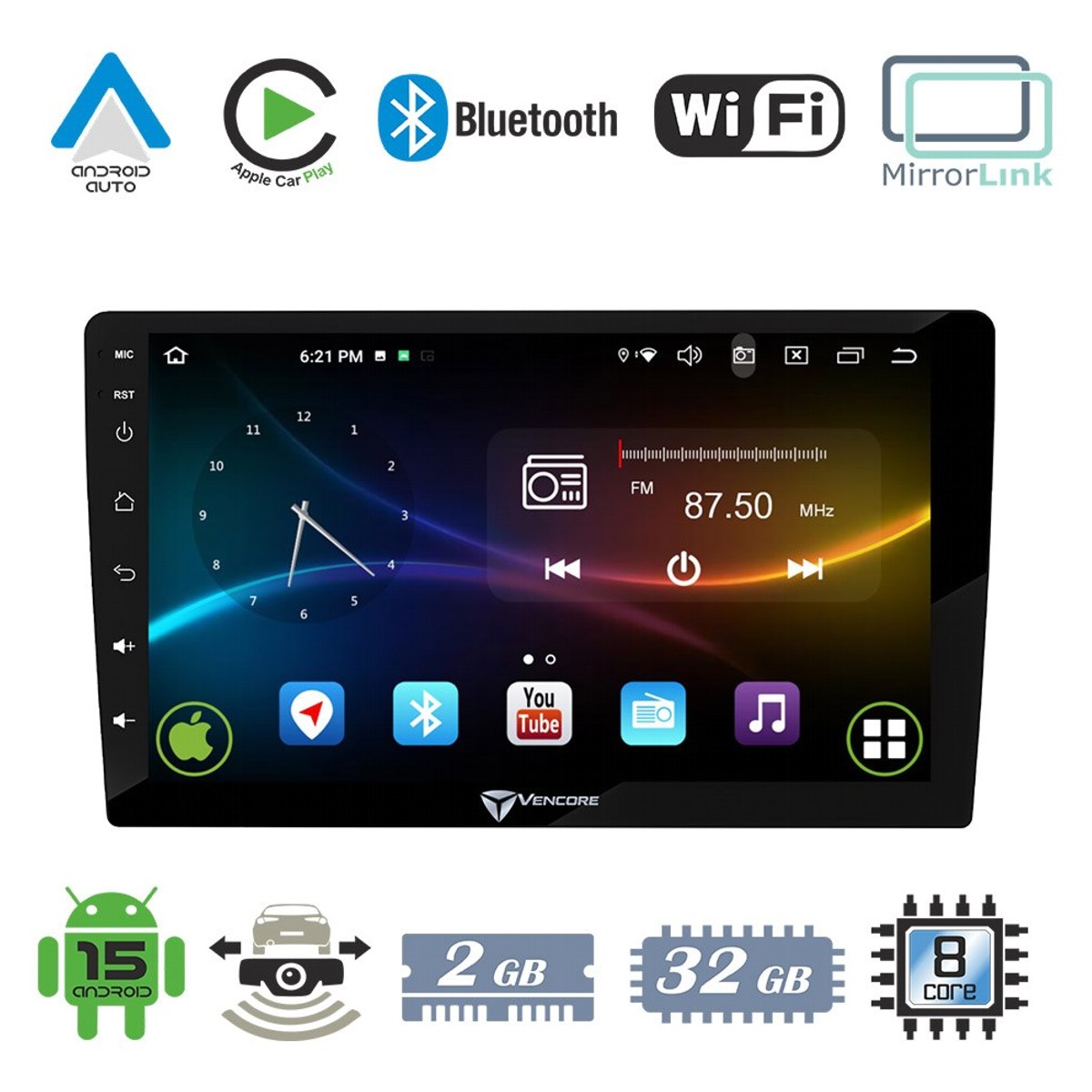

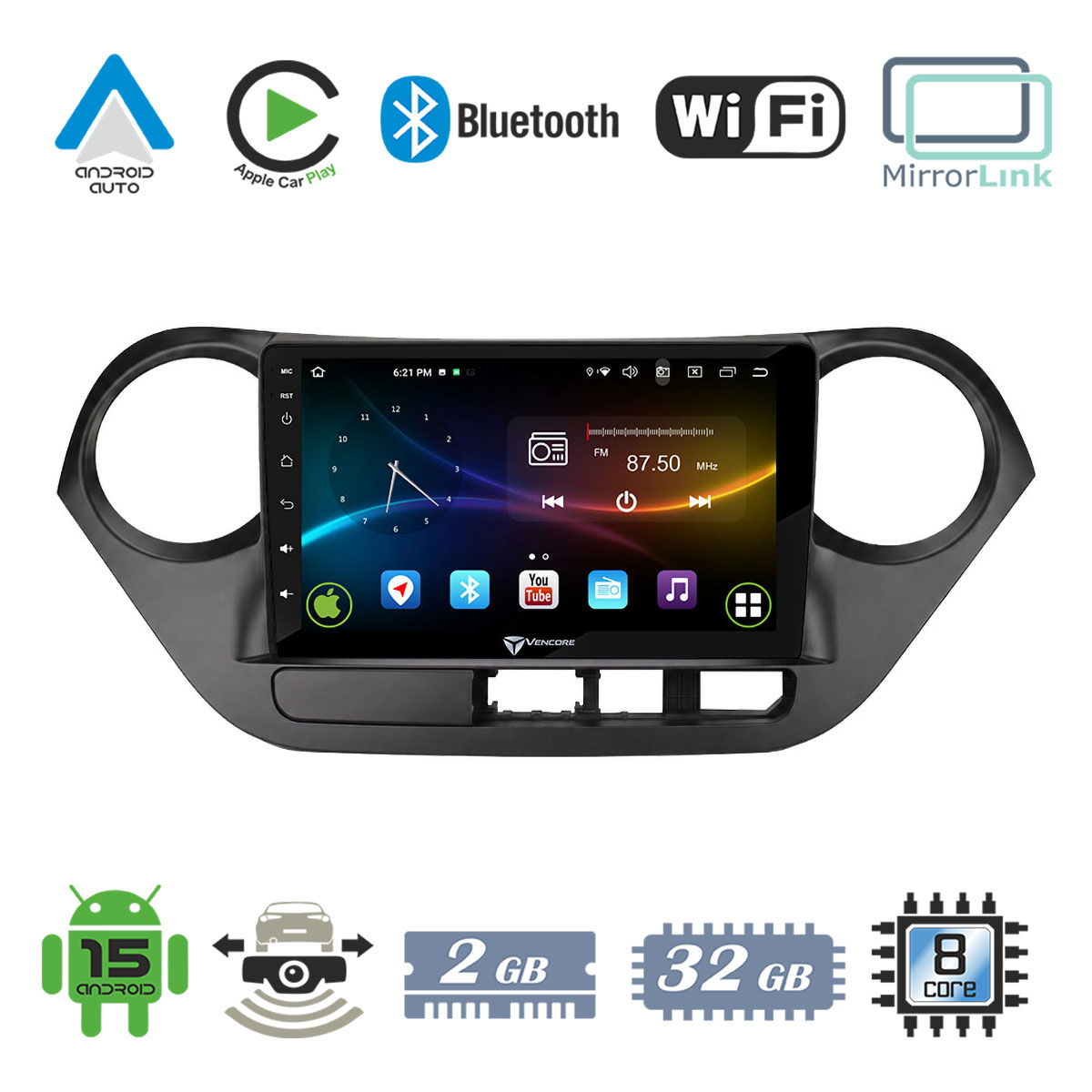

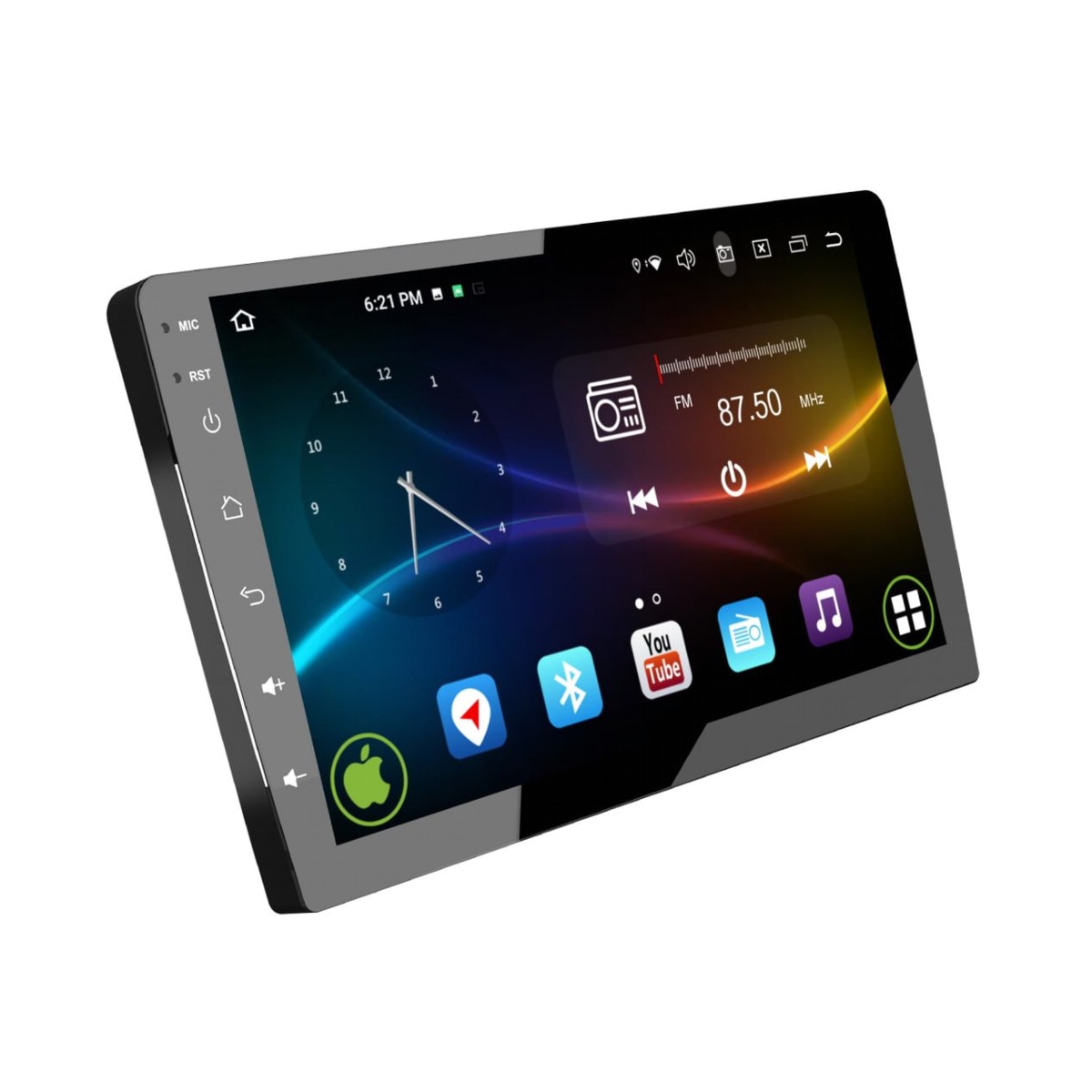

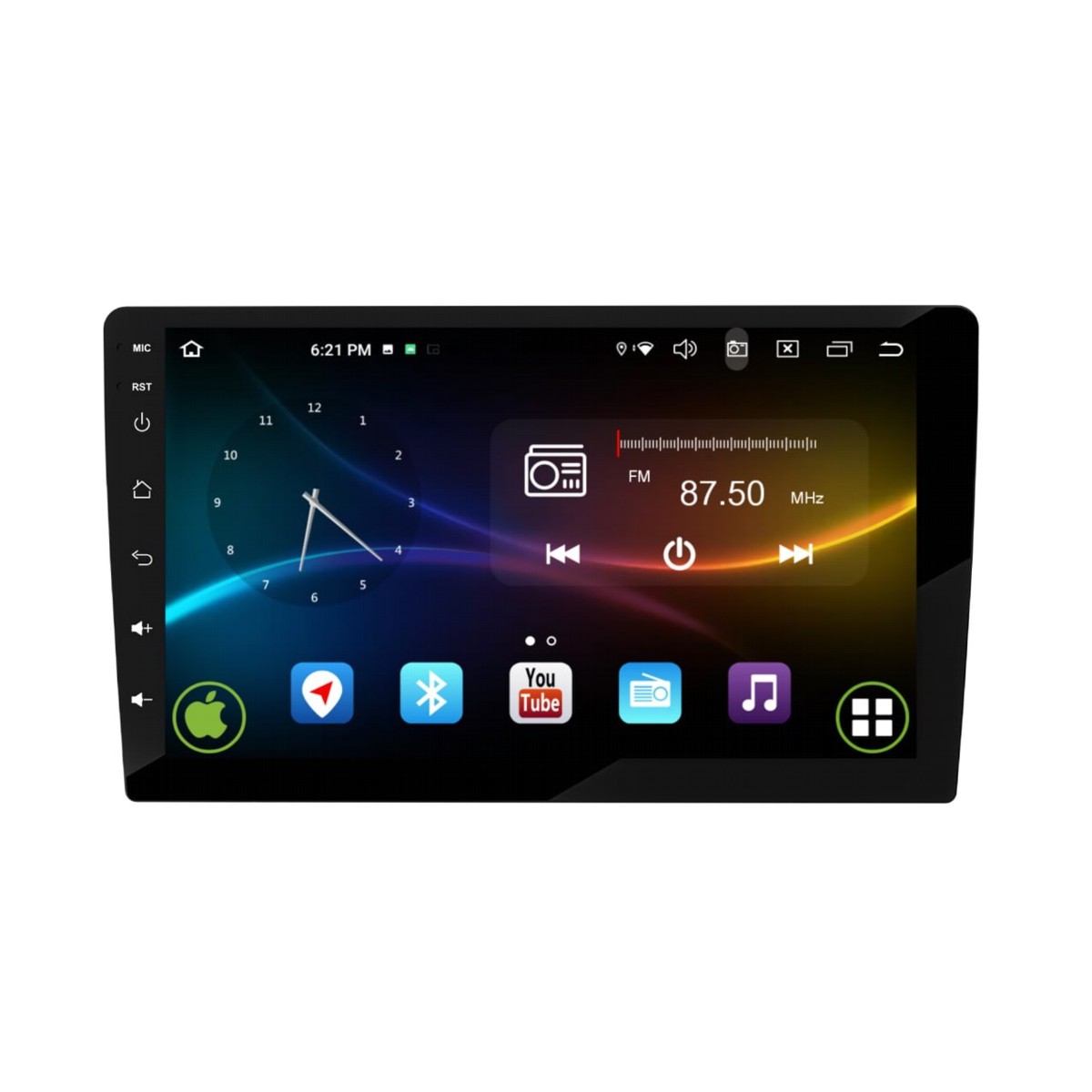

VenCore 3236-10007-0506B - Android 15 Multimedia Head Unit 9" IPS (9109A) MTK6762 Octa-Core 2GB/32GB with Front Panel, CarPlay, Android Auto & AHD Rear Camera Support for Hyundai i10 2014-2020 - Black

Description

Technical Specifications

• Brand
  VenCore
• Model / SKU
  3236-10007-0506B
• Product Type
  Android multimedia head unit with front panel and CANbus Box
• Compatible Vehicles
  Hyundai i10 (2014-2020)
• Screen Size
  9"
• Panel Type
  IPS
• Resolution
  1280 × 720 pixels
• Touch Type
  Capacitive Multi-Touch
• Split Screen / Multi-Window
  Yes
• Operating System
  Android 15
• Chipset
  MTK6762 Octa-Core (4× Cortex-A53 @2.0GHz + 4× Cortex-A53 @1.6GHz)
• RAM
  2GB DDR3
• Internal Storage
  32GB
• Wi‑Fi
  Dual Band 2.4GHz / 5GHz
• Bluetooth
  5.0 (Hands-Free, A2DP)
• Apple CarPlay
  Yes
• Android Auto
  Yes
• Screen Mirroring / MirrorLink
  Yes
• GPS
  Yes (external GPS antenna included)
• Radio FM
  Yes (with RDS, 18 presets)
• Radio AM
  Yes (12 presets)
• Audio Output
  4×50W (4.1 Channel)
• Subwoofer Output
  Yes
• Audio Formats Supported
  AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
• USB Ports
  2 × USB 2.0 (USB charging output 500mA)
• AUX Input
  Yes
• Video Input
  AHD / TVI up to 1080p
• Rear Camera Support
  AHD 720p / 1080p (parking guidance supported)
• 360° Camera Support
  No
• CANbus Box
  Included (vehicle data and steering wheel control integration)
• Power Supply Voltage
  9–14.4V
• Maximum Current
  10A
• Operating Temperature Range
  -20°C to 70°C
• Firmware Update
  Via USB
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Color
  Black
• Package Weight
  2.50 kg
• Package Contents

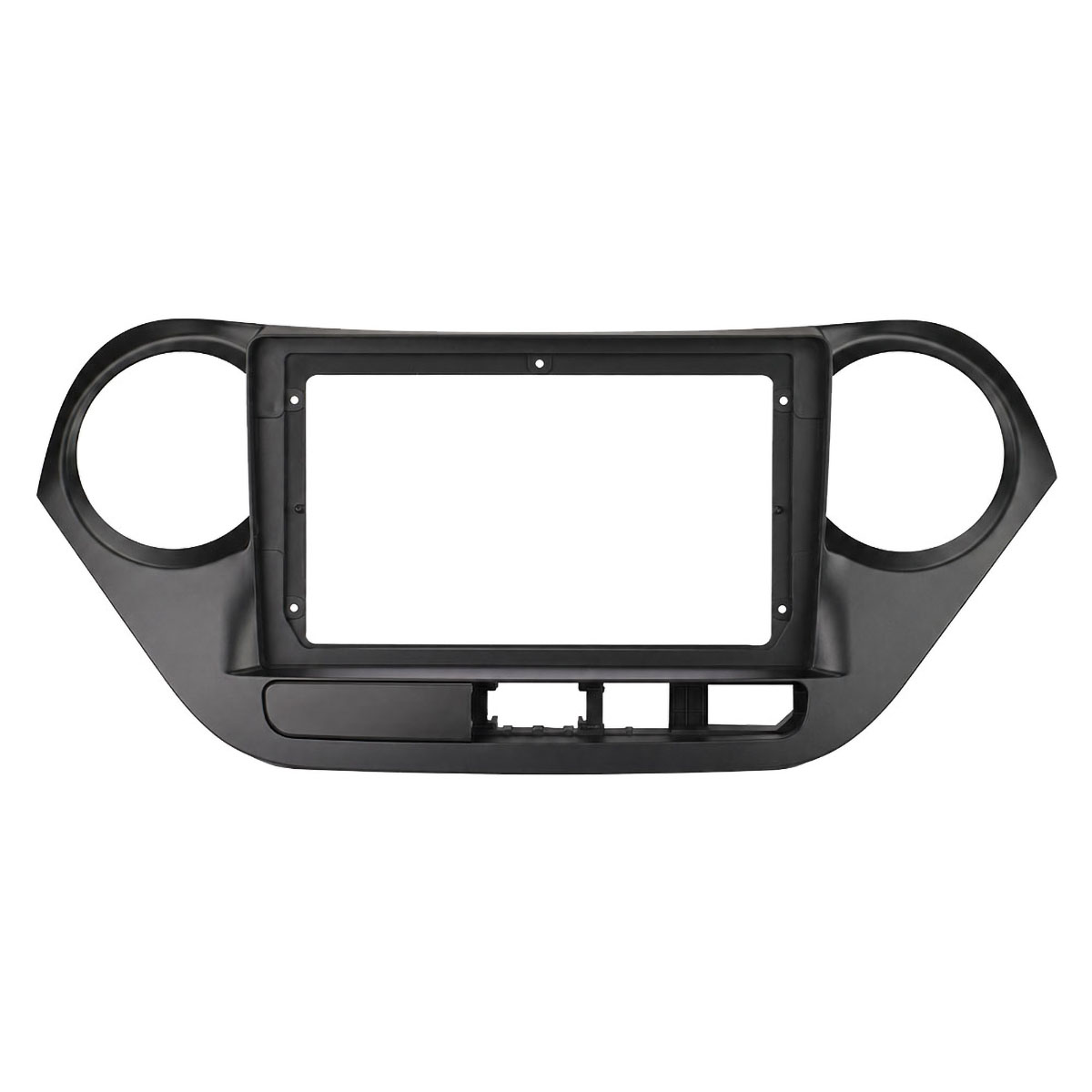

  Multimedia head unit 9", CANbus Box, 9" front panel for Hyundai i10, 6 multimedia cables, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, mounting brackets
• Fast Boot / Sleep Mode
  Yes
