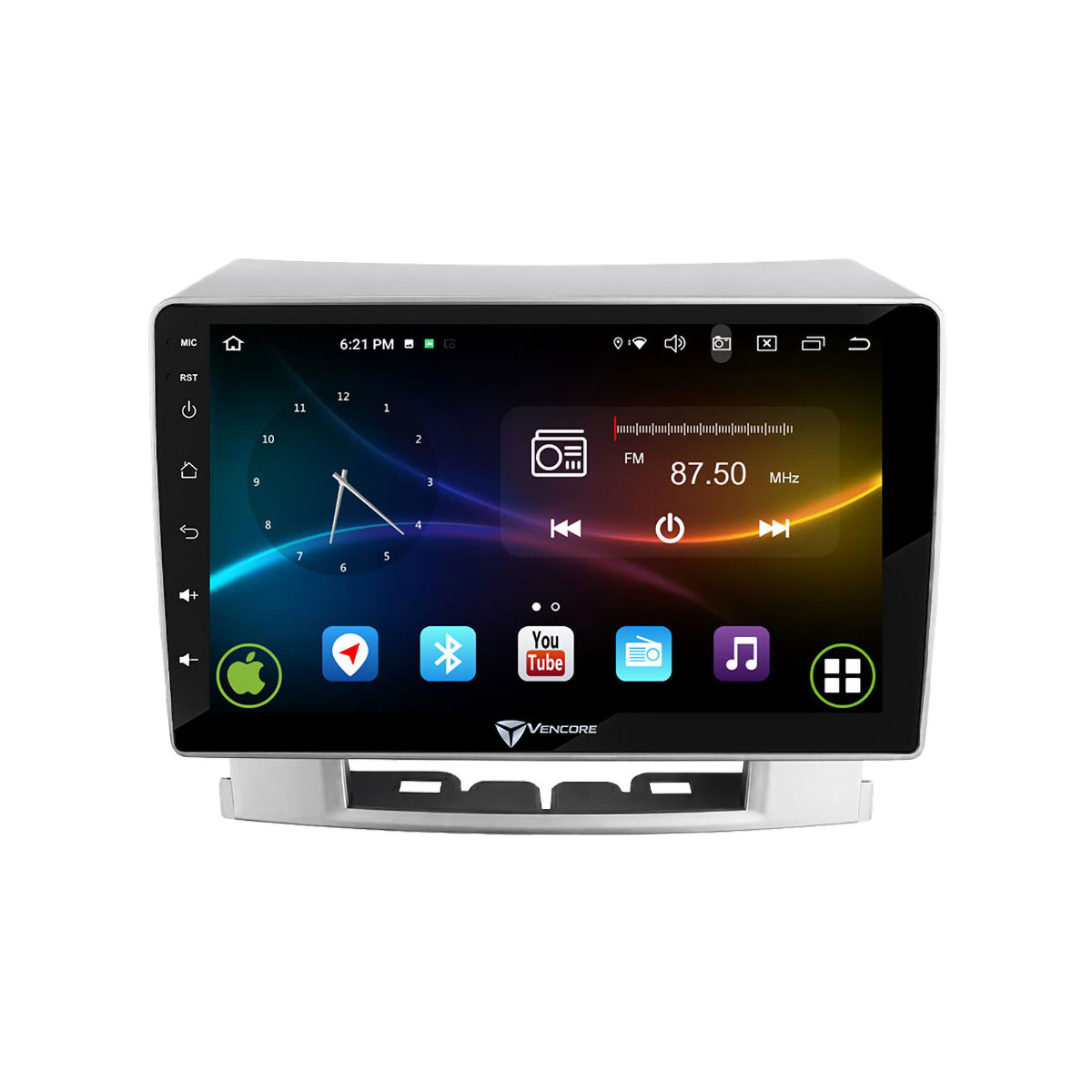

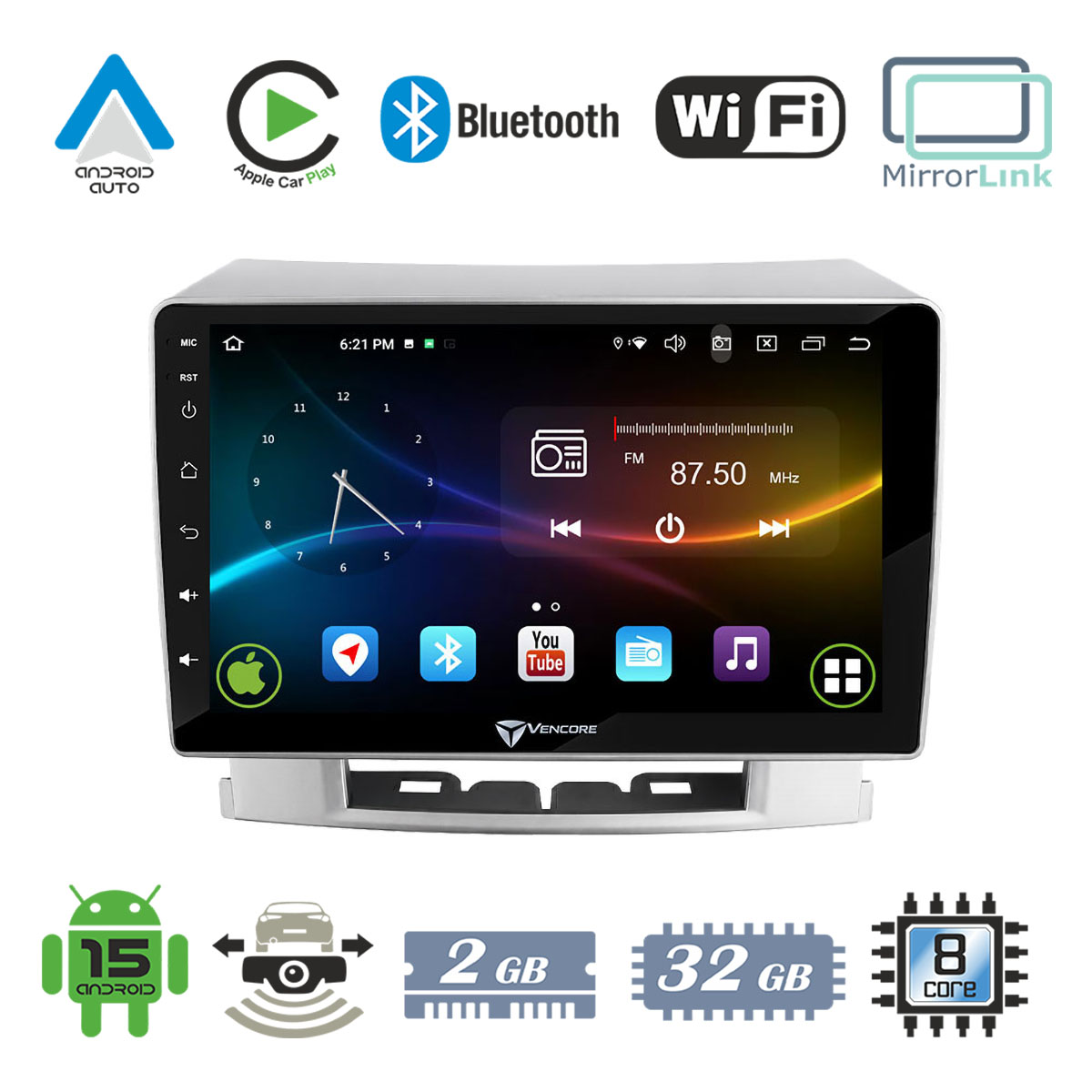

VenCore 3236-10007-0367S is a factory-fit 9-inch (IPS) Android 15 multimedia head unit designed for Opel Astra J (2010–2014). The unit features a 1280×720 capacitive multi-touch display, MTK6762 Octa‑Core processor (4×Cortex‑[email protected] + 4×Cortex‑[email protected]), 2GB DDR3 RAM and 32GB internal storage....
More
VenCore 3236-10007-0367S Android 15 9" Multimedia Screen for Opel Astra J 2010-2014 – Silver
Product Code: 1183798306
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
VenCore 3236-10007-0367S is a factory-fit 9-inch (IPS) Android 15 multimedia head unit designed for Opel Astra J (2010–2014). The unit features a 1280×720 capacitive multi-touch display, MTK6762 Octa‑Core processor (4×Cortex‑[email protected] + 4×Cortex‑[email protected]), 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 (hands‑free, A2DP), Apple CarPlay, Android Auto, MirrorLink/screen mirroring and integrated GPS with external antenna. Audio uses amplifier IC YD7388 with 4×50W output (4.1 channel) and supports common audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR). Radio: FM with RDS (18 presets) and AM (12 presets). Inputs: 2×USB 2.0 (500mA charging), AUX, AHD/TVI video input up to 1080p and dedicated rear camera input (AHD 720p/1080p, auto‑trigger on reverse). CANbus box is included to preserve steering wheel controls and instrument cluster information. Power: 9–14.4V, nominal fuse 10A. Operating temperature -20°C to 70°C. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Package includes the 9" head unit (silver fascia for Opel Astra J), CANbus box, ISO power cable, USB adapter cable (4P/6P), front RCA output cable, AUX cable, rear view input & antenna cable, rear RCA output & CANbus cable, GPS antenna and mounting screws.
-
BrandVenCore
-
SKU3236-10007-0367S
-
Model9109A
-
Compatible VehicleOpel Astra J (2010-2014)
-
Display Size9"
-
Panel TypeIPS
-
Resolution1280 × 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Split Screen / Multi-WindowYes
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core (4×[email protected] + 4×[email protected])
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi-FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands-Free, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSYes (external GPS antenna included)
-
CANbusIncluded (preserves steering wheel controls & instrument cluster info)
-
Amplifier ICYD7388
-
Audio Output Power4×50W (4.1 Channel)
-
Audio FormatsAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
FM RadioYes (RDS, 18 presets)
-
AM RadioYes (12 presets)
-
USB2 × USB 2.0 (charging output 500mA)
-
AUX InputYes
-
AHD / TVI Video InputYes (up to 1080p)
-
Rear Camera SupportAHD 720p / 1080p (auto-trigger on reverse)
-
360° Camera SupportNo
-
Built-in MicrophoneYes
-
Fast Boot / Sleep ModeYes
-
Power Input Voltage9–14.4V
-
Nominal Fuse / Current10A
-
Operating Temperature-20°C to 70°C
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware UpdateVia USB
-

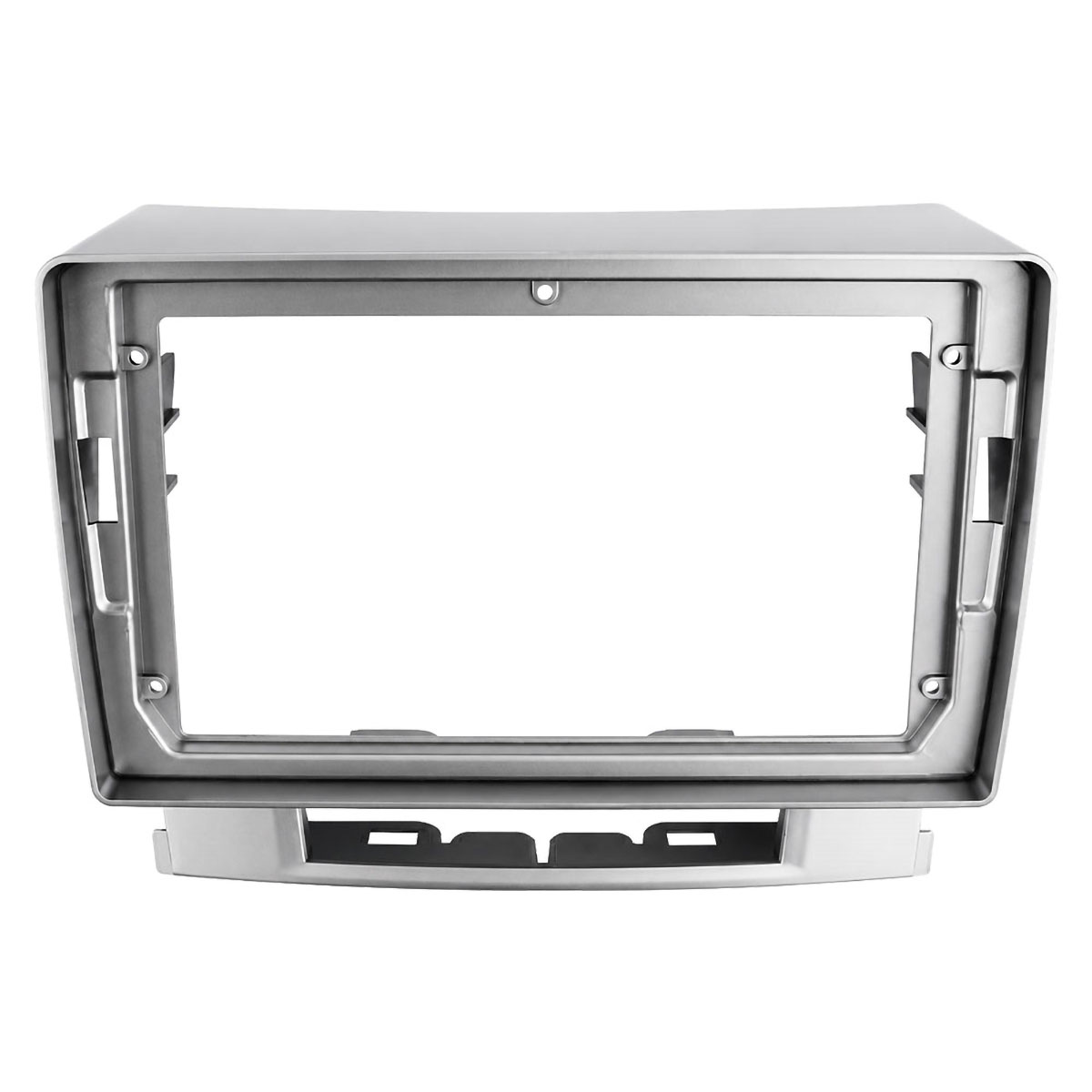

Package Contents9" multimedia head unit, CANbus Box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable, AUX input cable, Rear view input & antenna cable, Rear RCA output & CANbus cable, GPS antenna, screws
-
ColorSilver
-
Set Weight2500 g
Ratings
Description
VenCore 3236-10007-0367S is a factory-fit 9-inch (IPS) Android 15 multimedia head unit designed for Opel Astra J (2010–2014). The unit features a 1280×720 capacitive multi-touch display, MTK6762 Octa‑Core processor (4×Cortex‑[email protected] + 4×Cortex‑[email protected]), 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 (hands‑free, A2DP), Apple CarPlay, Android Auto, MirrorLink/screen mirroring and integrated GPS with external antenna. Audio uses amplifier IC YD7388 with 4×50W output (4.1 channel) and supports common audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR). Radio: FM with RDS (18 presets) and AM (12 presets). Inputs: 2×USB 2.0 (500mA charging), AUX, AHD/TVI video input up to 1080p and dedicated rear camera input (AHD 720p/1080p, auto‑trigger on reverse). CANbus box is included to preserve steering wheel controls and instrument cluster information. Power: 9–14.4V, nominal fuse 10A. Operating temperature -20°C to 70°C. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Package includes the 9" head unit (silver fascia for Opel Astra J), CANbus box, ISO power cable, USB adapter cable (4P/6P), front RCA output cable, AUX cable, rear view input & antenna cable, rear RCA output & CANbus cable, GPS antenna and mounting screws.
Technical Specifications
-
BrandVenCore
-
SKU3236-10007-0367S
-
Model9109A
-
Compatible VehicleOpel Astra J (2010-2014)
-
Display Size9"
-
Panel TypeIPS
-
Resolution1280 × 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Split Screen / Multi-WindowYes
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core (4×[email protected] + 4×[email protected])
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi-FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands-Free, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSYes (external GPS antenna included)
-
CANbusIncluded (preserves steering wheel controls & instrument cluster info)
-
Amplifier ICYD7388
-
Audio Output Power4×50W (4.1 Channel)
-
Audio FormatsAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
FM RadioYes (RDS, 18 presets)
-
AM RadioYes (12 presets)
-
USB2 × USB 2.0 (charging output 500mA)
-
AUX InputYes
-
AHD / TVI Video InputYes (up to 1080p)
-
Rear Camera SupportAHD 720p / 1080p (auto-trigger on reverse)
-
360° Camera SupportNo
-
Built-in MicrophoneYes
-
Fast Boot / Sleep ModeYes
-
Power Input Voltage9–14.4V
-
Nominal Fuse / Current10A
-
Operating Temperature-20°C to 70°C
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware UpdateVia USB
-
Package Contents9" multimedia head unit, CANbus Box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable, AUX input cable, Rear view input & antenna cable, Rear RCA output & CANbus cable, GPS antenna, screws
-
ColorSilver
-
Set Weight2500 g
