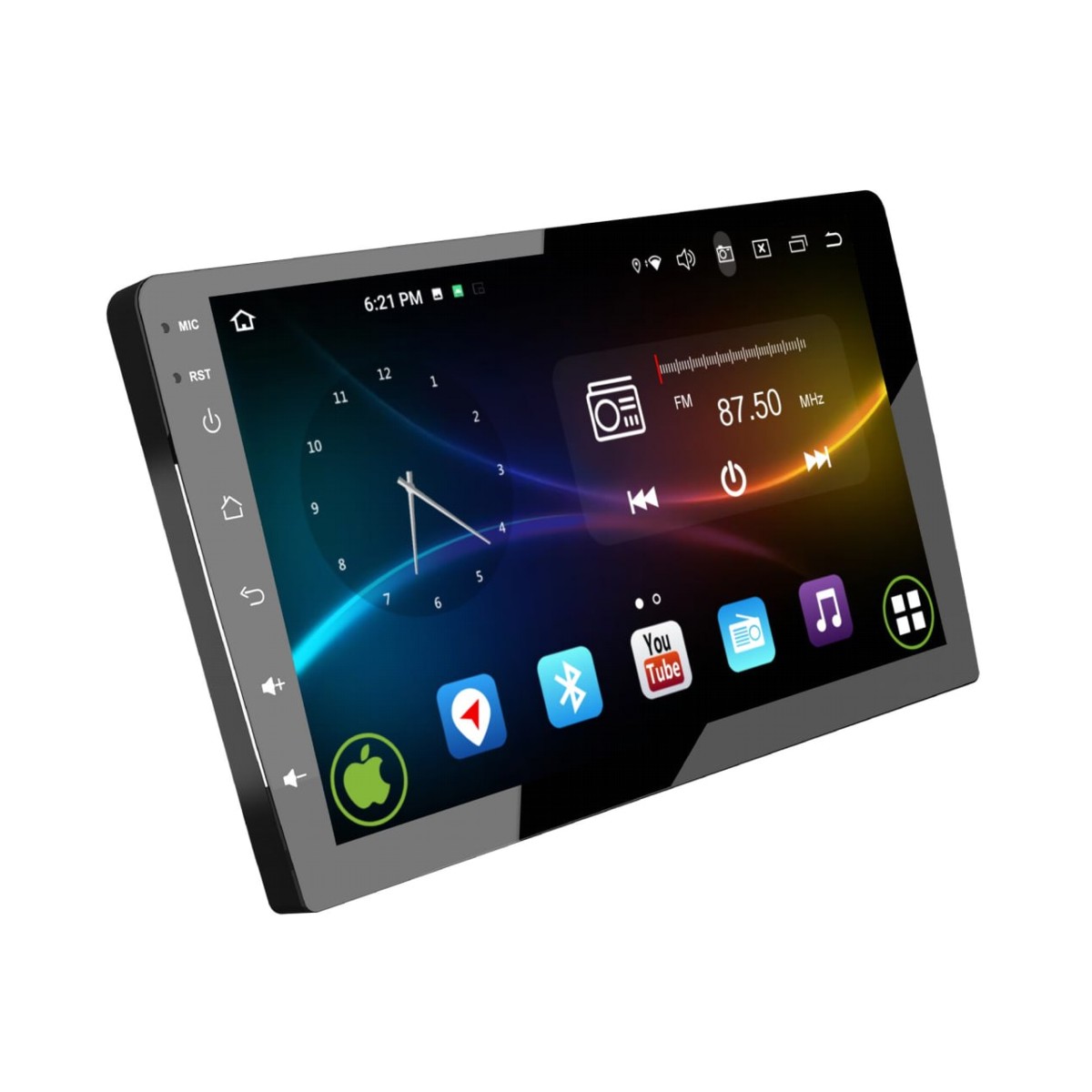

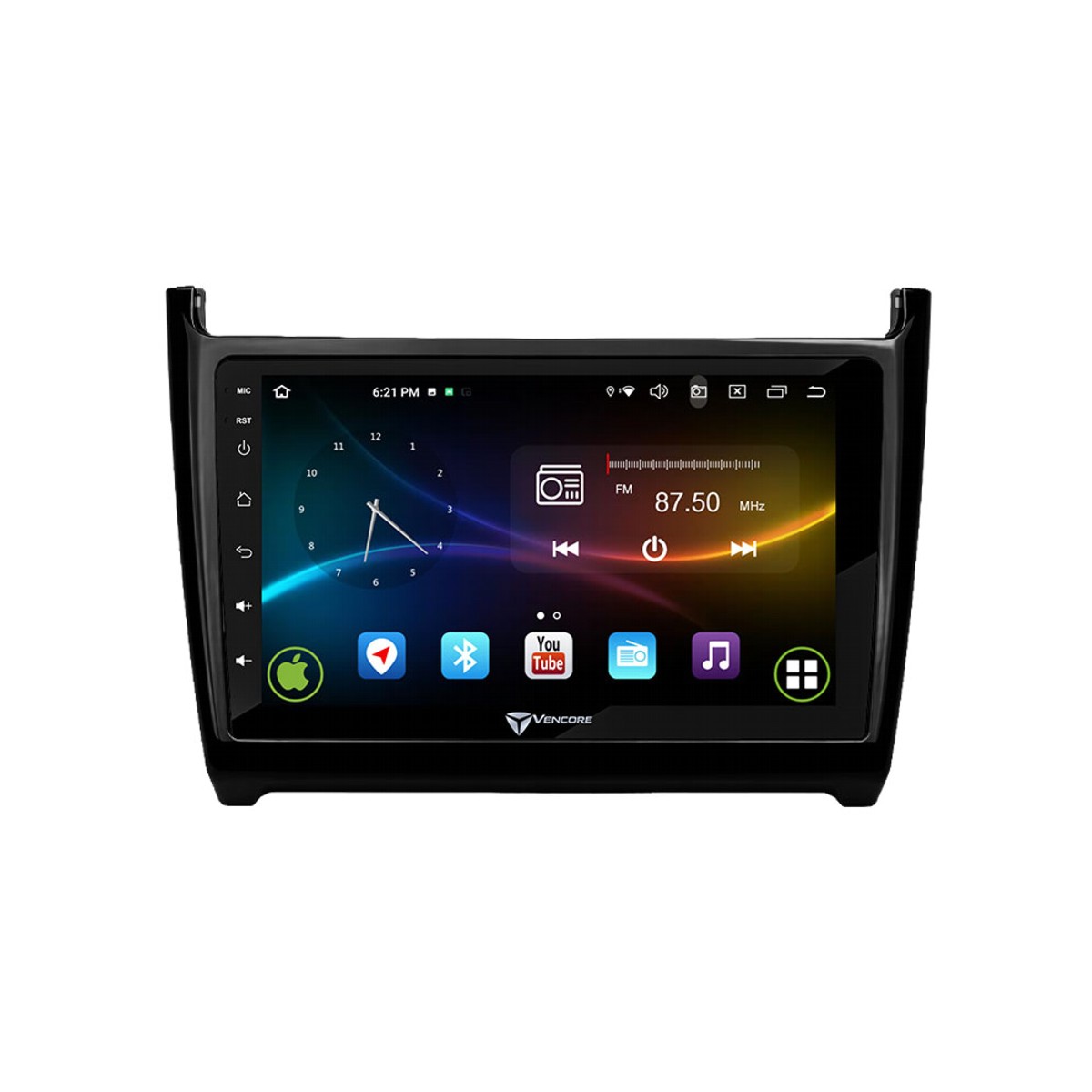

The VenCore 3236-10007-0069B is a complete 9" Android 15 multimedia head unit kit designed for Volkswagen Polo model years 2009–2017. It features a 9" IPS capacitive multi-touch display with 1280×720 resolution, MTK6762 Octa-Core SoC (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz), 2GB DDR3 RAM and...
More
VenCore 3236-10007-0069B - 9'' Android 15 Multimedia Car Head Unit for VW Polo 2009-2017
Product Code: 1183798451
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The VenCore 3236-10007-0069B is a complete 9" Android 15 multimedia head unit kit designed for Volkswagen Polo model years 2009–2017. It features a 9" IPS capacitive multi-touch display with 1280×720 resolution, MTK6762 Octa-Core SoC (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz), 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Dual-Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 (hands-free, A2DP), Apple CarPlay, Android Auto, and Screen Mirroring/MirrorLink. Built-in GPS with external antenna support and Google Maps navigation. Audio is driven by an integrated YD7388 amplifier (4×50W, 4.1 channel) with subwoofer output. Radio supports FM with RDS (18 FM presets) and AM. Video inputs accept AHD/TVI rear cameras up to 1080p and support 360° camera systems. CANbus box is included to preserve vehicle functions and steering wheel control compatibility. I/O includes 2×USB 2.0 (500mA charging output), AUX input, AHD/TVI video input, RCA outputs. Power range 9–14.4V, typical operating temperature -20°C to 70°C. Package weight approx. 2.50 kg. Kit includes head unit, 9" front panel for VW Polo (3550-0069B compatible), CANbus box, GPS antenna, power cable ISO, USB adapter cable (4P/6P), front RCA output cable, AUX cable, rear view & antenna cable, rear RCA output & CANbus cable, mounting bracket.
-
BrandVenCore
-
Model / Code3236-10007-0069B
-
SKU3236-10007-0069B
-
EAN5212062206725
-
MPN3236-10007-0069B
-
Product Type9" Android multimedia car head unit with front panel & CANbus box
-
Compatible VehiclesVW Polo 2009-2017
-
Screen Size9 inches
-
Panel TypeIPS
-
Screen Resolution1280 × 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
-
RAM2GB DDR3
-
Internal Storage32GB
-
Fast Boot / Sleep ModeYes
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands-Free, Audio Streaming, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSYes (external GPS antenna included)
-
NavigationSupports Google Maps and offline GPS maps
-
RadioFM with RDS (18 FM presets), AM (12 AM presets)
-
Amplifier / Audio ChipYD7388 integrated
-
Audio Output Power4 × 50W (4.1 Channel)
-
Subwoofer OutputYes (external subwoofer support)
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
Rear Camera InputAHD 720p / 1080p (AHD/TVI video input)
-
360° Camera SupportReady (supports 360° camera systems via inputs)
-
CANbus BoxIncluded (preserves vehicle electronic functions & steering wheel control)
-

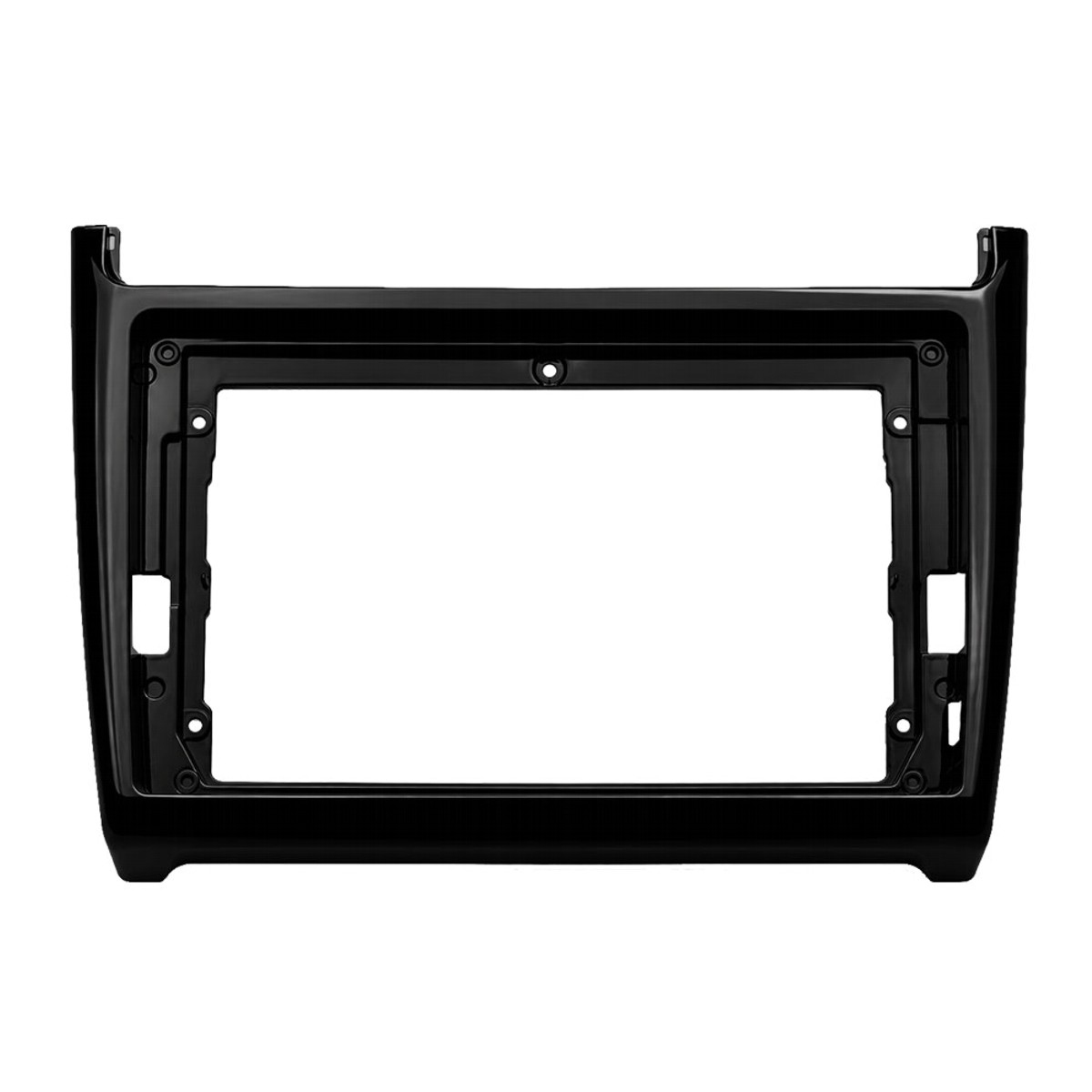

Front Panel9" front panel for VW Polo (compatible with part 3550-0069B)
-
USB Ports2 × USB 2.0
-
USB Charging Output500 mA
-
AUX InputYes
-
RCA OutputsFront RCA output cable included
-
Power Supply Voltage9–14.4 V
-
Rated Fuse / Current10 A
-
Operating Temperature Range-20°C to 70°C
-
Firmware UpdateVia USB
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Included AccessoriesMultimedia head unit 9", front panel for VW Polo 2009-2017, CANbus box, power cable ISO, USB adapter cable 4P/6P, front RCA output cable, AUX cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Package Weight2500 g
-
Package Dimensions (approx.)40 × 30 × 18 cm
Ratings
Description
The VenCore 3236-10007-0069B is a complete 9" Android 15 multimedia head unit kit designed for Volkswagen Polo model years 2009–2017. It features a 9" IPS capacitive multi-touch display with 1280×720 resolution, MTK6762 Octa-Core SoC (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz), 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Dual-Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 (hands-free, A2DP), Apple CarPlay, Android Auto, and Screen Mirroring/MirrorLink. Built-in GPS with external antenna support and Google Maps navigation. Audio is driven by an integrated YD7388 amplifier (4×50W, 4.1 channel) with subwoofer output. Radio supports FM with RDS (18 FM presets) and AM. Video inputs accept AHD/TVI rear cameras up to 1080p and support 360° camera systems. CANbus box is included to preserve vehicle functions and steering wheel control compatibility. I/O includes 2×USB 2.0 (500mA charging output), AUX input, AHD/TVI video input, RCA outputs. Power range 9–14.4V, typical operating temperature -20°C to 70°C. Package weight approx. 2.50 kg. Kit includes head unit, 9" front panel for VW Polo (3550-0069B compatible), CANbus box, GPS antenna, power cable ISO, USB adapter cable (4P/6P), front RCA output cable, AUX cable, rear view & antenna cable, rear RCA output & CANbus cable, mounting bracket.
Technical Specifications
-
BrandVenCore
-
Model / Code3236-10007-0069B
-
SKU3236-10007-0069B
-
EAN5212062206725
-
MPN3236-10007-0069B
-
Product Type9" Android multimedia car head unit with front panel & CANbus box
-
Compatible VehiclesVW Polo 2009-2017
-
Screen Size9 inches
-
Panel TypeIPS
-
Screen Resolution1280 × 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa-Core (4×Cortex-A53 @2.0GHz + 4×Cortex-A53 @1.6GHz)
-
RAM2GB DDR3
-
Internal Storage32GB
-
Fast Boot / Sleep ModeYes
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands-Free, Audio Streaming, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSYes (external GPS antenna included)
-
NavigationSupports Google Maps and offline GPS maps
-
RadioFM with RDS (18 FM presets), AM (12 AM presets)
-
Amplifier / Audio ChipYD7388 integrated
-
Audio Output Power4 × 50W (4.1 Channel)
-
Subwoofer OutputYes (external subwoofer support)
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
Rear Camera InputAHD 720p / 1080p (AHD/TVI video input)
-
360° Camera SupportReady (supports 360° camera systems via inputs)
-
CANbus BoxIncluded (preserves vehicle electronic functions & steering wheel control)
-
Front Panel9" front panel for VW Polo (compatible with part 3550-0069B)
-
USB Ports2 × USB 2.0
-
USB Charging Output500 mA
-
AUX InputYes
-
RCA OutputsFront RCA output cable included
-
Power Supply Voltage9–14.4 V
-
Rated Fuse / Current10 A
-
Operating Temperature Range-20°C to 70°C
-
Firmware UpdateVia USB
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Included AccessoriesMultimedia head unit 9", front panel for VW Polo 2009-2017, CANbus box, power cable ISO, USB adapter cable 4P/6P, front RCA output cable, AUX cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Package Weight2500 g
-
Package Dimensions (approx.)40 × 30 × 18 cm
