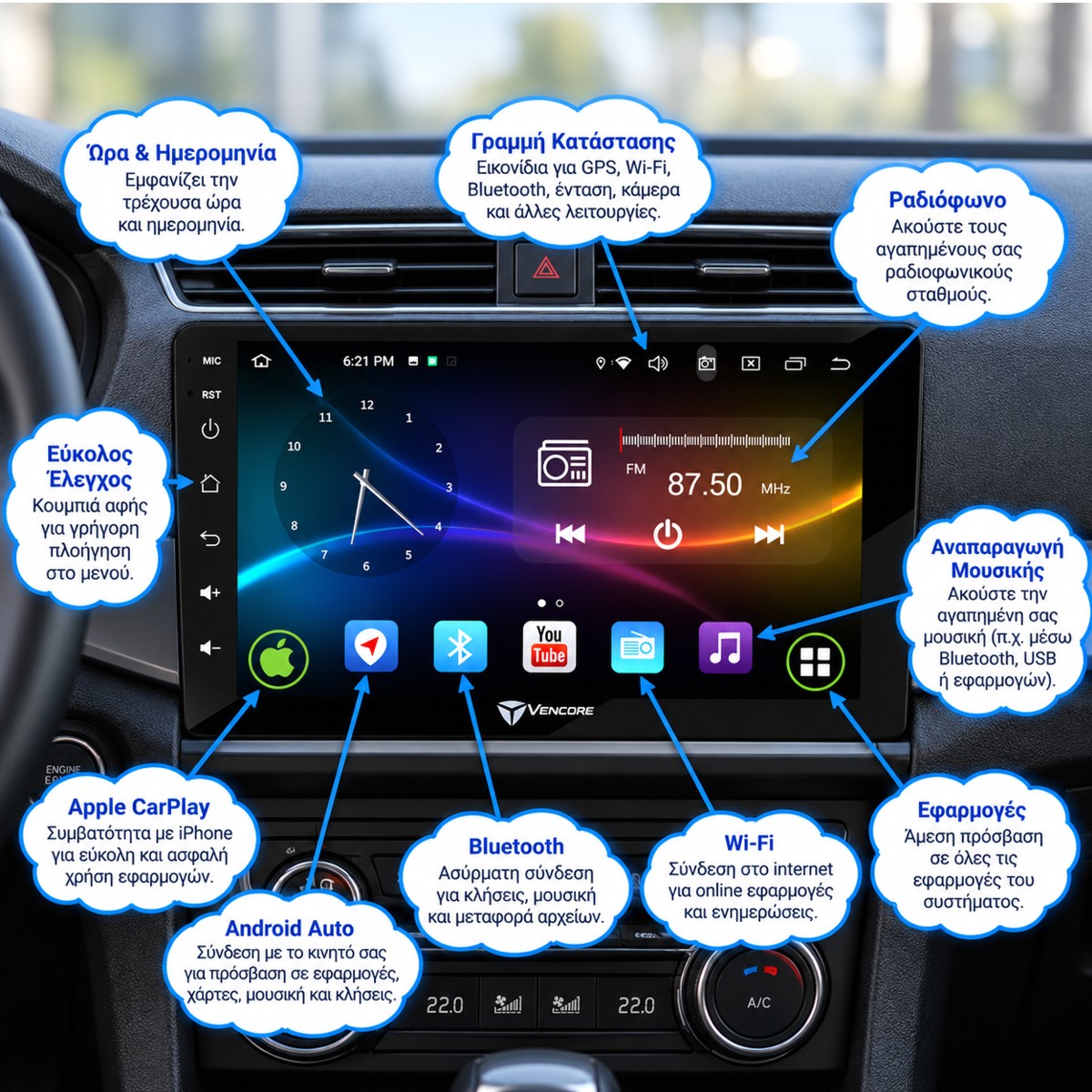

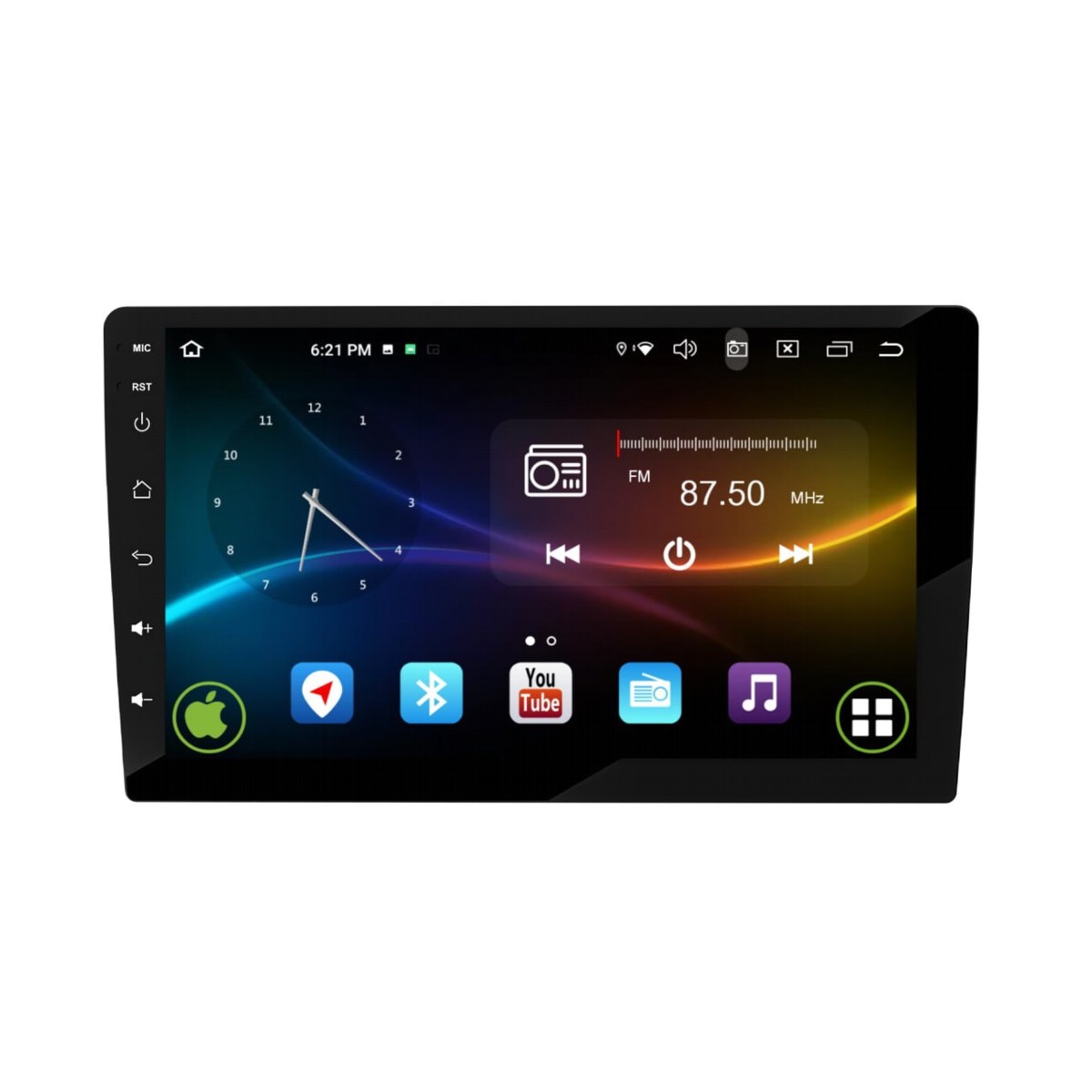

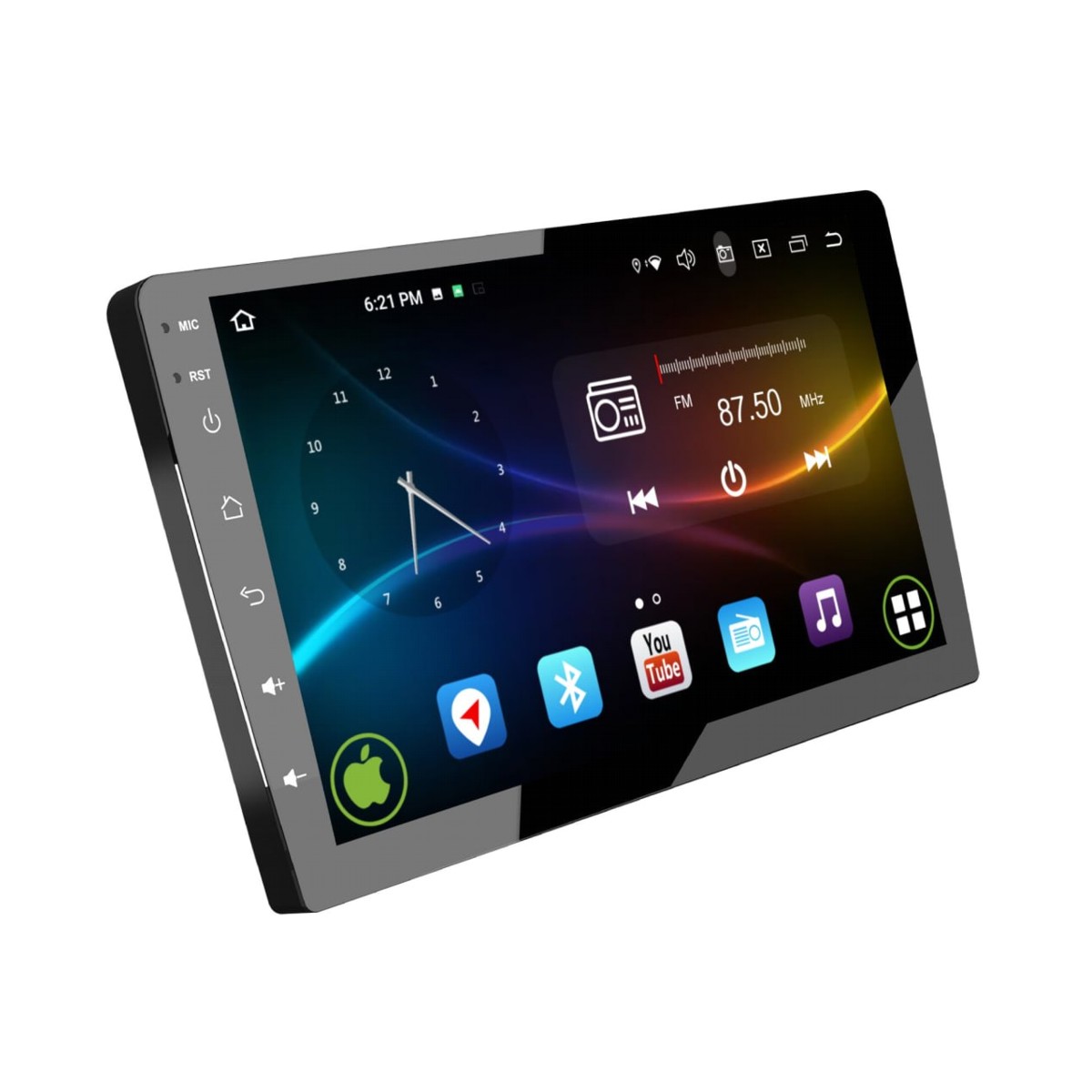

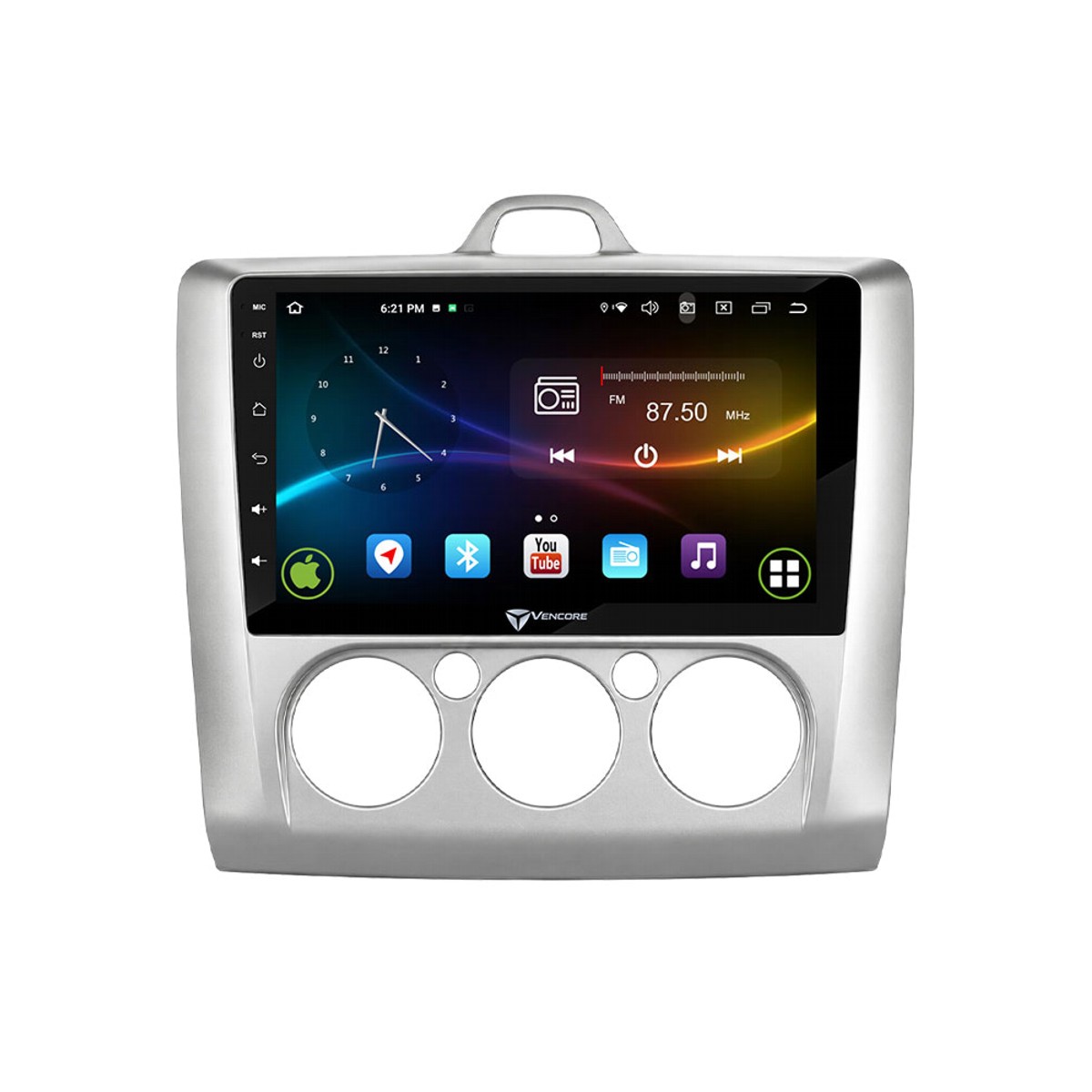

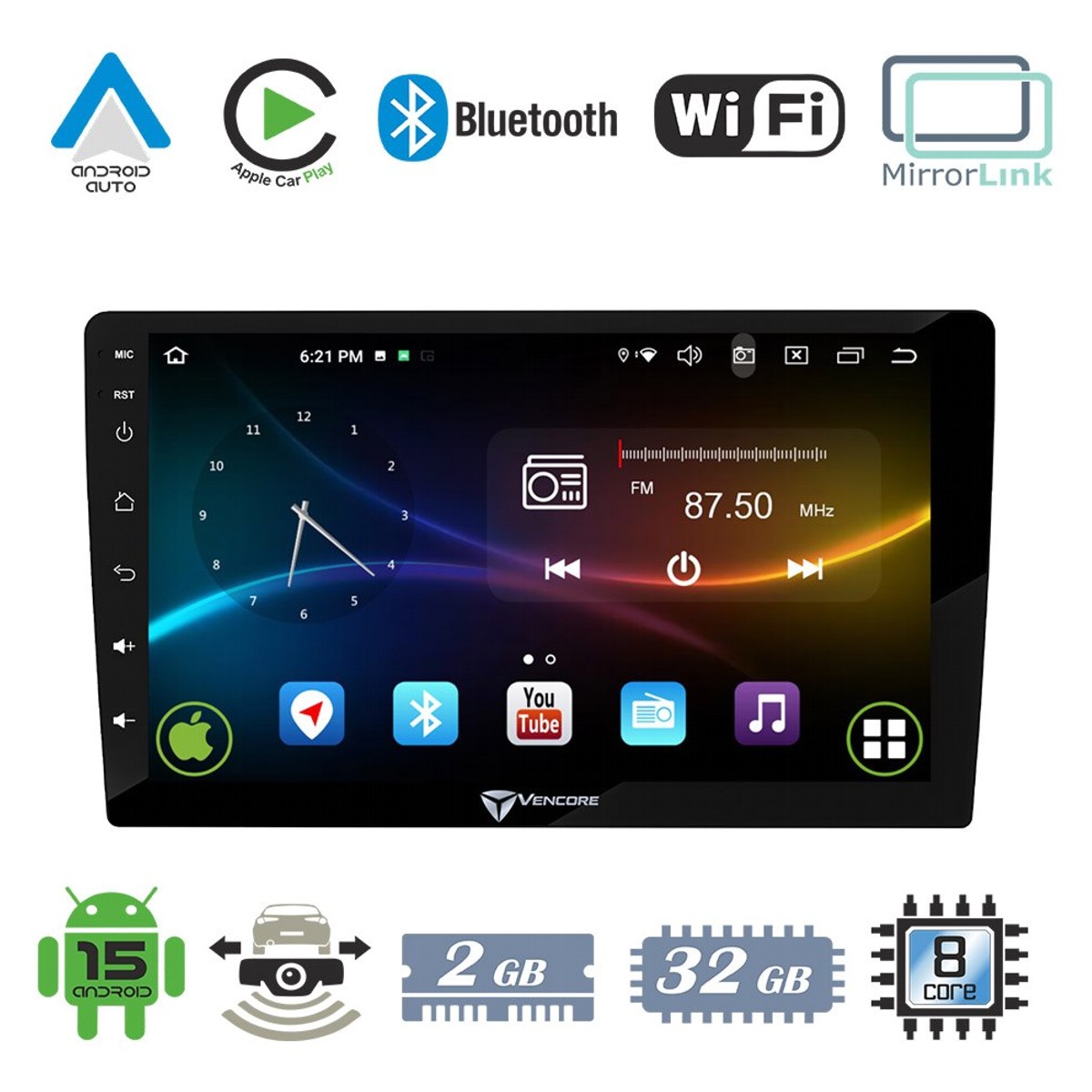

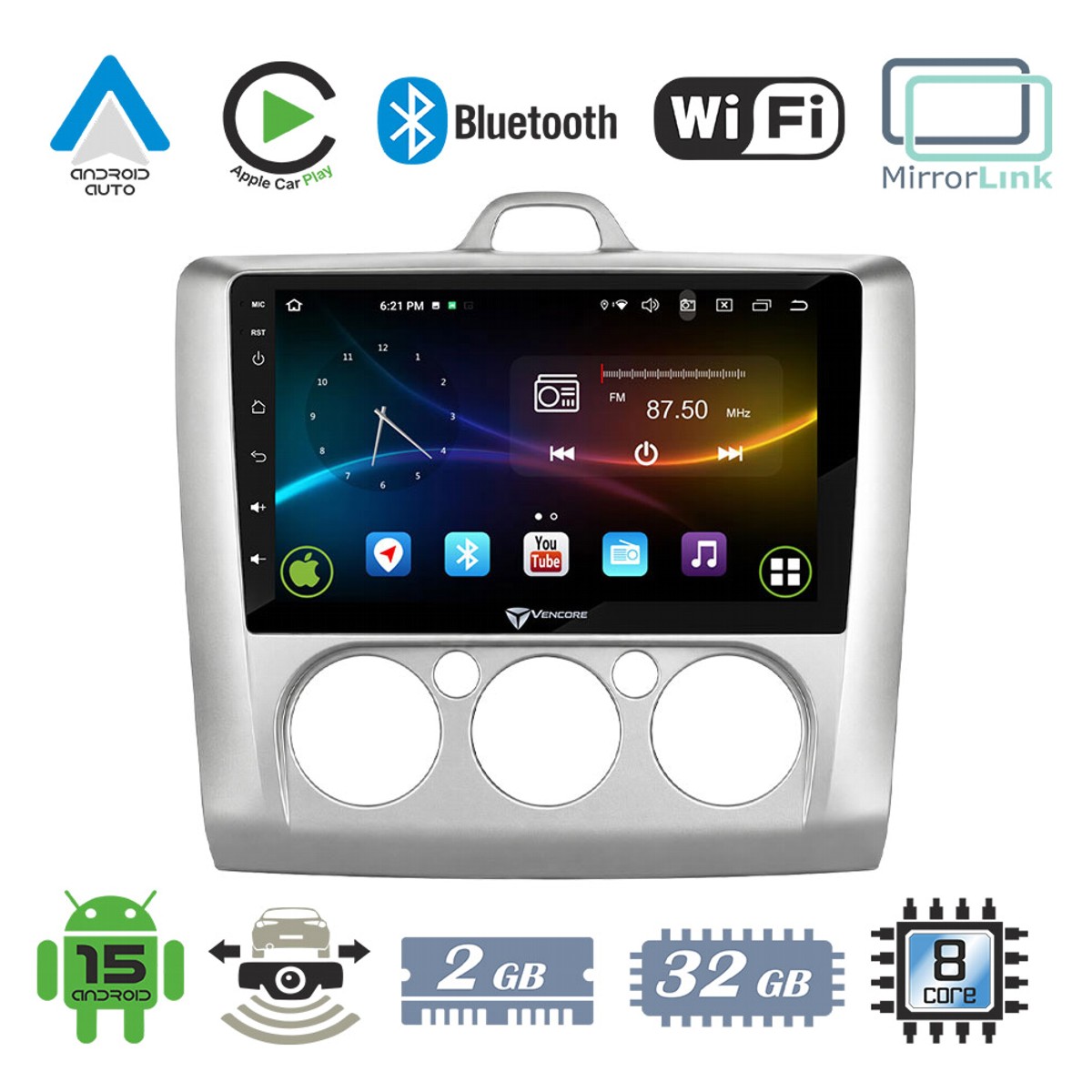

The VenCore 3236-10007-0041SM is a complete aftermarket 9" Android multimedia head unit designed for Ford Focus Manual A/C (2004–2015). It features a 9" IPS capacitive multi‑touch display (1280×720) with split‑screen support. Powered by Android 15 on an MTK6762 Octa‑Core chipset (4×Cortex‑A53...
More
VenCore 3236-10007-0041SM - 9" Android 15 Multimedia Car Head Unit (IPS) 2GB/32GB with CarPlay, Android Auto for Ford Focus Manual A/C 2004-2015 - Silver
Product Code: 1183798377
Available in 4 - 6 days
198,09 €
or
6,19€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The VenCore 3236-10007-0041SM is a complete aftermarket 9" Android multimedia head unit designed for Ford Focus Manual A/C (2004–2015). It features a 9" IPS capacitive multi‑touch display (1280×720) with split‑screen support. Powered by Android 15 on an MTK6762 Octa‑Core chipset (4×Cortex‑A53 @2.0GHz + 4×Cortex‑A53 @1.6GHz), it includes 2GB DDR3 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth 5.0 (hands‑free & A2DP) and built‑in GPS with external GPS antenna. Audio is handled by an integrated YD7388 amplifier (4×50W, 4.1 channel) with subwoofer output capability and support for common audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR). The unit supports AHD/TVI rear camera input up to 1080p (no 360° camera system support) and offers FM RDS and AM reception. Includes CANbus box and vehicle‑specific front panel (model 3550‑0041SM) and all necessary installation cables (ISO power, USB adapter 4P/6P, RCA leads, GPS antenna, rearview input cable). Power: 9–14.4V, recommended fuse 10A. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Firmware updates via USB.
-
BrandVenCore
-
Model / SKU3236-10007-0041SM
-
EAN5212062206367
-
MPN3236-10007-0041SM
-
Product Type9" Android Multimedia Head Unit with Front Panel and CANbus Box
-
Compatible VehiclesFord Focus Manual A/C (2004-2015)
-

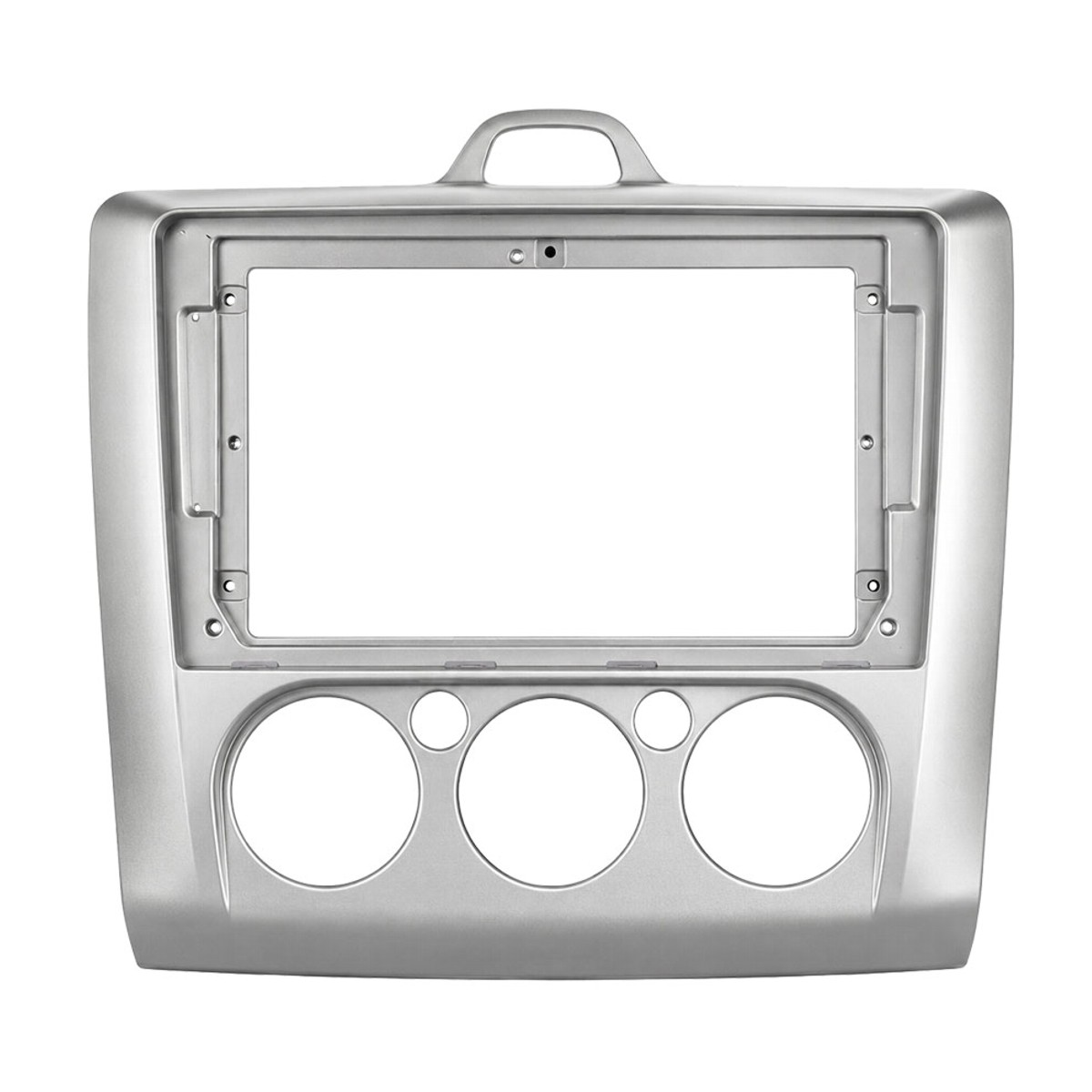

Front Panel Model3550-0041SM
-
Screen Size9 inches
-
Panel TypeIPS
-
Resolution1280 × 720 pixels
-
TouchCapacitive Multi‑Touch
-
Split Screen / Multi‑WindowYes
-
Operating SystemAndroid 15
-
ChipsetMTK6762 Octa‑Core (4×Cortex‑[email protected] + 4×Cortex‑[email protected])
-
RAM2GB DDR3
-
Internal Storage32GB
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
Bluetooth5.0 (Hands‑Free, Audio Streaming, A2DP)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt‑in + external GPS antenna (turn‑by‑turn supported via Google Maps)
-
FM RadioFM with RDS (supports 18 FM presets)
-
AM RadioAM (supports 12 AM presets)
-
Internal AmplifierYD7388 (4×50W), 4.1 channel
-
Subwoofer OutputYes (external subwoofer output available)
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, FLAC, M4R, MKA, MP2, APE, AMR
-
Rear Camera InputAHD / TVI video input up to 1080p
-
360° Camera SupportNo
-
Rear Camera Auto‑flipNo (image not auto‑rotated by the unit)
-
USB Ports2 × USB 2.0 (data + charging)
-
USB Charging Output500 mA
-
AUX InputYes
-
RCA OutputsFront RCA output, Rear RCA output
-
CANbus Box IncludedYes (for steering wheel controls and vehicle systems integration)
-
Power Supply Range9–14.4 V
-
Recommended Fuse / Max Current10 A
-
Operating Temperature-20°C to 70°C
-
CertificationsCE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark
-
Firmware UpdateVia USB
-
Color / FinishSilver front panel
-
Package Weight2.50 kg (set)
-
Package ContentsMultimedia Head Unit 9", CANbus Box, ISO power cable, USB adapter cable (4P/6P), Front RCA output cable, AUX input cable, Rear view input & antenna cable, Rear RCA output & CANbus cable, GPS antenna, manual
