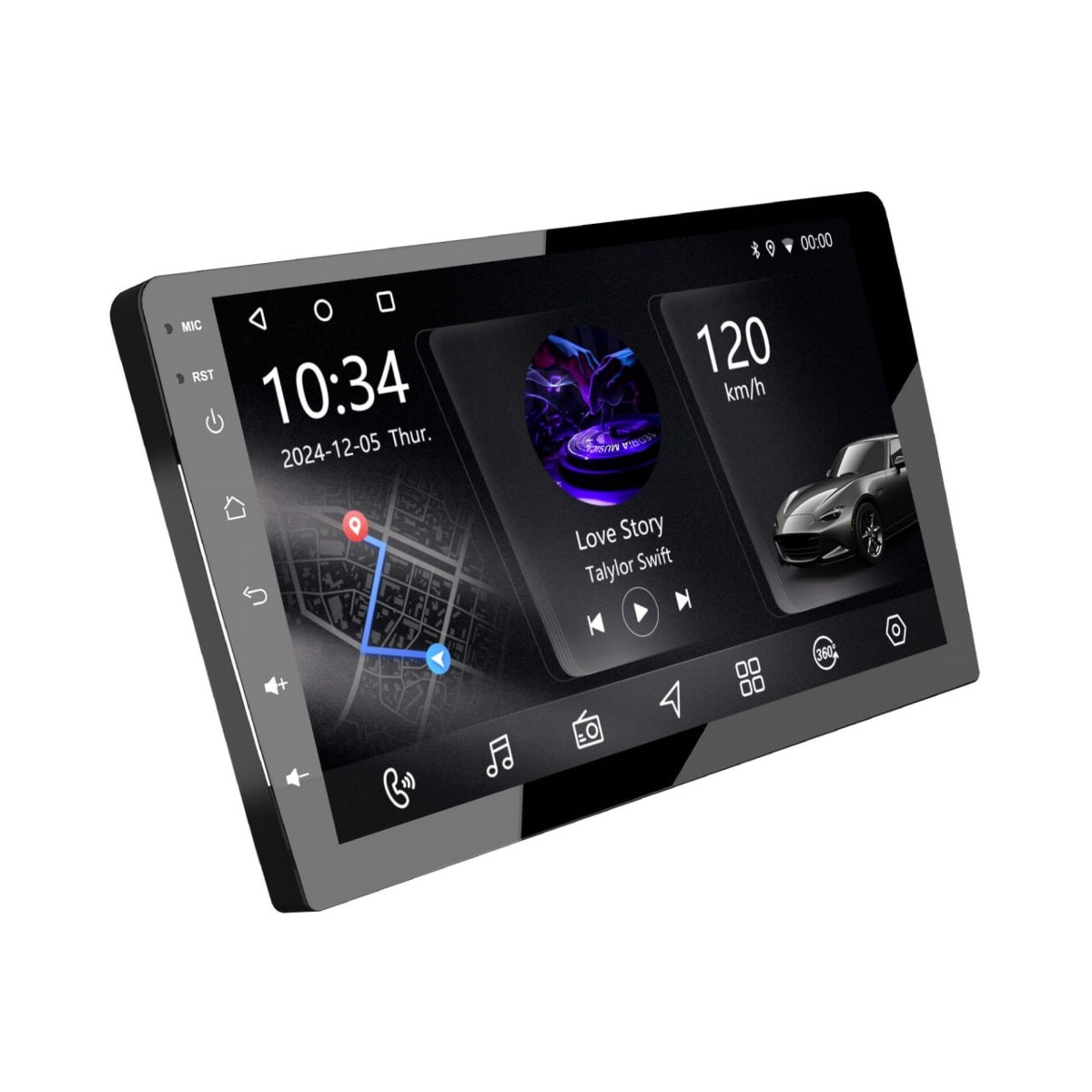

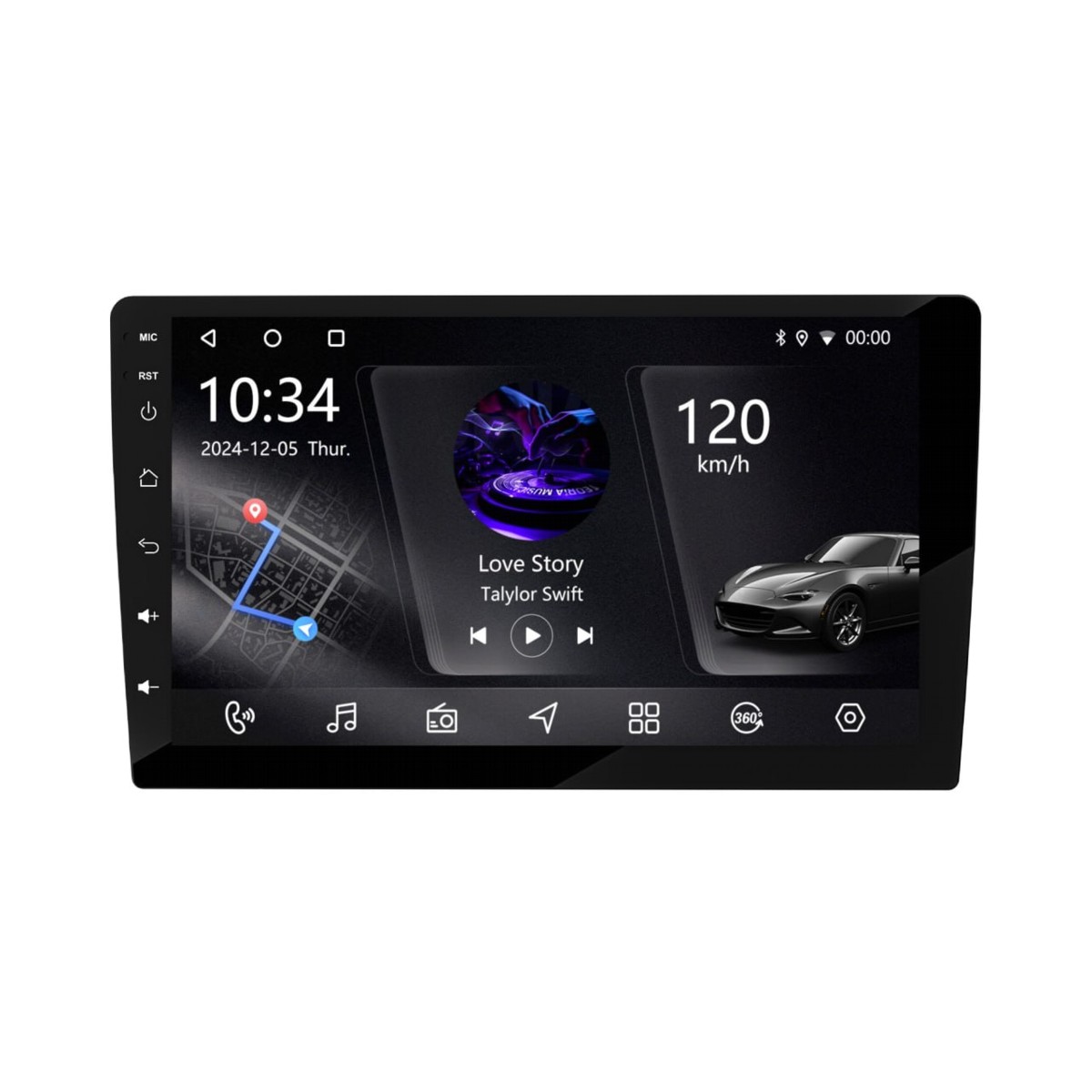

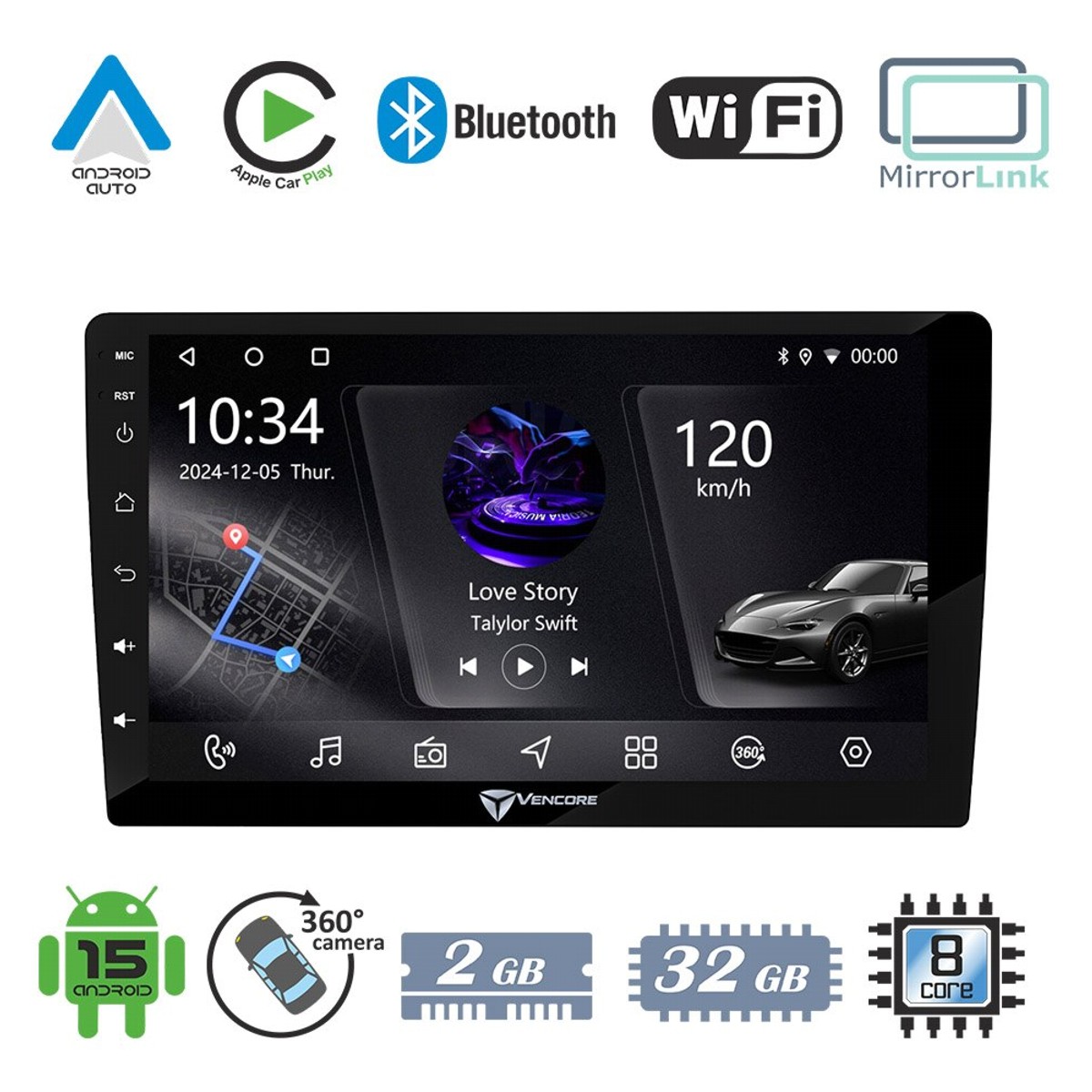

The VenCore 3236-10006 is a 10" Android 15 multimedia car head unit featuring a PX5S Octa‑Core chipset (8× Cortex‑A55 @ 1.8GHz), 2GB DDR4 RAM and 32GB internal storage. The IPS touchscreen (1280×720) supports capacitive multi‑touch and split‑screen/multi‑window. Connectivity includes Dual‑Band...
More
VenCore 3236-10006 - 10" Android 15 Multimedia Car Head Unit, PX5S Octa-Core, 2GB RAM, 32GB Storage, IPS 1280x720, Apple CarPlay & Android Auto, 360° Camera Support
Product Code: 1183798533
Available in 4 - 6 days
204,19 €
or
6,38€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The VenCore 3236-10006 is a 10" Android 15 multimedia car head unit featuring a PX5S Octa‑Core chipset (8× Cortex‑A55 @ 1.8GHz), 2GB DDR4 RAM and 32GB internal storage. The IPS touchscreen (1280×720) supports capacitive multi‑touch and split‑screen/multi‑window. Connectivity includes Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth (V2.1+EDR with Bluetooth 5.0 compatibility), Apple CarPlay, Android Auto, MirrorLink/screen mirroring and GPS (with external antenna). Audio is powered by a YD7388 amplifier IC with 4×50W outputs, 4×RCA line outs and 1×subwoofer out. Video supports 1080p playback, 4 video inputs and AHD 720p/1080p rear camera input. The unit supports 360° camera systems (module and cameras sold/separately). FM/RDS and AM radio are included. Dimensions: 228×130×12 mm. Operating voltage 9–14.4V, typical current rating 10A. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Firmware updates via USB. Package contents: multimedia head unit, 6‑pin harness, ISO power cable, 4P/6P USB adapter, 20P front RCA output cable, AUX cable, 10P rear view input & antenna cable, 8P rear RCA output & CANbus cable, GPS antenna, user manual and desiccant.
-
BrandVenCore
-
Model / Part Number3236-10006
-
Product TypeMultimedia car head unit (2 DIN front)
-
Operating SystemAndroid 15
-
Platform / ChipsetPX5S
-
CPUOcta‑Core, 8× Cortex‑A55 @ 1.8 GHz
-
RAM2GB DDR4
-
Internal Storage32GB (internal flash)
-
Display Size10 inches
-
Panel TypeIPS
-
Resolution1280 × 720 pixels (HD)
-
TouchscreenCapacitive Multi‑Touch
-
Split Screen / Multi‑WindowYes
-
Video PlaybackUp to 1080p
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (compatible with Bluetooth 5.0)
-
Hands‑Free CallingYes
-
Bluetooth Audio StreamingA2DP / AVRCP
-
Apple CarPlaySupported
-
Android AutoSupported
-
Screen Mirroring / MirrorLinkSupported
-
GPSYes (external GPS antenna included)
-
GPS MapsCompatible with Google Maps and navigation apps
-
Tuner (FM / AM)FM with RDS (18 FM presets) / AM (12 presets)
-
Audio IC / AmplifierYD7388
-
Output Power4 × 50W (per channel spec)
-
RCA Line Out4 × (FL / FR / RL / RR)
-
Subwoofer Output1 ×
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, AU, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
-
Video InputsUp to 4 video inputs
-
Rear Camera InputAHD 720p / 1080p supported
-
360° Camera SupportYes (360° cameras & 360° control module supported; cameras not preinstalled)
-
360° Control ModuleSupported
-
CANbus DecoderNot included in package
-
USB Ports2 × USB 2.0 (charging output 500mA)
-
Microphone Input1 ×
-
AUX InputYes
-
Radio Antenna AdapterIncluded for some installations (depends on harness)
-
Firmware UpdateVia USB
-
CertificationsCE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark
-
Unit Dimensions (W×H×D)228 × 130 × 12 mm
-
Net Weight740 g
-
Package Dimensions25 × 15 × 5 cm
-
Gross Weight (Package)1150 g
-
Power Supply9–14.4V
-
Recommended Fuse / Current10A
-
Operating Temperature−20°C to 70°C
-
Included AccessoriesMultimedia head unit, 6‑pin harness, ISO power cable, 4P/6P USB adapter cable, 20P front RCA output cable, AUX input cable, 10P rear view input & antenna cable, 8P rear RCA & CANbus cable, GPS antenna, manual, desiccant
Ratings
Description
The VenCore 3236-10006 is a 10" Android 15 multimedia car head unit featuring a PX5S Octa‑Core chipset (8× Cortex‑A55 @ 1.8GHz), 2GB DDR4 RAM and 32GB internal storage. The IPS touchscreen (1280×720) supports capacitive multi‑touch and split‑screen/multi‑window. Connectivity includes Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth (V2.1+EDR with Bluetooth 5.0 compatibility), Apple CarPlay, Android Auto, MirrorLink/screen mirroring and GPS (with external antenna). Audio is powered by a YD7388 amplifier IC with 4×50W outputs, 4×RCA line outs and 1×subwoofer out. Video supports 1080p playback, 4 video inputs and AHD 720p/1080p rear camera input. The unit supports 360° camera systems (module and cameras sold/separately). FM/RDS and AM radio are included. Dimensions: 228×130×12 mm. Operating voltage 9–14.4V, typical current rating 10A. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Firmware updates via USB. Package contents: multimedia head unit, 6‑pin harness, ISO power cable, 4P/6P USB adapter, 20P front RCA output cable, AUX cable, 10P rear view input & antenna cable, 8P rear RCA output & CANbus cable, GPS antenna, user manual and desiccant.
Technical Specifications
-
BrandVenCore
-
Model / Part Number3236-10006
-
Product TypeMultimedia car head unit (2 DIN front)
-
Operating SystemAndroid 15
-
Platform / ChipsetPX5S
-
CPUOcta‑Core, 8× Cortex‑A55 @ 1.8 GHz
-
RAM2GB DDR4
-
Internal Storage32GB (internal flash)
-
Display Size10 inches
-
Panel TypeIPS
-
Resolution1280 × 720 pixels (HD)
-
TouchscreenCapacitive Multi‑Touch
-
Split Screen / Multi‑WindowYes
-
Video PlaybackUp to 1080p
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (compatible with Bluetooth 5.0)
-
Hands‑Free CallingYes
-
Bluetooth Audio StreamingA2DP / AVRCP
-
Apple CarPlaySupported
-
Android AutoSupported
-
Screen Mirroring / MirrorLinkSupported
-
GPSYes (external GPS antenna included)
-
GPS MapsCompatible with Google Maps and navigation apps
-
Tuner (FM / AM)FM with RDS (18 FM presets) / AM (12 presets)
-
Audio IC / AmplifierYD7388
-
Output Power4 × 50W (per channel spec)
-
RCA Line Out4 × (FL / FR / RL / RR)
-
Subwoofer Output1 ×
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, AU, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
-
Video InputsUp to 4 video inputs
-
Rear Camera InputAHD 720p / 1080p supported
-
360° Camera SupportYes (360° cameras & 360° control module supported; cameras not preinstalled)
-
360° Control ModuleSupported
-
CANbus DecoderNot included in package
-
USB Ports2 × USB 2.0 (charging output 500mA)
-
Microphone Input1 ×
-
AUX InputYes
-
Radio Antenna AdapterIncluded for some installations (depends on harness)
-
Firmware UpdateVia USB
-
CertificationsCE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark
-
Unit Dimensions (W×H×D)228 × 130 × 12 mm
-
Net Weight740 g
-
Package Dimensions25 × 15 × 5 cm
-
Gross Weight (Package)1150 g
-
Power Supply9–14.4V
-
Recommended Fuse / Current10A
-
Operating Temperature−20°C to 70°C
-
Included AccessoriesMultimedia head unit, 6‑pin harness, ISO power cable, 4P/6P USB adapter cable, 20P front RCA output cable, AUX input cable, 10P rear view input & antenna cable, 8P rear RCA & CANbus cable, GPS antenna, manual, desiccant
