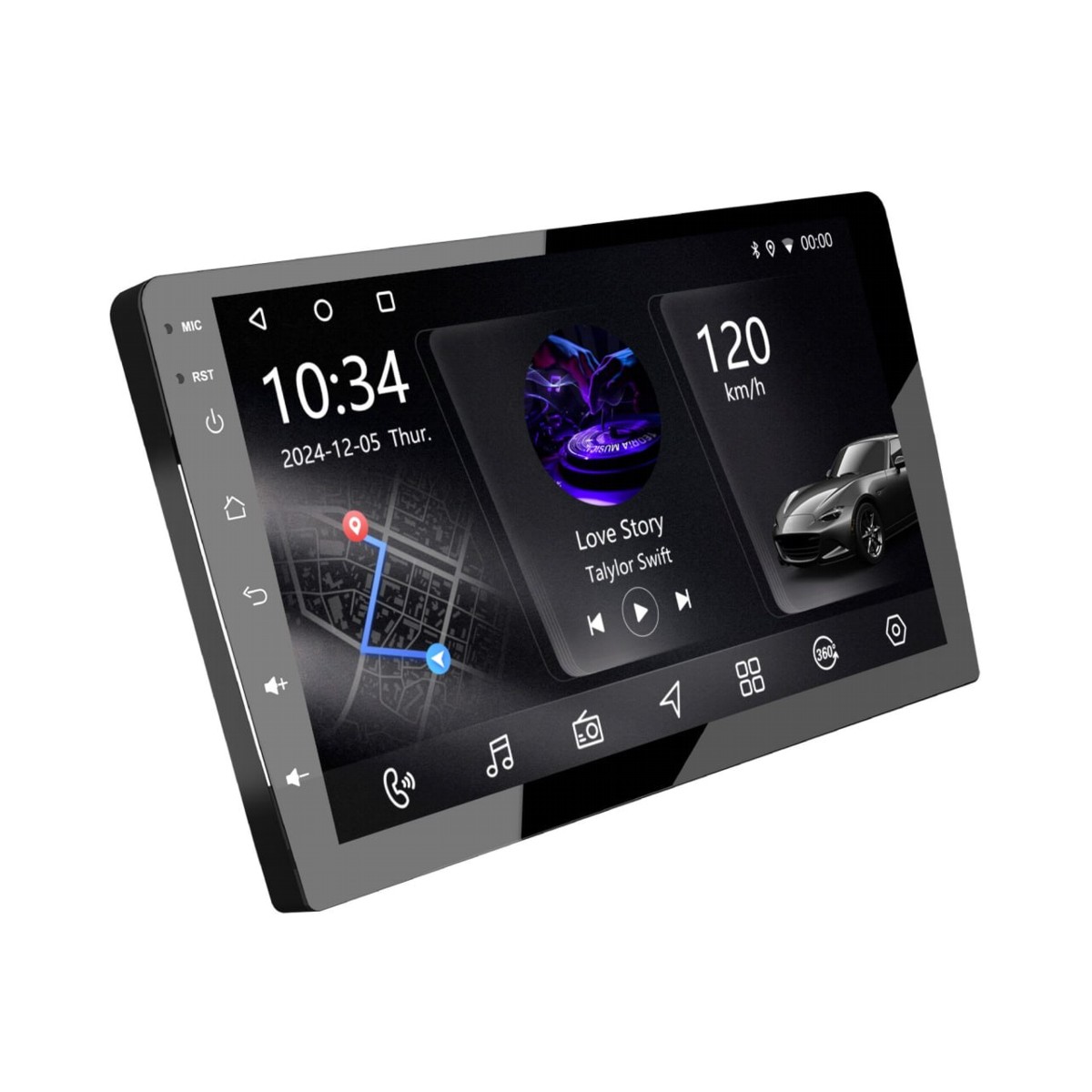

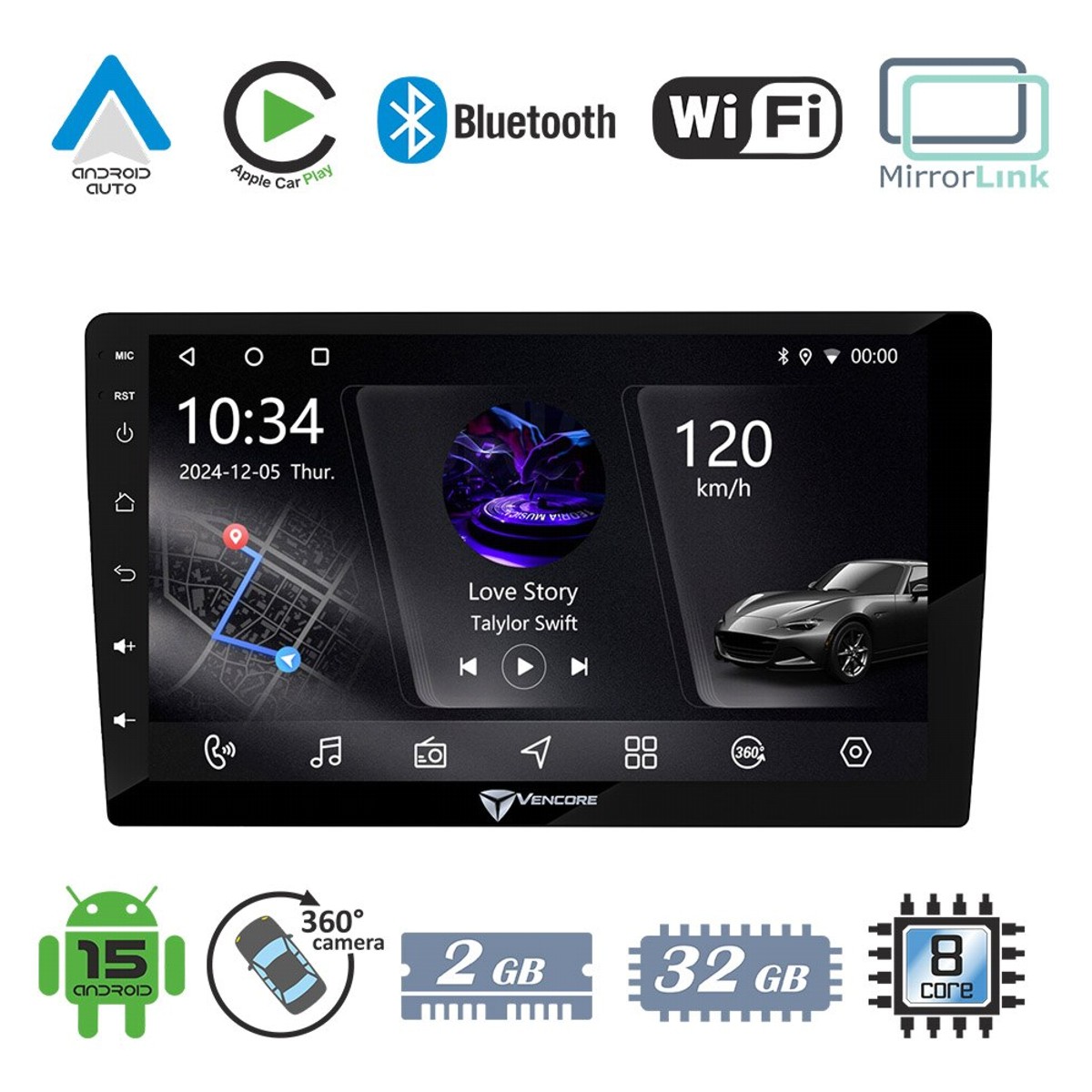

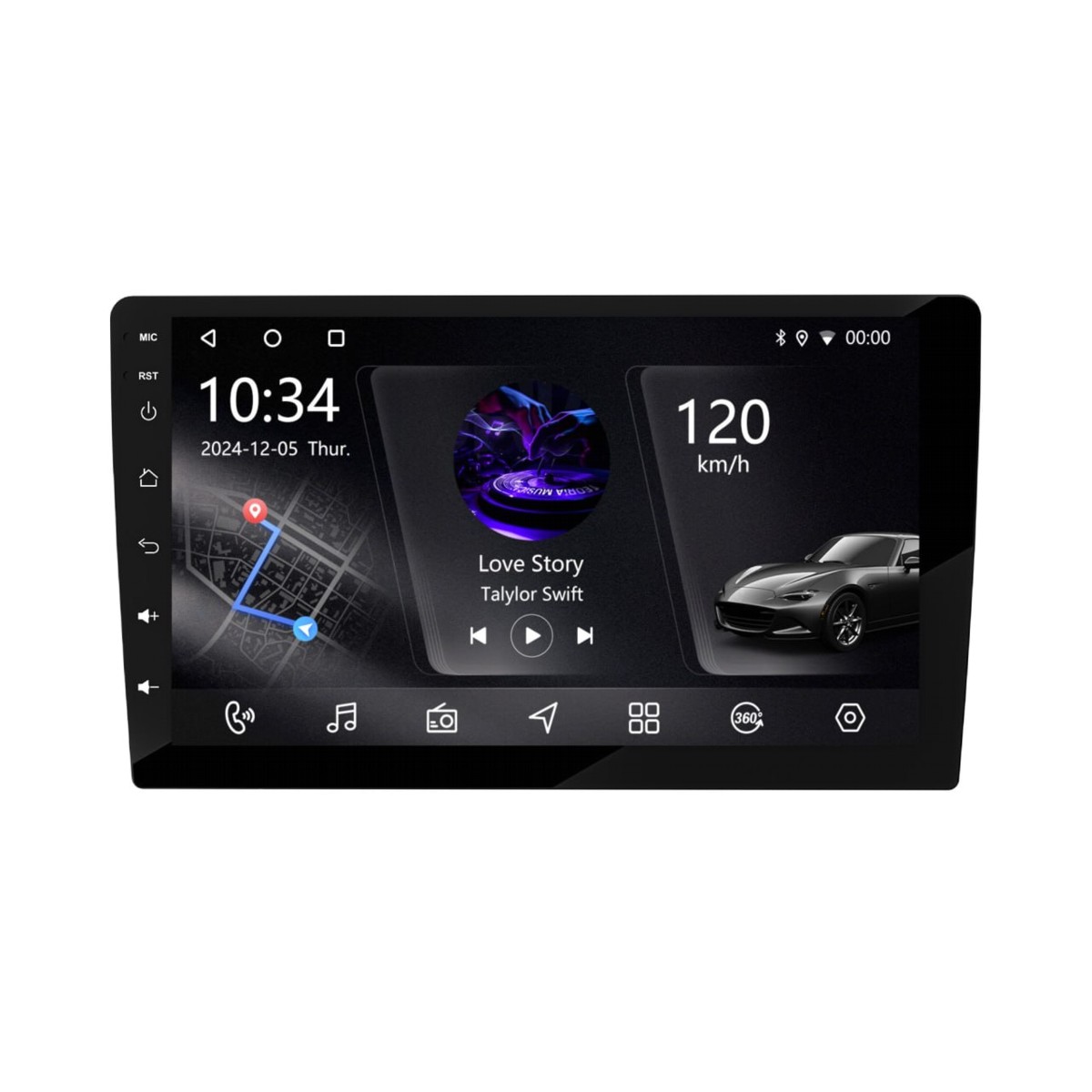

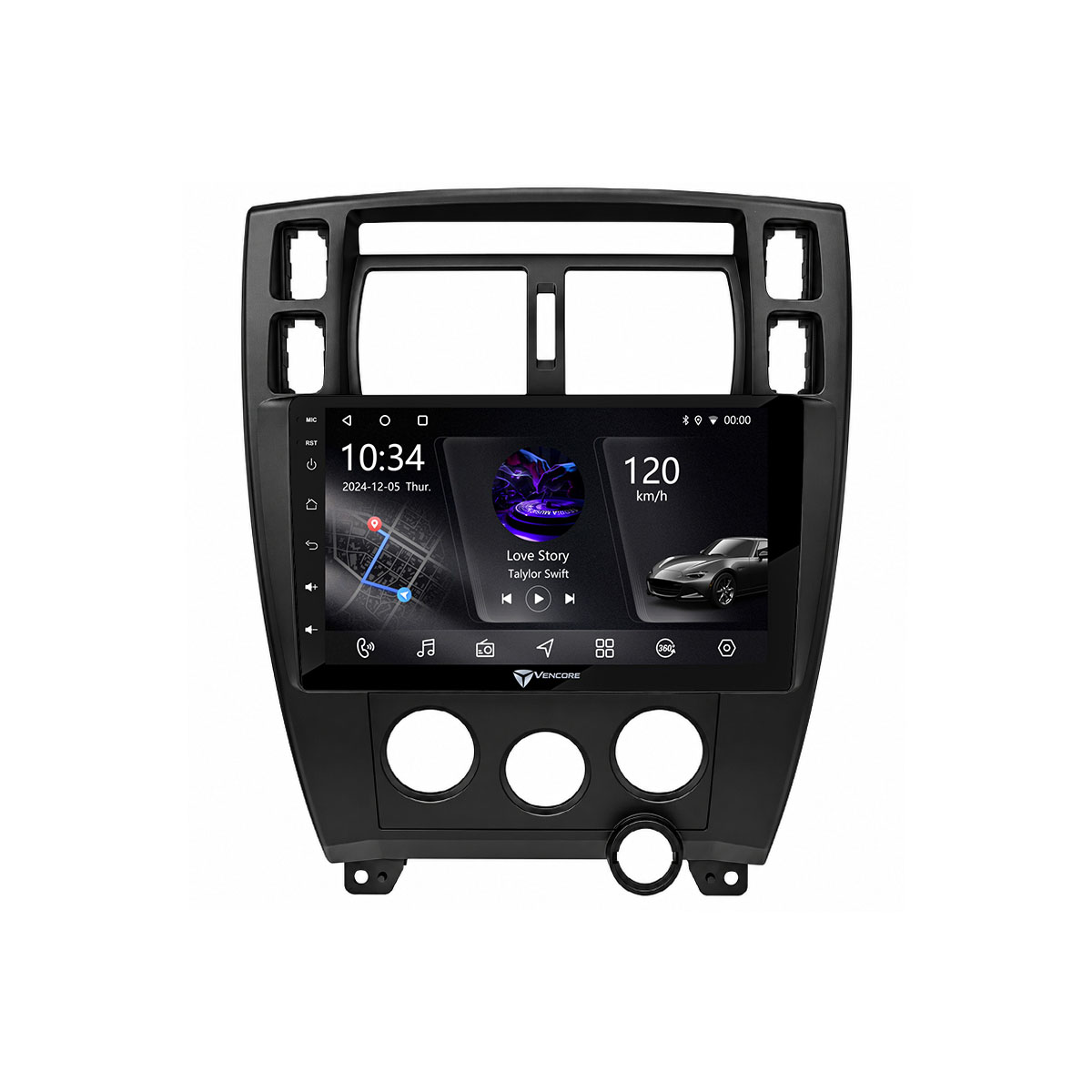

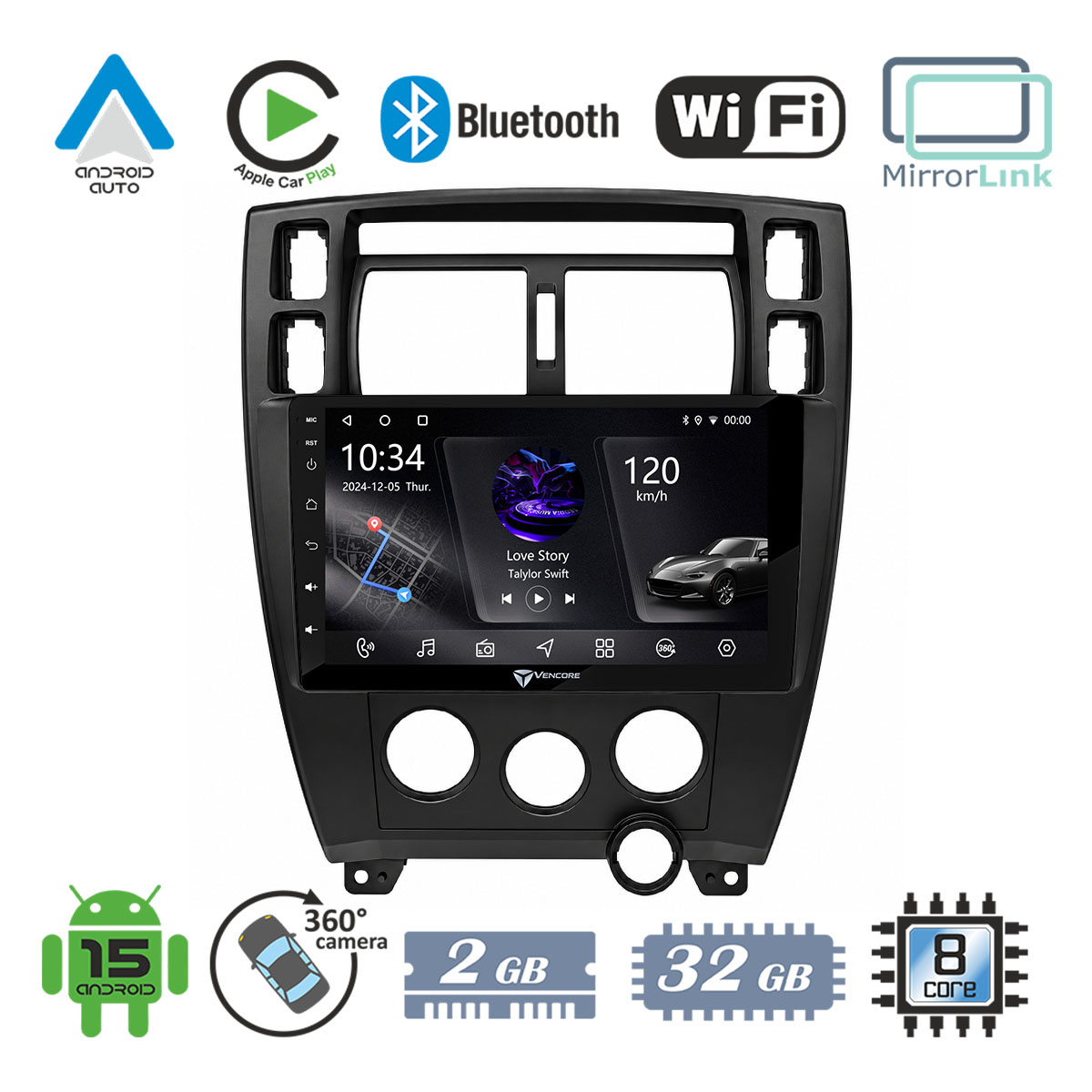

VenCore 3236-10006-0712B - Android 15 Multimedia Screen 10.1-inch PX5S Octa-Core 2GB/32GB IPS with CANbus, CarPlay, Android Auto, 360° Camera Support for Hyundai Tucson 2004-2010 - Black

Description

Technical Specifications

• Brand
  VenCore
• Model / Part Number
  3236-10006-0712B
• SKU
  3236-10006-0712B
• EAN
  5212062209290
• MPN
  3236-10006-0712B
• Product Type
  Multimedia Android Head Unit (Car Stereo)
• Compatible Vehicles
  Hyundai Tucson 2004-2010
• Screen Size
  10.1-inch (front panel), Legacy 10-inch specified
• Panel Type
  IPS capacitive multi-touch
• Resolution
  1280 x 720 pixels
• Operating System
  Android 15
• Chipset / Platform
  PX5S
• CPU
  Octa-Core 8 x Cortex-A55 @ 1.8 GHz
• RAM
  2GB DDR4
• Internal Storage
  32GB
• Fast Boot / Sleep
  Yes
• Smartphone Integration
  Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink
• Wi-Fi
  Dual Band 2.4 GHz / 5 GHz
• Bluetooth
  V2.1+EDR with Bluetooth 5.0 compatibility
• Hands-Free Calling
  Yes
• GPS
  External GPS antenna (built-in receiver), supports Google Maps
• Audio Amplifier
  YD7388 integrated amplifier
• Amplifier Power
  4 x 50W (typical)
• RCA Line Out
  4 x (FL/FR/RL/RR)
• Subwoofer Output
  1 x subwoofer RCA out
• Video Inputs
  4 x video inputs
• Rear Camera Input
  Supports AHD 720p / 1080p cameras
• 360° Camera Support
  Yes (supports 360° camera systems and 360° control module)
• Supported Video Output
  1080p playback
• FM Radio
  Yes, with RDS (FM 18 / AM 12 stations memory)
• Audio Formats
  AAC, MP3, WMA, WAV, OGG, AU, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
• USB
  2 x USB 2.0 (data + charging)
• USB Charging Output
  500 mA
• Microphone Input
  1 x external microphone input
• AUX Input
  Yes
• Radio Antenna Adapter
  Not included (specified as not provided)
• CANbus
  Included CANbus Box for vehicle integration and steering wheel control retention
• Power Supply Voltage
  9–14.4 V
• Max Current / Fuse
  10 A
• Operating Temperature
  −20°C to 70°C
• Firmware Update
  Via USB
• Dimensions (unit)
  228 x 130 x 12 mm
• Package Weight
  2.50 kg
• Color
  Black
• Accessories Included
  Multimedia head unit, 10.1-inch front panel, CANbus box, ISO power cable, USB adapter cable 4P/6P, front RCA output cable 20P, AUX input cable, rear view & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, mounting brackets
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Notes
  Android system customization from manufacturer; Android updates not guaranteed by OEM
