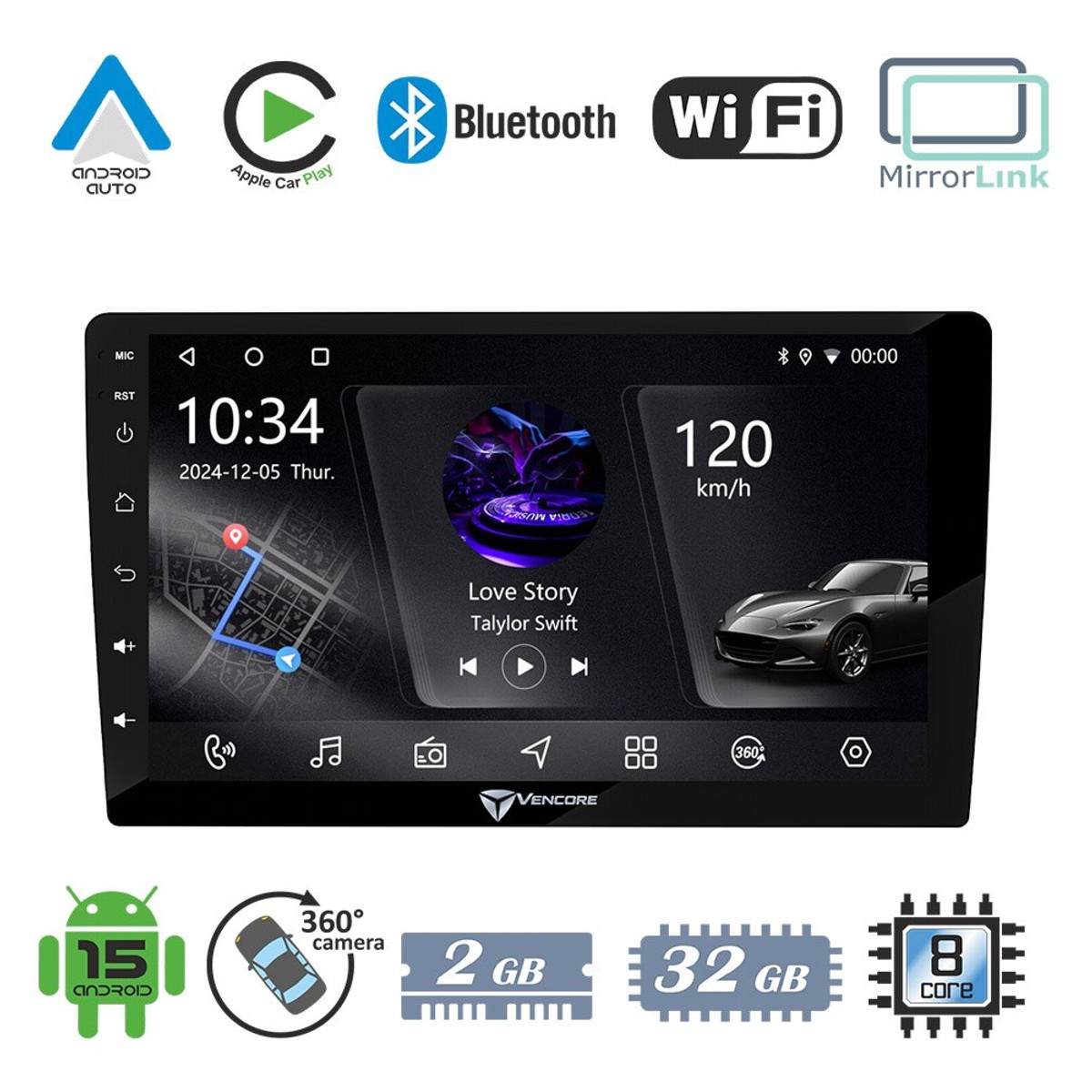

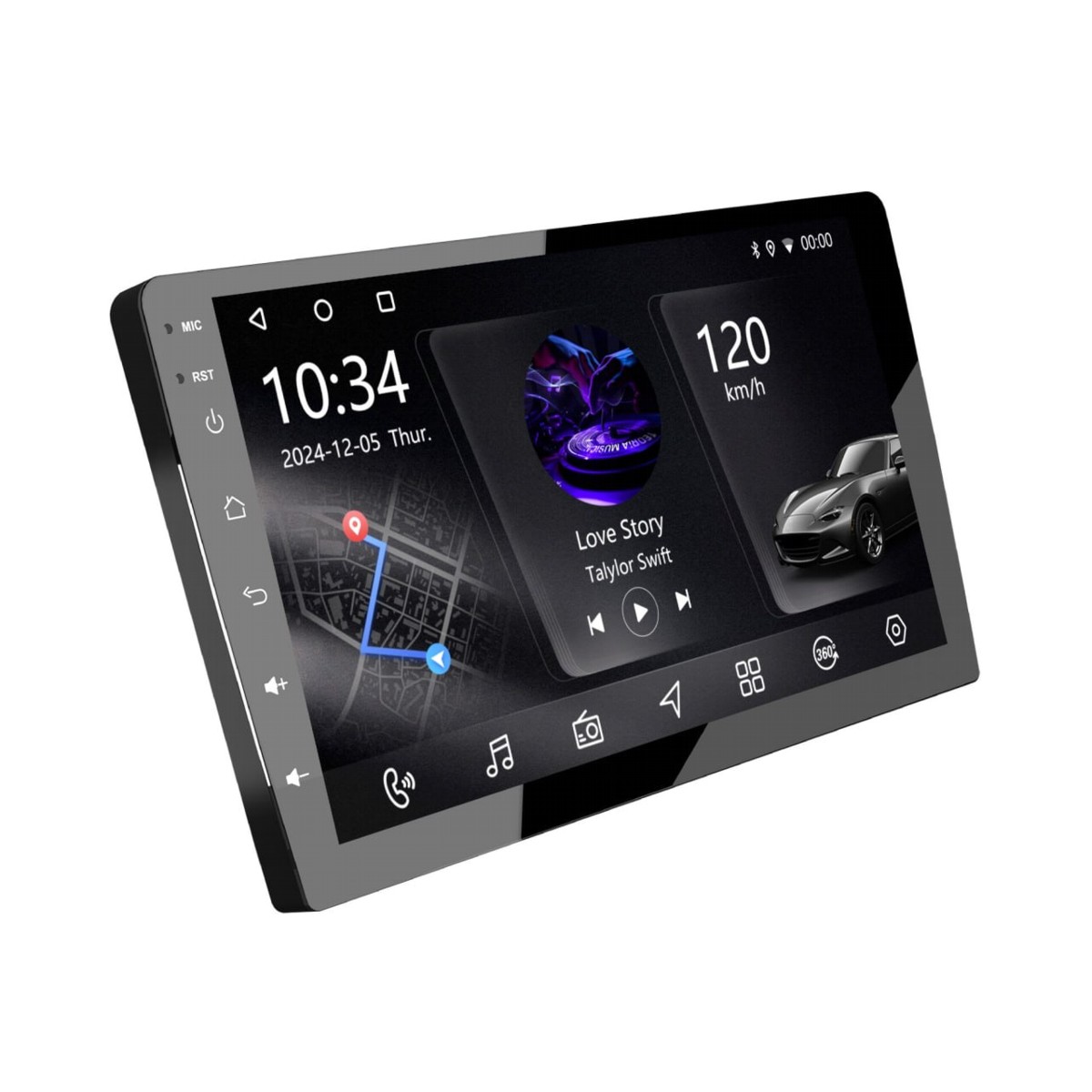

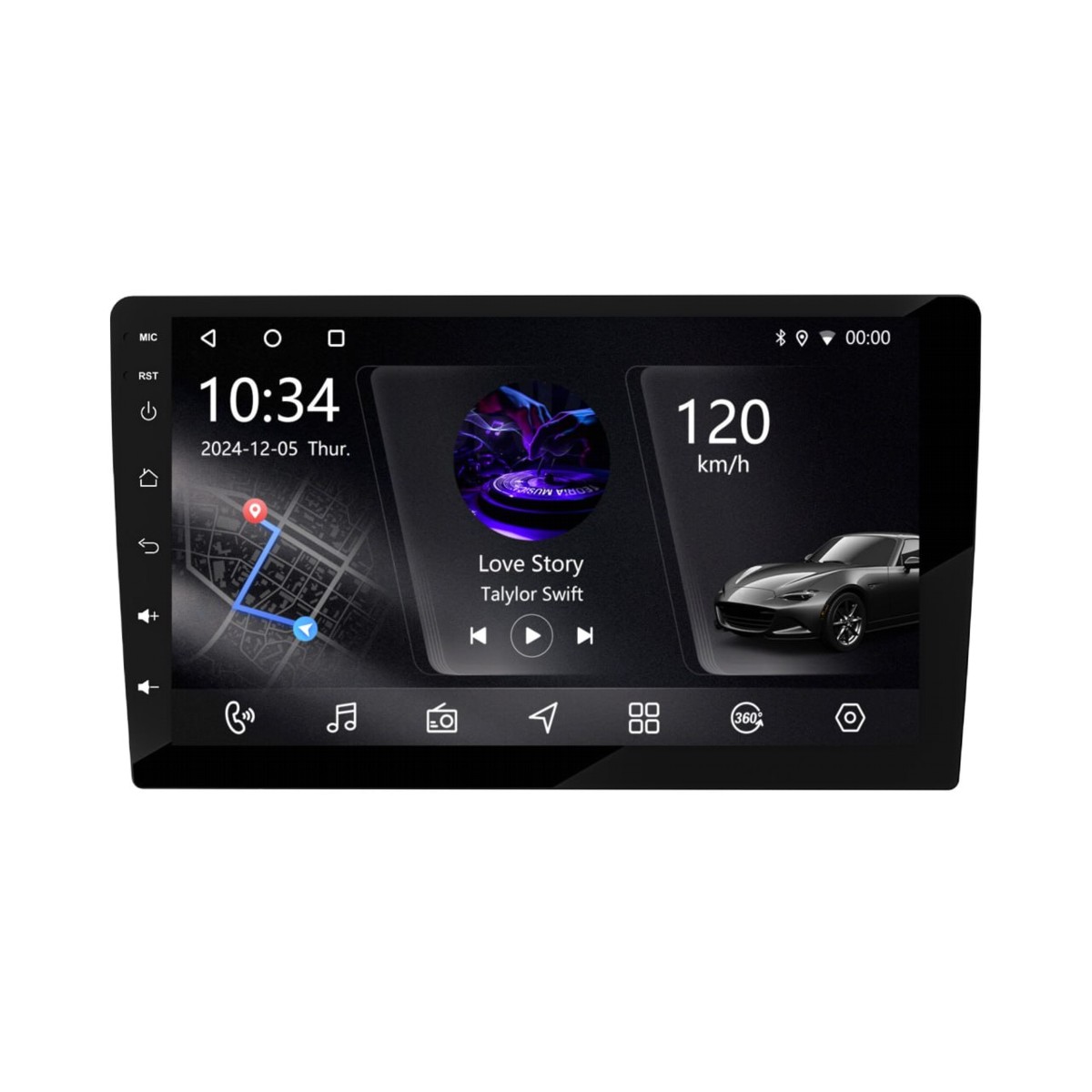

VenCore 3236-10006-0004B 10" Android Multimedia Head Unit for Nissan Qashqai 2014-2021 - IPS, Android 15 PX5S, 2GB/32GB, CarPlay/Android Auto, 360° Camera Support

Description

Technical Specifications

• Brand
  VenCore
• Model (MPN)
  3236-10006-0004B
• EAN
  5212062206237
• SKU
  3236-10006-0004B
• Compatibility
  Nissan Qashqai 2014-2021
• Screen size

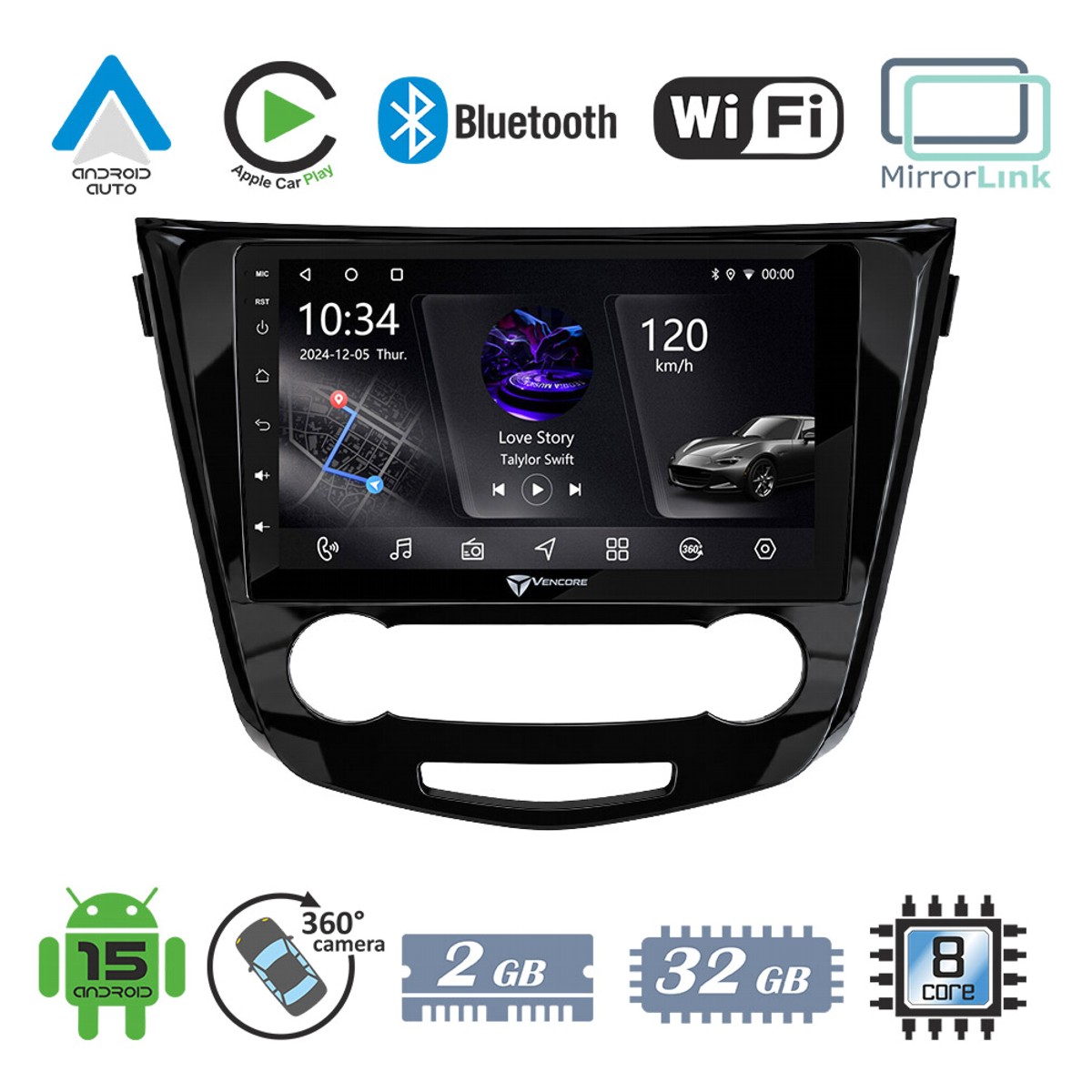

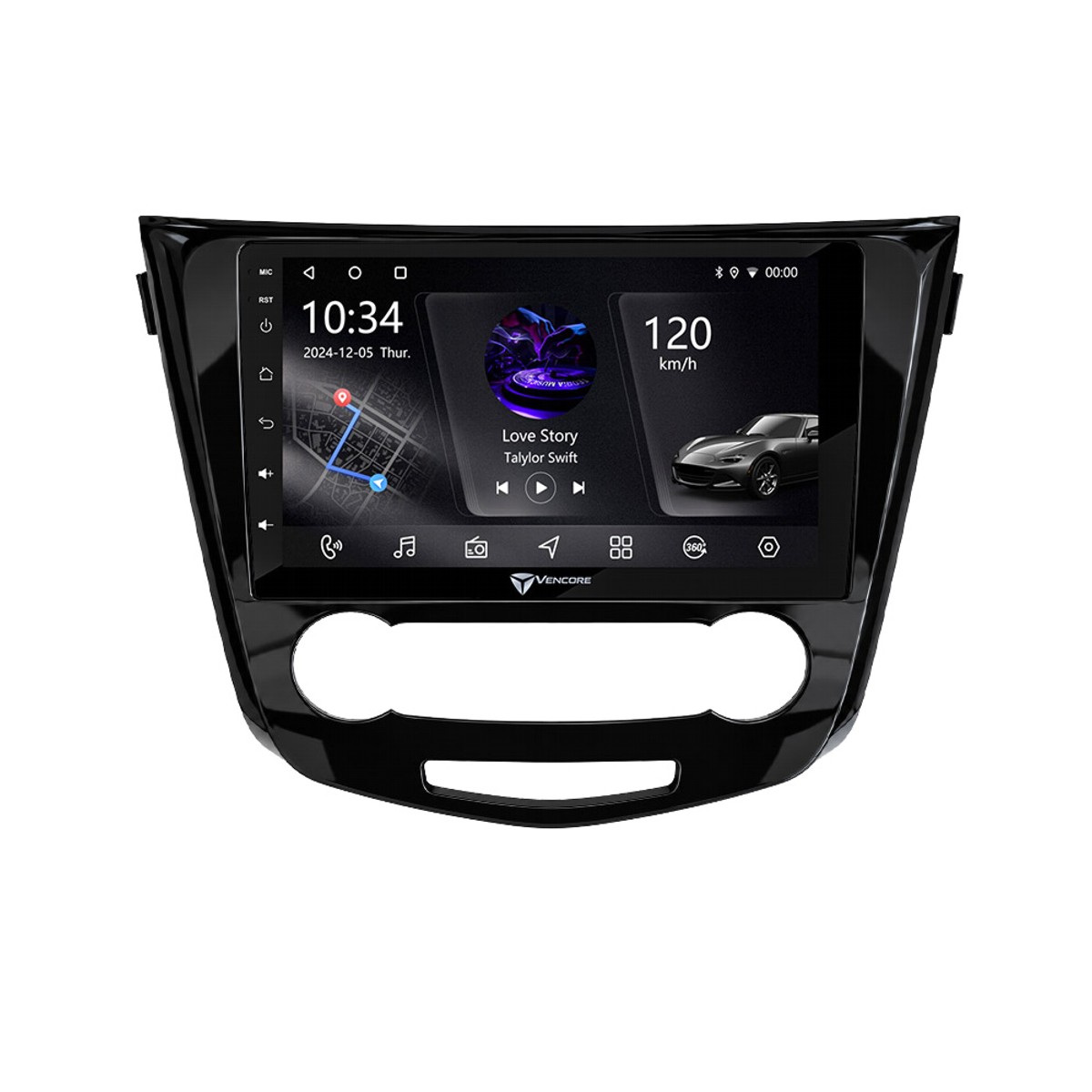

  10" (10.1" front panel)
• Panel type
  IPS
• Resolution
  1280×720 pixels
• Touch type
  Capacitive Multi-Touch
• Operating System
  Android 15
• Chipset
  PX5S
• CPU
  Octa-Core 8× Cortex-A55 @1.8GHz
• RAM
  2GB DDR4
• Internal Storage
  32GB
• Android updates supported
  No (Android version update not supported)
• Fast Boot / Sleep Mode
  Yes
• Wireless
  Dual Band Wi‑Fi 2.4GHz / 5GHz
• Bluetooth
  V2.1+EDR (compatible with Bluetooth 5.0)
• Apple CarPlay
  Yes
• Android Auto
  Yes
• Screen Mirroring / MirrorLink
  Yes
• GPS
  Built-in GPS with external antenna, supports Google Maps
• Audio amplifier
  YD7388 integrated, 4×50W output
• RCA Line Out
  4 (FL/FR/RL/RR)
• Subwoofer Output
  1
• Video Inputs
  4
• Rear camera input
  AHD 720p / 1080p
• 360° camera support
  Yes (360° camera + 360° control module)
• FM Radio
  Yes with RDS (presets: FM 18 / AM 12)
• Supported audio formats
  AAC, MP3, WMA, WAV, OGG, AU, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
• USB ports
  2 × USB 2.0
• USB Charging Output
  500 mA
• Microphone Input
  1
• Video output / external mic
  No external microphone provided (module supports external mic input)
• Radio antenna adapter
  Not included
• Power supply voltage
  9–14.4 V
• Operating current / fuse
  10 A
• Operating temperature
  -20°C to 70°C
• Unit dimensions
  228 × 130 × 12 mm
• Package weight (set)
  2500 g
• Product weight
  2000 g
• Color
  Black
• Included accessories

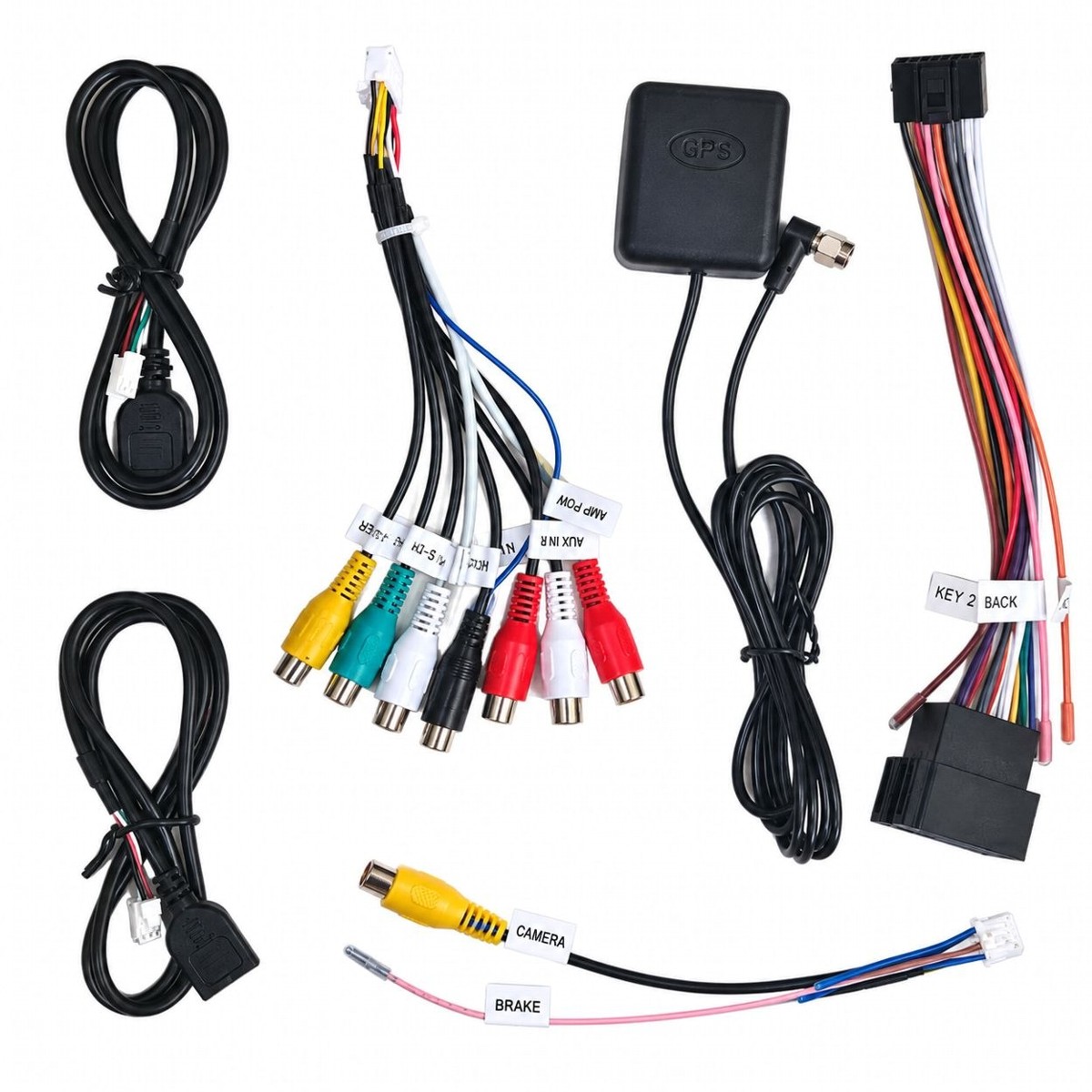

  Multimedia head unit 10", 10.1" front panel for Nissan Qashqai, CANbus Box, power cable ISO, USB adapter cable 4P/6P, front RCA output cable 20P, AUX input cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, screws
• Firmware update
  Via USB
• Certifications
  CE, RoHS, CE-EMC, CE-RED, FCC, E-mark
• Notes

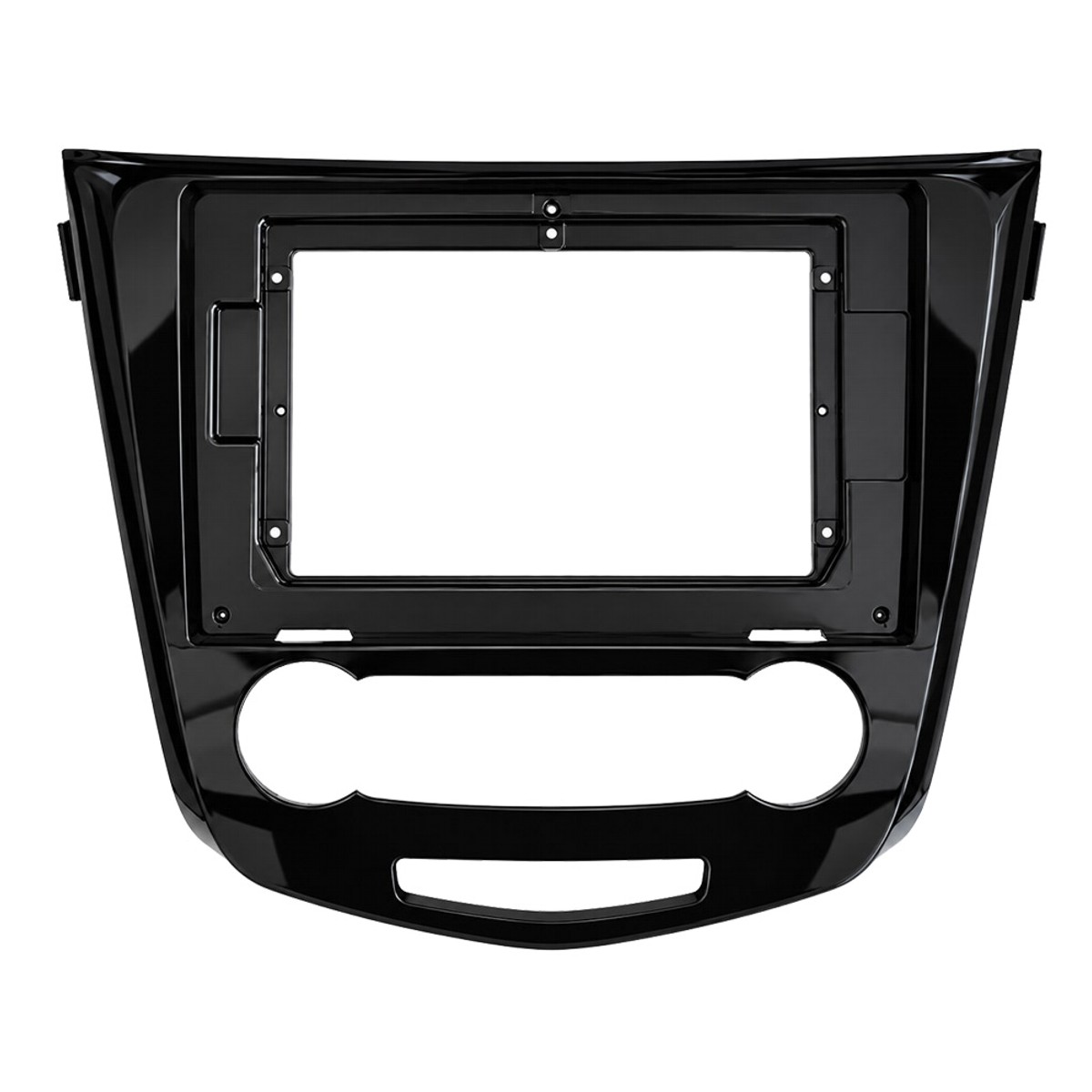

  Original Nissan front panel code 3550-0004B referenced for fitting
