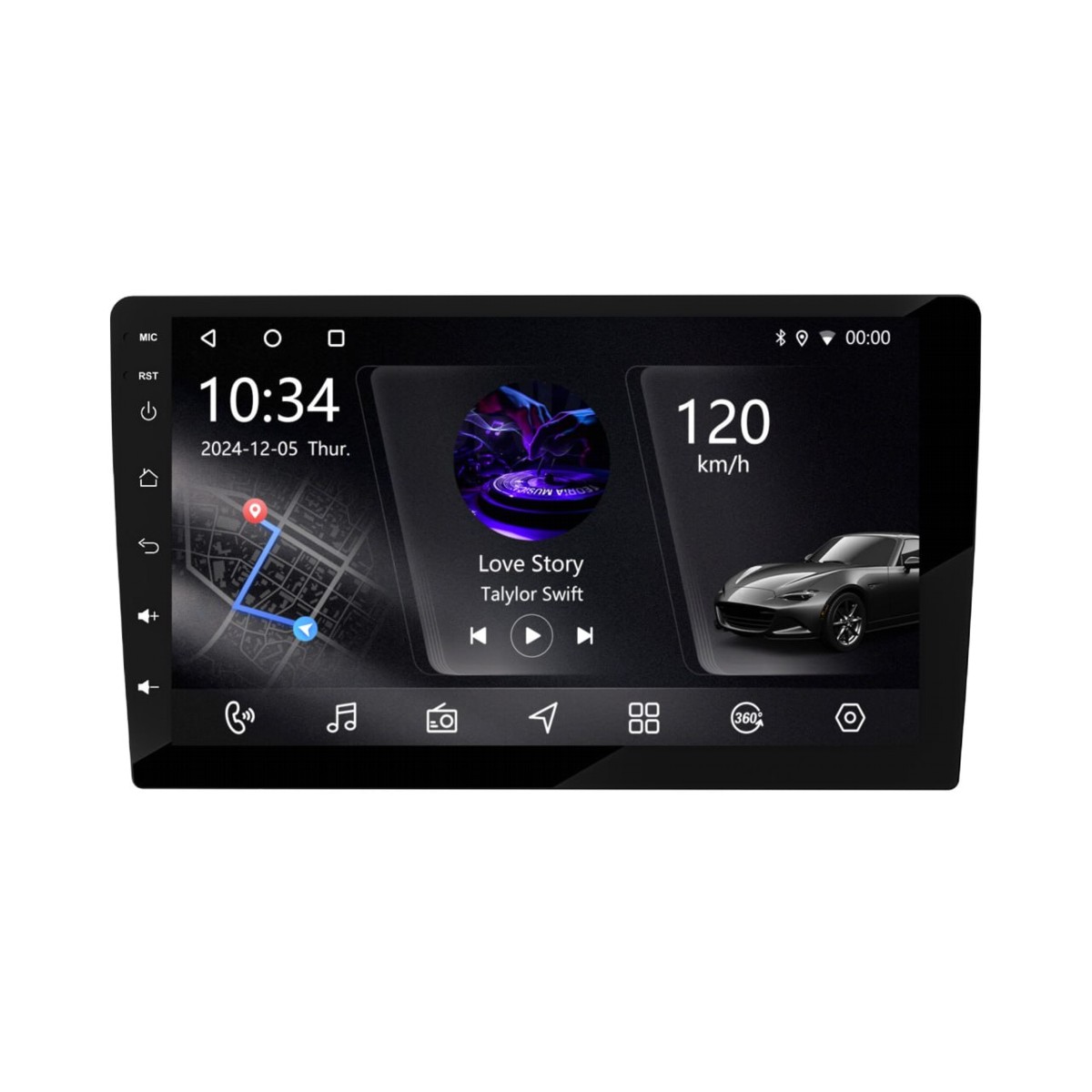

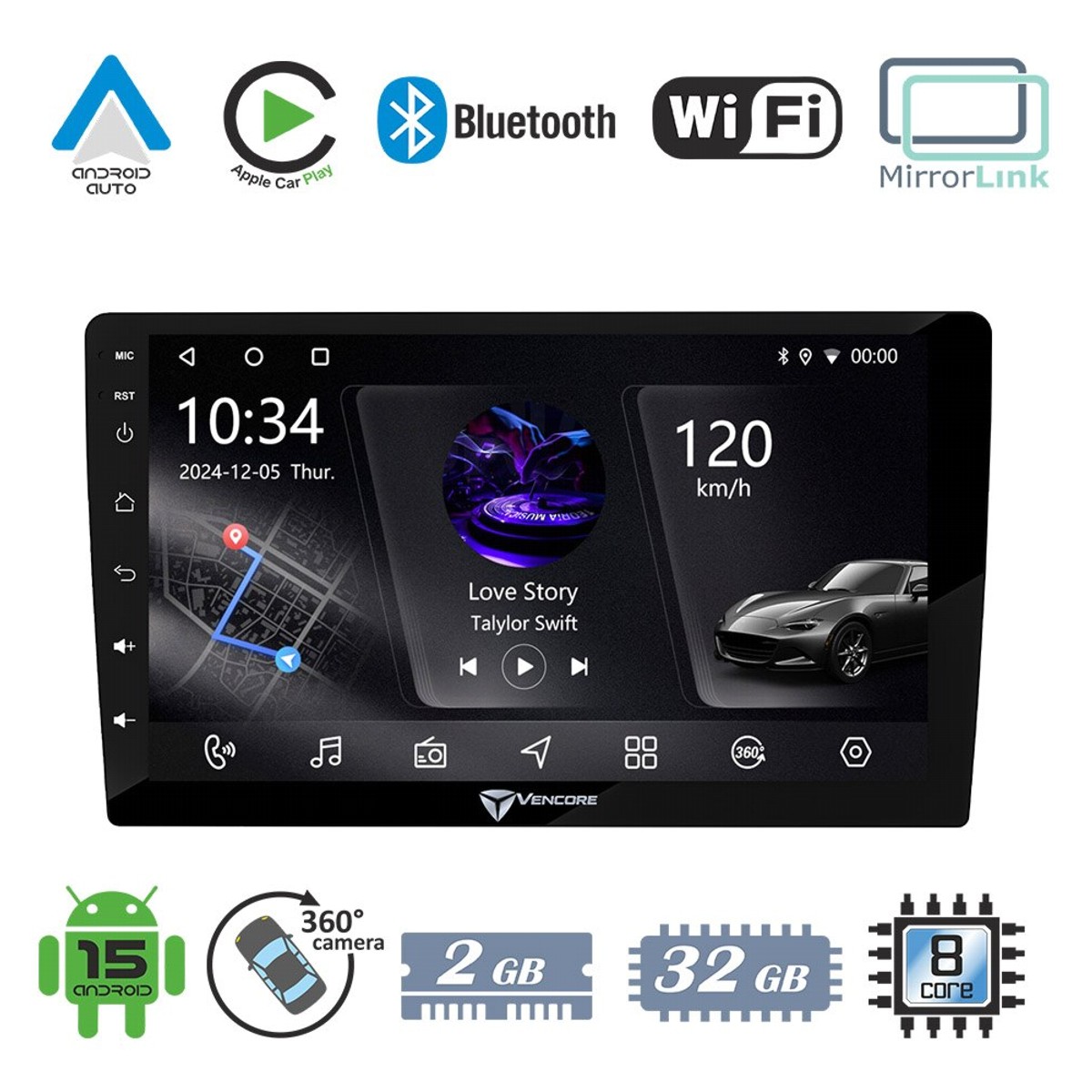

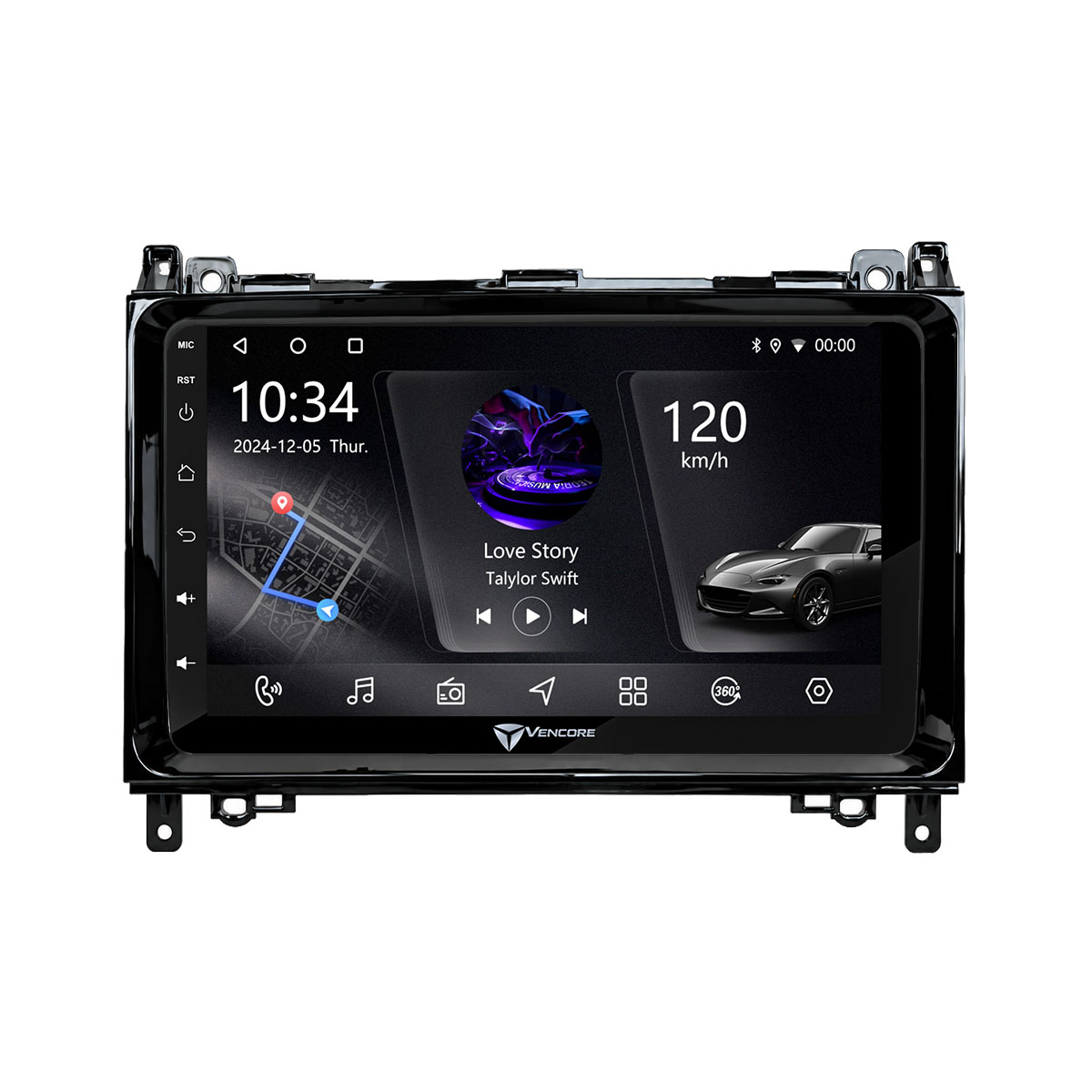

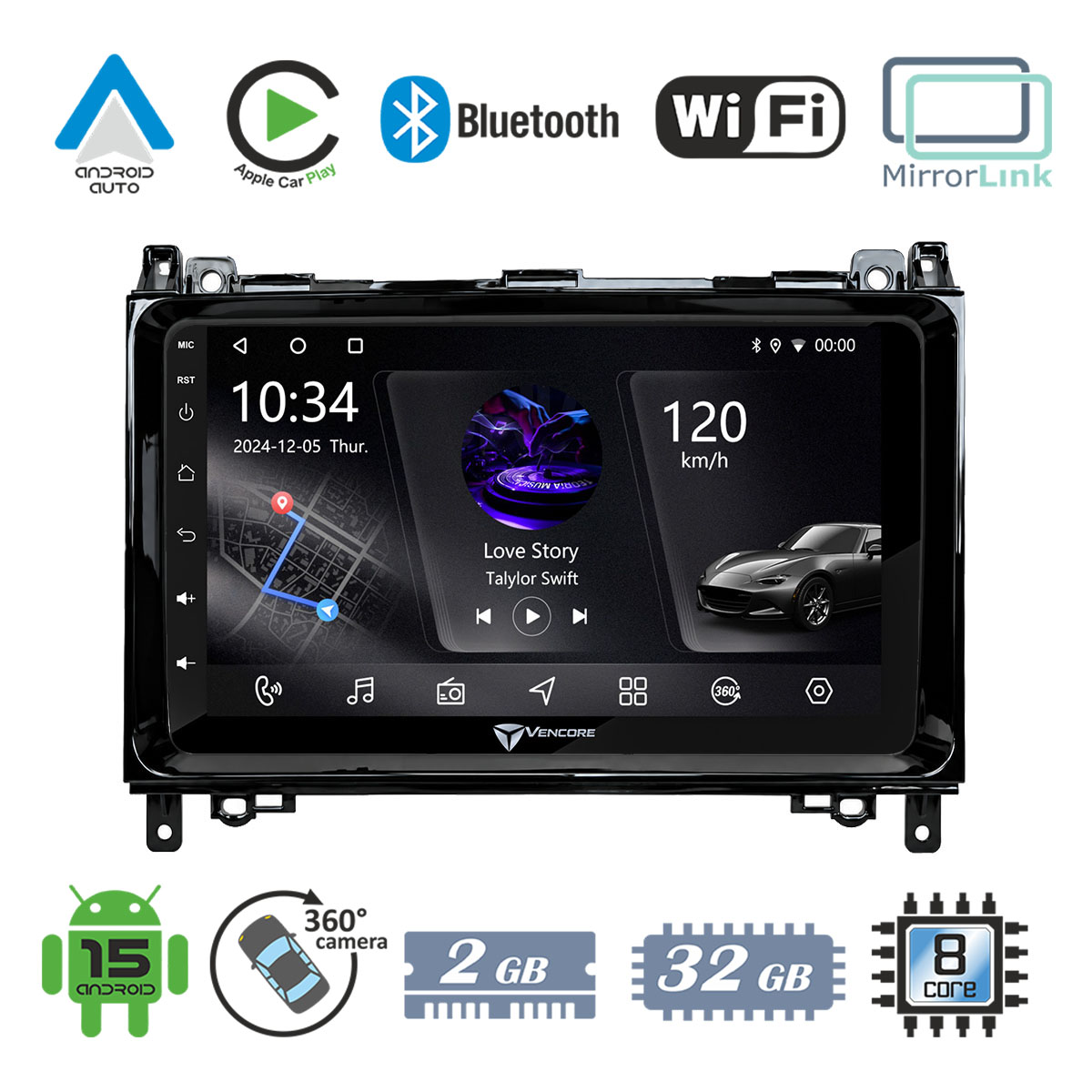

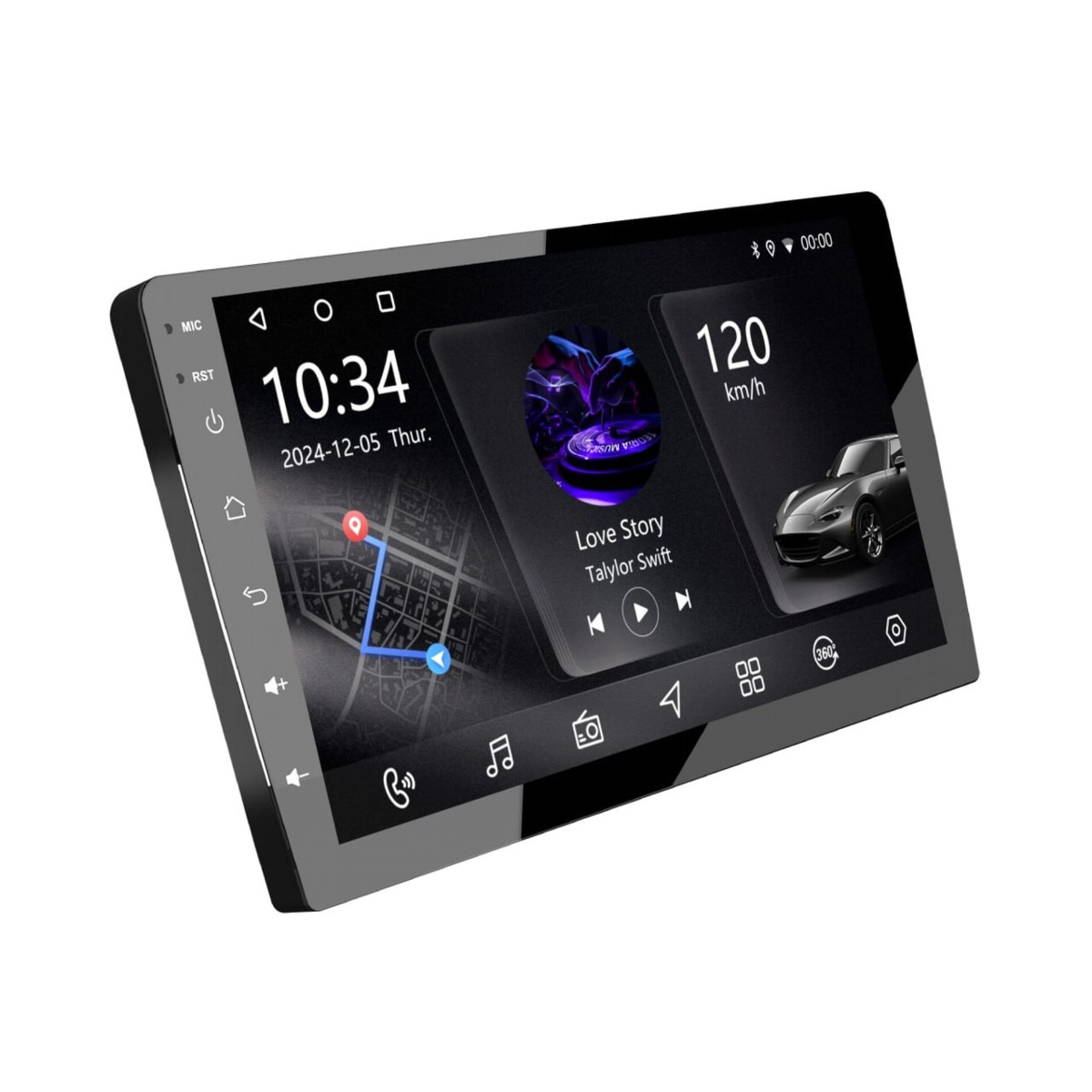

The VenCore 3236-10005-0759B is a complete 9" Android multimedia head unit package designed for Mercedes Sprinter II W906 (2006–2018). It features a 9" IPS capacitive multi-touch display with 1280×720 resolution and a dedicated 9" front bezel for factory-style installation. Powered by Android 15 on...
More
VenCore 3236-10005-0759B - 9" Android 15 PX5S Octa-Core 2GB/32GB IPS Multimedia Head Unit with Bezel, CarPlay, Android Auto and 360° Camera Support for Mercedes Sprinter II W906 2006-2018 - Black
Product Code: 1183798487
Available in 4 - 6 days
219,85 €
or
6,87€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

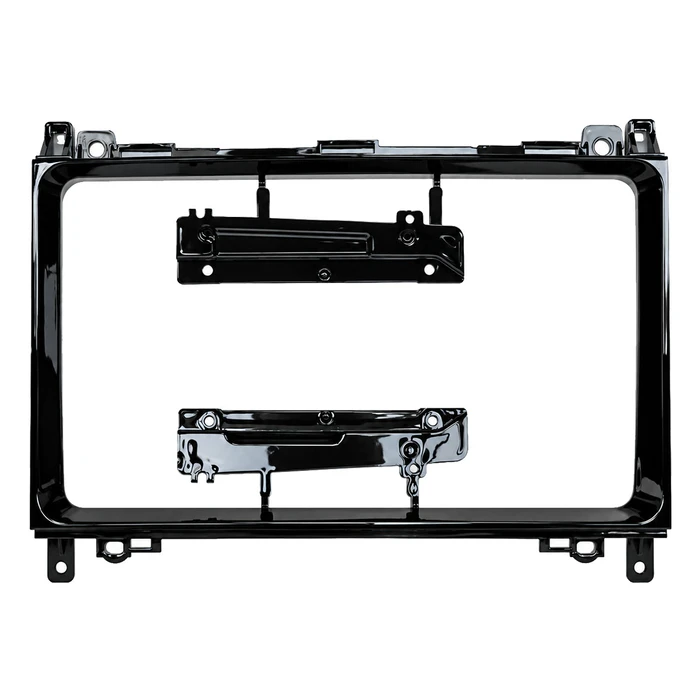

The VenCore 3236-10005-0759B is a complete 9" Android multimedia head unit package designed for Mercedes Sprinter II W906 (2006–2018). It features a 9" IPS capacitive multi-touch display with 1280×720 resolution and a dedicated 9" front bezel for factory-style installation. Powered by Android 15 on a PX5S platform, the unit includes an Octa-Core CPU (8× Cortex‑A55 @ 1.8GHz), 2GB DDR4 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink, Dual‑Band Wi‑Fi (2.4/5GHz) and Bluetooth V2.1+EDR (symbolic support for Bluetooth 5.0) with hands‑free calling and audio streaming. Built‑in GPS with preinstalled map support enables navigation and Google Maps usage. Audio is handled by a YD7388 amplifier (4×50W) with 4×RCA line outs (FL/FR/RL/RR) and a dedicated subwoofer output. The unit supports video playback up to 1080p, FM radio with RDS, and a wide range of audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR). Camera support includes AHD 720p/1080p rear cameras and full 360° camera system compatibility (360° cameras and control module supported but not included). The package includes the 9" head unit, 9" front panel, CANbus box (to retain instrument cluster and steering wheel controls), ISO power cable, USB adapter cable (4P/6P), front RCA output cable (20P), AUX input cable, rear view input & antenna cable (10P), rear RCA output & CANbus cable (8P), GPS antenna and a remote control. Power: 9–14.4V; maximum current 10A. Operating temperature range -20°C to 70°C. Firmware updates via USB. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Color: Black. SKU/MPN: 3236-10005-0759B. EAN: 5212062209597.
-
BrandVenCore
-
Model / SKU3236-10005-0759B
-
EAN5212062209597
-
CompatibilityMercedes Sprinter II W906 (2006-2018)
-
Screen size9"
-
Panel typeIPS
-
Resolution1280×720 pixels
-
Touch typeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetPX5S
-
CPUOcta-Core 8×Cortex-A55 @1.8GHz
-
RAM2GB DDR4
-
Internal Storage32GB
-
Split Screen / Multi-WindowYes
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (symbolic support for Bluetooth 5.0), Hands-Free, A2DP/AVRCP
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSYes (with preinstalled map support, Google Maps supported)
-
Audio amplifierYD7388 (4×50W)
-
RCA Line Out4× (FL / FR / RL / RR)
-
Subwoofer Output1×
-
Video Inputs4×
-
USB Ports2× USB 2.0 (USB charging output 500mA)
-
Microphone Input1×
-
Rear Camera SupportAHD 720p / 1080p
-
360° Camera SupportYes (supports 360° cameras and 360° Control Module; cameras not included)
-
Video playbackUp to 1080p
-
FM RadioYes with RDS
-
Supported Audio FormatsAAC, MP3, WMA, WAV, OGG, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
-
CANbus BoxIncluded (preserves instrument cluster and steering wheel controls)
-
Included AccessoriesMultimedia head unit 9", 9" front panel, CANbus Box, ISO power cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, Remote control
-
Power supply9–14.4V
-
Maximum current10A
-
Operating temperature-20°C to 70°C
-
Weight (set)2500 g
-
Package weight2500 g
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware updateVia USB
-
ColorBlack
Ratings
Description
The VenCore 3236-10005-0759B is a complete 9" Android multimedia head unit package designed for Mercedes Sprinter II W906 (2006–2018). It features a 9" IPS capacitive multi-touch display with 1280×720 resolution and a dedicated 9" front bezel for factory-style installation. Powered by Android 15 on a PX5S platform, the unit includes an Octa-Core CPU (8× Cortex‑A55 @ 1.8GHz), 2GB DDR4 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring / MirrorLink, Dual‑Band Wi‑Fi (2.4/5GHz) and Bluetooth V2.1+EDR (symbolic support for Bluetooth 5.0) with hands‑free calling and audio streaming. Built‑in GPS with preinstalled map support enables navigation and Google Maps usage. Audio is handled by a YD7388 amplifier (4×50W) with 4×RCA line outs (FL/FR/RL/RR) and a dedicated subwoofer output. The unit supports video playback up to 1080p, FM radio with RDS, and a wide range of audio formats (AAC, MP3, WMA, WAV, OGG, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR). Camera support includes AHD 720p/1080p rear cameras and full 360° camera system compatibility (360° cameras and control module supported but not included). The package includes the 9" head unit, 9" front panel, CANbus box (to retain instrument cluster and steering wheel controls), ISO power cable, USB adapter cable (4P/6P), front RCA output cable (20P), AUX input cable, rear view input & antenna cable (10P), rear RCA output & CANbus cable (8P), GPS antenna and a remote control. Power: 9–14.4V; maximum current 10A. Operating temperature range -20°C to 70°C. Firmware updates via USB. Certifications: CE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark. Color: Black. SKU/MPN: 3236-10005-0759B. EAN: 5212062209597.
Technical Specifications
-
BrandVenCore
-
Model / SKU3236-10005-0759B
-
EAN5212062209597
-
CompatibilityMercedes Sprinter II W906 (2006-2018)
-
Screen size9"
-
Panel typeIPS
-
Resolution1280×720 pixels
-
Touch typeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetPX5S
-
CPUOcta-Core 8×Cortex-A55 @1.8GHz
-
RAM2GB DDR4
-
Internal Storage32GB
-
Split Screen / Multi-WindowYes
-
Wi‑FiDual Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (symbolic support for Bluetooth 5.0), Hands-Free, A2DP/AVRCP
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSYes (with preinstalled map support, Google Maps supported)
-
Audio amplifierYD7388 (4×50W)
-
RCA Line Out4× (FL / FR / RL / RR)
-
Subwoofer Output1×
-
Video Inputs4×
-
USB Ports2× USB 2.0 (USB charging output 500mA)
-
Microphone Input1×
-
Rear Camera SupportAHD 720p / 1080p
-
360° Camera SupportYes (supports 360° cameras and 360° Control Module; cameras not included)
-
Video playbackUp to 1080p
-
FM RadioYes with RDS
-
Supported Audio FormatsAAC, MP3, WMA, WAV, OGG, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
-
CANbus BoxIncluded (preserves instrument cluster and steering wheel controls)
-
Included AccessoriesMultimedia head unit 9", 9" front panel, CANbus Box, ISO power cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, Remote control
-
Power supply9–14.4V
-
Maximum current10A
-
Operating temperature-20°C to 70°C
-
Weight (set)2500 g
-
Package weight2500 g
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
Firmware updateVia USB
-
ColorBlack
