The VenCore 3236-10005-0715B is a 9" Android multimedia head unit specifically made for Isuzu D-MAX (2020-2025). It features a 9" IPS capacitive touchscreen (1280×720), runs Android 15 on a PX5S platform with an Octa-Core CPU (8× Cortex-A55 @1.8GHz), 2GB DDR4 RAM and 32GB internal storage....
More

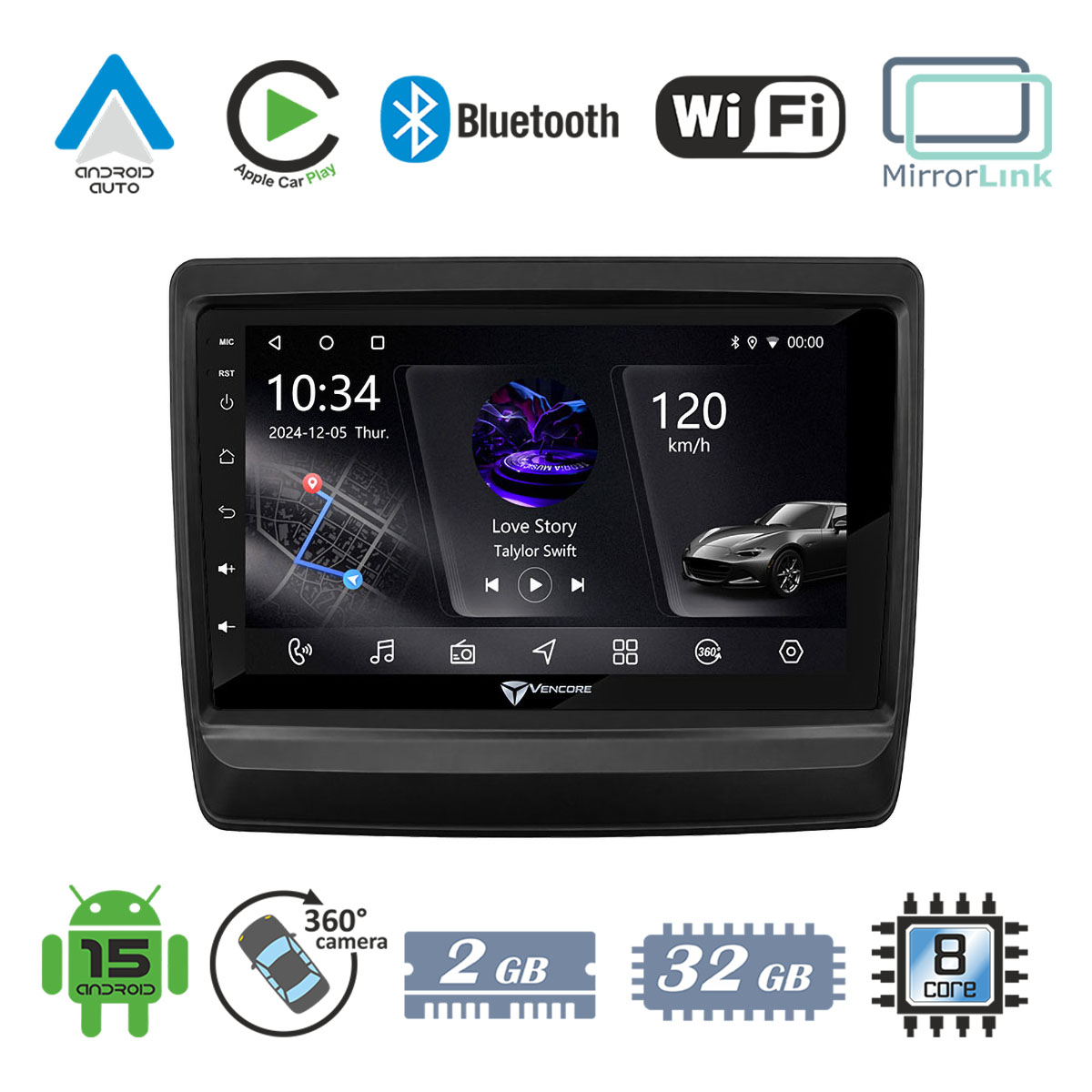

VenCore 3236-10005-0715B - 9" Android 15 PX5S Octa-Core Multimedia Head Unit for Isuzu D-MAX 2020-2025 (2GB/32GB, IPS, CANbus, CarPlay, Android Auto)
Product Code: 1183798365
Available in 4 - 6 days
219,85 €
or
6,87€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The VenCore 3236-10005-0715B is a 9" Android multimedia head unit specifically made for Isuzu D-MAX (2020-2025). It features a 9" IPS capacitive touchscreen (1280×720), runs Android 15 on a PX5S platform with an Octa-Core CPU (8× Cortex-A55 @1.8GHz), 2GB DDR4 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, Dual-Band Wi‑Fi (2.4/5GHz), Bluetooth (V2.1+EDR compatible with Bluetooth 5.0) with hands-free and audio streaming. Built-in GPS with external antenna (European maps/GPS navigation via Google Maps). Audio uses YD7388 amplifier (4×50W), RCA preouts (FL/FR/RL/RR), subwoofer output, 4 video inputs, support for AHD 720p/1080p rear cameras and full 360° camera system with control module. Includes CANbus box (for steering wheel controls and vehicle integration), installation cables (ISO power, USB adapters, RCA, AUX, GPS antenna) and mounting hardware. Power input 9–14.4V, fuse 10A, operating temperature range -20°C to 70°C. Firmware updates via USB.
-
BrandVenCore
-
Model3236-10005-0715B
-
SKU3236-10005-0715B
-
EAN5212062209269
-
Vehicle FitmentIsuzu D-MAX
-
Fitment Years2020-2025
-
ColorBlack
-
Screen Size9"
-
Panel TypeIPS
-
Resolution1280 × 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetPX5S
-
CPUOcta-Core (8 × Cortex-A55) 1.8GHz
-
RAM2GB DDR4
-
Internal Storage32GB
-
Fast Boot / Sleep ModeYes
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
Wi-FiDual Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (compatible with Bluetooth 5.0)
-
Hands-Free CallingYes
-
Bluetooth Audio StreamingYes
-
GPSBuilt-in (external GPS antenna included) - supports Google Maps
-
Audio AmplifierYD7388, 4 × 50W
-
RCA Line Out4 × (FL / FR / RL / RR)
-
Subwoofer Output1 ×
-
Video Output1080p video playback
-
Video Inputs4 × video inputs
-
Rear Camera SupportAHD 720p / 1080p
-
360° Camera SupportYes (supports 360° camera set)
-
360° Control ModuleSupported
-
Microphone Input1 ×
-
USB Ports2 × USB 2.0
-
USB Charging Output500 mA
-
FM RadioYes with RDS
-
FM/AM Memory PresetsFM 18 / AM 12 (as listed)
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, AU, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
-
Power Supply Voltage9 - 14.4 V
-
Fuse / Max Current10 A
-
Operating Temperature-20°C to 70°C
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
CANbus BoxIncluded (supports steering wheel controls and vehicle signals)
-

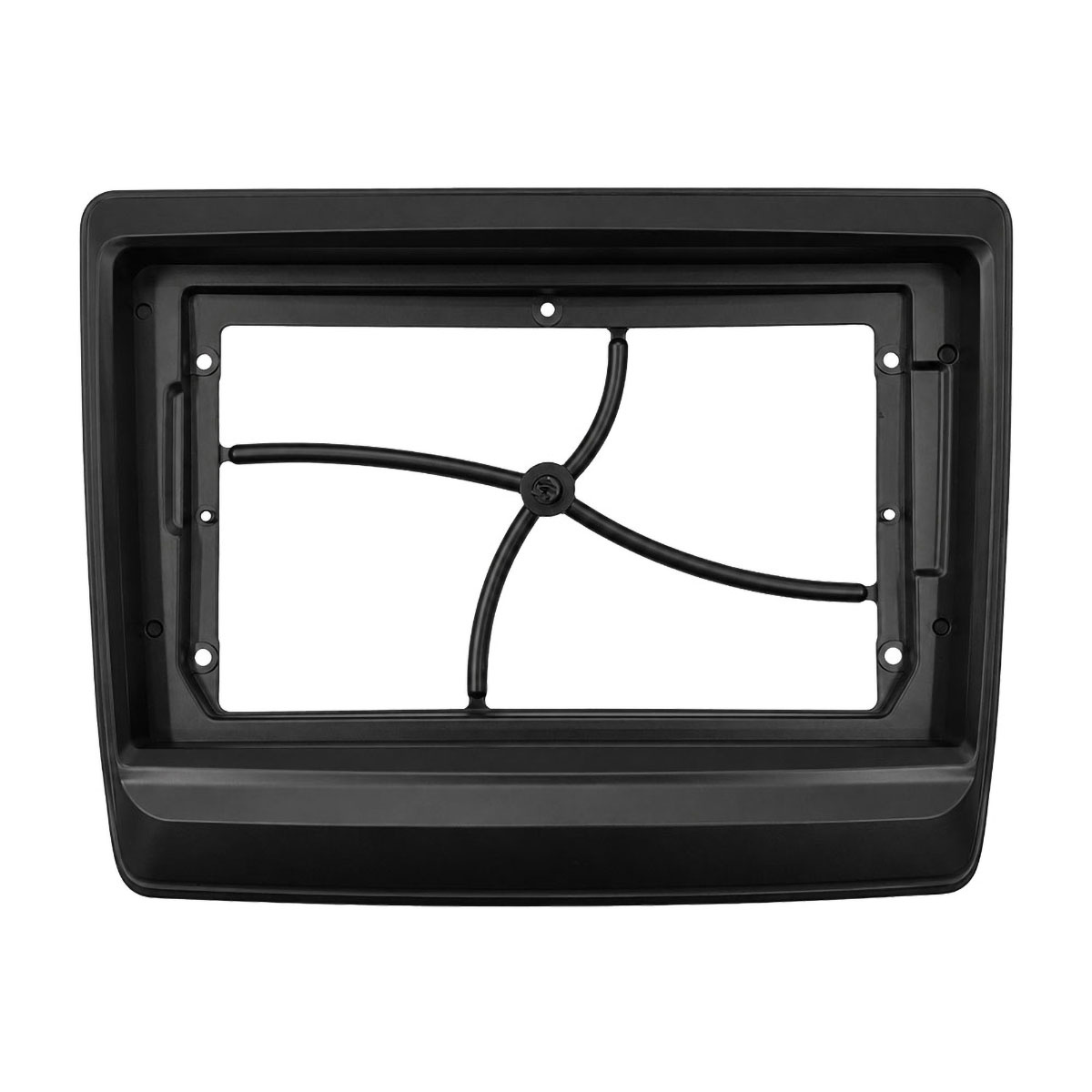

Installation Kit Included9" front panel for Isuzu D-MAX, CANbus box, power cable ISO, USB adapter cables (4P/6P), front RCA output cable 20P, AUX input cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Firmware UpdateVia USB
-
Package Weight2500 g
Ratings
Description
The VenCore 3236-10005-0715B is a 9" Android multimedia head unit specifically made for Isuzu D-MAX (2020-2025). It features a 9" IPS capacitive touchscreen (1280×720), runs Android 15 on a PX5S platform with an Octa-Core CPU (8× Cortex-A55 @1.8GHz), 2GB DDR4 RAM and 32GB internal storage. Connectivity includes Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, Dual-Band Wi‑Fi (2.4/5GHz), Bluetooth (V2.1+EDR compatible with Bluetooth 5.0) with hands-free and audio streaming. Built-in GPS with external antenna (European maps/GPS navigation via Google Maps). Audio uses YD7388 amplifier (4×50W), RCA preouts (FL/FR/RL/RR), subwoofer output, 4 video inputs, support for AHD 720p/1080p rear cameras and full 360° camera system with control module. Includes CANbus box (for steering wheel controls and vehicle integration), installation cables (ISO power, USB adapters, RCA, AUX, GPS antenna) and mounting hardware. Power input 9–14.4V, fuse 10A, operating temperature range -20°C to 70°C. Firmware updates via USB.
Technical Specifications
-
BrandVenCore
-
Model3236-10005-0715B
-
SKU3236-10005-0715B
-
EAN5212062209269
-
Vehicle FitmentIsuzu D-MAX
-
Fitment Years2020-2025
-
ColorBlack
-
Screen Size9"
-
Panel TypeIPS
-
Resolution1280 × 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
ChipsetPX5S
-
CPUOcta-Core (8 × Cortex-A55) 1.8GHz
-
RAM2GB DDR4
-
Internal Storage32GB
-
Fast Boot / Sleep ModeYes
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
Wi-FiDual Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (compatible with Bluetooth 5.0)
-
Hands-Free CallingYes
-
Bluetooth Audio StreamingYes
-
GPSBuilt-in (external GPS antenna included) - supports Google Maps
-
Audio AmplifierYD7388, 4 × 50W
-
RCA Line Out4 × (FL / FR / RL / RR)
-
Subwoofer Output1 ×
-
Video Output1080p video playback
-
Video Inputs4 × video inputs
-
Rear Camera SupportAHD 720p / 1080p
-
360° Camera SupportYes (supports 360° camera set)
-
360° Control ModuleSupported
-
Microphone Input1 ×
-
USB Ports2 × USB 2.0
-
USB Charging Output500 mA
-
FM RadioYes with RDS
-
FM/AM Memory PresetsFM 18 / AM 12 (as listed)
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, AU, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
-
Power Supply Voltage9 - 14.4 V
-
Fuse / Max Current10 A
-
Operating Temperature-20°C to 70°C
-
CertificationsCE, RoHS, CE-EMC, CE-RED, FCC, E-mark
-
CANbus BoxIncluded (supports steering wheel controls and vehicle signals)
-
Installation Kit Included9" front panel for Isuzu D-MAX, CANbus box, power cable ISO, USB adapter cables (4P/6P), front RCA output cable 20P, AUX input cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Firmware UpdateVia USB
-
Package Weight2500 g
