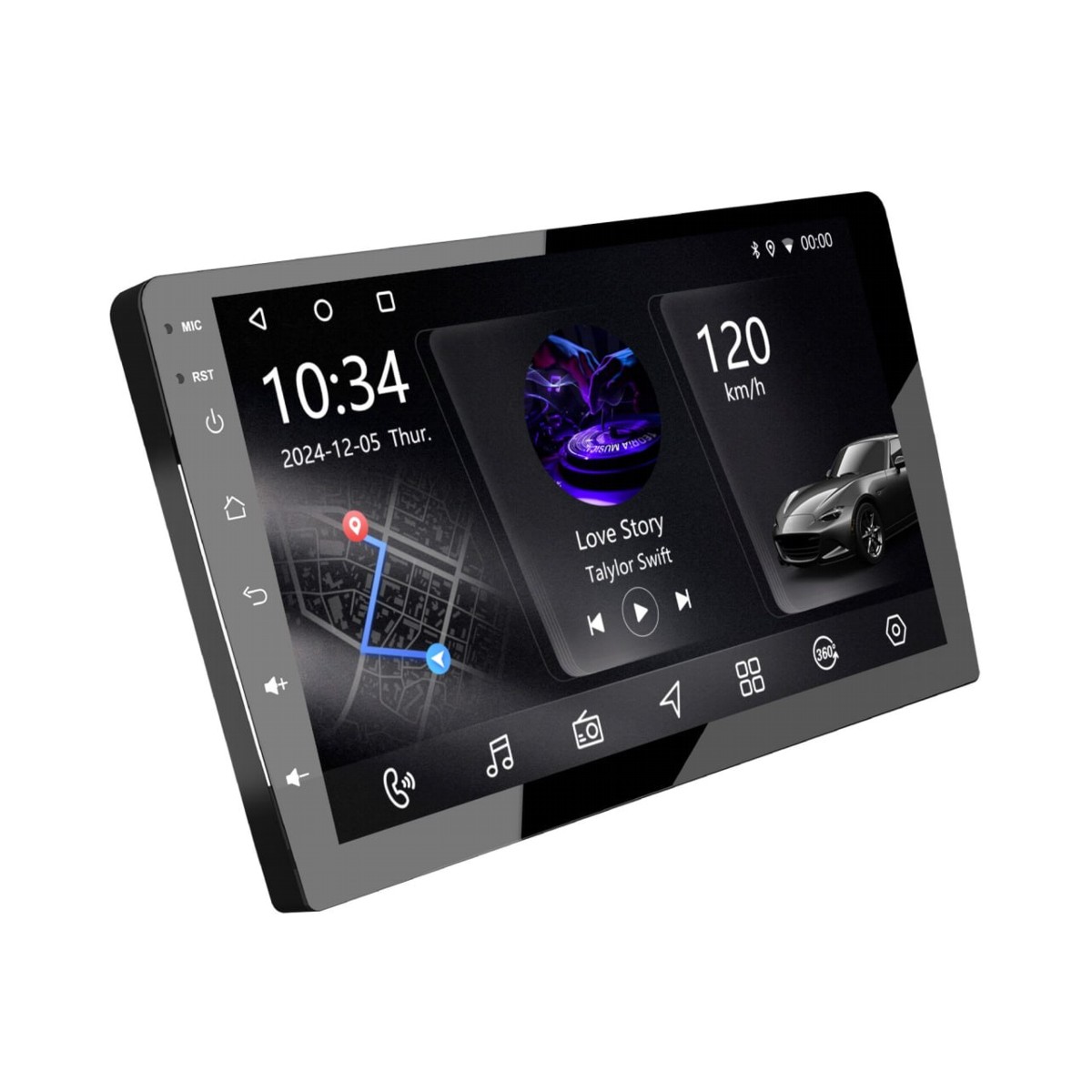

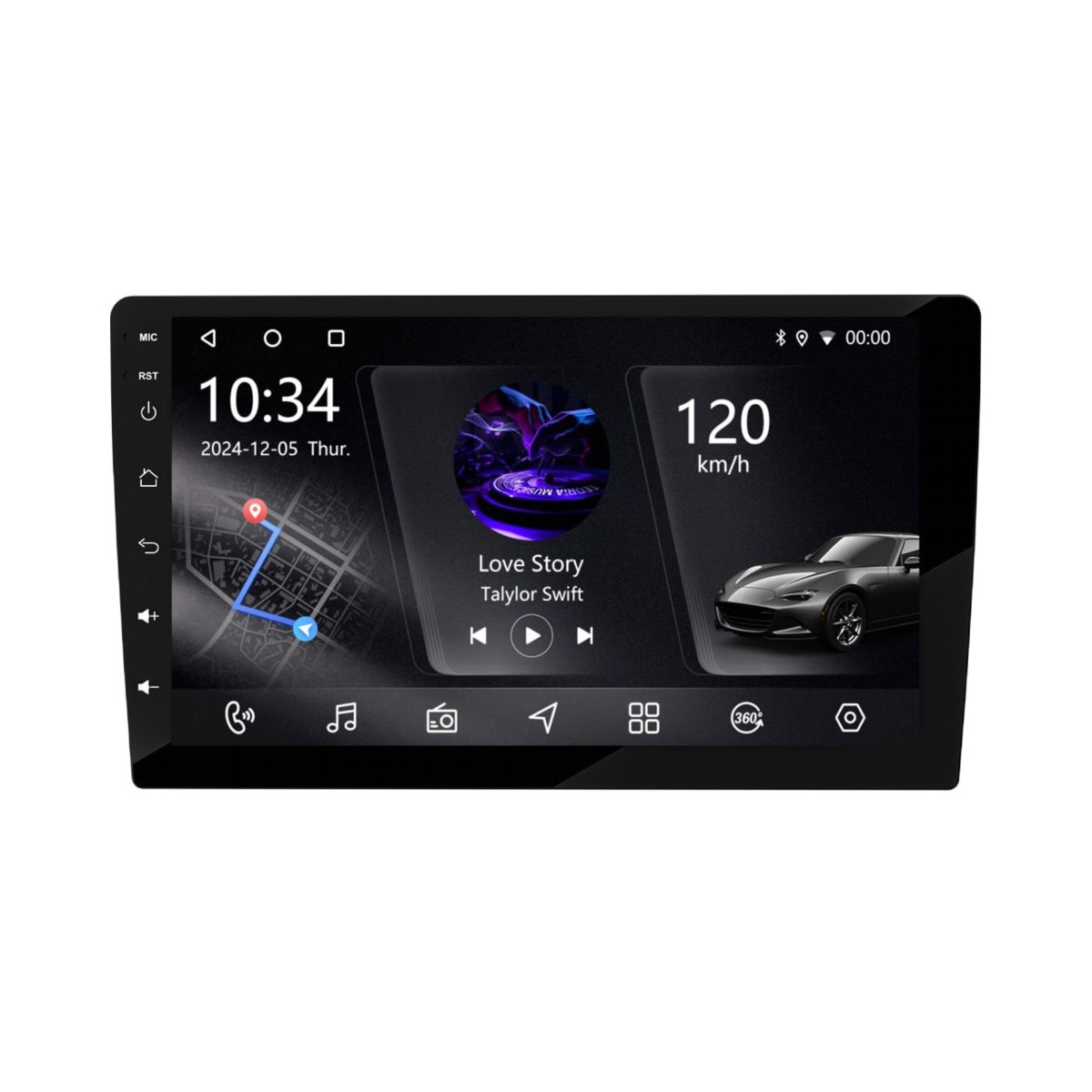

Aftermarket multimedia head unit designed for Peugeot 207 (2007–2012) featuring a 9" IPS capacitive touchscreen (1280×720) running Android 15. Powered by PX5S Octa‑Core (8× Cortex‑A55 @1.8GHz) with 2GB DDR4 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, MirrorLink/screen...
More

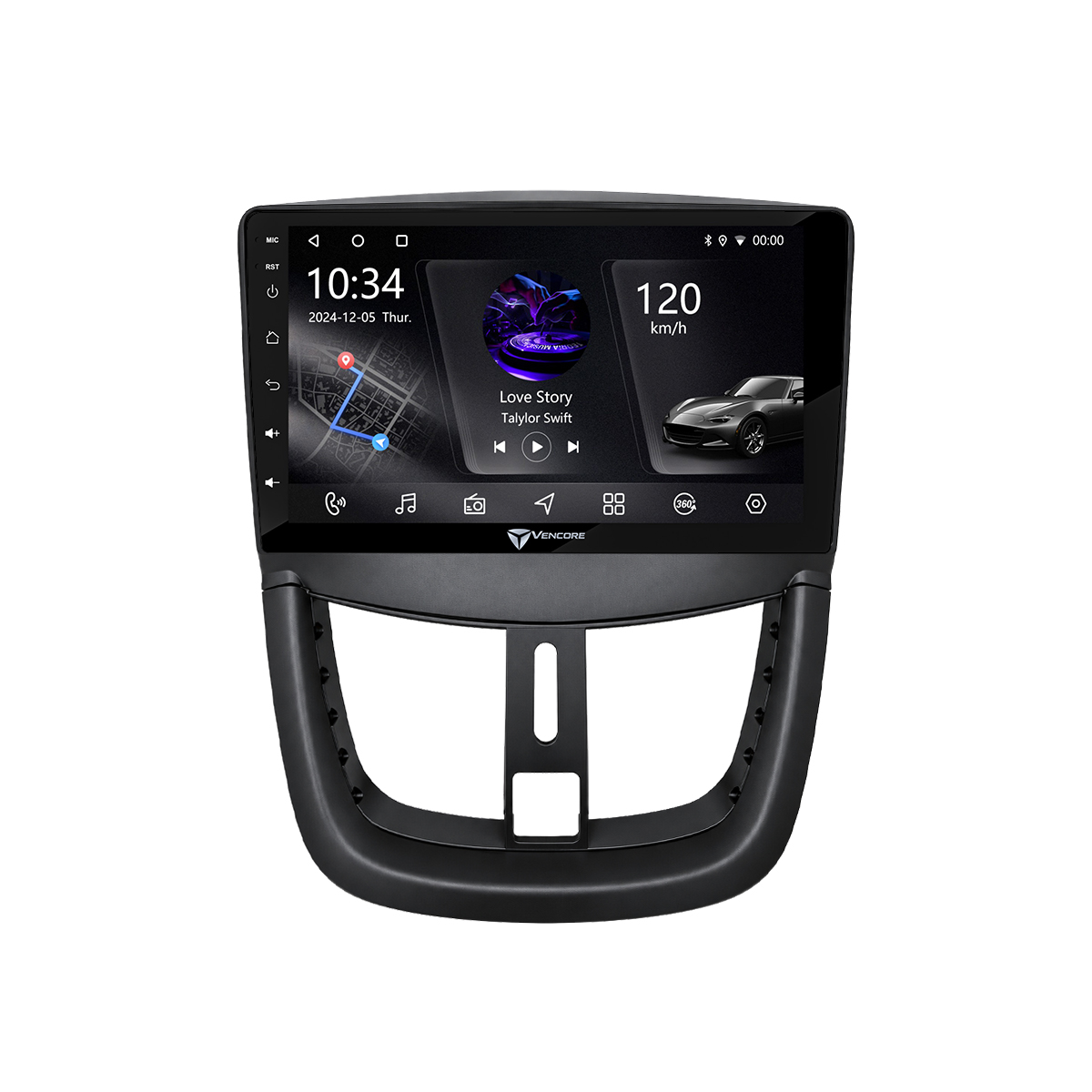

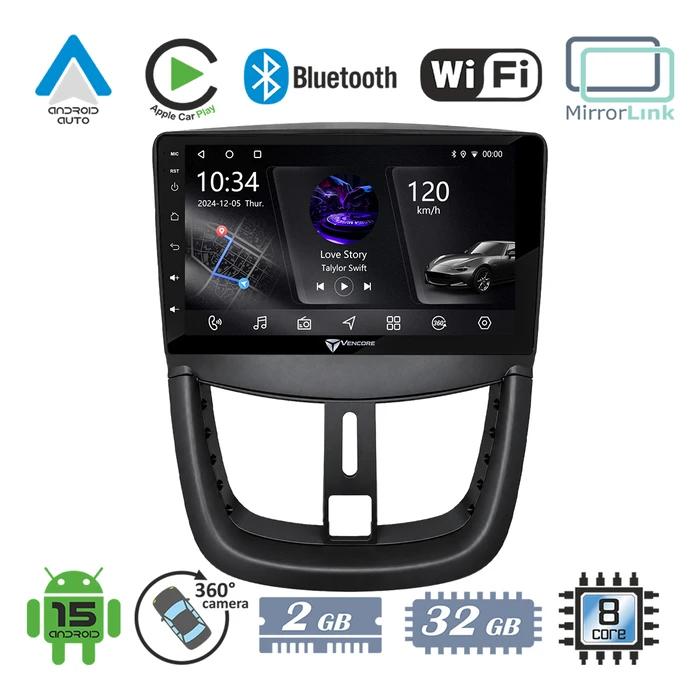

VenCore 3236-10005-0688B - 9" Android 15 PX5S Octa‑Core 2GB/32GB IPS Multimedia Head Unit with Front Panel, CarPlay, Android Auto, 360° Camera Support for Peugeot 207 (2007-2012) - Black
Product Code: 1183798263
Available in 4 - 6 days
219,85 €
or
6,87€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Aftermarket multimedia head unit designed for Peugeot 207 (2007–2012) featuring a 9" IPS capacitive touchscreen (1280×720) running Android 15. Powered by PX5S Octa‑Core (8× Cortex‑A55 @1.8GHz) with 2GB DDR4 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, MirrorLink/screen mirroring, Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth hands‑free and audio streaming. Built‑in GPS with included antenna, YD7388 amplifier (4×50W), 4× RCA outputs, subwoofer out, multiple video inputs, AHD rear camera support (720p/1080p) and optional 360° camera system support. CANbus box included for steering wheel control and vehicle integration. Firmware updates via USB.
-
BrandVenCore
-
Model / Part Number3236-10005-0688B
-
Compatible VehiclePeugeot 207
-
Vehicle Years2007-2012
-
Screen Size9"
-
Panel TypeIPS
-
Screen Resolution1280 × 720 pixels
-
Touch TypeCapacitive Multi‑Touch
-
Operating SystemAndroid 15
-
ChipsetPX5S
-
CPUOcta‑Core (8 × Cortex‑A55) @1.8GHz
-
RAM2GB DDR4
-
Internal Storage32GB
-
Split Screen / Multi‑WindowYes
-
Wi‑FiDual‑Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (symbol with Bluetooth 5.0 compatible)
-
Hands‑FreeYes
-
Bluetooth Audio Streaming (A2DP/AVRCP)Yes
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt‑in GPS (antenna included), Google Maps compatible
-
Navigation Menu LanguageGreek available
-
Amplifier (included)YD7388
-
Amplifier Power Rating4 × 50W
-
RCA Line Out4 × (FL / FR / RL / RR)
-
Subwoofer Output1 ×
-
Video Inputs4 ×
-
Rear Camera InputAHD 720p / 1080p supported
-
360° Camera SupportYes (supports 360° cameras and 360° control module)
-
Video Playback Max Resolution1080p
-
FM RadioYes (FM with RDS)
-
Preset StationsFM 18 / AM 12
-
USB Ports2 × USB 2.0
-
USB Charging Output500mA
-
Microphone Input1 ×
-
AUX InputYes
-
Radio Antenna AdapterIncluded
-
CANbus BoxIncluded (retains steering wheel controls and vehicle info)
-

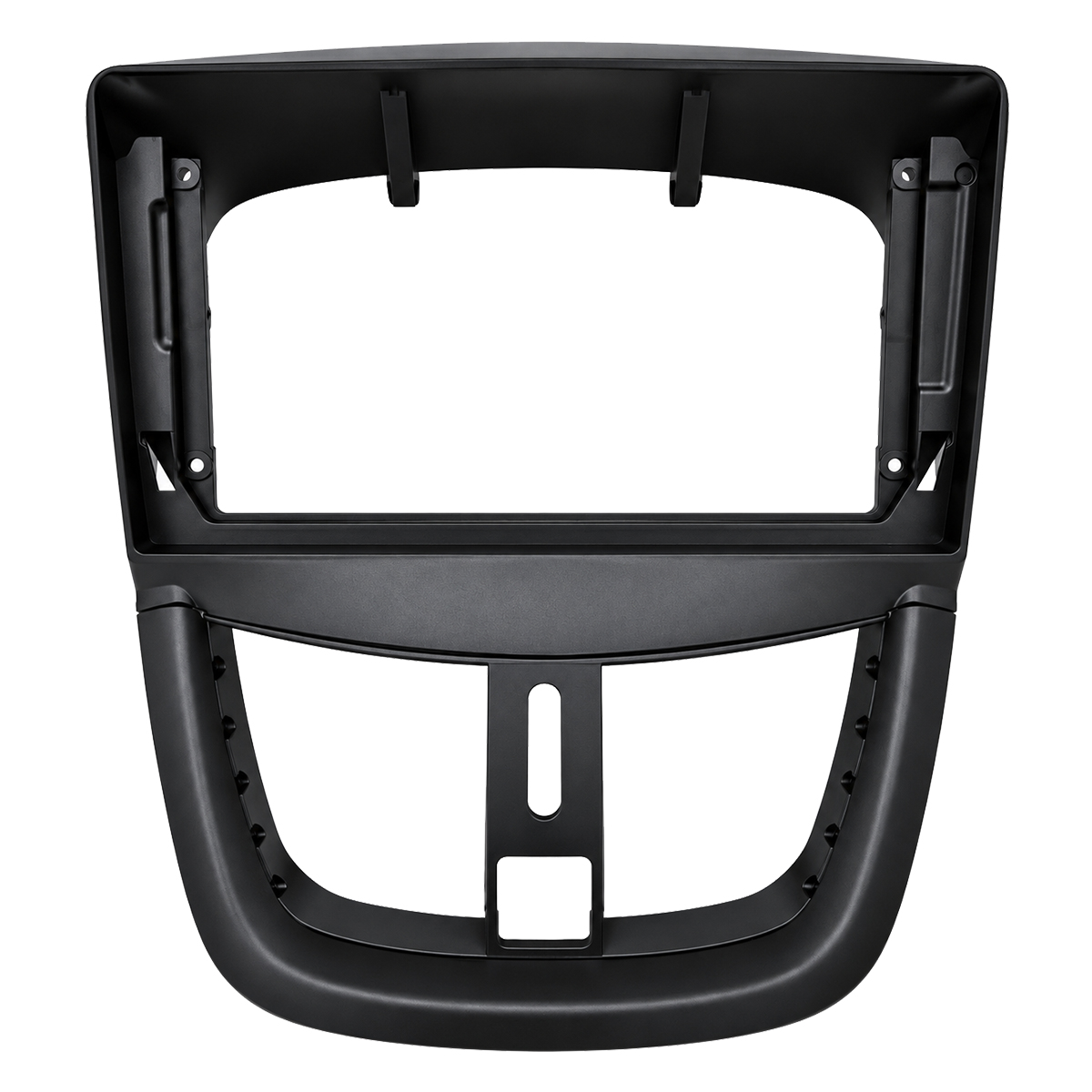

Front Panel9" front panel for Peugeot 207 (model specific trim 3550-0688B compatibility)
-
Power Supply Voltage9–14.4V
-
Max Current / Fuse Rating10A
-
Operating Temperature Range-20°C to 70°C
-
Firmware UpdateVia USB
-
CertificationsCE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark
-
Package ContentsMultimedia Head Unit 9", 9" front panel for Peugeot 207 2007-2012, CANbus Box, calibration/front harness, 6‑pin multimedia connector, power ISO cable, USB adapter cable 4P/6P, front RCA output cable 20P, AUX input cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Set Weight (packaged)2.50 kg
Ratings
Description
Aftermarket multimedia head unit designed for Peugeot 207 (2007–2012) featuring a 9" IPS capacitive touchscreen (1280×720) running Android 15. Powered by PX5S Octa‑Core (8× Cortex‑A55 @1.8GHz) with 2GB DDR4 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, MirrorLink/screen mirroring, Dual‑Band Wi‑Fi (2.4/5GHz), Bluetooth hands‑free and audio streaming. Built‑in GPS with included antenna, YD7388 amplifier (4×50W), 4× RCA outputs, subwoofer out, multiple video inputs, AHD rear camera support (720p/1080p) and optional 360° camera system support. CANbus box included for steering wheel control and vehicle integration. Firmware updates via USB.
Technical Specifications
-
BrandVenCore
-
Model / Part Number3236-10005-0688B
-
Compatible VehiclePeugeot 207
-
Vehicle Years2007-2012
-
Screen Size9"
-
Panel TypeIPS
-
Screen Resolution1280 × 720 pixels
-
Touch TypeCapacitive Multi‑Touch
-
Operating SystemAndroid 15
-
ChipsetPX5S
-
CPUOcta‑Core (8 × Cortex‑A55) @1.8GHz
-
RAM2GB DDR4
-
Internal Storage32GB
-
Split Screen / Multi‑WindowYes
-
Wi‑FiDual‑Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (symbol with Bluetooth 5.0 compatible)
-
Hands‑FreeYes
-
Bluetooth Audio Streaming (A2DP/AVRCP)Yes
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt‑in GPS (antenna included), Google Maps compatible
-
Navigation Menu LanguageGreek available
-
Amplifier (included)YD7388
-
Amplifier Power Rating4 × 50W
-
RCA Line Out4 × (FL / FR / RL / RR)
-
Subwoofer Output1 ×
-
Video Inputs4 ×
-
Rear Camera InputAHD 720p / 1080p supported
-
360° Camera SupportYes (supports 360° cameras and 360° control module)
-
Video Playback Max Resolution1080p
-
FM RadioYes (FM with RDS)
-
Preset StationsFM 18 / AM 12
-
USB Ports2 × USB 2.0
-
USB Charging Output500mA
-
Microphone Input1 ×
-
AUX InputYes
-
Radio Antenna AdapterIncluded
-
CANbus BoxIncluded (retains steering wheel controls and vehicle info)
-
Front Panel9" front panel for Peugeot 207 (model specific trim 3550-0688B compatibility)
-
Power Supply Voltage9–14.4V
-
Max Current / Fuse Rating10A
-
Operating Temperature Range-20°C to 70°C
-
Firmware UpdateVia USB
-
CertificationsCE, RoHS, CE‑EMC, CE‑RED, FCC, E‑mark
-
Package ContentsMultimedia Head Unit 9", 9" front panel for Peugeot 207 2007-2012, CANbus Box, calibration/front harness, 6‑pin multimedia connector, power ISO cable, USB adapter cable 4P/6P, front RCA output cable 20P, AUX input cable, rear view input & antenna cable 10P, rear RCA output & CANbus cable 8P, GPS antenna, screws
-
Set Weight (packaged)2.50 kg
