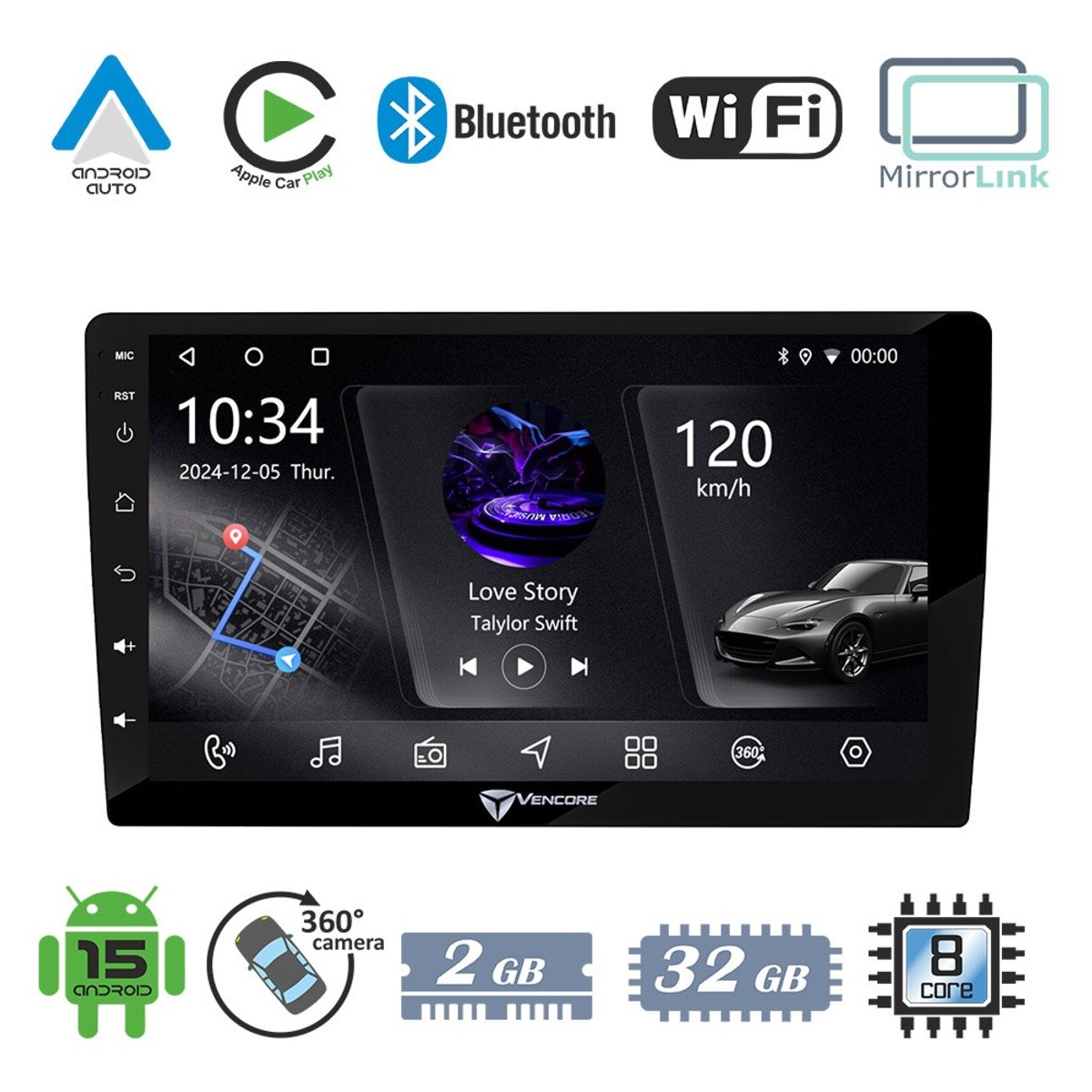

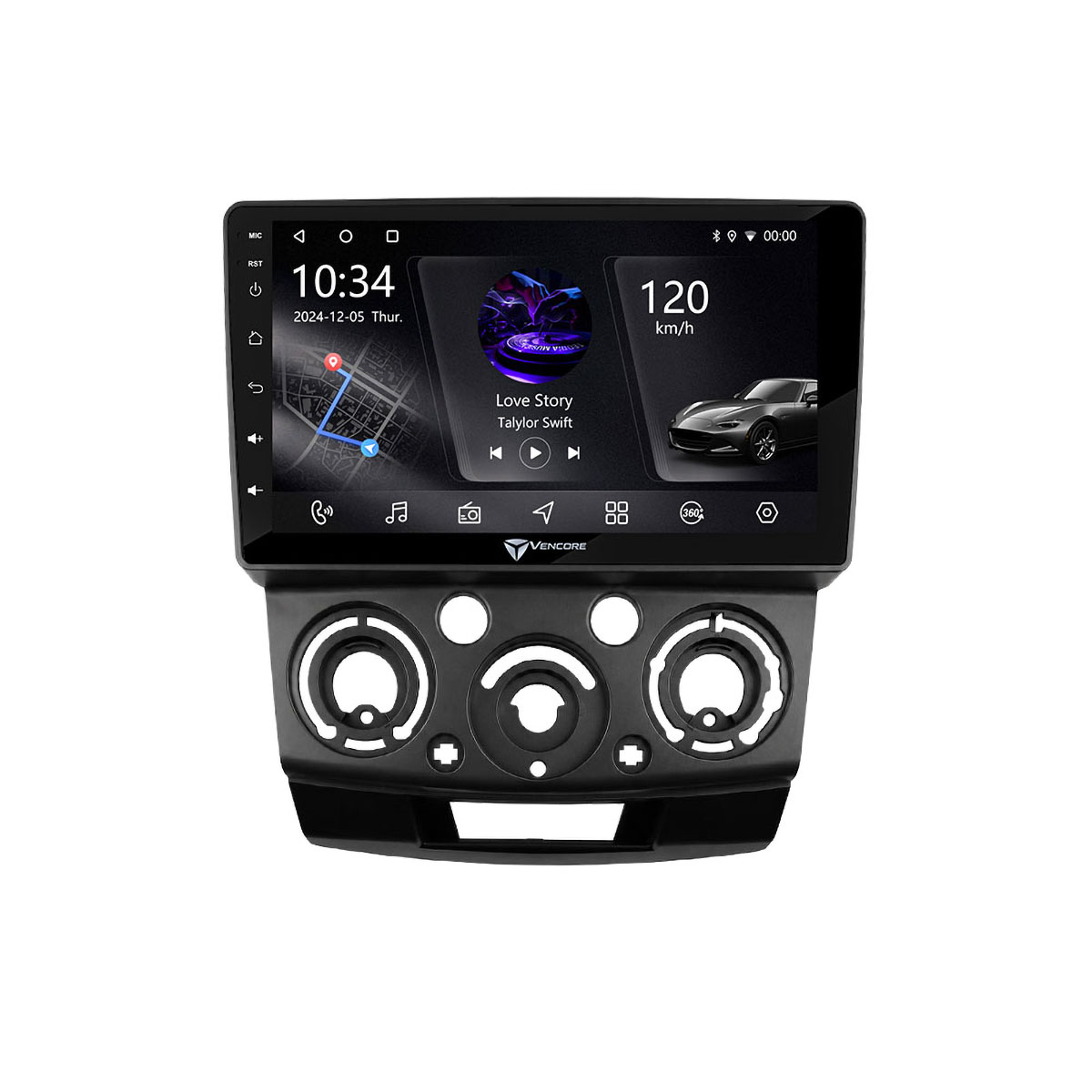

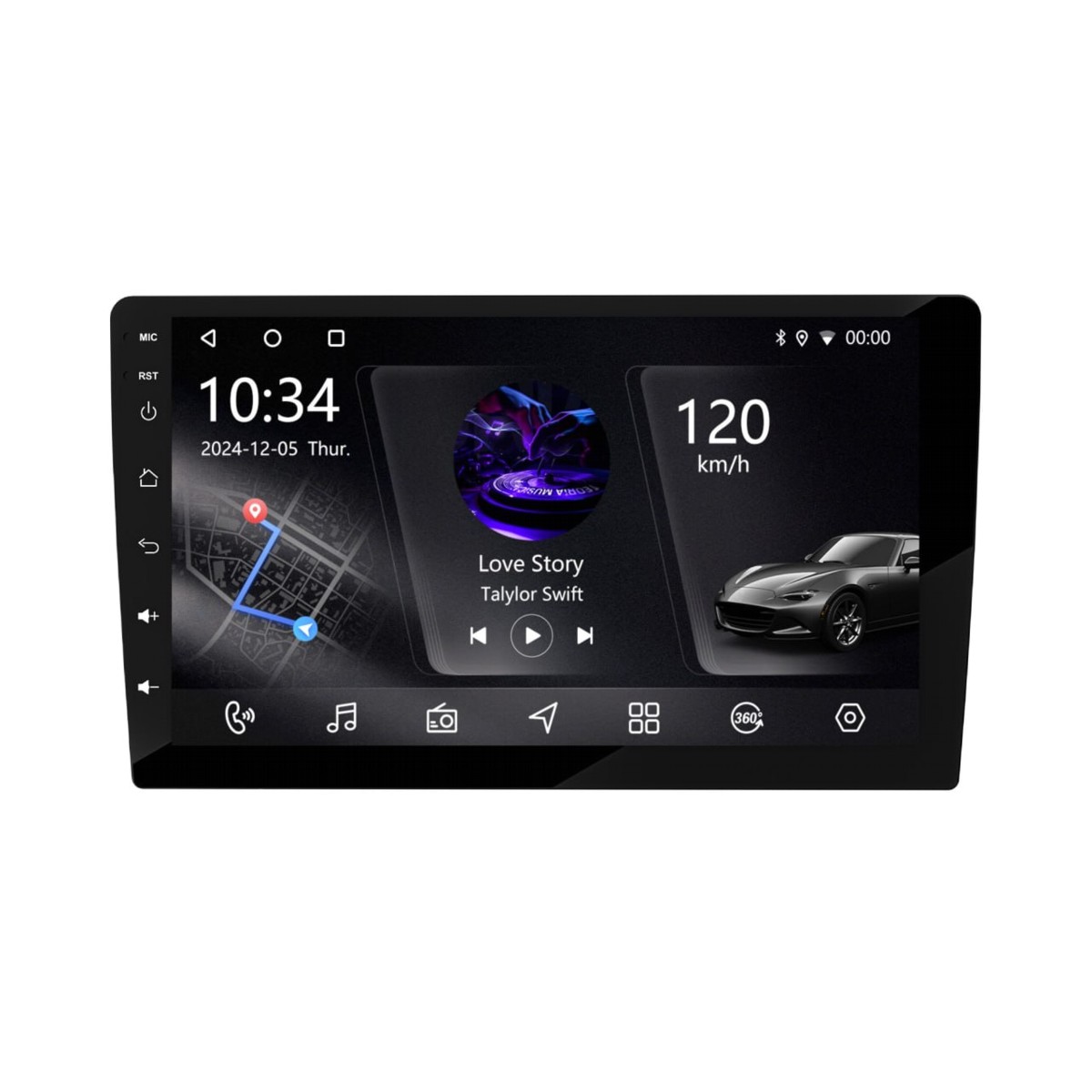

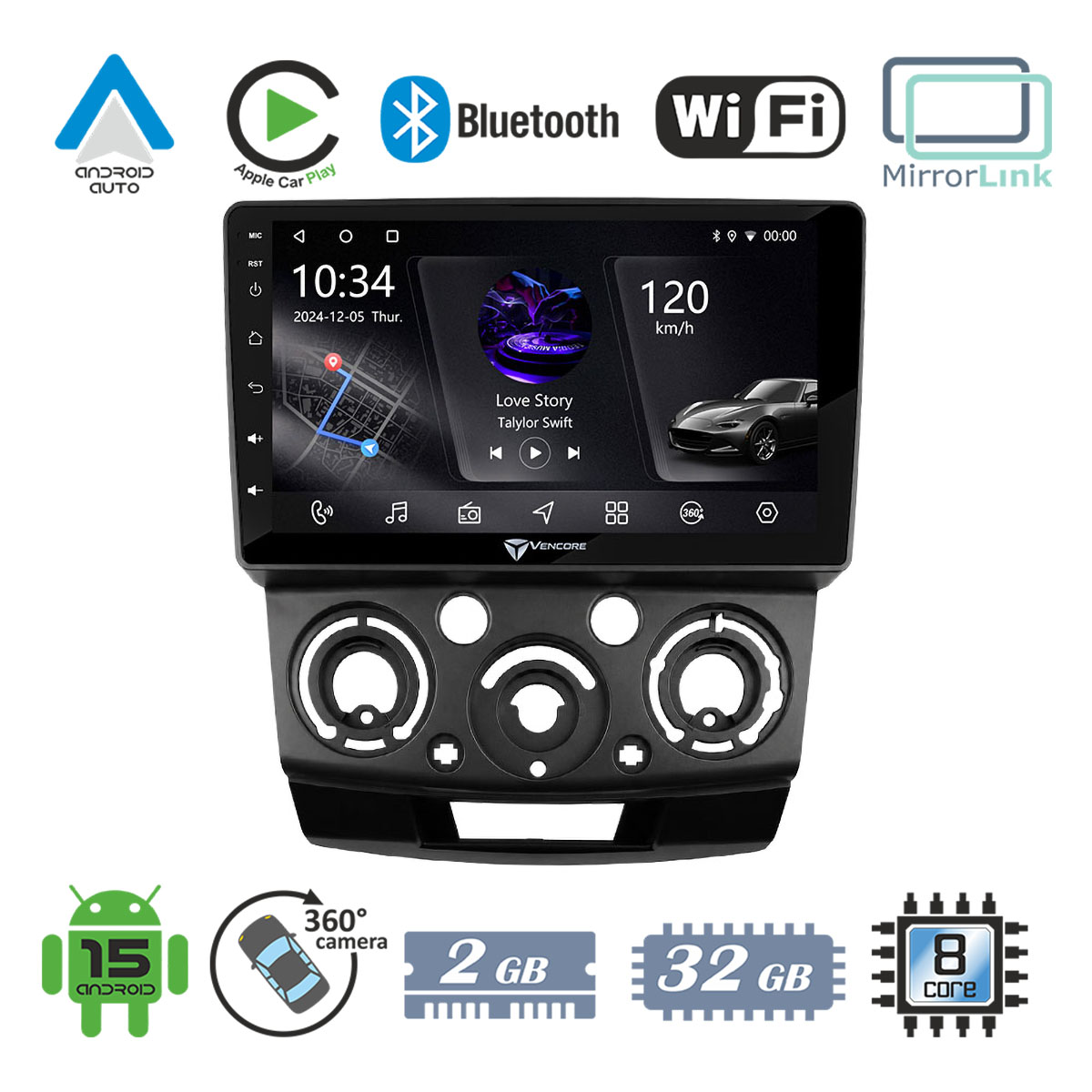

Aftermarket VenCore 3236-10005-0687B 9" multimedia Android head unit designed for Ford Ranger (2007-2012). IPS capacitive touchscreen (1280x720) running Android 15 on PX5S Octa-Core (8x Cortex-A55 @ 1.8GHz) with 2GB DDR4 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, Screen...
More
VenCore 3236-10005-0687B - 9" Android 15 PX5S Octa-Core 2GB/32GB IPS Multimedia Head Unit for Ford Ranger 2007-2012 - Black
Product Code: 1183798464
Available in 4 - 6 days
219,85 €
or
6,87€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Aftermarket VenCore 3236-10005-0687B 9" multimedia Android head unit designed for Ford Ranger (2007-2012). IPS capacitive touchscreen (1280x720) running Android 15 on PX5S Octa-Core (8x Cortex-A55 @ 1.8GHz) with 2GB DDR4 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, dual-band Wi‑Fi (2.4/5GHz), Bluetooth (legacy + compatible with Bluetooth 5.0), hands-free calling and audio streaming. Built-in GPS with external GPS antenna, integrated audio amplifier YD7388 (4x50W), RCA line outputs (FL/FR/RL/RR) and subwoofer out, 4 video inputs, rear camera AHD 720p/1080p support and 360° camera system compatibility including 360° control module. Includes CANbus box for steering wheel control and vehicle integration, ISO power cable, USB & adapter cables, GPS antenna and mounting hardware. Certifications: CE, RoHS, CE-EMC, CE-RED, FCC, E‑mark. Firmware updates via USB.
-
BrandVenCore
-
Model / SKU3236-10005-0687B
-
Product Type9" Multimedia Android Head Unit
-
Compatible VehicleFord Ranger
-
Compatible Years2007, 2008, 2009, 2010, 2011, 2012
-
Screen Size9 inches
-
Screen PanelIPS
-
Screen Resolution1280 x 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
CPU / ChipsetPX5S Octa-Core (8 x Cortex-A55)
-
CPU Frequency1.8 GHz (per core)
-
RAM2GB DDR4
-
Internal Storage32GB
-
Fast Boot / Sleep ModeYes
-
Video Playback Max1080p
-
Wi-FiDual Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (compatible with Bluetooth 5.0)
-
Hands-Free CallingYes
-
Bluetooth Audio StreamingYes (A2DP/AVRCP support)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt-in GPS with external GPS antenna (preinstalled navigation maps support)
-
MapsGoogle Maps supported
-
Audio AmplifierYD7388 integrated
-
Speaker Output Power4 x 50W
-
RCA Line Out4 x (FL / FR / RL / RR)
-
Subwoofer Output1 x Subwoofer out
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, AU, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
-
FM RadioYes (with RDS)
-
FM Stations MemoryFM 18 / AM 12
-
AM RadioYes (priority)
-
Rear Camera InputAHD 720p / 1080p supported
-
360° Camera SupportYes (supports 360° camera system and 360° control module)
-
Video Inputs4 x video inputs
-
USB Ports2 x USB 2.0
-
USB Charging Output500 mA
-
Microphone Input1 x
-
Radio Antenna AdapterNot required (included compatibility)
-
CANbus BoxIncluded (for steering wheel control & vehicle signals)
-

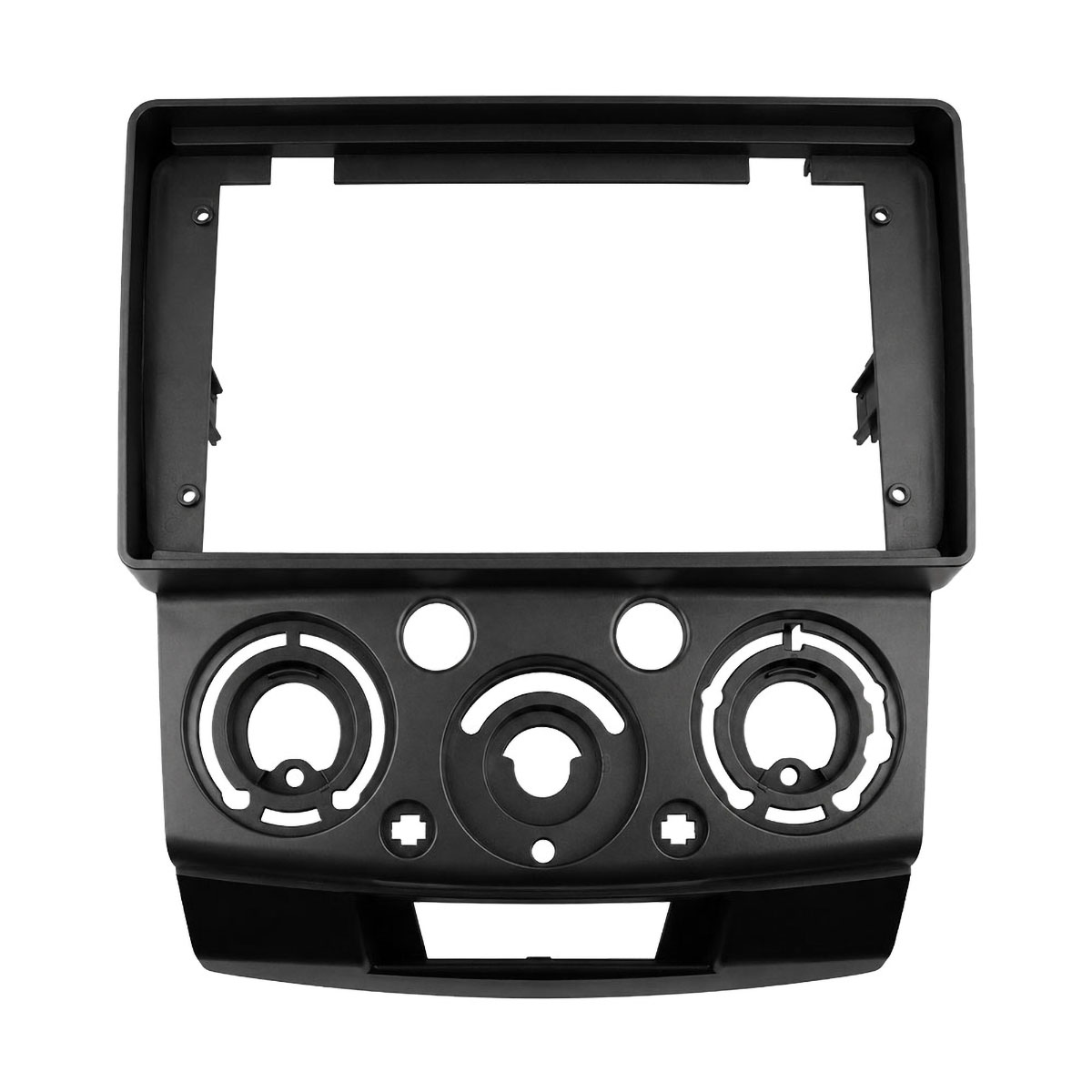

Front Panel IncludedYes (9" front fascia for Ford Ranger 2007-2012, part fit)
-
Power Supply Voltage9 - 14.4 V
-
Fuse / Max Current10 A
-
Operating Temperature Range-20°C to 70°C
-
Package Weight2.50 kg (set)
-
Package ContentsMultimedia Head Unit 9", 9" front fascia for Ford Ranger, CANbus Box, 6-pin multimedia harness, ISO power cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
Ratings
Description
Aftermarket VenCore 3236-10005-0687B 9" multimedia Android head unit designed for Ford Ranger (2007-2012). IPS capacitive touchscreen (1280x720) running Android 15 on PX5S Octa-Core (8x Cortex-A55 @ 1.8GHz) with 2GB DDR4 RAM and 32GB internal storage. Supports Apple CarPlay, Android Auto, Screen Mirroring/MirrorLink, dual-band Wi‑Fi (2.4/5GHz), Bluetooth (legacy + compatible with Bluetooth 5.0), hands-free calling and audio streaming. Built-in GPS with external GPS antenna, integrated audio amplifier YD7388 (4x50W), RCA line outputs (FL/FR/RL/RR) and subwoofer out, 4 video inputs, rear camera AHD 720p/1080p support and 360° camera system compatibility including 360° control module. Includes CANbus box for steering wheel control and vehicle integration, ISO power cable, USB & adapter cables, GPS antenna and mounting hardware. Certifications: CE, RoHS, CE-EMC, CE-RED, FCC, E‑mark. Firmware updates via USB.
Technical Specifications
-
BrandVenCore
-
Model / SKU3236-10005-0687B
-
Product Type9" Multimedia Android Head Unit
-
Compatible VehicleFord Ranger
-
Compatible Years2007, 2008, 2009, 2010, 2011, 2012
-
Screen Size9 inches
-
Screen PanelIPS
-
Screen Resolution1280 x 720 pixels
-
Touch TypeCapacitive Multi-Touch
-
Operating SystemAndroid 15
-
CPU / ChipsetPX5S Octa-Core (8 x Cortex-A55)
-
CPU Frequency1.8 GHz (per core)
-
RAM2GB DDR4
-
Internal Storage32GB
-
Fast Boot / Sleep ModeYes
-
Video Playback Max1080p
-
Wi-FiDual Band 2.4GHz / 5GHz
-
BluetoothV2.1+EDR (compatible with Bluetooth 5.0)
-
Hands-Free CallingYes
-
Bluetooth Audio StreamingYes (A2DP/AVRCP support)
-
Apple CarPlayYes
-
Android AutoYes
-
Screen Mirroring / MirrorLinkYes
-
GPSBuilt-in GPS with external GPS antenna (preinstalled navigation maps support)
-
MapsGoogle Maps supported
-
Audio AmplifierYD7388 integrated
-
Speaker Output Power4 x 50W
-
RCA Line Out4 x (FL / FR / RL / RR)
-
Subwoofer Output1 x Subwoofer out
-
Audio Formats SupportedAAC, MP3, WMA, WAV, OGG, AU, FLAC, M4A, M4R, MKA, MP2, APE, AIFF, AC3, AMR
-
FM RadioYes (with RDS)
-
FM Stations MemoryFM 18 / AM 12
-
AM RadioYes (priority)
-
Rear Camera InputAHD 720p / 1080p supported
-
360° Camera SupportYes (supports 360° camera system and 360° control module)
-
Video Inputs4 x video inputs
-
USB Ports2 x USB 2.0
-
USB Charging Output500 mA
-
Microphone Input1 x
-
Radio Antenna AdapterNot required (included compatibility)
-
CANbus BoxIncluded (for steering wheel control & vehicle signals)
-
Front Panel IncludedYes (9" front fascia for Ford Ranger 2007-2012, part fit)
-
Power Supply Voltage9 - 14.4 V
-
Fuse / Max Current10 A
-
Operating Temperature Range-20°C to 70°C
-
Package Weight2.50 kg (set)
-
Package ContentsMultimedia Head Unit 9", 9" front fascia for Ford Ranger, CANbus Box, 6-pin multimedia harness, ISO power cable, USB adapter cable 4P/6P, Front RCA output cable 20P, AUX input cable, Rear view input & antenna cable 10P, Rear RCA output & CANbus cable 8P, GPS antenna, screws
