The UTi730E is a handheld professional thermal imaging camera by UNI‑T (Uni‑Trend). It features a 320×240 IR sensor, 3.5" IPS display, 2 MP visible camera, detachable 5200 mAh Li‑ion battery, Wi‑Fi connectivity, image fusion and PIP modes, and multiple on-screen analysis tools (multi‑point, line,...
More

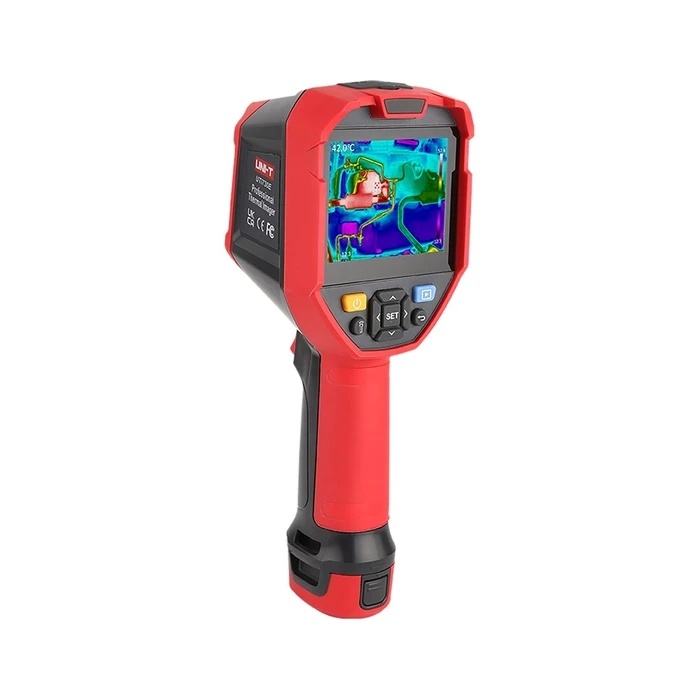

UTi730E Thermal Imaging Camera - UNI-T
Product Code: 1127678242
Upon Order
822,94 €
or
25,70€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The UTi730E is a handheld professional thermal imaging camera by UNI‑T (Uni‑Trend). It features a 320×240 IR sensor, 3.5" IPS display, 2 MP visible camera, detachable 5200 mAh Li‑ion battery, Wi‑Fi connectivity, image fusion and PIP modes, and multiple on-screen analysis tools (multi‑point, line, area). Intended for industrial diagnostics, electrical/HVAC inspections, building diagnostics and solar/pipe inspections.
-
BrandUNI-T (Uni‑Trend Technology)
-
Model / MPNUTi730E / LEC-MIE0475
-
SKUWLONONWCRASGE
-
EAN / Barcode5901890078481
-
CategoryHandheld thermal imaging camera
-
IR resolution320 × 240 pixels
-
Thermal sensitivity (NETD)65 mK
-
Spatial resolution (IFOV)3 mrad
-
Field of view (FOV)56° × 42°
-
Frame rate9 Hz
-
FocusFocus free (fixed)
-
Temperature measurement range-40°C to 400°C (-40°F to 752°F)
-
Temperature accuracy±2°C or ±2% (whichever is greater)
-
EmissivityAdjustable 0.01–1.00 (default 0.95)
-
Display3.5" IPS
-
Display resolution640 × 480
-
Visible-light camera2 MP
-
Battery typeLi‑ion removable/swappable
-
Battery capacity3.7V 5200 mAh
-
Battery life≥ 4 hours (continuous)
-
StorageMicroSD (16GB included commonly)
-
ConnectivityWi‑Fi, USB Type‑C
-
Supported file formatJPEG
-
Imaging modesThermal, Visual, Fusion, PIP
-
Color palettes7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
-
On-screen analysis5 point, 1 line, 3 rectangles, 3 circles
-
Isotherm functions6 modes (Auto, Ratio, Below, Above, Section, Manual)
-
Alarm featuresHigh/low temperature auto-tracking, alarm icons, flashlight indicator
-
LED lightBuilt-in dual LED flashlight
-
Digital zoom2×, 4×
-
Protection ratingIP54
-
Drop resistance2 m drop test
-
Net weight630 g
-
Package contents (typical)UTi730E unit, protective case, USB-C cable, spare battery, quick start guide, calibration certificate
-
CertificationsCE, UKCA, FCC, RoHS
Ratings
Description
The UTi730E is a handheld professional thermal imaging camera by UNI‑T (Uni‑Trend). It features a 320×240 IR sensor, 3.5" IPS display, 2 MP visible camera, detachable 5200 mAh Li‑ion battery, Wi‑Fi connectivity, image fusion and PIP modes, and multiple on-screen analysis tools (multi‑point, line, area). Intended for industrial diagnostics, electrical/HVAC inspections, building diagnostics and solar/pipe inspections.
Technical Specifications
-
BrandUNI-T (Uni‑Trend Technology)
-
Model / MPNUTi730E / LEC-MIE0475
-
SKUWLONONWCRASGE
-
EAN / Barcode5901890078481
-
CategoryHandheld thermal imaging camera
-
IR resolution320 × 240 pixels
-
Thermal sensitivity (NETD)65 mK
-
Spatial resolution (IFOV)3 mrad
-
Field of view (FOV)56° × 42°
-
Frame rate9 Hz
-
FocusFocus free (fixed)
-
Temperature measurement range-40°C to 400°C (-40°F to 752°F)
-
Temperature accuracy±2°C or ±2% (whichever is greater)
-
EmissivityAdjustable 0.01–1.00 (default 0.95)
-
Display3.5" IPS
-
Display resolution640 × 480
-
Visible-light camera2 MP
-
Battery typeLi‑ion removable/swappable
-
Battery capacity3.7V 5200 mAh
-
Battery life≥ 4 hours (continuous)
-
StorageMicroSD (16GB included commonly)
-
ConnectivityWi‑Fi, USB Type‑C
-
Supported file formatJPEG
-
Imaging modesThermal, Visual, Fusion, PIP
-
Color palettes7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
-
On-screen analysis5 point, 1 line, 3 rectangles, 3 circles
-
Isotherm functions6 modes (Auto, Ratio, Below, Above, Section, Manual)
-
Alarm featuresHigh/low temperature auto-tracking, alarm icons, flashlight indicator
-
LED lightBuilt-in dual LED flashlight
-
Digital zoom2×, 4×
-
Protection ratingIP54
-
Drop resistance2 m drop test
-
Net weight630 g
-
Package contents (typical)UTi730E unit, protective case, USB-C cable, spare battery, quick start guide, calibration certificate
-
CertificationsCE, UKCA, FCC, RoHS
