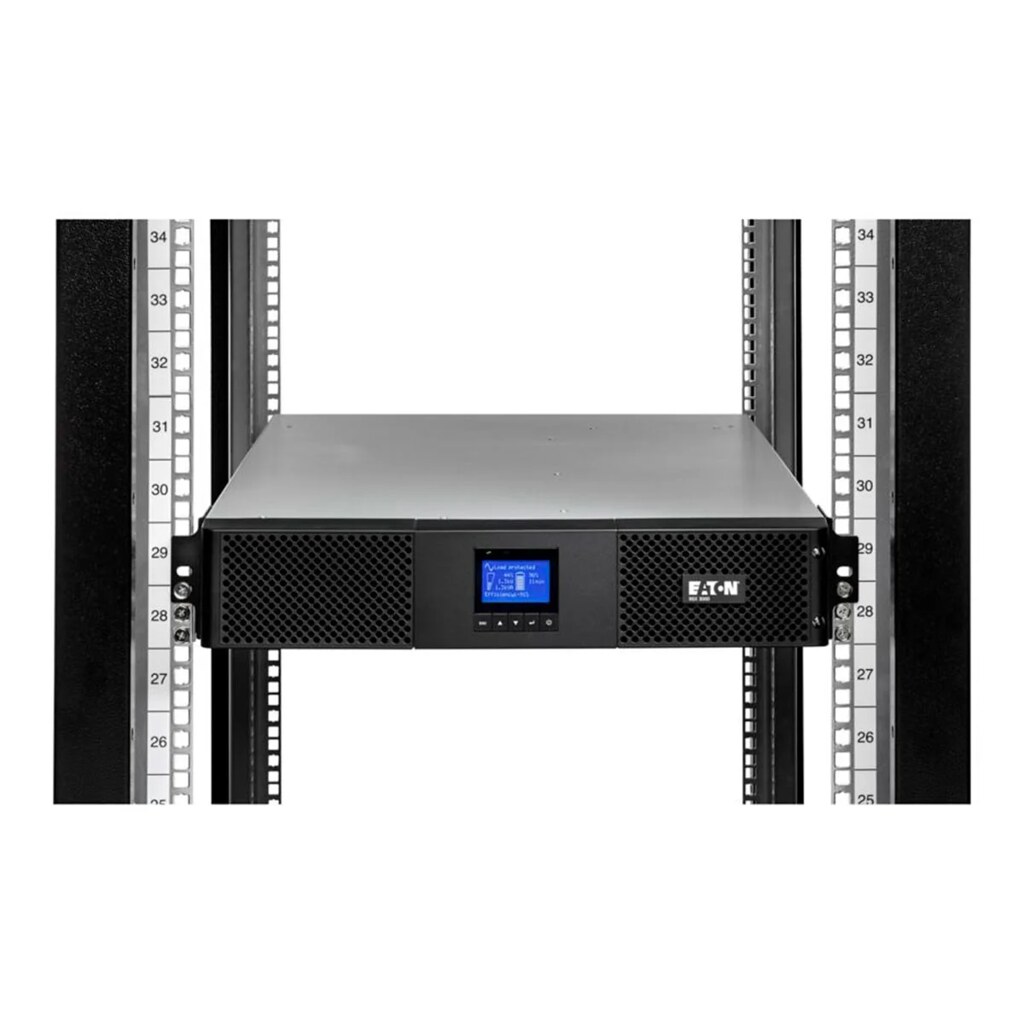

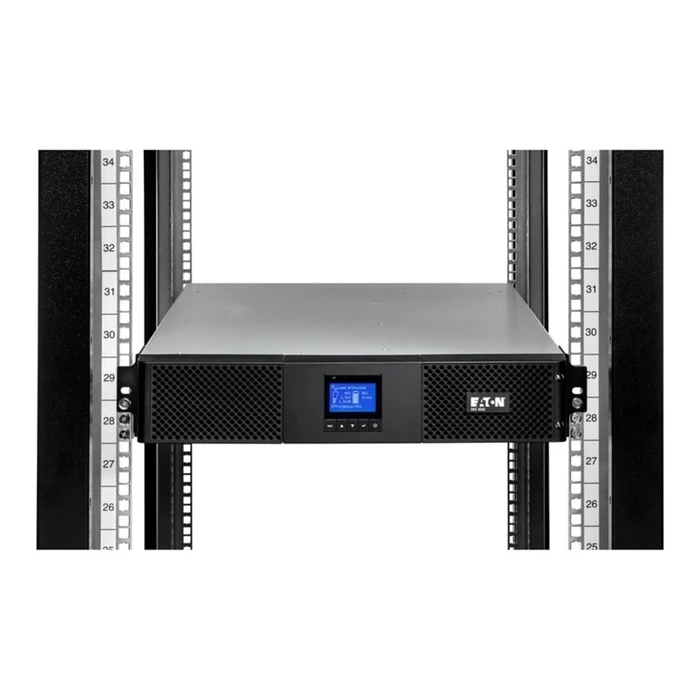

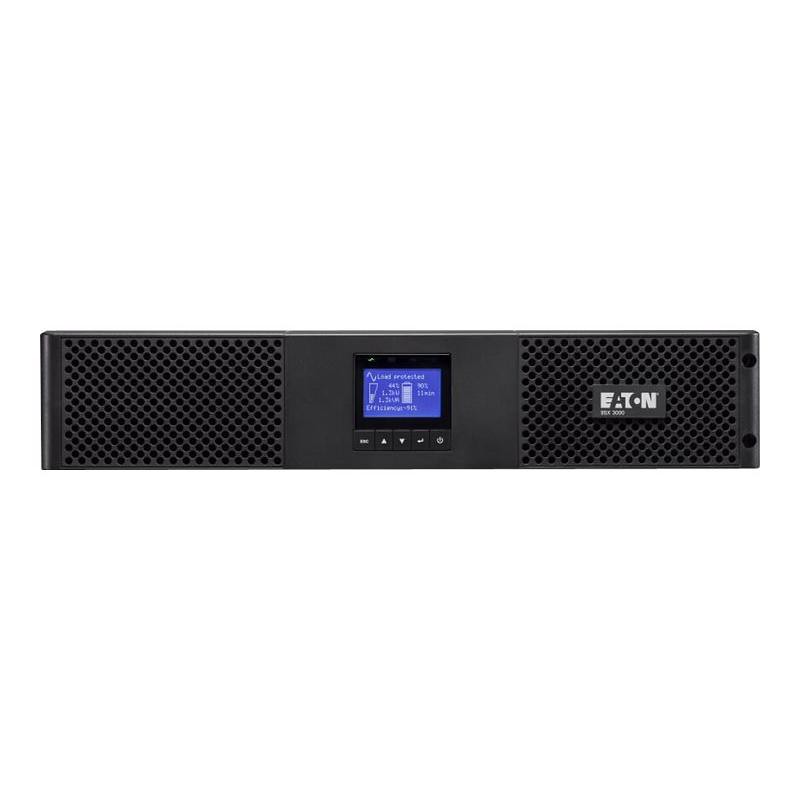

The Eaton 9SX 2000i Rack2U is a reliable online double-conversion (VFI) 2U rack UPS designed to support IT and network equipment. With a rated capacity of 2000 VA / 1800 W, it provides high efficiency and scalable runtime through external battery modules.

Key Technical Specifications:

• Topology: Online double-conversion (VFI) with automatic internal bypass.
• Input Voltage: Configurable nominal input voltage of 230 V.
• Output: Pure sine wave output with ±2% voltage regulation.
• Efficiency: Up to ~92.3% in online mode with Eco-mode efficiency up to ~98%.

Battery and Runtime:

This UPS features internal VRLA batteries with temperature-compensated charging, supporting up to 4 external battery packs for extended runtime. Estimated runtimes are approximately 12 minutes at 50% load and 5 minutes at 100% load.

Management and Communication:

Equipped with built-in USB and serial ports, users can easily manage their UPS and ensure optimal performance.
