The Eaton 9SX 1000i Rack2U (9SX1000IR) is a 1000 VA / 900 W online double-conversion UPS designed for 19-inch rack installation in a 2U form factor. It is intended for IT, server and network applications that require reliable power protection and clean sine wave output. The unit features a...
More

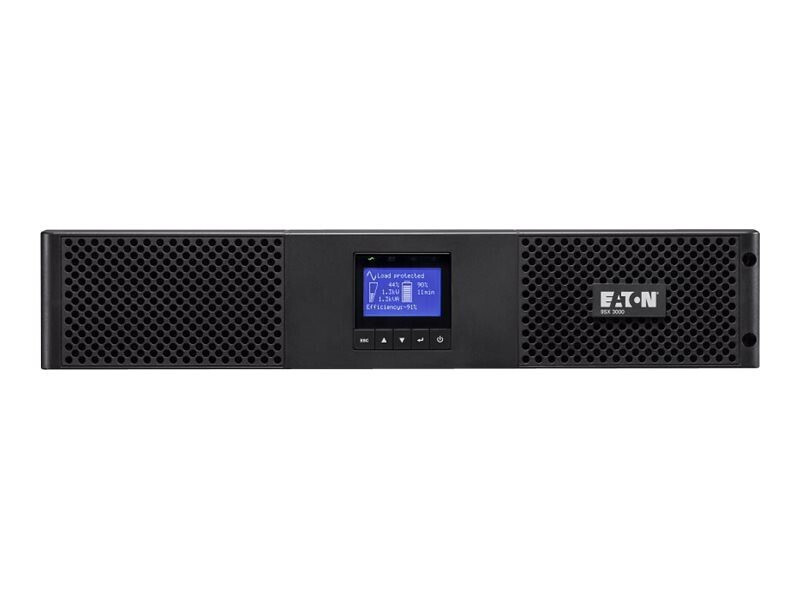

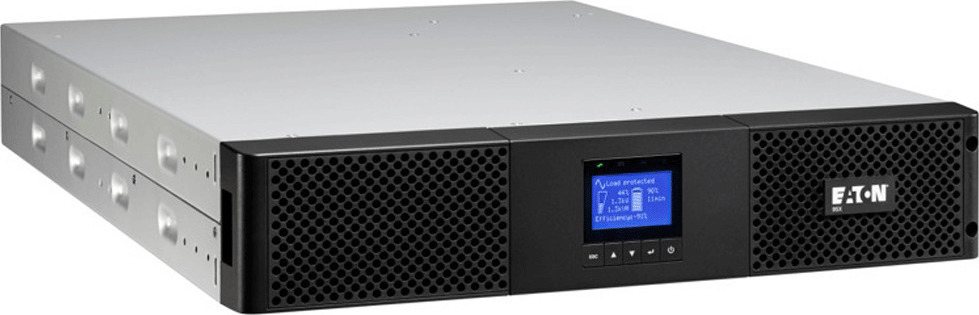

UPS Eaton 9SX 1000i Rack2U 9SX1000IR
Product Code: 1153630181
Upon Order
1.348,18 €
or
42,10€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
APC Smart UPS SmartUPS SMT3000RMI2UNC Rackmount Line Interactive UPS with Network Card
Upon Order
3.563,95 €
APC Smart UPS On Line 2200VA Rack Mountable 2U 230V Network Card Extended Runtime
Upon Order
3.562,66 €
APC Smart UPS On Line SRT1000RMXLI NC 1000VA 1000W Rackmount 2U UPS
Available in 4 - 10 days
2.296,46 €
Eaton Default Eaton 5PX 1000i RT2U Netpack G2 Rack Tower UPS with Network Card
Upon Order
1.660,79 €
The Eaton 9SX 1000i Rack2U (9SX1000IR) is a 1000 VA / 900 W online double-conversion UPS designed for 19-inch rack installation in a 2U form factor. It is intended for IT, server and network applications that require reliable power protection and clean sine wave output. The unit features a multilingual graphical LCD, one IEC C14 input, six IEC C13 output receptacles, and support for an optional communication card. It includes a rack mounting kit, comes in black, and measures 86.5 x 438 x 438 mm with a weight of about 15.7 kg. Electrical specifications include a default 230 V input and output configuration, 40-70 Hz input frequency range, 0.9 output power factor, greater than 0.99 input power factor, and up to 89 percent efficiency at maximum load. The UPS uses renewable VRLA lead-acid batteries, has a battery life of 3-5 years, and provides estimated runtimes of approximately 16 minutes at 50 percent load, 10 minutes at 70 percent load, and 6 minutes at full load. It operates in temperatures from 0 to 40 C, with 0-96 percent non-condensing humidity and up to 3000 m altitude, and is supported by certifications including IEC/EN 62040, UL 1778, CE, cULus, CSA 22.2, FCC Part 15 Class B, CISPR22 Class B, TUV and EAC.
-
BrandEaton
-
Model9SX1000IR
-
SKU154344
-
EAN0743172090959
-
MPN9SX1000IR
-
Product TypeOnline Double-Conversion UPS
-
Form FactorRackmount 2U
-
Rack Size19 inch
-
Rated Power1000 VA
-
Rated Power Output900 W
-
TopologyOnline double-conversion with PFC
-
Input Voltage230 V default
-
Input Voltage Range190-276 V without derating; 120-276 V with derating
-
Input Frequency40-70 Hz
-
Input ConnectionIEC 320 C14
-
Output Voltage230 V default
-
Output Voltage Range200-240 V
-
Output Receptacles6 x IEC C13
-
Output WaveformSine wave
-
Output Power Factor0.9
-
Input Power Factor>0.99
-
Efficiency at Max Load89 percent
-
Battery TypeVRLA lead-acid, renewable
-
Battery Quantity3
-
External Battery Pack SupportUp to 4
-
Battery Life3-5 years
-
Estimated Runtime at 50 Percent Load16 minutes
-
Estimated Runtime at 70 Percent Load10 minutes
-
Estimated Runtime at 100 Percent Load6 minutes
-
DisplayMultilingual graphical LCD
-
Communication Slot1 optional slot
-
Management OptionsEthernet interface option, SNMP optional
-
Noise LevelLess than 41 dB at 1 meter
-
Operating Temperature0 C to 40 C
-
Operating Humidity0-96 percent non-condensing
-
Operating AltitudeUp to 3000 m
-
ColorBlack
-
Dimensions86.5 x 438 x 438 mm
-
Weight15.7 kg
-
Rack Mounting KitIncluded
-
Warranty2 years
-
CertificationsIEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, CSA 22.2, FCC Part 15 Class B, CISPR22 Class B, TUV, EAC
Ratings
Description
The Eaton 9SX 1000i Rack2U (9SX1000IR) is a 1000 VA / 900 W online double-conversion UPS designed for 19-inch rack installation in a 2U form factor. It is intended for IT, server and network applications that require reliable power protection and clean sine wave output. The unit features a multilingual graphical LCD, one IEC C14 input, six IEC C13 output receptacles, and support for an optional communication card. It includes a rack mounting kit, comes in black, and measures 86.5 x 438 x 438 mm with a weight of about 15.7 kg. Electrical specifications include a default 230 V input and output configuration, 40-70 Hz input frequency range, 0.9 output power factor, greater than 0.99 input power factor, and up to 89 percent efficiency at maximum load. The UPS uses renewable VRLA lead-acid batteries, has a battery life of 3-5 years, and provides estimated runtimes of approximately 16 minutes at 50 percent load, 10 minutes at 70 percent load, and 6 minutes at full load. It operates in temperatures from 0 to 40 C, with 0-96 percent non-condensing humidity and up to 3000 m altitude, and is supported by certifications including IEC/EN 62040, UL 1778, CE, cULus, CSA 22.2, FCC Part 15 Class B, CISPR22 Class B, TUV and EAC.
Technical Specifications
-
BrandEaton
-
Model9SX1000IR
-
SKU154344
-
EAN0743172090959
-
MPN9SX1000IR
-
Product TypeOnline Double-Conversion UPS
-
Form FactorRackmount 2U
-
Rack Size19 inch
-
Rated Power1000 VA
-
Rated Power Output900 W
-
TopologyOnline double-conversion with PFC
-
Input Voltage230 V default
-
Input Voltage Range190-276 V without derating; 120-276 V with derating
-
Input Frequency40-70 Hz
-
Input ConnectionIEC 320 C14
-
Output Voltage230 V default
-
Output Voltage Range200-240 V
-
Output Receptacles6 x IEC C13
-
Output WaveformSine wave
-
Output Power Factor0.9
-
Input Power Factor>0.99
-
Efficiency at Max Load89 percent
-
Battery TypeVRLA lead-acid, renewable
-
Battery Quantity3
-
External Battery Pack SupportUp to 4
-
Battery Life3-5 years
-
Estimated Runtime at 50 Percent Load16 minutes
-
Estimated Runtime at 70 Percent Load10 minutes
-
Estimated Runtime at 100 Percent Load6 minutes
-
DisplayMultilingual graphical LCD
-
Communication Slot1 optional slot
-
Management OptionsEthernet interface option, SNMP optional
-
Noise LevelLess than 41 dB at 1 meter
-
Operating Temperature0 C to 40 C
-
Operating Humidity0-96 percent non-condensing
-
Operating AltitudeUp to 3000 m
-
ColorBlack
-
Dimensions86.5 x 438 x 438 mm
-
Weight15.7 kg
-
Rack Mounting KitIncluded
-
Warranty2 years
-
CertificationsIEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, CSA 22.2, FCC Part 15 Class B, CISPR22 Class B, TUV, EAC
