Product Overview

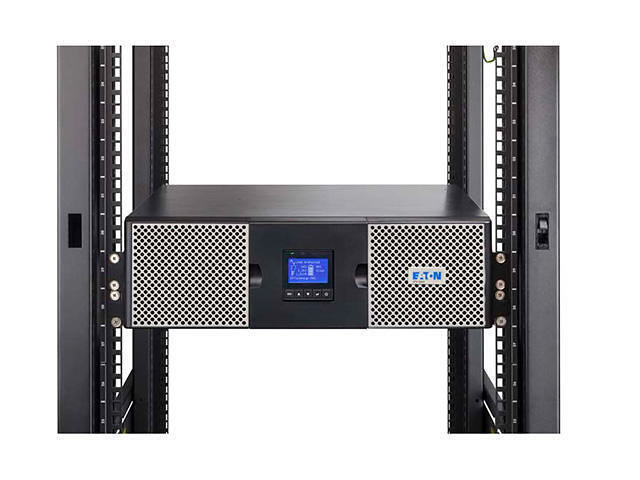

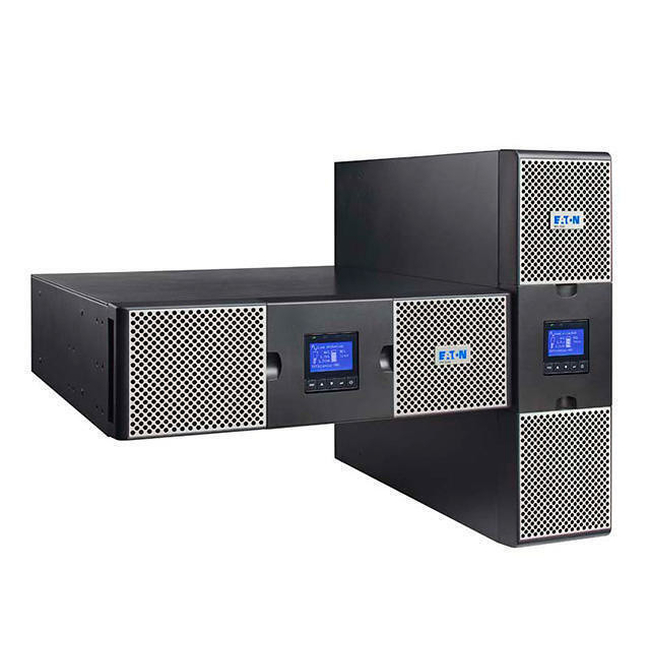

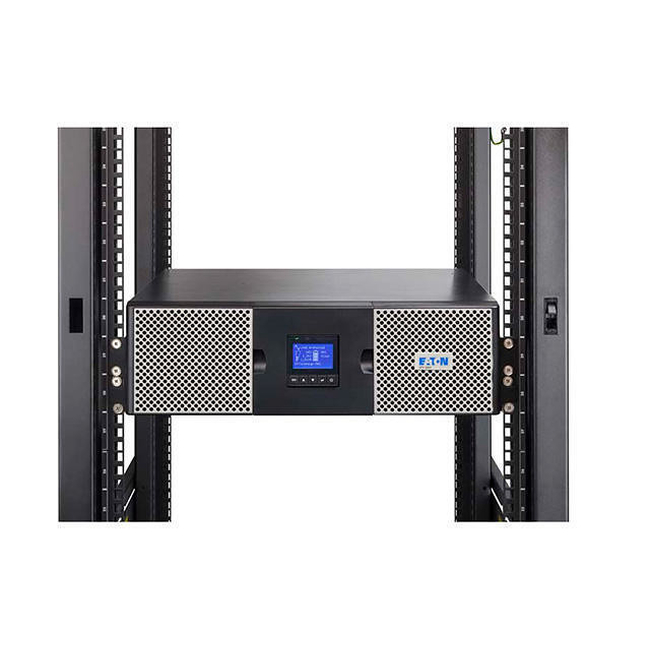

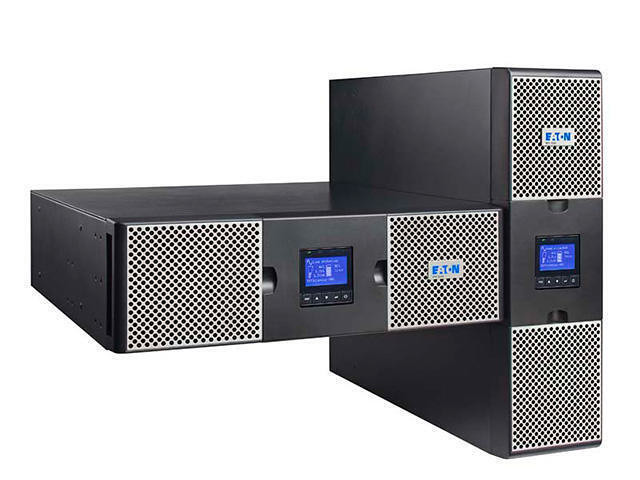

The Eaton 9PX 2200i RT3U is a high-performance, rack-mountable uninterruptible power supply (UPS) designed to provide reliable and efficient power protection for critical systems.

Its design features a black and silver finish, making it not only functional but also aesthetically pleasing.

Technical Specifications

• Output Voltage Range: 200 to 240 volts with a tolerance of +/- 1%
• Phase: Single phase input and output
• VA Rating and Wattage: 2200 VA and 2200 W
• Runtime: 3 minutes at full load, 10 minutes at half load
• Battery Type: Sealed, lead-acid batteries
• Efficiency: Maximum efficiency of up to 98% in online mode
• Input Voltage Range: 176 to 276 volts
• Input Frequency Range: 40 to 70 Hz
• Power Factor Correction: Unity power factor (VA=W)
• Connectors and Interfaces: 10 output connectors, RS-232 and USB interfaces

Additional Features

• LCD Display: For monitoring and control
• Internal Bypass: For continuous operation during maintenance
• Remote Management Interface: Via RS-232 and USB
• Software Included: Intelligent Power Software Suite for comprehensive management

Environmental and Regulatory Compliance

The Eaton 9PX 2200i RT3U is also ENERGY STAR compliant, showcasing its commitment to energy efficiency and environmental sustainability.

Summary

Overall, the Eaton 9PX 2200i RT3U is a robust UPS that effectively ensures reliable power protection in various environments.
