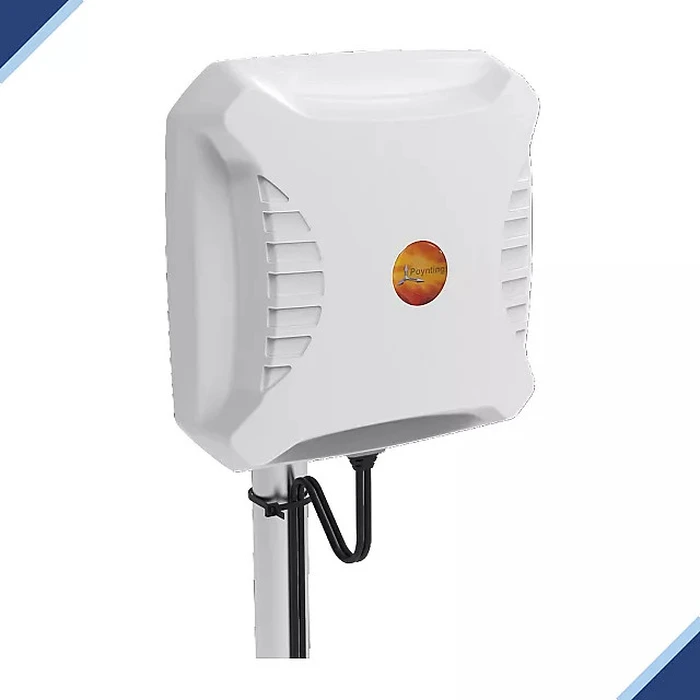

The Poynting Antennas 5G/LTE Mast/Wand A-XPOL-0002-V3-03 is a high-performance, cross-polarized directional antenna tailored for 2x2 MIMO applications within 5G and LTE networks. This third-generation XPOL antenna, belonging to Poynting's V3 series, features advanced metamaterial technology and a patented radiator configuration that significantly enhances bandwidth and gain.
Key Features:
- Frequency Bands: The antenna covers a wide range of frequency bands including 617-960 MHz, 1710-2700 MHz, and 3400-3800 MHz, making it versatile for various communication systems.
- Gain and VSWR: Maximum gains are 9 dBi (617-960 MHz), 10 dBi (1710-2700 MHz), and 11 dBi (3400-3800 MHz), with a VSWR ?1.5:1.
- Polarization: Cross-polarized configuration provides ±45° polarization to minimize interference and maximize signal strength.
Environmental Resistance:
- IP65 rating: weatherproof and waterproof
- Temperature range: -40°C to +80°C
- Resilient to winds up to 250 km/h
-
Frequency Bands617-960 MHz, 1710-2700 MHz, 3400-3800 MHz
-
Maximum Gain11 dBi
-
VSWR?1.5:1
-
Polarization±45°
-
IP RatingIP65
-
Wind Resistance250 km/h
-
Operating Temperature-40°C to +80°C
-
Dimensions265 mm x 265 mm x 90 mm
-
Packaged Dimensions375 mm x 270 mm x 100 mm
-
Weight1.73 kg
-
Packaged Weight2.16 kg
-
Cable Length10 meters
-
Cable TypeTwin HDF 195
-
Connector TypeSMA (M)
-
Cable Loss at 1800 MHz0.514 dB/m
-
Cable Loss at 2400 MHz0.533 dB/m
-
Cable Loss at 3000 MHz0.603 dB/m
Ratings
Description
The Poynting Antennas 5G/LTE Mast/Wand A-XPOL-0002-V3-03 is a high-performance, cross-polarized directional antenna tailored for 2x2 MIMO applications within 5G and LTE networks. This third-generation XPOL antenna, belonging to Poynting's V3 series, features advanced metamaterial technology and a patented radiator configuration that significantly enhances bandwidth and gain.
Key Features:
- Frequency Bands: The antenna covers a wide range of frequency bands including 617-960 MHz, 1710-2700 MHz, and 3400-3800 MHz, making it versatile for various communication systems.
- Gain and VSWR: Maximum gains are 9 dBi (617-960 MHz), 10 dBi (1710-2700 MHz), and 11 dBi (3400-3800 MHz), with a VSWR ?1.5:1.
- Polarization: Cross-polarized configuration provides ±45° polarization to minimize interference and maximize signal strength.
Environmental Resistance:
- IP65 rating: weatherproof and waterproof
- Temperature range: -40°C to +80°C
- Resilient to winds up to 250 km/h
Technical Specifications
-
Frequency Bands617-960 MHz, 1710-2700 MHz, 3400-3800 MHz
-
Maximum Gain11 dBi
-
VSWR?1.5:1
-
Polarization±45°
-
IP RatingIP65
-
Wind Resistance250 km/h
-
Operating Temperature-40°C to +80°C
-
Dimensions265 mm x 265 mm x 90 mm
-
Packaged Dimensions375 mm x 270 mm x 100 mm
-
Weight1.73 kg
-
Packaged Weight2.16 kg
-
Cable Length10 meters
-
Cable TypeTwin HDF 195
-
Connector TypeSMA (M)
-
Cable Loss at 1800 MHz0.514 dB/m
-
Cable Loss at 2400 MHz0.533 dB/m
-
Cable Loss at 3000 MHz0.603 dB/m
