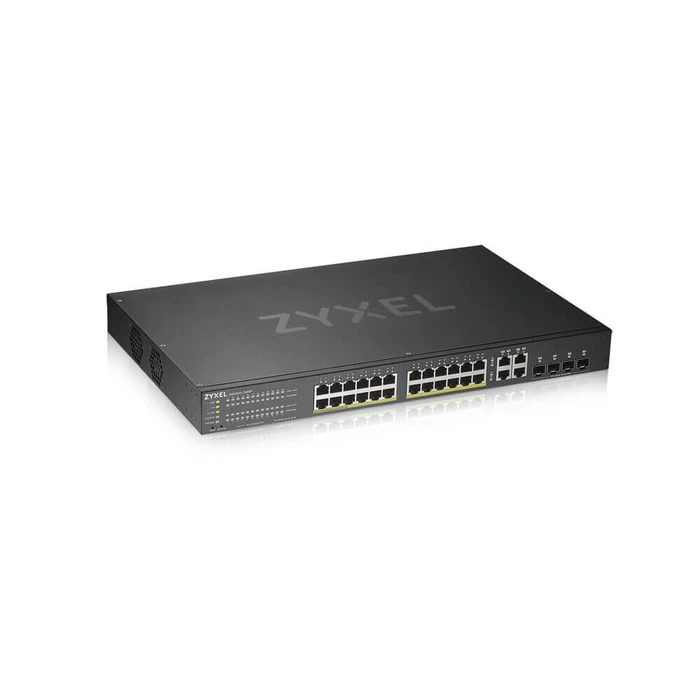

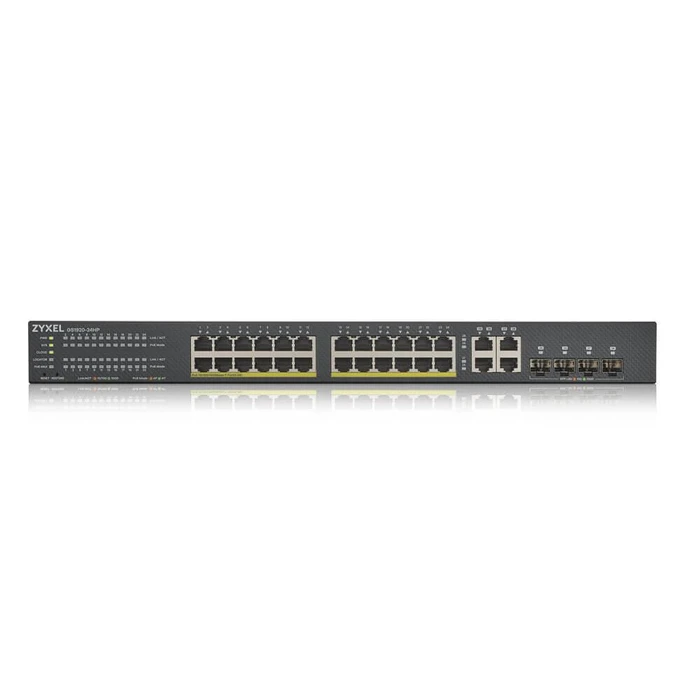

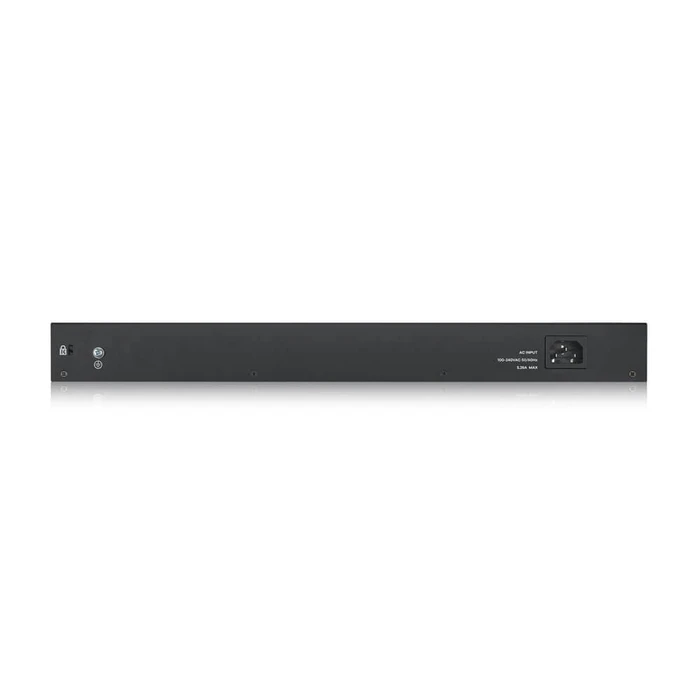

Network Switch 24-Port ZyXEL GS192024HPV2-EU0101F

Technical Specifications

• LED indicators
  Y
• Product colour
  Black
• Rack mounting
  Y
• AC input frequency
  50 - 60 Hz
• Power consumption (max)
  463.5 W
• AC input voltage
  100 - 240 V
• Queue scheduling algorithms
  Weighted Round Robin (WRR)
• CPU defense
  Y
• Authentication type
  IEEE 802.1x
• Password protection
  Y
• Authentication
  Guest VLAN
• IP-MAC-Port binding
  Y
• Security algorithms
  SNMPv3
• MAC address filtering
  Y
• IGMP snooping
  Y
• Access Control List (ACL)
  Y
• DHCP features
  DHCPv6 relay
• Heat dissipation
  1580.54 BTU/h
• Storage relative humidity (H-H)
  10 - 95%
• Storage temperature (T-T)
  -40 - 70 °C
• Operating relative humidity (H-H)
  10 - 95%
• Operating temperature (T-T)
  0 - 50 °C
• Switch type
  Managed
• Quality of Service (QoS) support
  Y
• System event log
  Y
• ARP inspection
  Y
• Height
  44 mm
• Weight
  3.8 kg
• Depth
  270 mm
• Width
  441 mm
• Virtual LAN features
  Port-based VLAN
• Spanning tree protocol
  Y
• VLAN support
  Y
• Rate limiting
  Y
• Copper ethernet cabling technology
  1000BASE-T
• Flow control support
  Y
• Networking standards
  IEEE 802.3z
• 10G support
  N
• Noise level
  27.2 dB
• Mean time between failures (MTBF)
  638691 h
• Flash memory
  32 MB
• Internal memory
  256 MB
• Package height
  107 mm
• Package weight
  4.97 kg
• Package depth
  355 mm
• Rack mount kit
  Y
• Package width
  616 mm
• Cables included
  AC
• Combo SFP ports quantity
  4
• Fiber optic connector
  SFP
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity
  24
• Packet buffer memory
  1.5 MB
• MAC address table
  16000 entries
• Switching capacity
  56 Gbit/s
• Forwarding rate
  42 Mpps
• Power over Ethernet (PoE) ports quantity
  24
• Total Power over Ethernet (PoE) budget
  375 W
• Power over Ethernet (PoE)
  Y
• Multicast support
  Y
• Fiber ethernet cabling technology
  1000BASE-X
• Safety
  LVD, BSMI
• Certification
  RoHS
• Electromagnetic compatibility
  FCC 15 A, CE A, BSMI EMC
• MIB support
  RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
