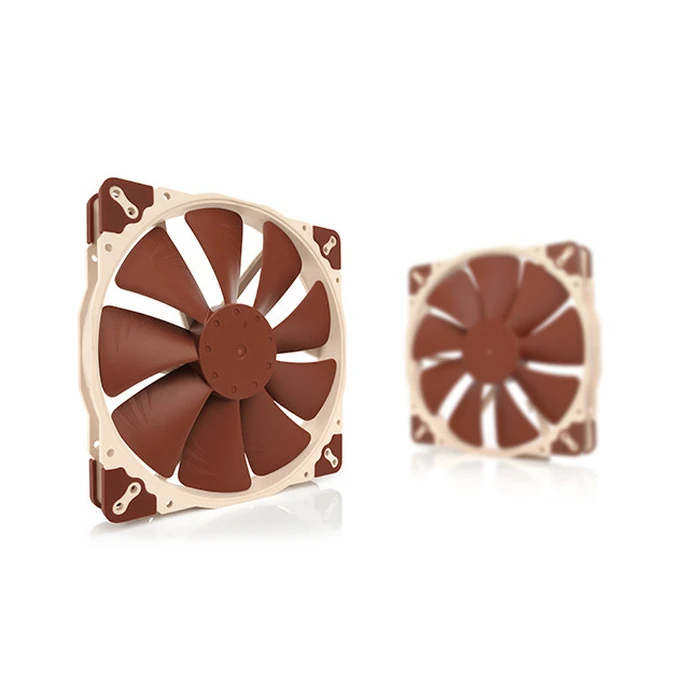

Case Fan 20cm Noctua NF-A20 PWM Beige, Brown

Technical Specifications

• Number of fan blades
  9
• Number of fans
  1 fan(s)
• Fan connector
  4-pin
• Product colour
  Brown
• Voltage
  12 V
• Maximum current
  0.08 A
• Power supply
  0.96 W
• Depth
  30 mm
• Width
  200 mm
• Height
  200 mm
• Pulse-width modulation (PWM) support
  Y
• Maximum air pressure
  1.08 mmH2O
• Suitable for
  Computer case
• Bearing type
  Self-Stabilising Oil-pressure Bearing (SSO)
• Noise level with LNA (max)
  10.7 dB
• Minimum air pressure
  0.51 mmH2O
• Rotational speed (min)
  350 RPM
• Noise level (high speed)
  18.1 dB
• Fan diameter
  20 cm
• Compatible processor series
  Not supported
• Rotational speed (max)
  800 RPM
• Airflow with LNA (max)
  100.8 m³/h
• Rotational speed with LNA (max)
  550 RPM
• Airflow
  146.9 m³/h
• Type
  Fan
• Supported processor sockets
  Not supported
• Number of screws
  4
• Cables included
  Fan
• Screws included
  Y
• Low-noise adaptor (LNA)
  Y
• Mean time to failure (MTTF)
  150000 h
• Mounting hole pattern (W x D)
  170 x 170 mm
