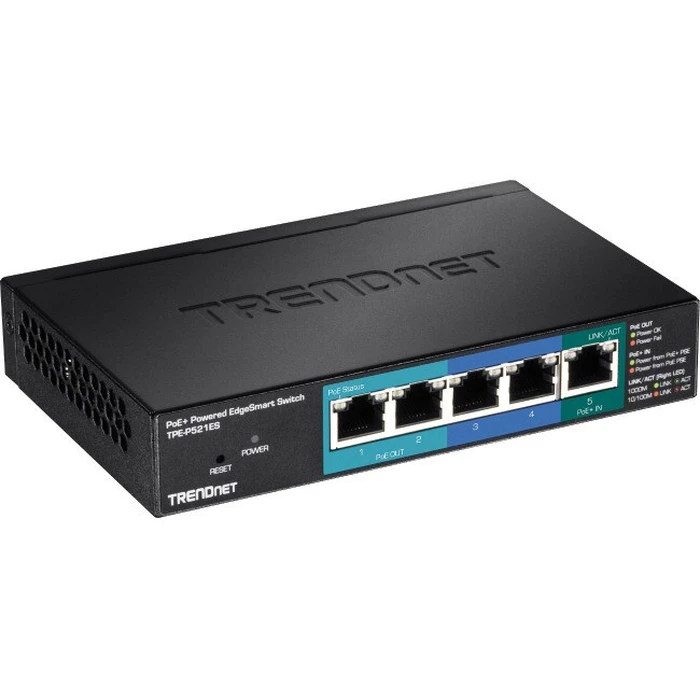

Network Switch Trendnet 5-Port Gbit EdgeSmart PoE+ 18 W Metall

Technical Specifications

• IGMP snooping
  Yes
• loop Protection
  Yes
• Management protocols
  SNMP v1, v2c
• certification
  CE, FCC
• Rack mounting
  No
• Color of product
  black
• wall mounting
  Yes
• LED displays
  Yes
• Mean time between failures (MTBF)
  730,455 h
• buffer size
  512 KB
• Firmware upgradeable
  Yes
• Power consumption (max.)
  20.4 W
• Power protection features
  Overcurrent, short circuit
• Power over Ethernet (PoE)
  Yes
• Number of Power over Ethernet (PoE) ports
  2
• Number of Ports Power over Ethernet Plus (PoE +)
  1
• Total output Power over Ethernet (PoE)
  18 W
• Switch type
  managed
• Quality of Service (QoS) support
  Yes
• Reset button
  Yes
• Number of basic switching RJ-45 Ethernet ports
  5
• Basic switching RJ-45 Ethernet port type
  Gigabit Ethernet (10/100/1000)
• Networking standards
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, 802.3at IEEE, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• Spanning tree protocol
  Yes
• Broadcast Storm Control
  Yes
• Port Mirroring
  Yes
• 10G support
  No
• MAC address table
  2048 entries
• Routing / switching capacity
  10 Gbit / s
• transfer rate
  7.44 Mpps
• Jumbo Frames support
  Yes
• Jumbo Frames
  9216
• VLAN support
  Yes
• Number of VLANs
  4094
• private VLAN
  Yes
• VLAN Identifier (VLAN ID)
  Yes
• Voice VLAN
  Yes
• Tagged VLAN
  Yes
• Port-based VLAN
  Yes
• multicast support
  Yes
• width
  150 mm
• depth
  97 mm
• height
  28.6 mm
• mass
  370 g
• Temperature range in operation
  0 - 40 ° C
