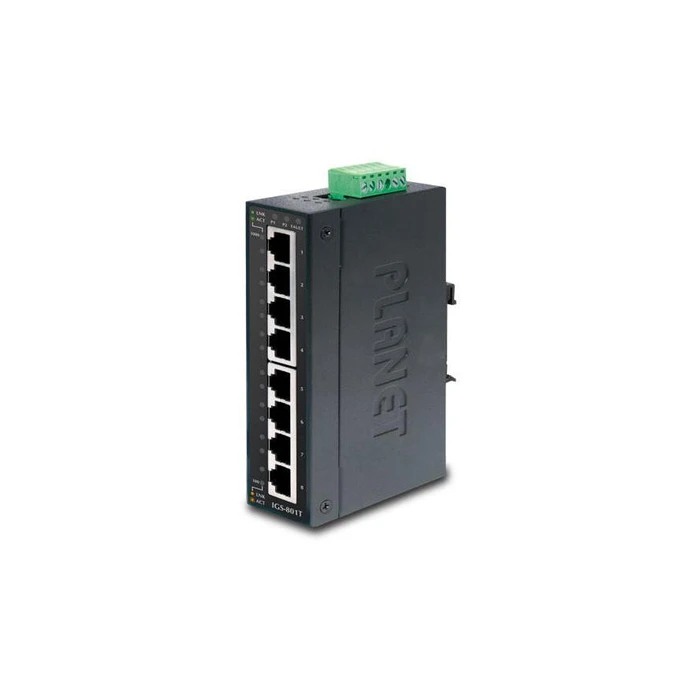

Network Switch Planet 8-Port

Technical Specifications

• certification
  FCC, CE
• Rack mounting
  No
• Color of product
  black
• wall mounting
  Yes
• Protection (IP code)
  IP30
• DIN rail mounting
  Yes
• housing material
  metal
• Auto-negotiation function
  Yes
• Power consumption (typical)
  6.72 W
• Support for redundant power supply
  Yes
• Power over Ethernet (PoE) support
  No
• Switch type
  unmanaged
• Switch level
  L2
• Quality of Service (QoS) support
  Yes
• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic switching RJ-45 Ethernet port type
  Gigabit Ethernet (10/100/1000)
• Copper Ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• Number Gigabit Ethernet (copper) connections
  8th
• Networking standards
  IEEE 802.1, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• full duplex
  Yes
• supported cable types
  Cat5, Cat5e, Cat6
• supported self-learning of MAC addresses
  Yes
• 10G support
  No
• Broadcast Storm Control
  Yes
• Auto MDI / MDI-X
  Yes
• supports auto-aging of MAC addresses
  Yes
• Flow control support
  Yes
• MAC address table
  4096 entries
• Routing / switching capacity
  16 Gbit / s
• passage
  11.9 Mpps
• Store-and-Forward
  Yes
• Jumbo Frames support
  Yes
• Jumbo Frames
  9216
• width
  135 mm
• depth
  87 mm
• height
  32 mm
• mass
  461 g
• heat dissipation
  23 BTU / h
• Temperature range in operation
  -40 - 75 ° C
• Storage temperature range
  -40 - 75 ° C
• Humidity in operation
  5 - 95%
• Humidity (non-condensing)
  5 - 95%
• Terminal block connection
  Yes
